LiteDOCK Extreme (EXTRMLD)

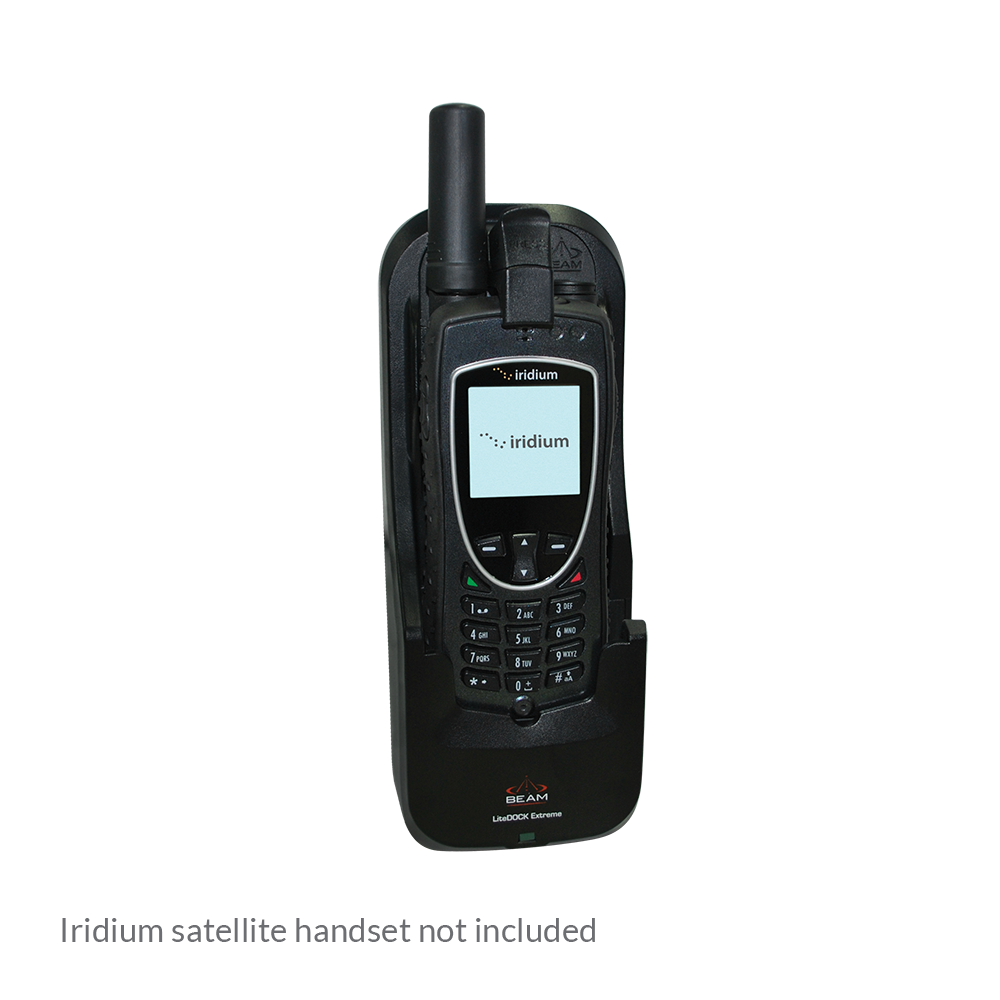

The Beam LiteDOCK Extreme, an Iridium 9575 dock, is an entry-level docking station for the Iridium 9575 handset that can be used in various maritime, transport or fixed site applications.
- Docking
- Charging
- USB
- External GPS Antenna
LiteDOCK Extreme Features
Compact Installation

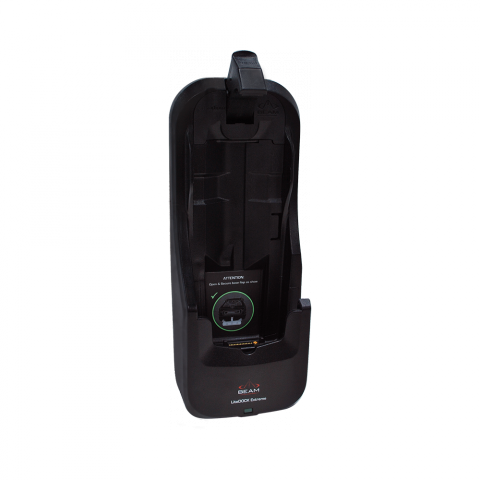

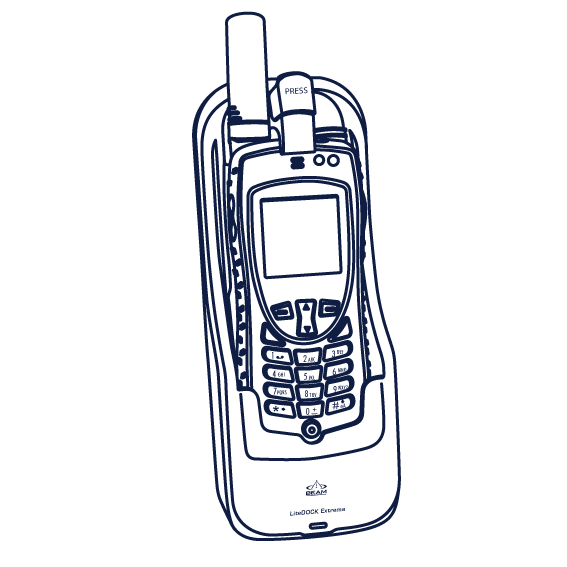

The Iridium Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button. It is purposely built to allow you to utilize the SOS emergency, with an inbuilt GPS coupling capability that allows you to connect an external GPS antenna to the dock.
Key Benefits and Features
• Slim line compact installation
• Voice, SMS, SBD and Circuit Switched Data capable
• USB data interface
• SMA Connectors – Iridium Antenna
• Full certified, Iridium, RoHS, CE, IEC60945
• 2 year repair or replacement warranty
• Voice, SMS, SBD and Circuit Switched Data capable
• USB data interface
• SMA Connectors – Iridium Antenna
• Full certified, Iridium, RoHS, CE, IEC60945
• 2 year repair or replacement warranty
Watch LiteDOCK Extreme Video
Beam LiteDOCK Extreme is the ideal low cost docking station for the Iridium 9575 handset that can be used in various maritime, transport or fixed site applications.
The LiteDOCK Extreme is purposely built to allow you to utilise the SOS emergency, with an inbuilt GPS coupling capability that allows you to connect an external GPS antenna to the dock.
Beam LiteDOCK Extreme features USB data port, phone charging, an integrated Iridium and GPS antenna, making it possible to keep all antenna cables permanently connected to the docking station, ready for use.
The Iridium Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button.
Similar items you may be interested in
The Beam IsatDock2 LITE, the only Inmarsat Certified Dock for the IsatPhone 2, is an ...
View product
The Beam DriveDOCK Extreme, an Iridium 9575 Extreme dock which is the ideal highly featured ...
View product
The Beam PotsDOCK Extreme, an Iridium 9575 dock, is a highly featured docking station for ...
View product
The Beam IntelliDOCK 9555, is the ideal low cost docking station for the Iridium 9555 ...
View product
LiteDOCK Extreme Specifications
Power
| Rated Input | 6V DC, 850mA max |
| AC Power Pack | Not included (adaptor included with your Iridium handset) |
| Average Power Consumption | 5 watts |
Interfaces
| Data Port (USB) | USB Mini-B 5-pin female (USB Slave). |
| Iridium AntennaConnector | TNC-Female |
| GPS Antenna Connector | Active 3.3V DC, SMA Female |
| LEDs | Status LED |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating | -30°C to +70°C | -22°F to +158°F |
| Charging | 0°C to +45°C | +32°F to +113°F |
| Storage | -30°C to +80°C | -22°F to +176°F |
| Operating Humidity | < 85% RH non-condensing |
Physical
| Dimensions | mm | inches |
| Dock | 82.2W x 212H x 75.9D | 3.24W x 8.35H x 2.99D |
| Outer Box | 140 W x 125 D x 325 H | 5.5 W x 4.9 D x 12.8 H |
| Weight | kg | lbs |
| Dock | 0.375 | 0.83 |
| Box | 1.05 | 2.31 |
Kit Contents
| LiteDOCK Extreme Cradle |
| Universal Mounting Bracket (RAM) |
| Quick Start Guide |
Certifications
| Iridium |
| EMC Compliance |
| CE Compliance |
| Electrical Safety |
| RoHS |
| C-Tick |
| *Independent Aeronautical certification MUST be gained prior to installation |
Brochures
Brochure LiteDOCK Extreme
For more information please download our LiteDOCK Extreme Brochure.
Download brochure
Brochure Extreme Docks Series
For more information please download our Extreme Docks Series Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
