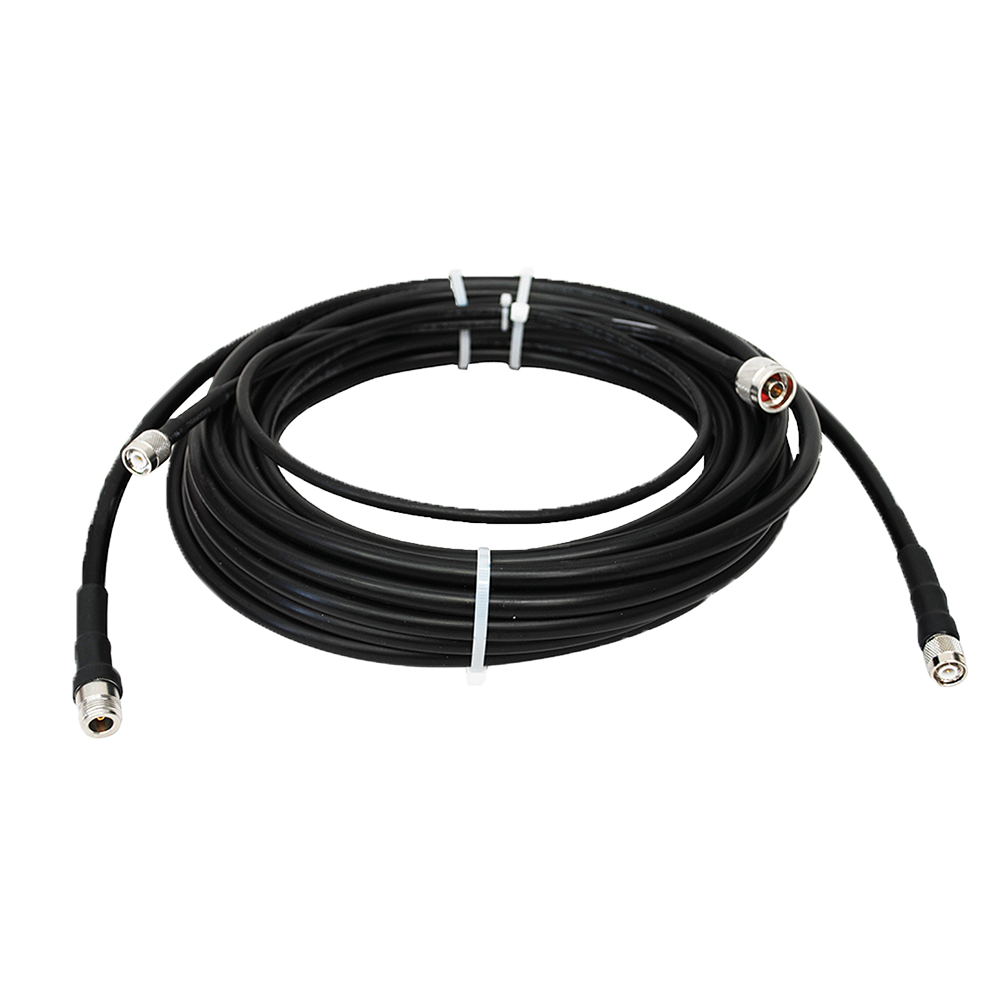

Iridium Beam Passive Antenna Cable Kit - 12m/39.4ft (RST933)

MSRP $365 USD

Beam RST933 Iridium 12 metre (39 feet) antenna cable provides a flexible installation option for most marine or fixed site installations and is pre-terminated with TNC male connectors.

Read more product features

Iridium Beam Passive Antenna Cable Kit - 12m/39.4ft Features

Beam RST933 Iridium 12 metre (39 feet) antenna cable provides a flexible installation option for most marine or fixed site installations and is pre-terminated with TNC male connectors.
Download Certificate of Origin

Similar items you may be interested in

Iridium Beam Passive Antenna Cable Kit - 12m/39.4ft Specifications

Main Cable (Passive)

Length m ft
Main Cable 11 36.09
Dimensions mm inches
External Diameter 10.29 0.41
Bend Radius 25.4 1
Bend Radius - repeated 101.6 4
Temperature Degrees °C Degrees °F
Operating -40°C to +85°C -40°F to +185°F

Fly-Lead (Passive)

Length m ft
Fly-Lead 1 3.28
Dimensions mm inches
External Diameter 6.1 0.24
Bend Radius 19.1 0.75
Bend Radius - repeated 63.5 2.5
Temperature Degrees °C Degrees °F
Operating -40°C to +85°C -40°F to +185°F

Connectors

Main Cable TNC-Male to N-Male
Fly-Lead TNC-Male to N-Female

Total Kit Weight

kg lbs
1.15 2.54
