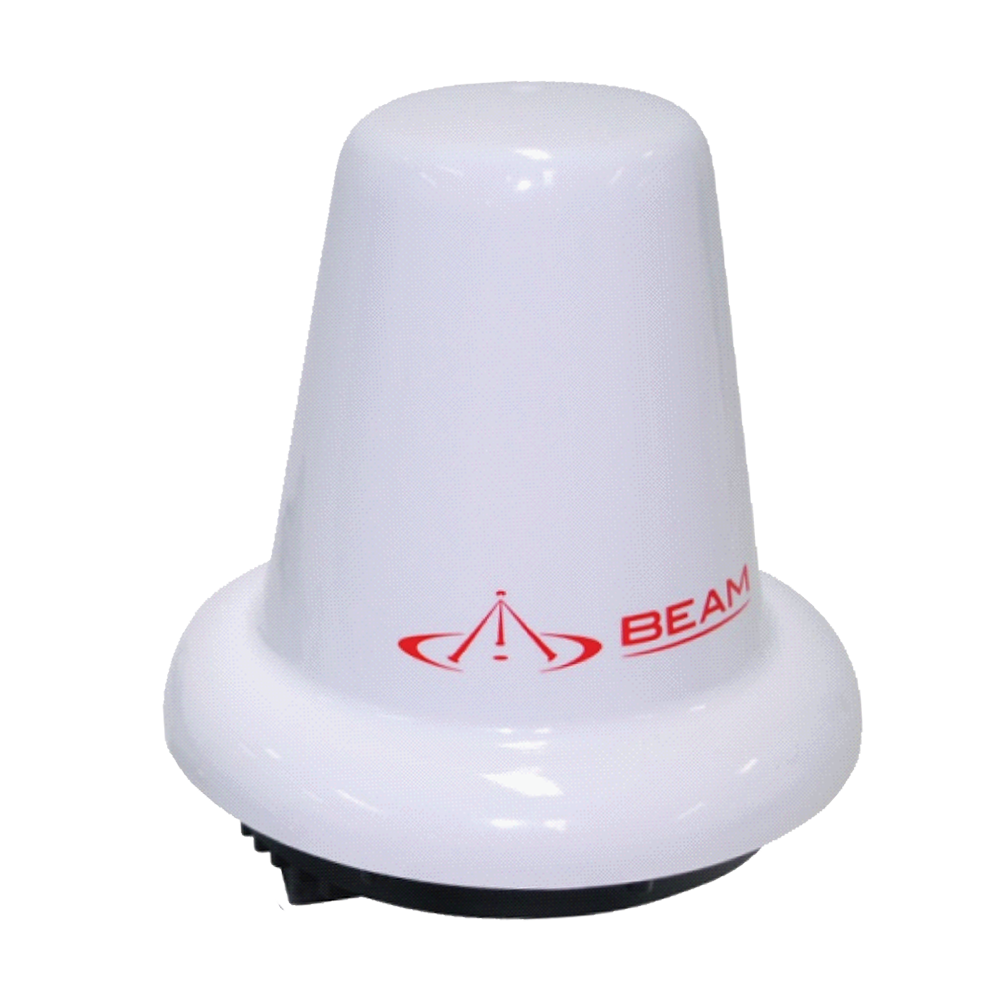

Iridium Beam Active Antenna (RST740)

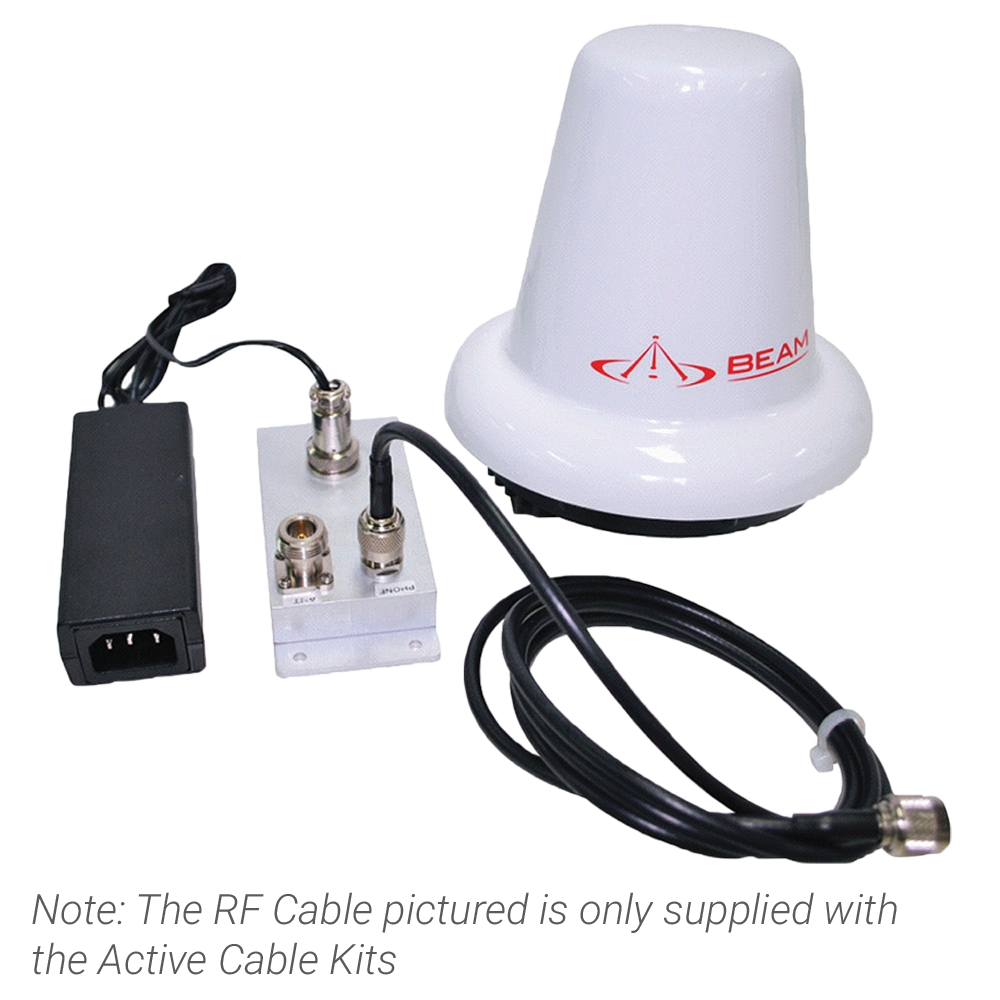

The Active / Powered Iridium antenna RST740 is designed for Land and Maritime applications specifically for use where long cable runs are required to reach between the required antenna location and the terminal.
Iridium Beam Active Antenna Features
Where an installation exceeds 20m / 60’ it becomes more cost effective to use an Active/Powered Iridium antenna that allows much thinner and cheaper cable to run up to 100m / 300’ where this would never be possible with a passive Iridium antenna.
The Active Antenna RST740 will work on all Beam products and any Iridium devices, however requires an approved Beam Active Antenna cable for use in order to manage the power amplification across the RF line to the antenna.
Key Benefits and Features
• Iridium approved
• High quality enclosure
• Active antenna
• Pole/Mast mounting
• White small size/footprint
• Omni directional
• Supports long cable runs
• Power breakout box included (required 9-32 VDC)
• 12 month repair or replacement warranty
• High quality enclosure
• Active antenna
• Pole/Mast mounting
• White small size/footprint
• Omni directional
• Supports long cable runs
• Power breakout box included (required 9-32 VDC)
• 12 month repair or replacement warranty
Iridium Beam Active Antenna Specifications
General
| Impedance | 50 Ohms |
| DC Peak Power Draw | 30W |
| DC RMS Power Draw | 3.2W |
| DC RMS Standby Power Draw | 0.32W |
| Active Antenna Cable Loss | 11.5 - 13.5dB (total end to end loss including the Amp Lead) |
| Amp Lead* * Amp Lead is not part of the RST740 Antenna kit. The Amp Lead cable is bundled with the Beam - Iridium active cable kit. |
<0.5dB at 1.5m (TNC-M to N-M) |
Bias Box
| Input Voltage | 9 - 36 VDC |
| RF Input | 0.5 dB Max |
| Current Req | 4 Amps Min |
| Output Voltage | 30 - 32 VDC |

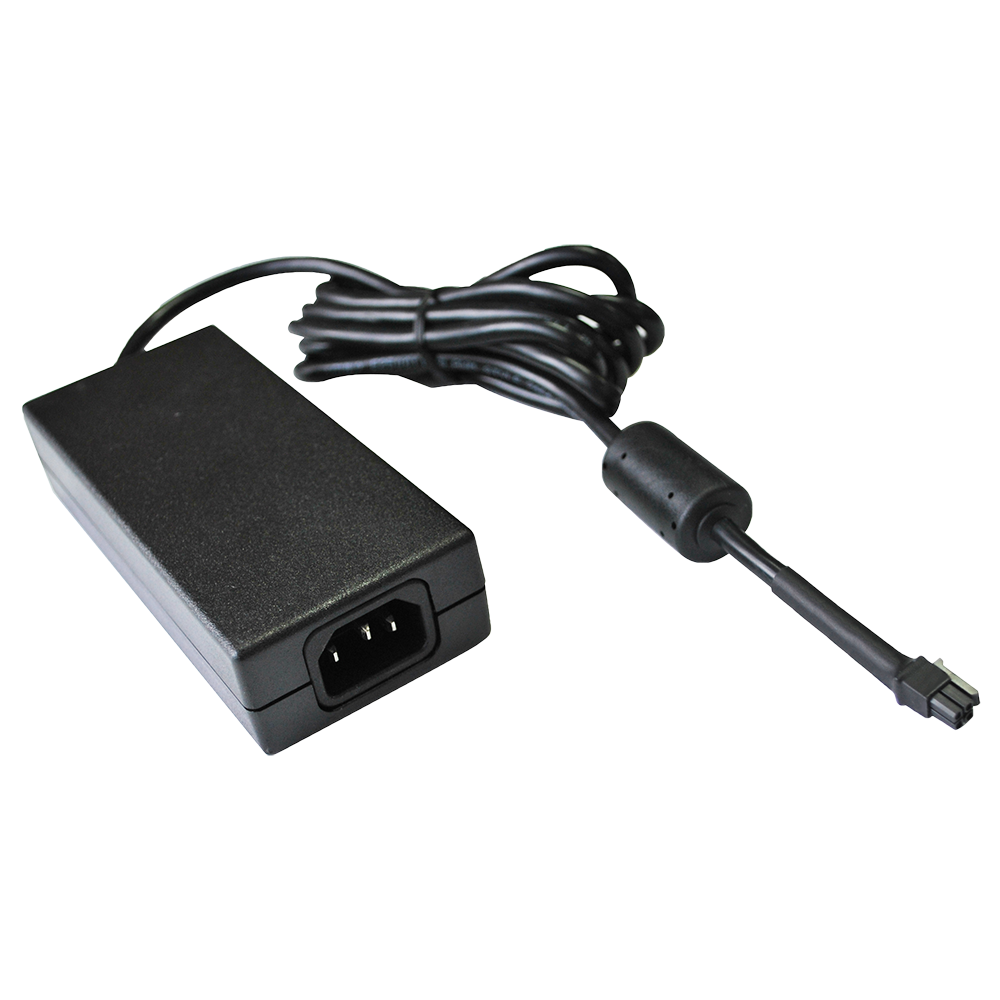

| Rec. Power Supply | ISD951 + Adapter Cable (CBLASY015501) |
Frequency
| Iridium | 1616.0 - 1626.5 MHz |
Environmental
| Extreme rain exposure | 37 mm/10 min; 145 mm/24 h | |
| Extreme snow exposure | 3,0kN/m2 | |
| Wind | 35 m/s | |
| Temperature | Degrees °C | Degrees °F |
| Storage | -40°C to +80°C | -40°F to +176°F |
| Operational | -25°C to +55°C | -13°F to +131°F |
Physical
| Ingress Protection | IPX7 | Waterproof and can be submerged in water of 1-meter depth for 30-minutes |

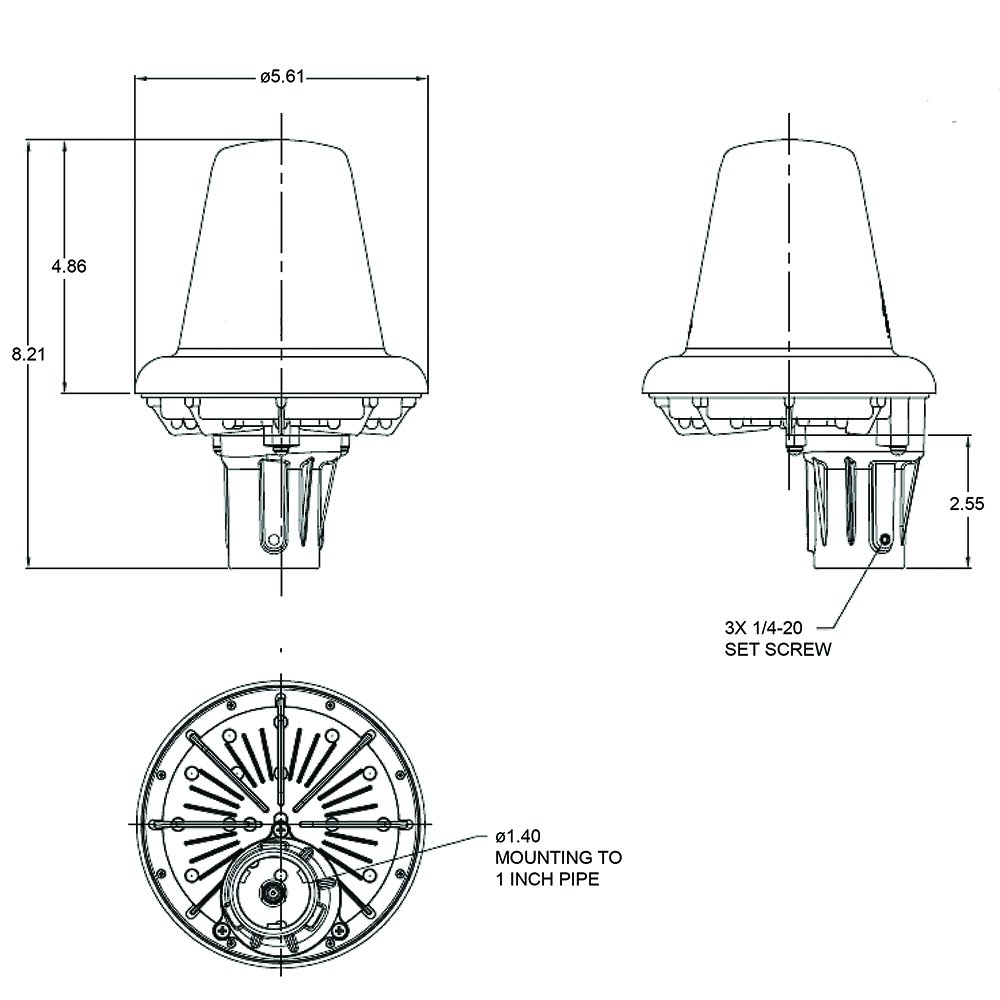

| Dimensions | mm | inches |
| Antenna | 208.53H x 142.49Dia | 8.21H x 5.61Dia |
| Box | 260 W x 210 D x 170 H | 10.24 W x 8.27 D x 6.69 H |
| Weight | kg | lbs |
| Antenna | 0.51 | 1.125 |
| Box | 2.22 | 4.89 |
Connector
| Iridium | TNC Female |
Brochures
Brochure RST740 Iridium Active Antenna
For more information please download our RST740 Iridium Active Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
