IntelliDOCK 9555 (9555ID)
MSRP $795 USD
The Beam IntelliDOCK 9555, is the ideal low cost docking station for the Iridium 9555 handset that can be used in various maritime, transport or fixed site applications.
- Bluetooth
- Privacy Handset (optional)
- Docking
- Charging
- Ringer
- Mute
- USB
IntelliDOCK 9555 Features
The Perfect Fit

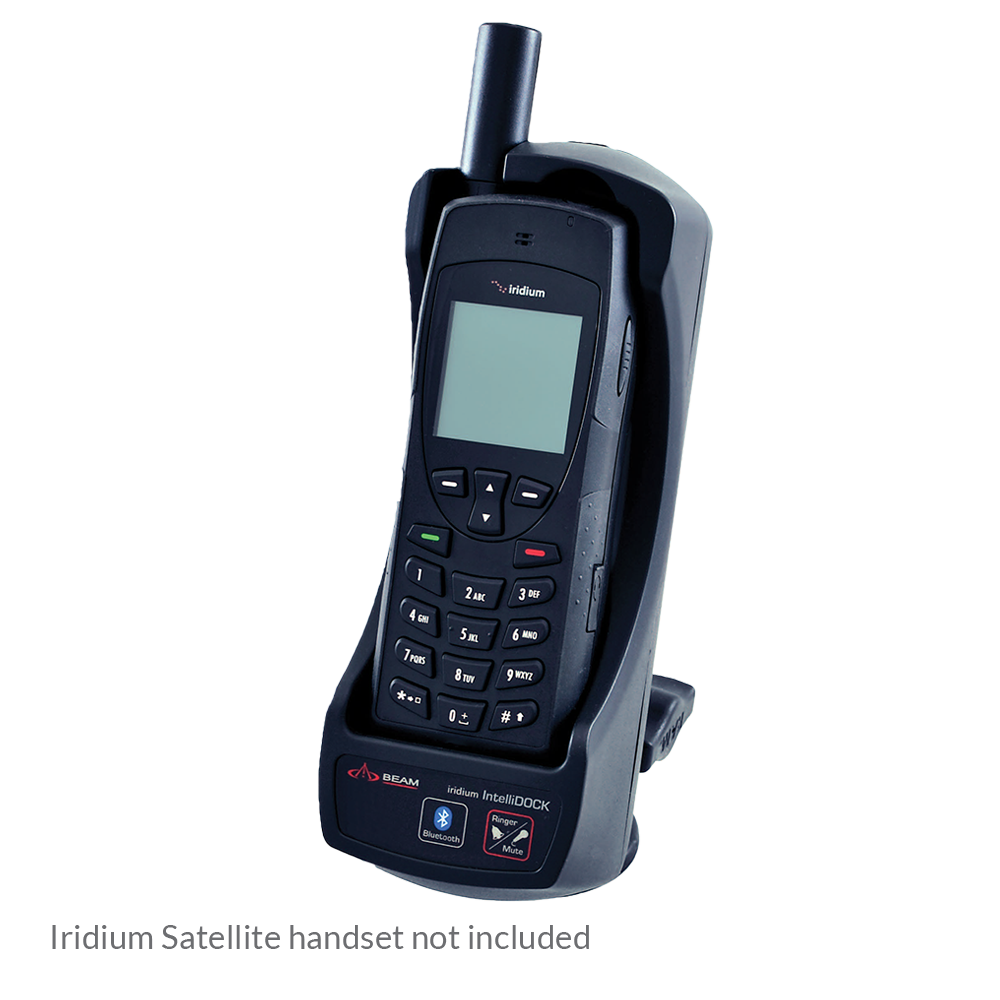

The Iridium 9555 telephone fits securely and seamlessly into the IntelliDOCK without the need for connecting an additional cable every time you insert the phone. It charges the handset so it’s always fully charged and ready for use.
Key Features and Benefits
• Slim line compact installation
• Integrated Bluetooth connectivity
• Voice, SMS, SBD and Circuit Switched Data capable
• USB data interface
• 9-32V DC power input
• Accessory / Ignition sense
• AC Plug pack 110/240 input (optional)
• TNC to Iridium
• Full certified, Iridium, RoHS, CE, IEC60945
• 2 year repair or replacement warranty
• Integrated Bluetooth connectivity
• Voice, SMS, SBD and Circuit Switched Data capable
• USB data interface
• 9-32V DC power input
• Accessory / Ignition sense
• AC Plug pack 110/240 input (optional)
• TNC to Iridium
• Full certified, Iridium, RoHS, CE, IEC60945
• 2 year repair or replacement warranty
The Ideal Low Cost Solution
The IntelliDOCK 9555 is the ideal low cost accessory for using the Iridium 9555 handset for various maritime, transport or fixed site applications.
The IntelliDOCK 9555 features in-built Bluetooth, which supports voice accessories to allow handsfree communication.
The Iridium 9555 handset is easily inserted and removed by the press of a button on the top of the dock.

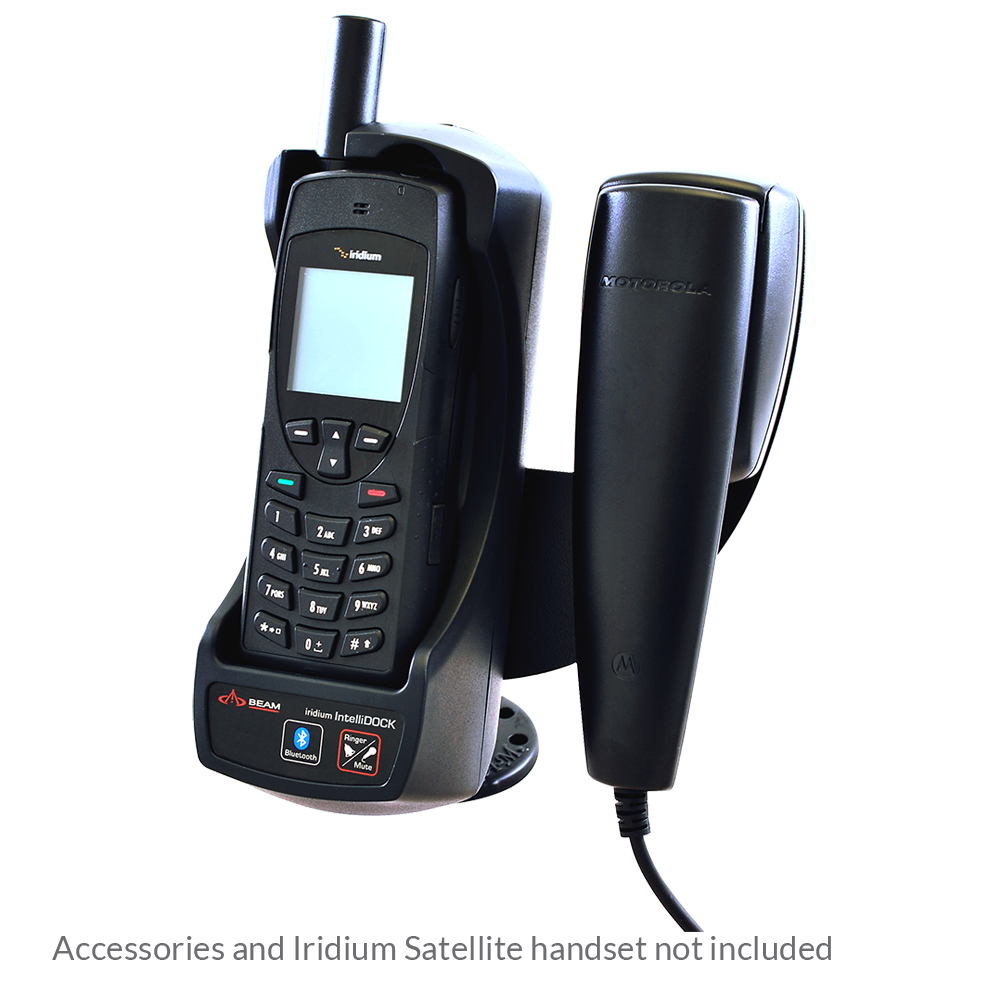

Privacy Handset is an optional accessory that can be attached to the dock to allow privacy calls with auto sensing answer/hang-up intelligence.
Similar items you may be interested in
Excellent low cost bundle for Transport, Maritime and In building applications.
This bundle includes the ...
View product
The Beam DriveDOCK Extreme, an Iridium 9575 Extreme dock which is the ideal highly featured ...
View product
The Beam PotsDOCK Extreme, an Iridium 9575 dock, is a highly featured docking station for ...
View product
The Beam PotsDOCK 9555, an Iridium 9555 dock, is a highly featured docking station for ...
View product
The SatDOCK-G 9555 enables voice calling capabilities via a full in-vehicle hands-free installation with superior ...
View product
IntelliDOCK 9555 Specifications
Iridium Network
| Voice / Data Modulation | 2.4 kbps |
| Compressed Data | 10 - 12 kbps |
| 9555 Handset | 1616 - 1625 MHz |
Power
| Average Power Consumption | Current @ 12V | Power Watts |
| Transmit - inc handset | 0.5A | 6W |
| Standby - inc handset | 45mA | 0.5W |
| Sleep Mode | 18mA | 0.2W |
| AC Power Pack | 90-250V AC 50-60Hz, Output 12V 45W | |
| Power Input Voltage | 9-32V DC, 2A max |
Connectors / Interfaces

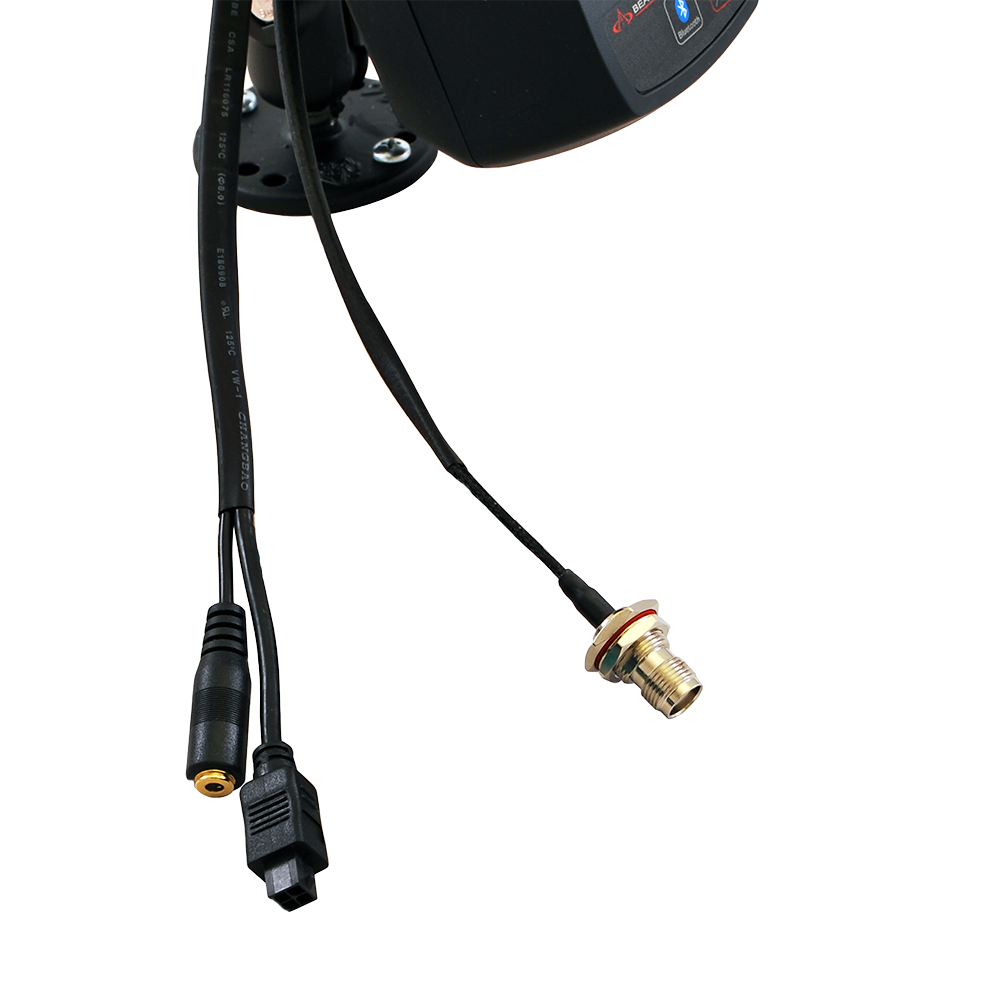

| Iridium Antenna | Fixed Cable to SMA-Female |
| 9 - 32VDC | Screw Connector |
| Bluetooth Voice Only | Inbuilt |
| Privacy Handset Port | Round 4 Way |

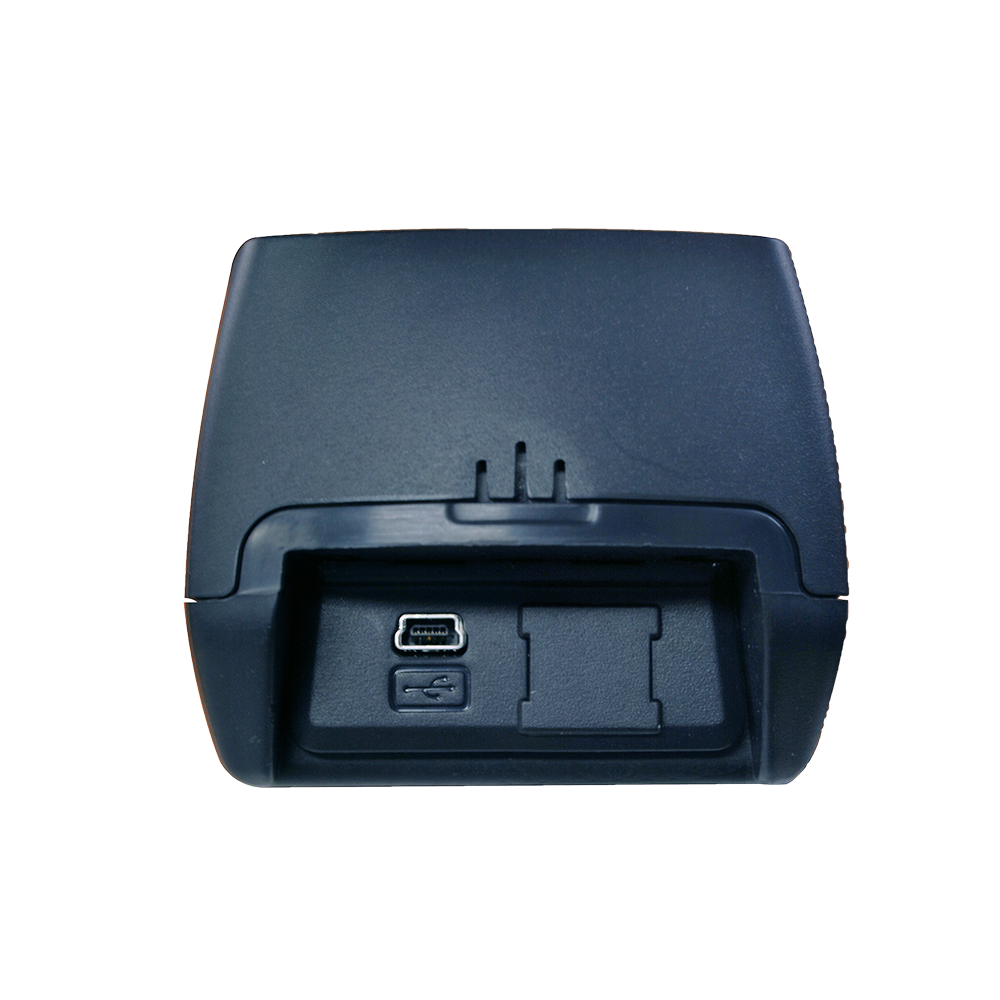

| Data Port | USB Mini Base of Dock |
Environmental
| Temperature | Degrees °C | Degrees °F |
| IntelliDOCK 9555 Operating Range | -20°C to +70°C | -4°F to +158°F |
| 9555 Handset Operating Range | -10°C to +55°C | -14°F to +131°F |
| Charging Range | 0°C to +40°C | 32°F to 113°F |
| Storage | -30°C to +70°C | -22°F to +158°F |
| Operating Humidity Range | < 85% RH non-condensing |
Physical
| Dimensions | mm | inches |
| Dock | 200H x 75W x 65D | 7.9H x 3.0W x 2.6D |
| Outer Box | 140W x 90D x 330H | 5.51W x 3.54D x 12.99H |
| Weight | kg | lbs |
| Dock | 0.32 | 0.7 |
| Box | 1.3 | 2.86 |
LEDS / Buttons
| Handset Release | Top of Cradle - No LED |
| Backlight | White LED |
| Ringer | Red |
| Bluetooth | Blue / Orange |
Kit Contents
| Beam 9555DOCK Unit |

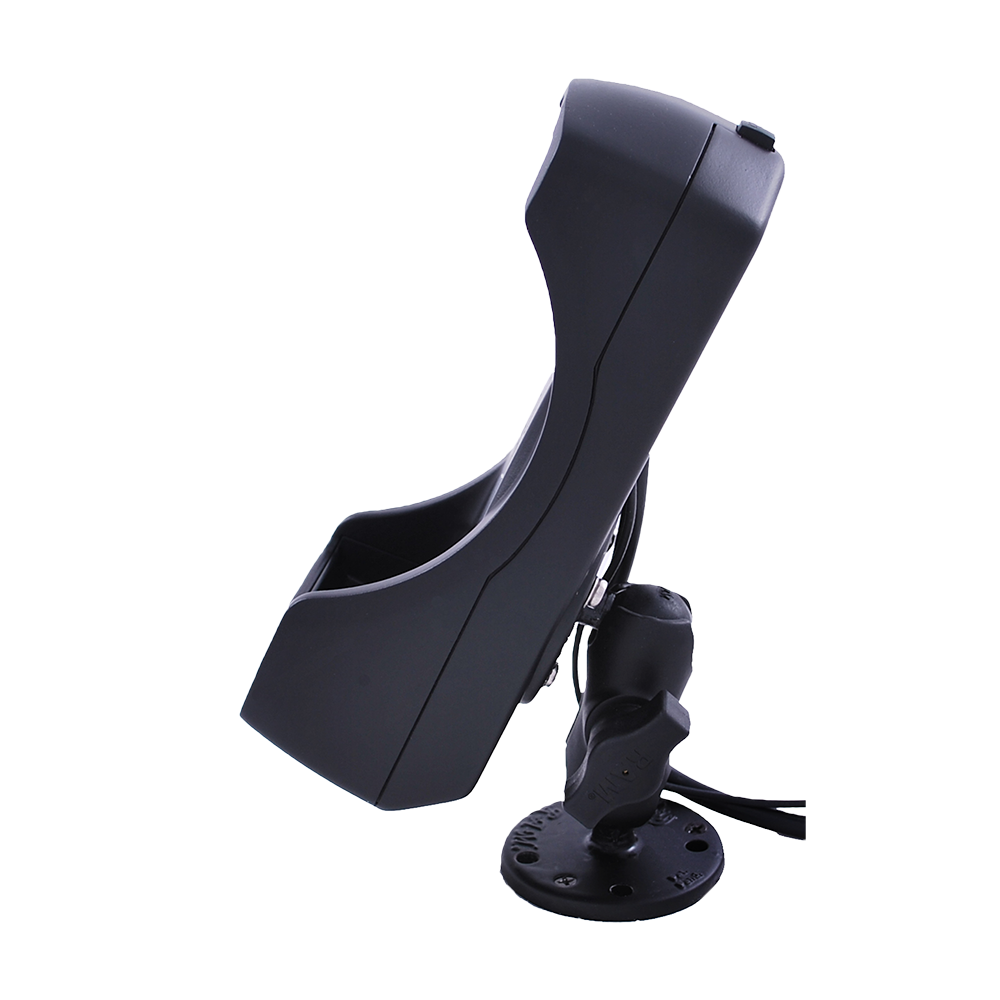

| RAM-Mount Steel Mounting Bracket |
| Interface & Power Cables |
| User & Installation Manual |
Certifications
| *Independent Aeronautical certification MUST be gained prior to installation. |
| EMC Compliance |
| Iridium |
| CE Compliance |
| Electrical Safety |
| RoHS |
| C-Tick |
BLUETOOTH® Legal
| Bluetooth® | The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners. |
Brochures
Brochure IntelliDOCK 9555 (9555ID)
For more information please download our IntelliDOCK 9555 (9555ID) Brochure.
Download brochure
9555 Docking Comparison Chart
For more information please download our 9555 Docking Comparison Chart.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
