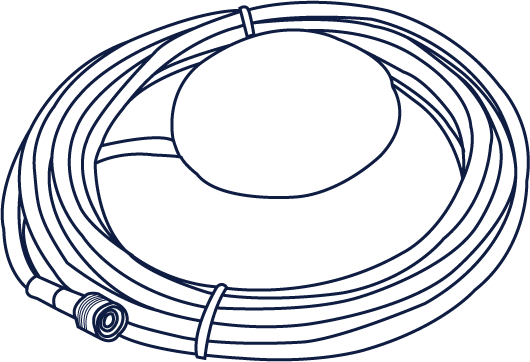

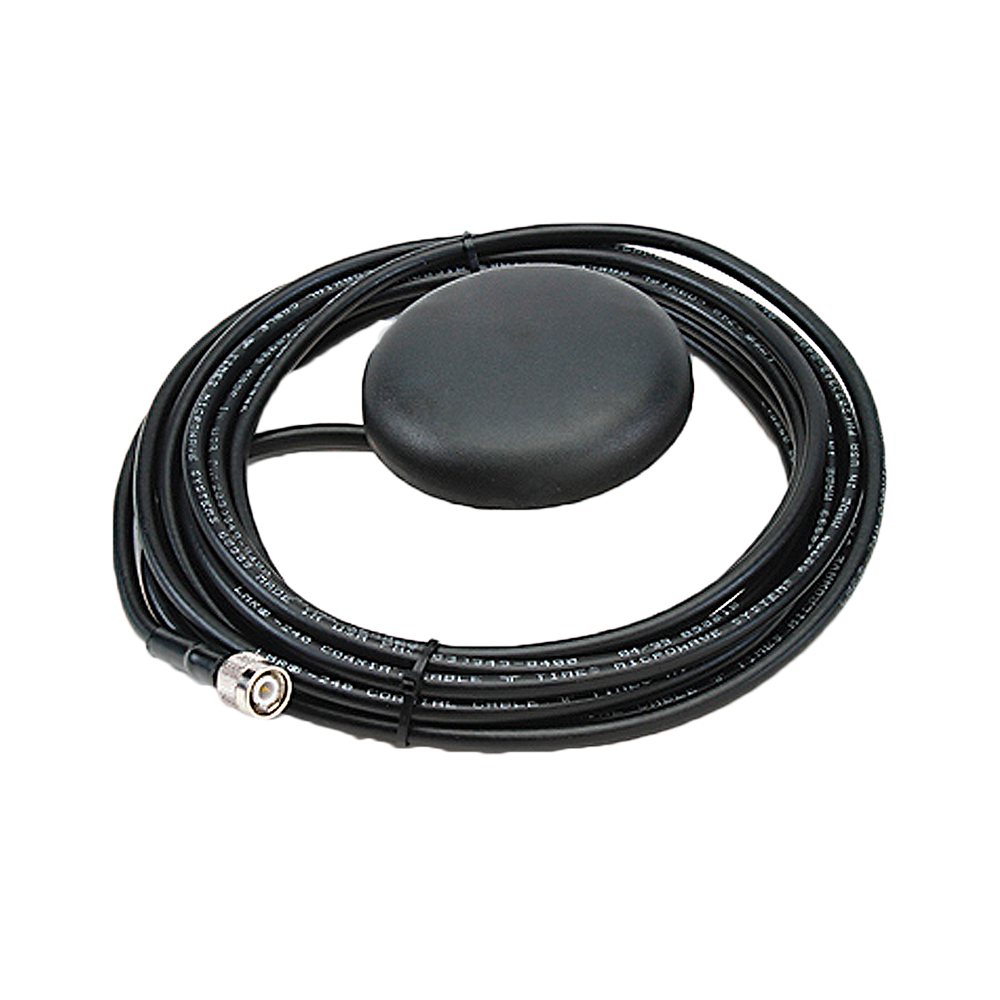

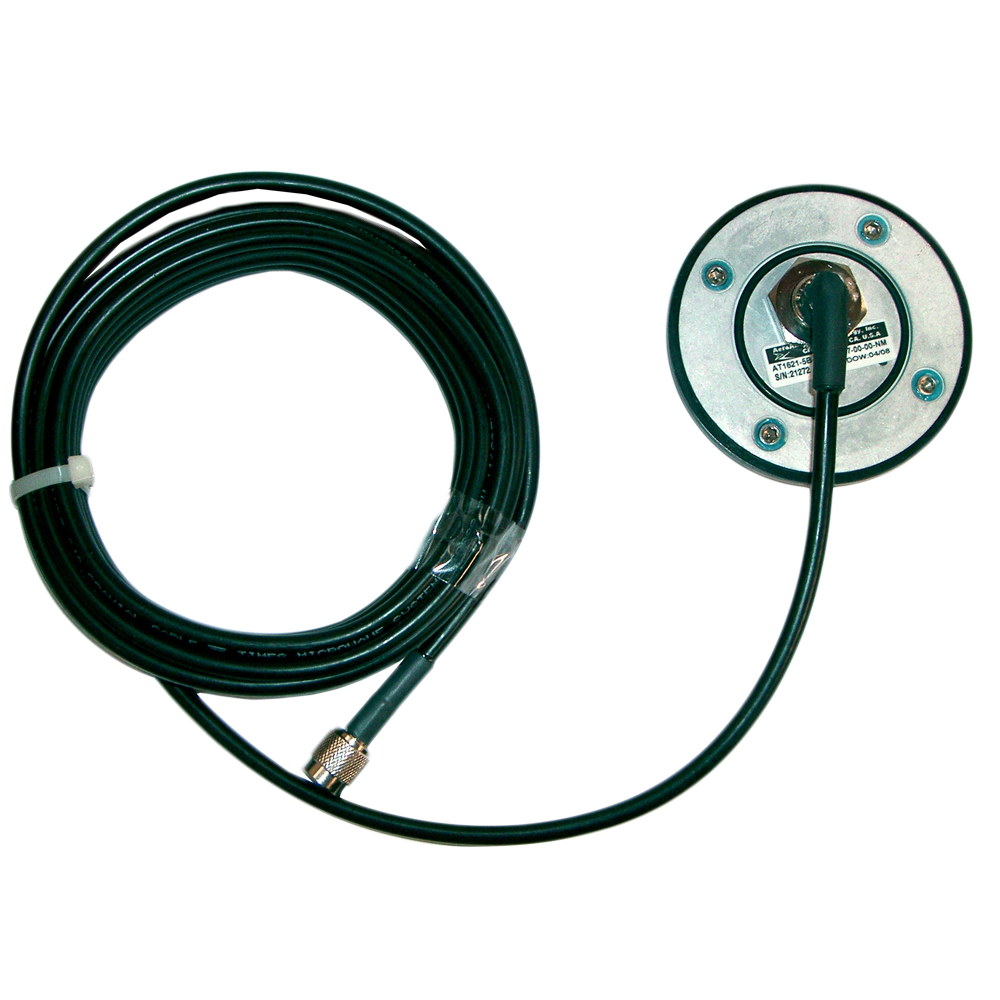

Iridium Beam Bolt Mount Antenna (RST720)
MSRP $265 USD
The Iridium bolt or bulkhead mount antenna (RST720) is designed for Land based applications, specifically for vehicles or fixed site locations.
Iridium Beam Bolt Mount Antenna Features
The antenna will work with all Iridium terminals and is supplied with 5m/16.4ft of cable pre terminated to a TNC Male connector.
Key Features
• Iridium approved
• Designed for harsh environments
• Small and lightweight
• Aluminium alloy casting
• Manufactured in the USA
• 5m cable attached
• 12 month repair or replacement warranty
• Designed for harsh environments
• Small and lightweight
• Aluminium alloy casting
• Manufactured in the USA
• 5m cable attached
• 12 month repair or replacement warranty
Similar items you may be interested in
The Beam RST703 is a dual mode Iridium and GPS patch antenna, designed predominantly for ...
View product
The Beam RST704 TSO is an Aero Approved dual mode all in one compact Iridium ...
View product
The Beam RST705 is a dual mode all in one compact Iridium and GPS magnetic ...
View product
The Iridium Beam magnetic patch antenna (RST715) is designed for Land based vehicular applications or ...
View product
Iridium Beam Bolt Mount Antenna Specifications
General
| Polarization | 3db Max |
| Axial Ratio | 3.0dB Max |
| Impedance | 50 Ohms |
| VSWR | < 2.0 : 1 |
| Power handling | 1 Watt |
| Altitude | 6,000m/20,000ft |
| Cable | Includes 5m or 16.4 feet LMR240 antenna cable attached |
Frequency
| Iridium | 1616 – 1626MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -40°C to +85°C | -40°F to 185°F |
Physical
| Colour | Black | |
| Finish | Base - A380 AL Casting Alloy | Radome - High Impact Xenoy |
| Dimensions | mm | inches |
| Antenna | 21.08H x 89.66 Dia | 0.83H x 3.53 Dia |
| Box | 215 W x 10 D x 90 H | 8.46 W x 0.39 D x 3.54 H |
| Weight | kg | lbs |
| Antenna | 0.283 | 0.625 |
| Box | 0.66 | 1.45 |
Connector
| Iridium | TNC Male |
Brochures
Brochure RST720 Iridium Bolt Mount Antenna
For more information please download our RST720 Iridium Bolt Mount Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
