PotsDOCK Extreme (EXTRMPD)
The Beam PotsDOCK Extreme, an Iridium 9575 dock, is a highly featured docking station for the Iridium 9575 handset that can be used in various maritime, transport or fixed site applications considerably extends the functionality of the 9575 handset.
- RJ11/POTS
- PABX Integration
- Bluetooth
- Privacy Handset (optional)
- Tracking
- Docking
- Charging
- Ringer
- Mute
- USB
- External IO
- Alert
- External GPS Antenna
PotsDOCK Extreme Features
Intelligent RJ11/POTS Interface
The intelligent RJ11 / POTS interface enables standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones. There is also a dedicated privacy handset that can be connected directly to the Dock.
Key Benefits and Features
• Slim line compact installation
• Integrated Bluetooth connectivity
• RJ11/POTS interface, cable runs up to 600m/2000ft
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS (Via the 9575 handset)
• USB data interface
• Accessory / Ignition sense
• 9-32V DC power input
• AC Plug pack included 110/240 input
• TNC and SMA for GPS
• Full certified, Iridium, RoHS, CE, IEC60945, AS/EN60950
• 2 year repair or replacement warranty
• Integrated Bluetooth connectivity
• RJ11/POTS interface, cable runs up to 600m/2000ft
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS (Via the 9575 handset)
• USB data interface
• Accessory / Ignition sense
• 9-32V DC power input
• AC Plug pack included 110/240 input
• TNC and SMA for GPS
• Full certified, Iridium, RoHS, CE, IEC60945, AS/EN60950
• 2 year repair or replacement warranty
Watch PotsDOCK Extreme Video

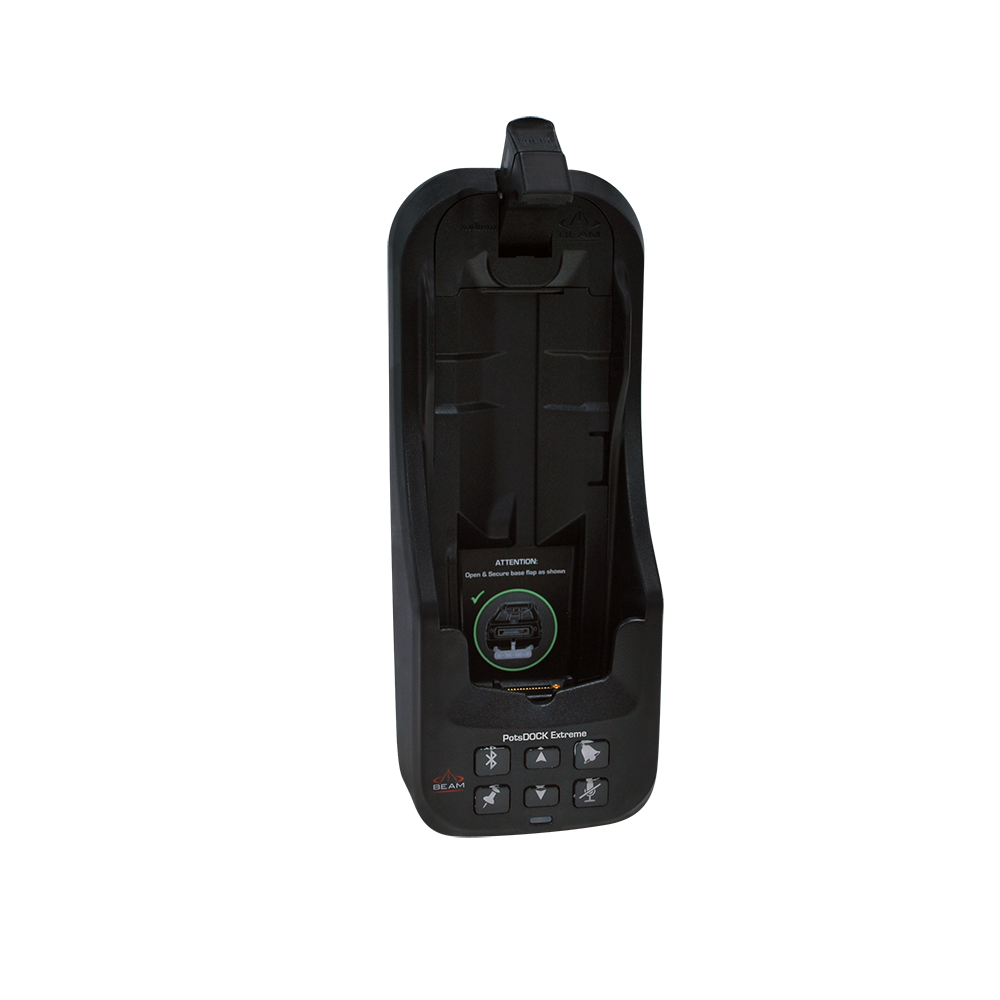

Beam PotsDOCK Extreme is a compact docking station specifically designed to support RJ11, Bluetooth and tracking.
PotsDOCK Extreme provides extra features such as Bluetooth for voice connectivity along with tracking and alert which can be configured to support periodic polling or emergency alert reporting.

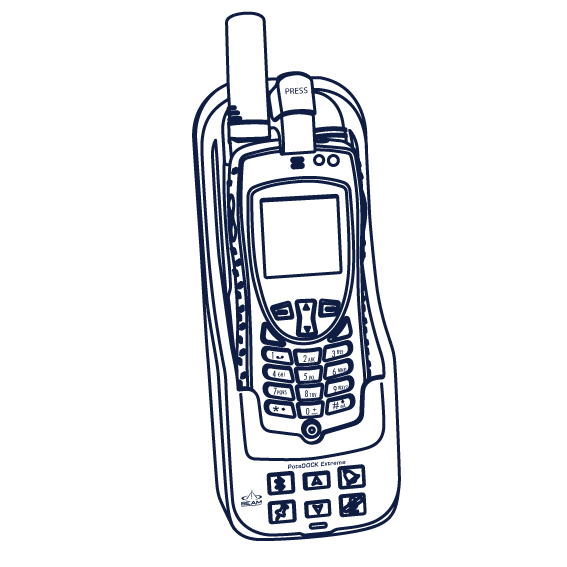

Beam PotsDOCK Extreme allows the Iridium Extreme handset to be connected with an RJ11/POTS interface enabling standard corded, cordless or DECT handset connection or alternatively interfaced with a PABX system presenting standard ring, busy and dial tones like a standard phone network.

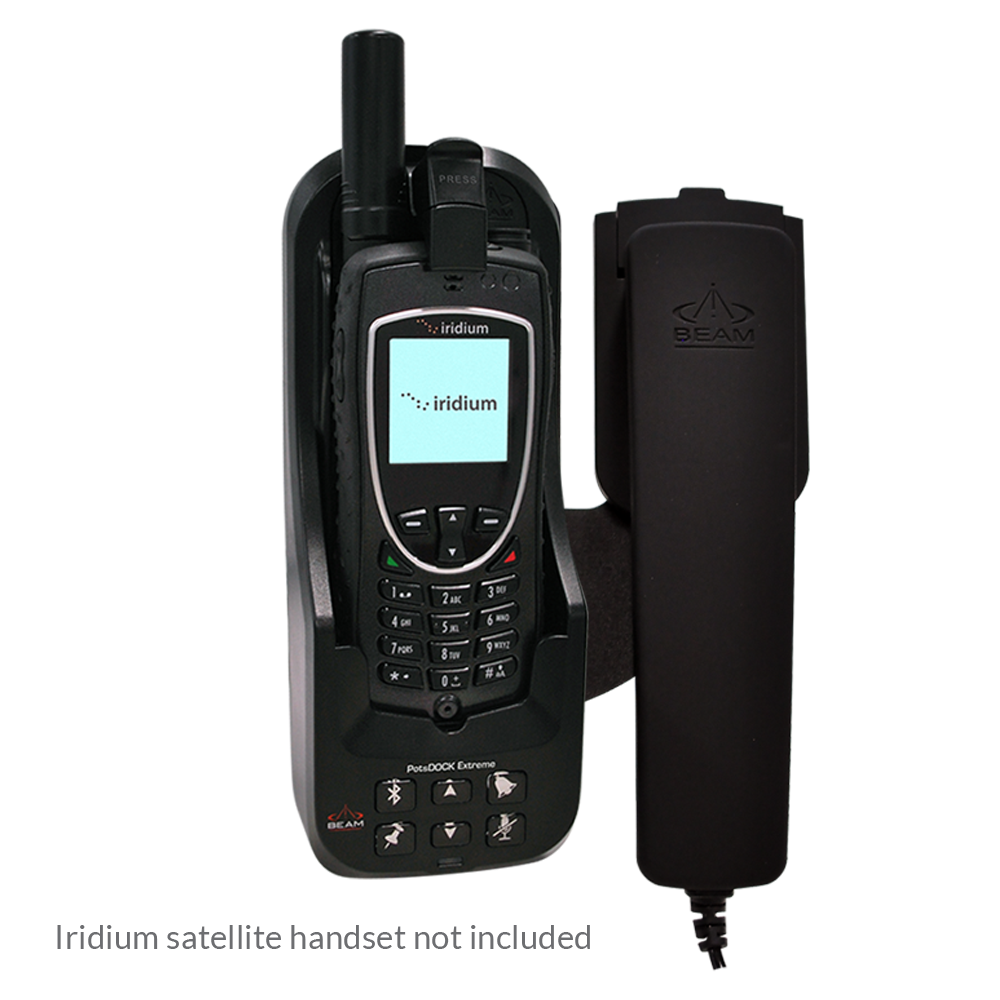

PotsDOCK also supports the use of an optional compact BEAM Privacy Handset that can be attached next to the PotsDOCK for added convenience if required.
Similar items you may be interested in
The PotsDOCK 9575 includes the following accessories:
Iridium Beam Dual Mode Covert Antenna
RST755 Privacy Handset
...
View product
This complete kit is well suited to either Maritime or In building applications. This bundle ...
View product
Beam IsatDock2 PRO, the only Inmarsat Certified Dock for the IsatPhone 2, is an intelligent ...
View product
The Beam DriveDOCK Extreme, an Iridium 9575 Extreme dock which is the ideal highly featured ...
View product
The Beam PotsDOCK 9555, an Iridium 9555 dock, is a highly featured docking station for ...
View product
PotsDOCK Extreme Specifications
Power
| Average Power Consumption | Current @ 15VDC | Watts |
| Standby | 75mA | 1.1W |
| Transmit + Charging | 0.4A | 6W |
| Sleep Mode | 25mA | 0.3W |
| Rated Input | 9-32V DC | 2A max |
| AC Power Pack | 100-250V | AC 50-60Hz |
| Output | 15V DC | 60W |
Bluetooth® Module (Internal)
| Legal | Japan:07215089/AA/00 The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by Beam Communications is under license. Other trademarks and trade names are those of their respective owners. |
| Regulatory | Bluetooth® identifier: B03005. CE 89/336/EEC - #EC/2006/20013C. FCC part 15 class B: PotsDOCK contains Transmitter Module FCC ID: QOQWT11. Canada: Cert# 5123A-BGTWT11E |
| Antenna | Integrated chip antenna |
| Power | Default = Class 2 (< 10 metres). 2.4GHz - 2.4835GHz Unlicensed ISM Band |
| Profiles | HFP - Hands-Free Profile v.1.5 HFP-AG - Hands-Free Audio Gateway Profile v.1.5 & SPP - Serial Port Profile |
| System | Bluetooth® 2.0v+EDR (Enhanced Data Rates), 802.11 coexistence. |

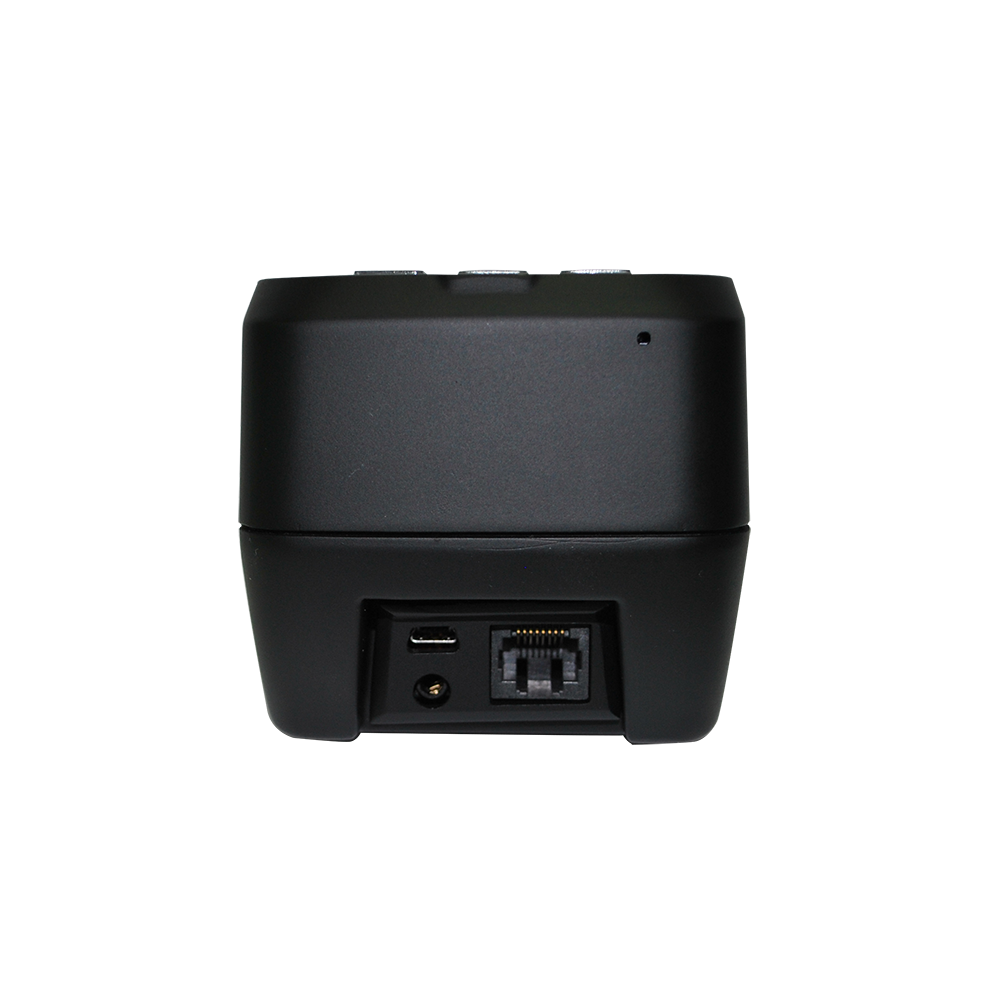

Connectors/Interfaces
| Alarm Mode | Normally-Closed' Loop IN to OUT Up to 50m cable run / multiple buttons in series. Brown wire is Input,Green wire is Output. |
| RJ11/POTS | RJ11 connector / 2-wire, up to 600m. Auto Impedance - or country selectable. Adjustable Dial & Busy Tones. Ringer output 56Vrms, 5REN load. Adjustable Ringer Frequency / Cadence |
| Privacy Handset (Line In/Out) | 4-pole 3.5mm jack, ground referenced in/out with cup-switch. In biased with ~2Vdc via 2k2. Out 40mW power into 16-32Ω. |
| Data Port (USB) | USB Mini-B 5-pin female (USB Slave). USB 2.0 compliant, CDC Serial profile |
| Alarm (Alert) Loop | 1 input, 1 output. |
| Power Cable | 4-way Microfit socket. +Vin, 0V (GND), and ACC (On/Off Sense). 9-32VDC tolerant. ACC sense: High(1) > +7Vdc and < +32Vdc Low (0) 0V < +5Vdc |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Charging Temp. Range | 0°C to 45°C | 32°F to 113°F |
| Operating Range - PotsDOCK | -20°C to +70°C | -4°F to +158°F |
| Operating Range - Extreme Handset | -10°C to +55°C | -50°F to +131°F |
| Storage Temperature | -30°C to +85°C | -22°F to +185°F |
| Operating Humidity Range | < 85% RH non-condensing |
Physical
| Dimensions | mm | inches |
| Dock | 82.2W x 212H x 75.9D | 3.24W x 8.35H x 2.99D |
| Outer Box | 140W x 330H x 125D | 5.51W x 13.0H x 4.92D |
| Weight | kg | lbs |
| Dock | 0.45 | 1.0 |
| Box | 1.54 | 3.4 |
Kit Contents
| PotsDOCK Extreme |
| AC/DC Power Adaptor |
| DC Power Cable/Fuse Kit |
| Universal Mounting Bracket (RAM) |
| User Manual |
| Quick Start Guide |
Certifications
| Iridium |
| EMC |
| RoHS |
| WEEE |
| Flame Retardant |
| Safety - SELV |
| Atmospheric Protection |
Brochures
Brochure PotsDOCK Extreme
For more information please download our PotsDOCK Extreme Brochure.
Download brochure
Brochure Extreme Docks Series
For more information please download our Extreme Docks Series Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
