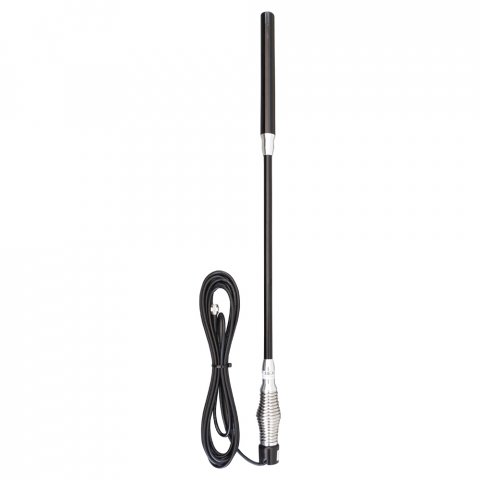

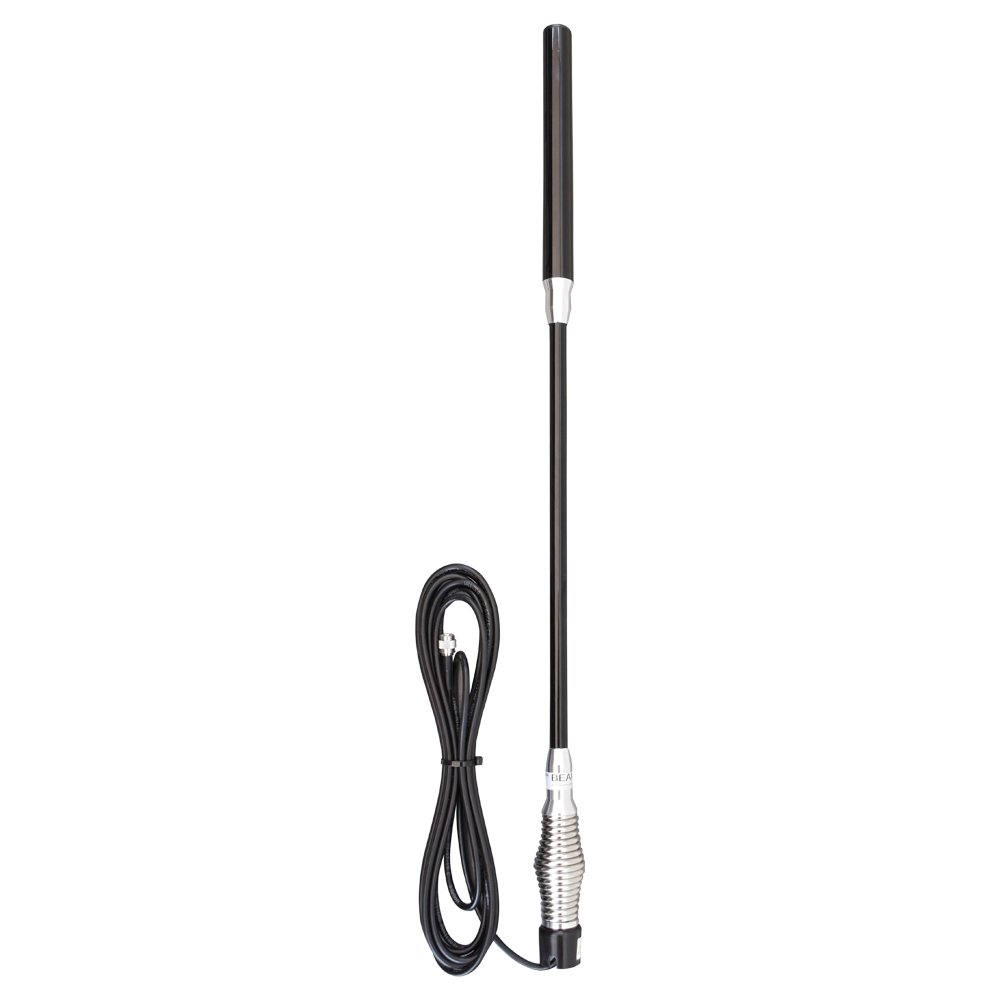

Beam Single Mode Whip Antenna (RST714B)
The whip design provides for increased roofline clearance and is designed to be extremely flexible in its installation options, from bull bars, roof racks or pole mounts.
The antenna includes 5m of Iridium cable and is terminated with a TNC-M connector. The RST714B is a very cost-effective solution.
Beam Single Mode Whip Antenna Features
Key Features & Benefits
• Iridium Approved
• Designed for vehicles in tough weather conditions (IP65)
• Includes 5m of cable
• 12-Month Warranty
• Designed for vehicles in tough weather conditions (IP65)
• Includes 5m of cable
• 12-Month Warranty
Beam Single Mode Whip Antenna Specifications
PHYSICAL
| Colour | Black | |
| Material | Fiber glass radome, aluminium ferrule and stainless steel ‘barrel’ spring | |
| Mounting Type | M2 Stud Mount | |
| Dimensions | mm | inches |
| Antenna (D x H) | 800 | 31.50 |
| Box (L x W x H) | 91 x 10 x 10 | 35.8 x 4 x 4 |
| Weight | kg | lb |
| Antenna | 1 | 2.2 |
| Box | 1 | 2.2 |
ENVIRONMENTAL
| Temperature | Degrees °C | Degrees °F |
| Operating and Storage | -55 to 80 | -67 to 176 |
| IP Rating | IP65 |
GENERAL
| Antenna | Iridium |
| Frequency | 1616 -1626.5 MHz |
| Polarization | Right Hand Circular |
| Axial Ratio | 0.2dB Typical 0.5dB max |
| Amplifier Gain | 5dBi |
| Voltage | Passive |
| Current | NA |
| Noise Figure | NA |
| Impedance | 50 Ohms |
| VSWR | <2:1 |
| Cable | 5m LMR240UF |
CONNECTORS
| Iridium | TNC-M |
Brochures
Brochure RST714B Single Mode Whip Antenna
For more information please download our RST714B Single Mode Whip Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
Product supportBeam Single Mode Whip Antenna Features
