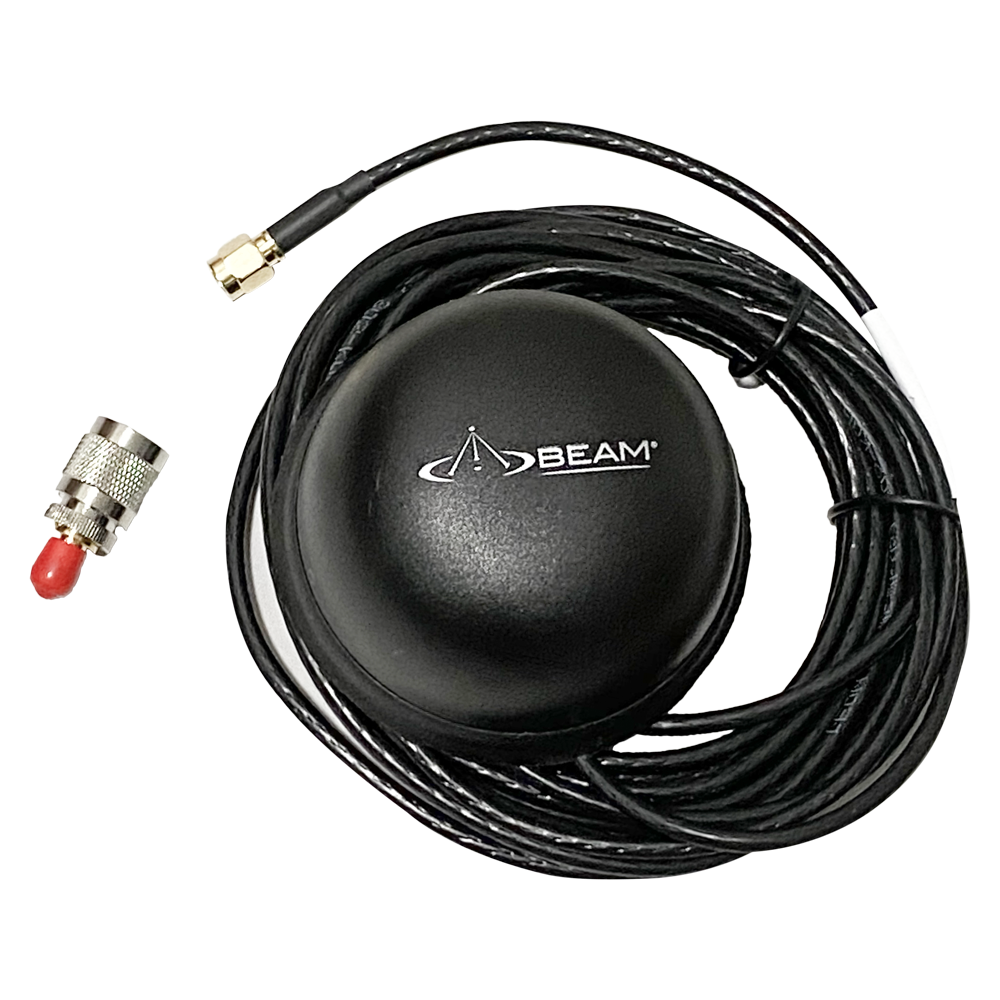

Beam Bolt Mount Antenna (RST220)
MSRP $210 USD
The RST220 Beam Bolt Mount Antenna is designed for land-based applications, specifically for vehicles or M2M application. The RST220 is suitable for use in demanding environments.
Beam Bolt Mount Antenna Features
Key Features & Benefits
• Iridium Approved
• Bolt Mount
• Small and lightweight
• Designed for applications in tough weather conditions (IP67, IP69K, IK09)
• Ground Plane Independent
• Includes 5m of cable
• 12-Month Warranty
• Bolt Mount
• Small and lightweight
• Designed for applications in tough weather conditions (IP67, IP69K, IK09)
• Ground Plane Independent
• Includes 5m of cable
• 12-Month Warranty
Beam Bolt Mount Antenna Specifications
PHYSICAL
| Colour | Black | |
| Material | ABS | |
| Mounting Type | Bold Mount | |
| Dimensions | mm | inches |
| Antenna (D x H) | Ø 77.3 x 36.5 | Ø 3 x 1.43 |
| Box (L x W x H) | 165 x 151 x 84 | 6.5 x 6 x 3.3 |
| kg | lb | |
| Antenna | 0.29 | 0.64 |
| Box | 0.38 | 0.83 |
ENVIRONMENTAL
| Temperature | Degrees °C | Degrees °F |
| Operating and Storage | -40 to +85 | -40 to +185 |
| IP Rating | IP67, IP69K, IK09 |
GENERAL
| Antenna | Iridium |
| Frequency | 1616 -1626.5 MHz |
| Polarization | Right Hand Circular |
| Axial Ratio | 3dB Max |
| Peak Gain | ~4.5 dBiC (Peak) |
| Impedance | 50 Ohms |
| VSWR | ~1.2:1 |
| Cable | 5m DACAR 302 |
CONNECTORS
| Iridium | TNC-M |
Brochures
Brochure RST220 Bolt Mount Antenna
For more information please download our RST220 Bolt Mount Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
