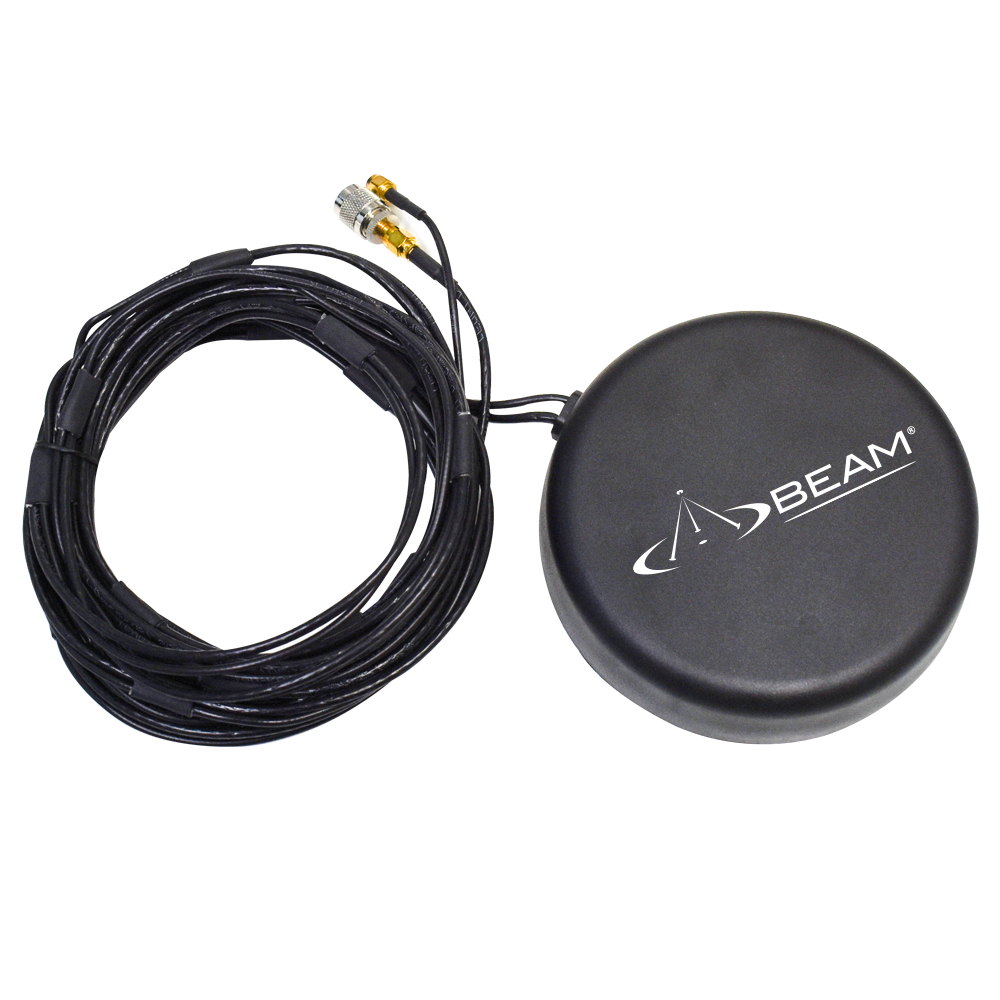

Beam Magnetic Dual Mode Antenna (Heavy Duty) (RST205)
The Beam RST205 Magnetic Dual Mode Antenna (Heavy Duty) delivers reliable Iridium network access, design to work with both voice and data communication systems.
Beam Magnetic Dual Mode Antenna (Heavy Duty) Features
Key Features & Benefits
• Iridium Approved
• Dual Mode Iridium / GNSS (GPS/QZSS/Galileo)
• Magnetic Mount
• Designed for vehicles in tough weather conditions (IP67, IP69K)
• Heavy Duty (IK09)
• Ground Plane Independent
• Includes 5m of both GPS & Iridium antenna cables attached
• 12-Month Warranty
• Dual Mode Iridium / GNSS (GPS/QZSS/Galileo)
• Magnetic Mount
• Designed for vehicles in tough weather conditions (IP67, IP69K)
• Heavy Duty (IK09)
• Ground Plane Independent
• Includes 5m of both GPS & Iridium antenna cables attached
• 12-Month Warranty
Beam Magnetic Dual Mode Antenna (Heavy Duty) Specifications
PHYSICAL
| Colour | Black | |
| Material | Black | |
| Mounting Type | Magnetic | |
| Dimensions | mm | inches |
| Antenna (D x H) | Ø 135.5 x 30.0 | Ø 5.3 x 1.18 |
| Box (L x W x H) | 165 x 150 x 84 | 6.5 x 6 x 3.3 |
| Weight | kg | lb |
| Antenna | 0.61 | 1.34 |
| Box | 0.70 | 1.50 |
ENVIRONMENTAL
| Temperature | Degrees °C | Degrees °F |
| Operating and Storage | -40 to +85 | -40 to +185 |
| IP Rating | IP67, IP69K, IK09 |
GENERAL
| Antenna | Iridium | GNSS (GPS) |
| Frequency | 1616 -1626.5 MHz | 1575.42 ± 5MHz |
| Polarization | Right Hand Circular | Right Hand Circular |
| Axial Ratio | 3dB Max | 3dB Max |
| Amplifier Gain | Passive | 28dB (2.7VDC) |
| Voltage | Passive | 1.5VDC - 3.6VDC |
| Current | Passive | 9mA (2.7VDC) |
| Noise Figure | NA | 1.8 dB (2.7VDC) |
| Impedance | 50 Ohms | 50 Ohms |
| VSWR | ~1.2:1 | <=1.4:1 dB |
| Cable | 5m of DACAR 302 | 5m of DACAR 100 |
CONNECTORS
| Iridium | TNC-M-Nickel SMA-M (with SMA-F to TNC-M Adapter) |
| GNSS (GPS) | SMA-M |
Brochures
Brochure RST205 Magnetic Dual Mode Antenna
For more information please download our RST205 Magnetic Dual Mode Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
