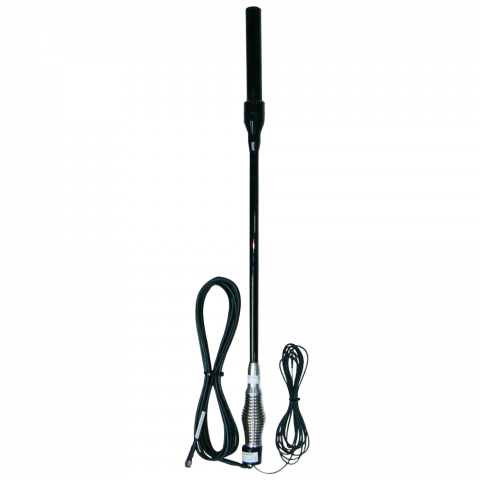

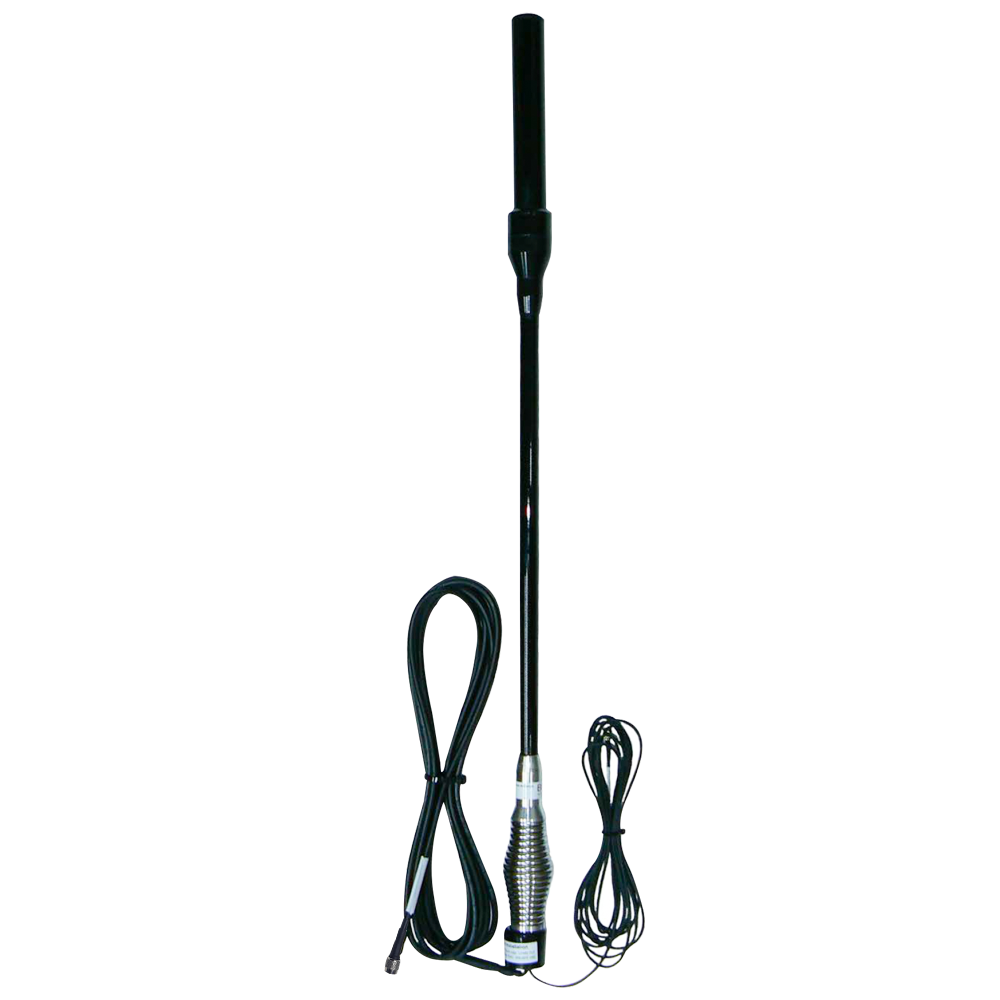

Iridium Beam Whip Dual Mode Antenna (RST706B)
The whip design provides for increased roofline clearance and is designed to be extremely flexible in its installation options, from bull bars, roof racks or pole mounts.
The antenna includes 5m of both Iridium and GPS antenna cable, making the RST706B a very cost-effective solution.
Iridium Beam Whip Dual Mode Antenna Features
Key Features
• Iridium approved
• Designed for vehicles in tough conditions
• Dual mode GPS/Iridium
• Manufactured in Australia
• Includes 5m of both GPS & Iridium antenna cable attached
• 12 month repair or replacement warranty
• Designed for vehicles in tough conditions
• Dual mode GPS/Iridium
• Manufactured in Australia
• Includes 5m of both GPS & Iridium antenna cable attached
• 12 month repair or replacement warranty
Iridium Beam Whip Dual Mode Antenna Specifications
General
| Antenna | Iridium | GNSS |
| Polarization | Right Hand Circular (RHCP) | Right Hand Circular (RHCP) |
| Axial Ratio | 3dB at boresight | 3dB |
| Impedance | 50 Ohms | 50 Ohms |
| VSWR | ≤ 2:1 | ≤ 2:1 |
| Amplifier Gain | 5dBi | 26 ± 2dB |
| Noise Figure | 2.5dB Max | |
| DC grounding | Yes | Yes |
| Cable | Includes 5m or 16.4ft of LMR240UF | Includes 5m or 16.4ft of RG316 |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -40°C to +85°C | -40°F to 185°F |
Physical
| Colour | Black | |
| Material | Black fiberglass radome, black finish aluminium ferrules, 304 stainless steel ‘barrel’ spring, external coaxial cables and terminations | |
| Mounting requirements | Minimum M12 hole | |
| Dimensions | mm | inches |
| Antenna | 800 H | 31.5 H |
| Weight | kg | lbs |
| Weight | 2.7 | 5.9 |

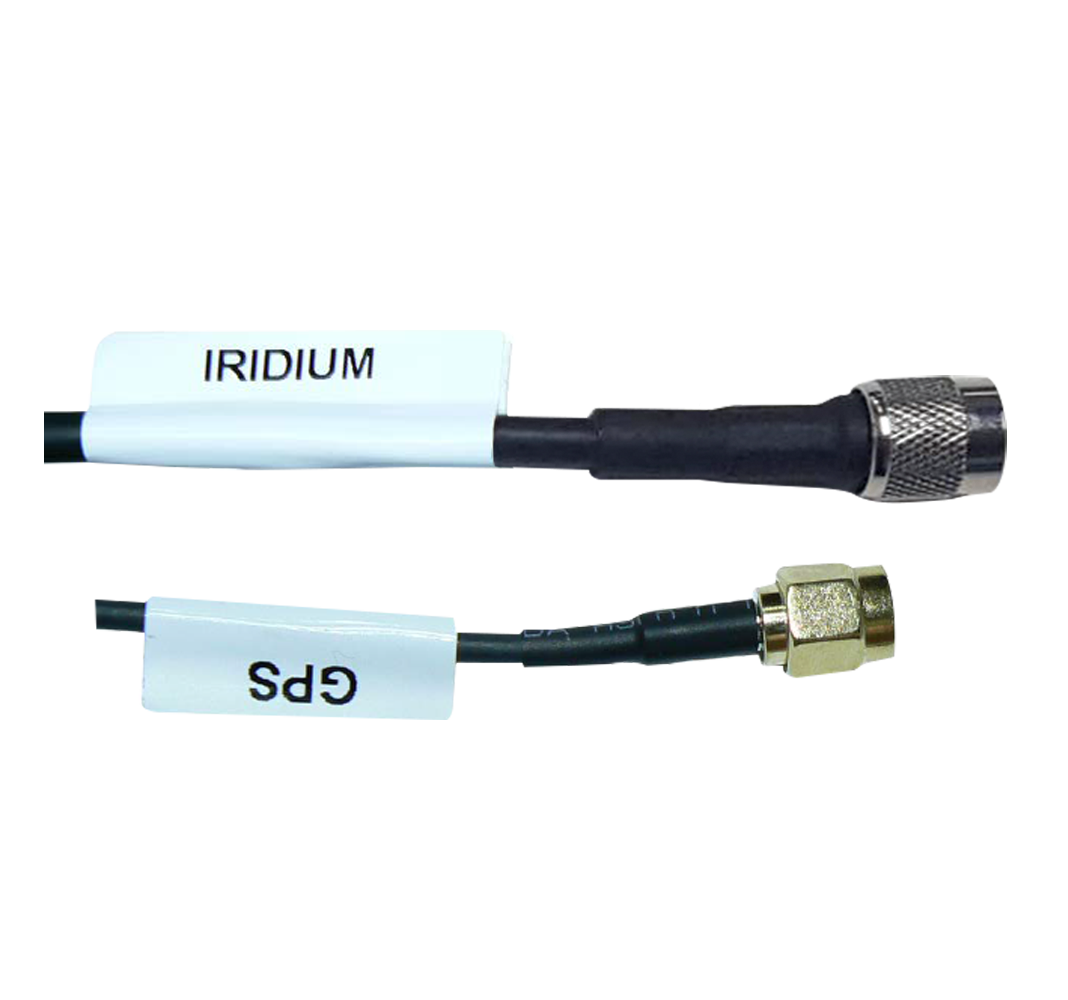

Connectors
| Iridium | TNC Male |
| GNSS (GPS) | SMA Male |
Frequency
| Iridium | 1616 – 1626 MHz |
| GNSS (GPS) | 1575 ± 10 MHz |
Brochures
Brochure RST706B Whip Dual Mode Whip Antenna
For more information please download our RST706B Whip Mode Whip Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
