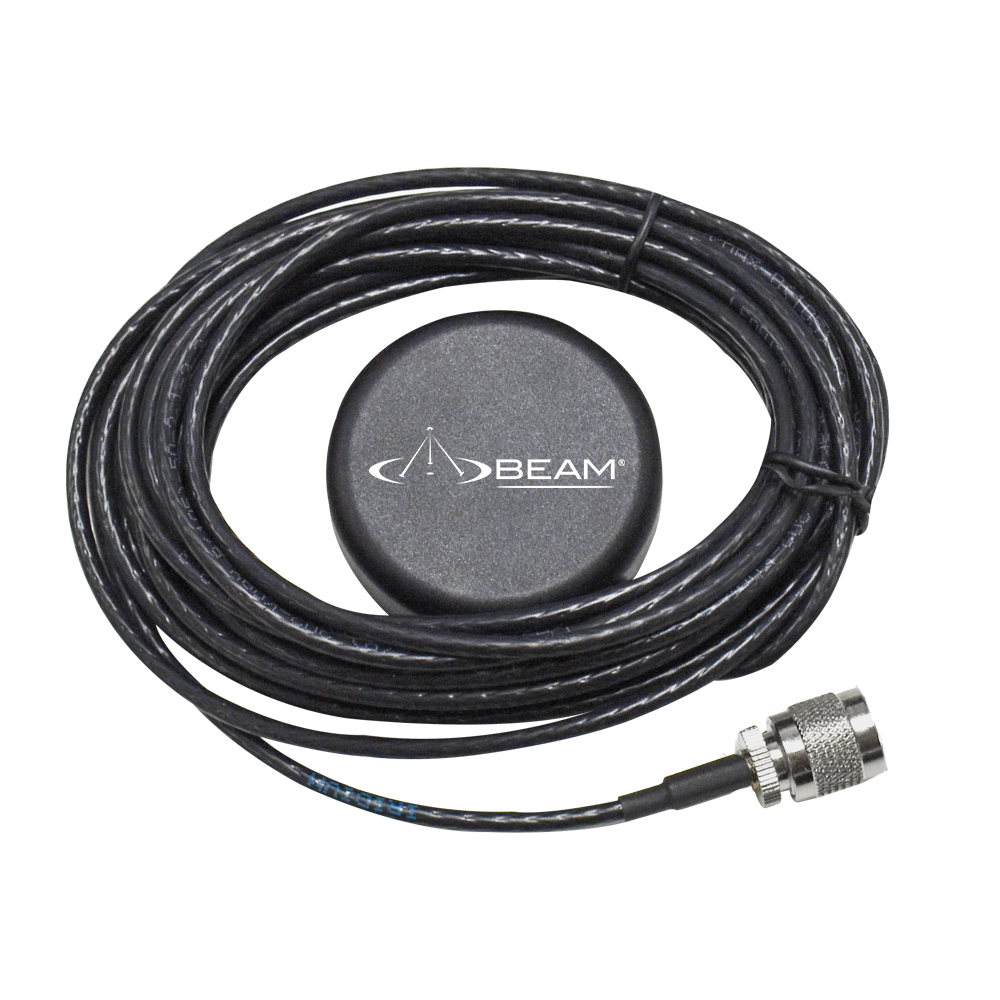

Beam Magnetic Single Mode Antenna (RST215)
The RST215 allows for easy installation, removal and refit between vehicles. This antenna is suitable for land-based vehicular applications or in locations where a temporary antenna installation may be required.
Beam Magnetic Single Mode Antenna Features
Key Features & Benefits
• Iridium Approved
• Magnetic Mount
• Designed for vehicles in tough weather conditions (IP67, IP69K)
• Ground Plane Independent
• Small and Lightweight
• Includes 5m of cable
• 12-Month warranty
• Magnetic Mount
• Designed for vehicles in tough weather conditions (IP67, IP69K)
• Ground Plane Independent
• Small and Lightweight
• Includes 5m of cable
• 12-Month warranty
Beam Magnetic Single Mode Antenna Specifications
PHYSICAL
| Colour | Black | |
| Material | ABS | |
| Mounting Type | Magnetic | |
| Dimensions | mm | inches |
| Antenna (D x H) | Ø 60.0 x 14.7 | Ø 2.32 x 0.57 |
| Box (L x W x H) | 165 x 150 x 84 | 6.49 x 5.90 x 3.30 |
| Weight | kg | lb |
| Antenna | 0.170 | 0.37 |
| Box | 0.252 | 0.55 |
ENVIRONMENTAL
| Temperature | Degrees °C | Degrees °F |
| Operating and Storage | -40 to +85 | -40 to +185 |
| IP Rating | IP67, IP69K |
GENERAL
| Antenna | Iridium |
| Frequency | 1616-1626.5 MHz |
| Polarization | Right Hand Circular |
| Peak Gain | 5.1dBi |
| Impedance | 50 Ohms |
| VSWR | ~1.1:1 |
| Cable | 5m DACAR 302 |
CONNECTORS
| Iridium | TNC-M |
Brochures
Brochure RST215 Magnetic Mount Patch Antenna
For more information please download our RST215 Magnetic Mount Patch Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
