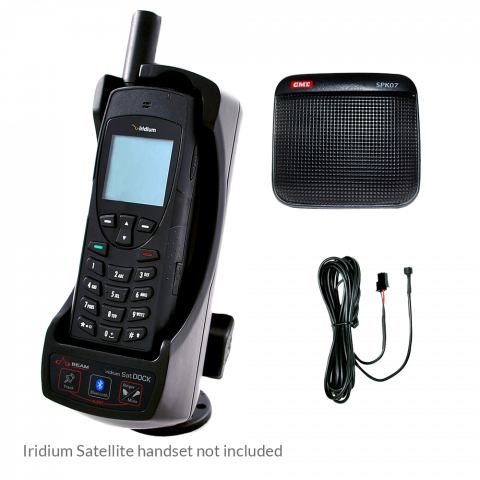

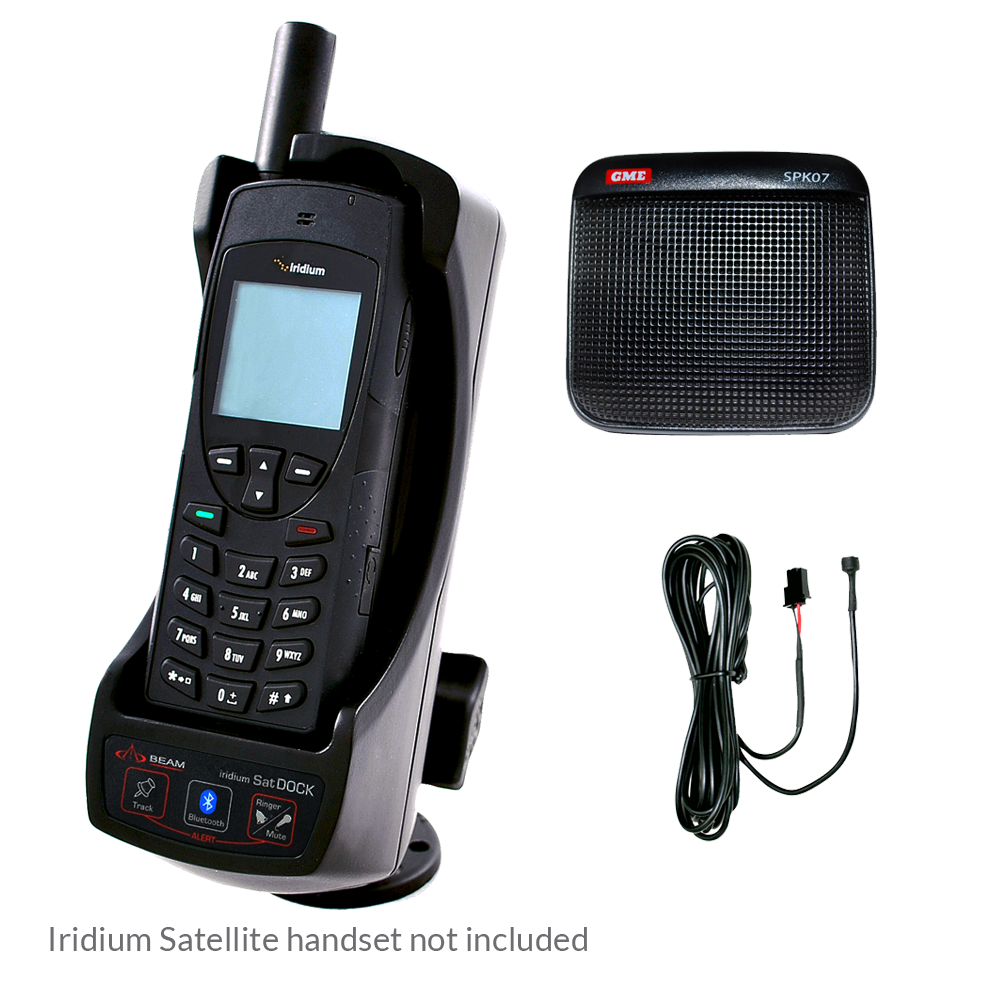

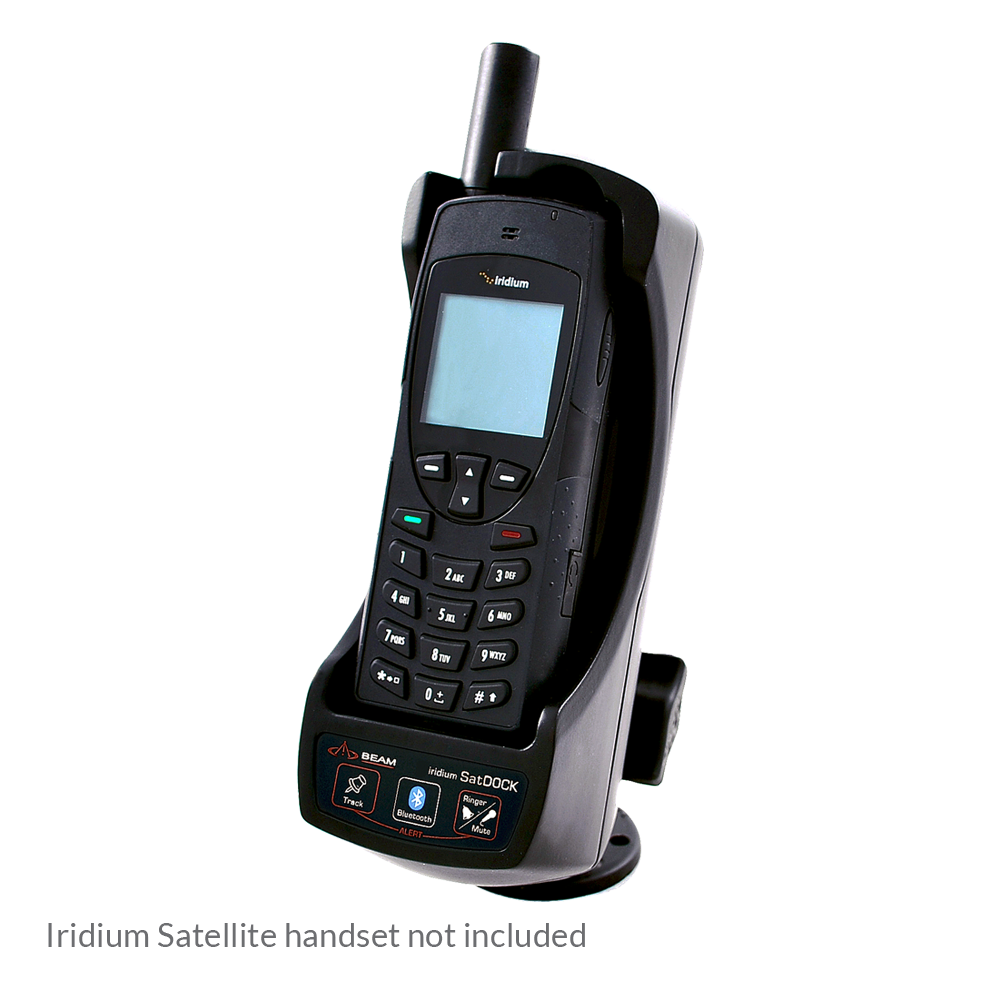

SatDOCK-G 9555 (9555SDG)
The SatDOCK-G 9555 enables voice calling capabilities via a full in-vehicle hands-free installation with superior echo cancelling technology to minimise background noise.
- Bluetooth
- Handsfree
- Privacy Handset (optional)
- GPS
- Tracking
- Docking
- Charging
- Ringer
- Mute
- Horn Alert
- Intelligent Handset (optional)
- USB
- External IO
- Alert
SatDOCK-G 9555 Features
Handsfree and Tracking Solution
The SatDOCK enables voice calling capabilities via a full in-vehicle hands-free installation with superior echo cancelling technology to minimise background noise.
The Beam SatDOCK-G 9555 supports Tracking & Alert functionality via the dedicated in-built GPS engine. Tracking messages can be pre-configured to support periodic reporting, manual position report update via button press, remote polling or sending of emergency alert messages all via SMS/SMS-to-email or SBD (Short Burst Data).
Key Features and Benefits
• Slim line compact installation
• Integrated Bluetooth connectivity
• Hands-free insatllation

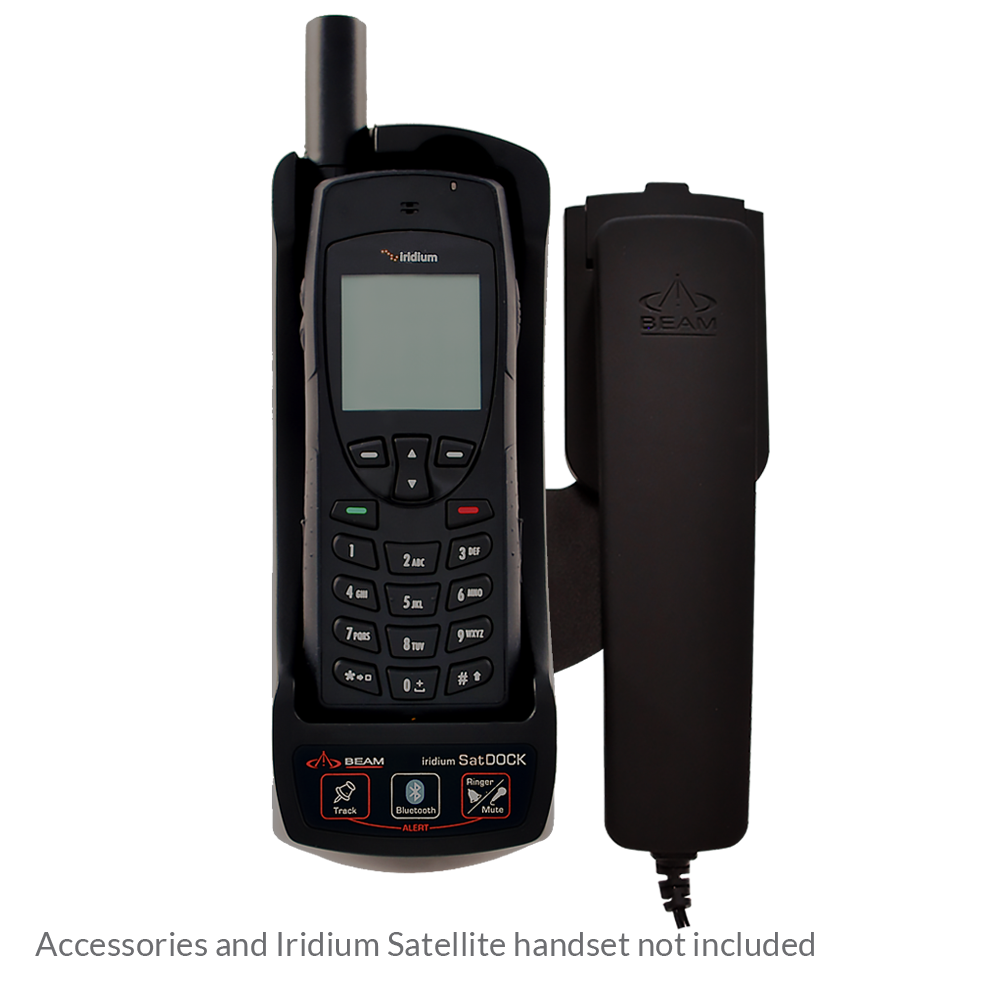

• Privacy Handset options
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS
• USB data interface
• RS232 D9 Serial Interface
• Accessory / Ignition sense
• Full certified, Iridium, RoHS, CE, IEC60945
• 2 year repair or replacement warranty
• Integrated Bluetooth connectivity
• Hands-free insatllation
• Privacy Handset options
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS
• USB data interface
• RS232 D9 Serial Interface
• Accessory / Ignition sense
• Full certified, Iridium, RoHS, CE, IEC60945
• 2 year repair or replacement warranty
SatDOCK-G 9555 supports Tracking and Alert functionality via the dedicated in-built GPS engine. It supports periodic reporting, manual position report, remote polling or sending emergency alert messages.
The SatDOCK-G 9555 has an internal ringer that sounds during an incoming call. Ring can also be directed to the external speaker. The ring modes can be changed by a press of the Ringer button, when out of call.
SatDOCK-G 9555 allows for in-vehicle use, enabling quality hands-free calls with echo cancellation and noise reduction support. It also has an in-built Bluetooth module for voice connectivity.
Similar items you may be interested in
The Beam DriveDOCK Extreme, an Iridium 9575 Extreme dock which is the ideal highly featured ...
View product
The Beam PotsDOCK Extreme, an Iridium 9575 dock, is a highly featured docking station for ...
View product
Beam’s IsatDock DRIVE handsfree docking station provides a high quality semi-permanent transport installation for the ...
View product
The Beam IntelliDOCK 9555, is the ideal low cost docking station for the Iridium 9555 ...
View product
The Beam PotsDOCK 9555, an Iridium 9555 dock, is a highly featured docking station for ...
View product
This bundle includes:
SatDOCK-G 9555
RST714B Single Mode Antenna
...
View product
SatDOCK-G 9555 Specifications
Iridium Network
| Voice / Data Modulation | 2.4 kbps |
| Compressed Data | 10 - 12 kbps |
| 9555 Handset | 1616 - 1625 MHz |
Power
| Average Power Consumption | Current @ 12V | Power Watts |
| Standby | 70mA | 0.84W |
| Transmit + Charging | 0.7A | 8.4W |
| Sleep Mode | 3mA | 35mW |
| Rated Input | 9-32V DC | 2A max |
Bluetooth® Module (Internal)
| Legal | The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by Beam Communications is under license. Other trademarks and trade names are those of their respective owners. |
| Regulatory | Bluetooth® identifier: B03005. CE 89/336/EEC - #EC/2006/20013C. FCC part 15 class B: SatDOCK contains Transmitter Module FCC ID: QOQWT11. Canada: Cert# 5123A-BGTWT11E Japan Standard: R 201 NY 07215089 |
| Antenna | Integrated chip antenna |
| Power | Default = Class 2 (< 10 metres). Class 1 (<100 metres), +18dBm max. 2.4GHz - 2.4835GHz Unlicensed ISM Band |
| Profiles | HFP - Hands-Free Profile v.1.5 HFP-AG - Hands-Free Audio Gateway Pro¬file v.1.5 & SPP - Serial Port Profile |
| System | Bluetooth® 2.1+EDR (Enhanced Data Rates), 802.11 coexistence. |
GPS Module (Internal)
| Receiver Type | 14 tracking channels, 51 Acquiring, L1 frequency (1575.42MHz) |
| Active Antenna Recommendation | Minimum gain 15 - 20dB (to compensate signal loss in RF cable) Maximum noise figure 1.5 dB Maximum gain 50 dB |
| Update Rate | 1Hz |
| Accuracy | Position 2.5mCEP, Velocity 0.1m/s, Timing 300ns |
| Acquisition TTFF | Cold 29sec, Hot 1sec |
| Sensitivity | -161 dBm |
| Operational Limits | Altitude 18000m,Velocity 515m/s |
| Dynamics | 4G |
Connectors/Interfaces
| External Speaker and Microphone | One horizontal 2-pin Microfit connector on the cable loom for speaker and one vertical 2-pin Microfit connector for microphone. |
| Privacy Handset (Line In/Out) | 4-pole 3.5mm audio jack at the bottom of the SatDOCK cradle. |
| Data Port (USB) | USB Mini-B 5-pin female (USB Slave). USB 2.0 compliant, CDC Serial profile. |
| Alarm (Alert) Loop 1 input, 1 output | Alarm Mode: Normally-Closed loop IN to OUT up to 500m cable run/multiple buttons. |
| Power Cable | 4-way Microfit socket. +Vin, 0V (GND), and ACC (On/Off Sense). 9-32VDC tolerant. ACC sense: High(1) > +7Vdc Low (0) 0V < +5Vdc |
| Horn Output | Green wire on the cable loom. Open collector output can be interfaced to 12 or 24VDC with up to 120mA current sink capability. |
| Iridium Antenna | TNC Female |
| GPS Antenna | SMA Female |
| Intelligent Handset | RJ45 |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range SatDOCK-G | -20°C to +70°C | -4°F to +158°F |
| Operating Range 9555 Handset | -10°C to +55°C | +14°F to +131°F |
| Storage | -30°C to +70°C | -22°F to 158°F |
| Operating Humidity Range | < 85% RH non-condensing |
Physical
| Dimensions | mm | inches |
| Dock | 200.5H x 74.36W x 68D | 7.89H x 2.93W x 2.68D |
| Outer Box | 330H x 140W x 90D | 13.0H x 5.51W x 3.54D |
| Weight | kg | lbs |
| Dock | 0.32 | 0.7 |
| Box | 1.26 | 2.78 |

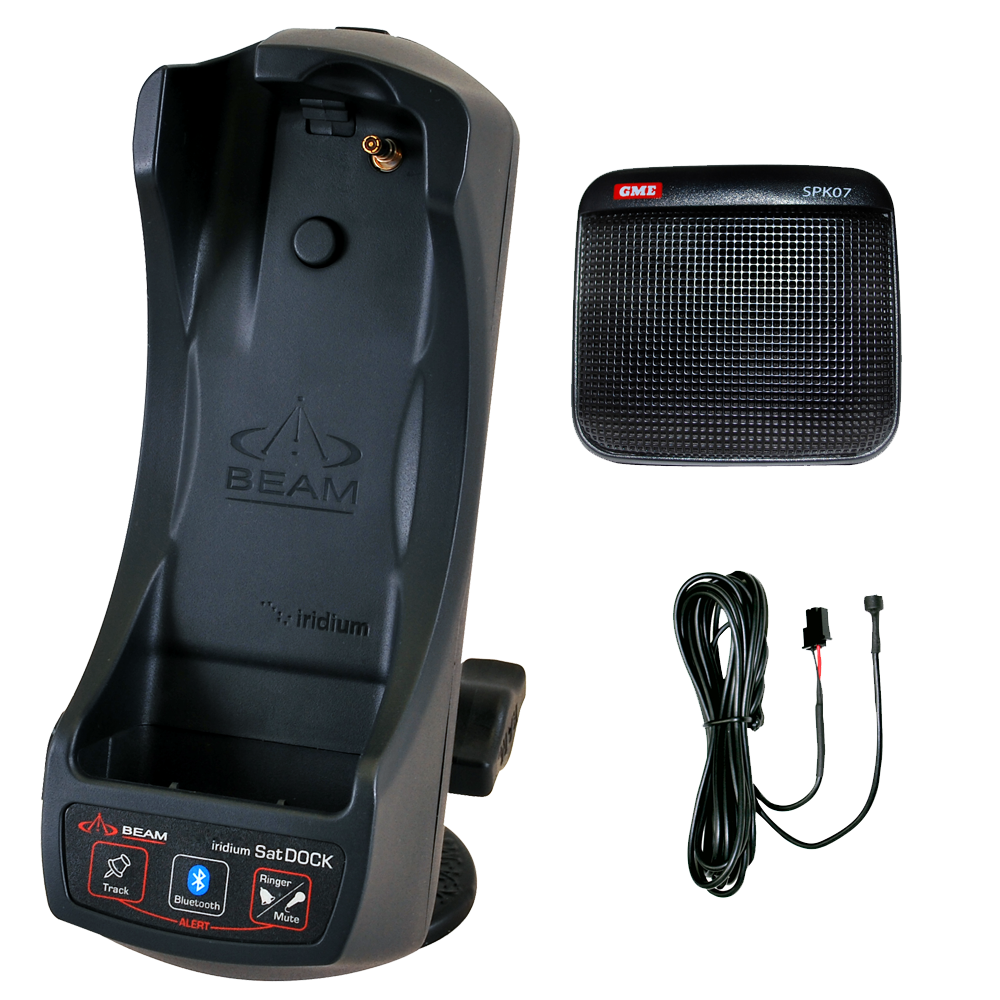

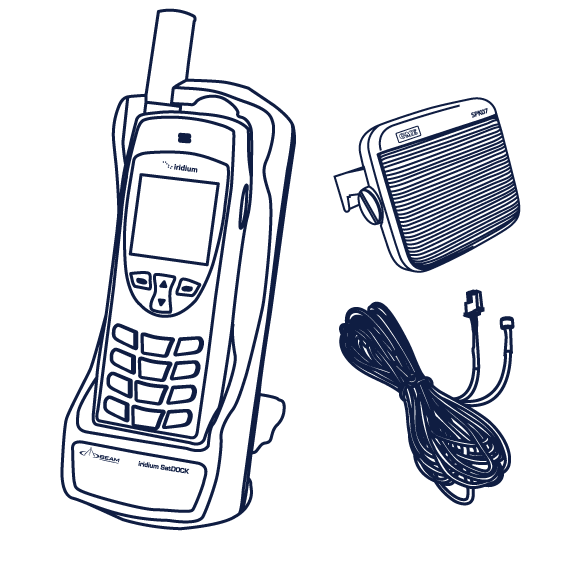

Kit Contents

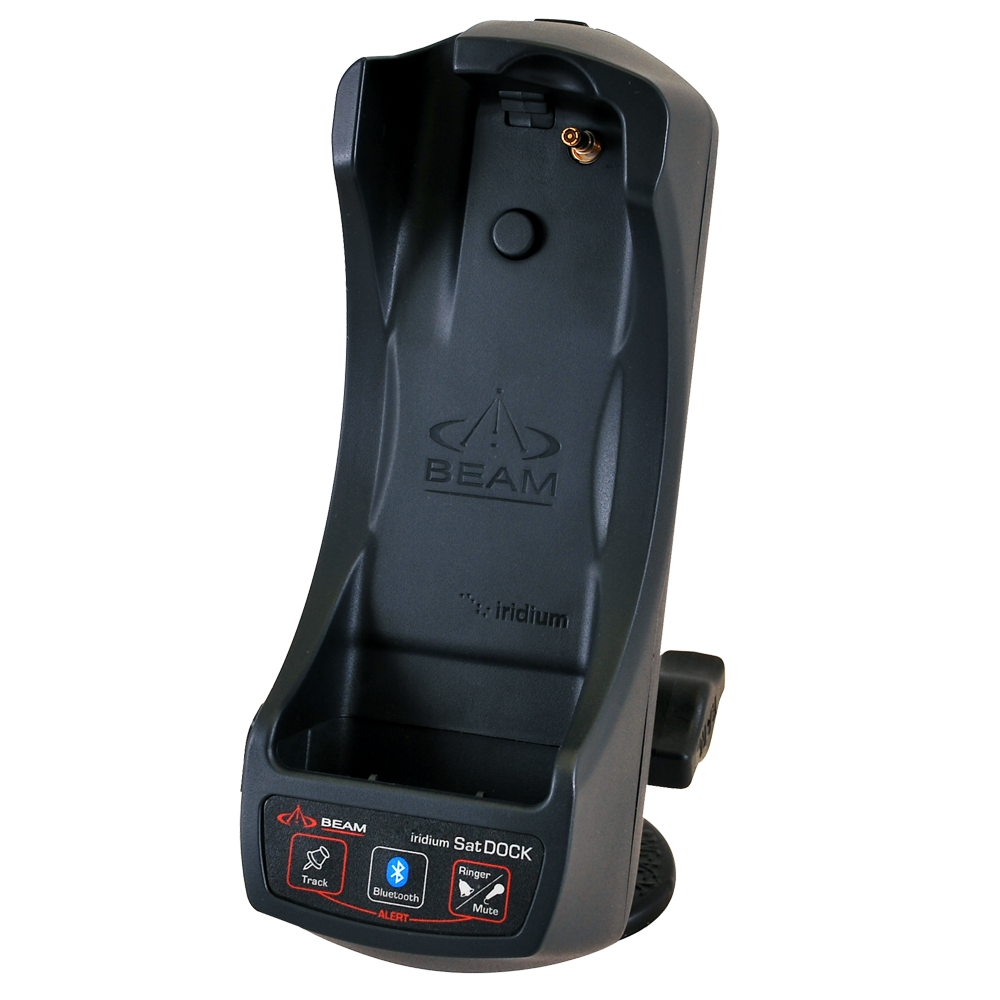

| SatDOCK-G 9555 Cradle |
| Universal Mounting Bracket (RAM) |
| DC Power Cable |
| Speaker & Microphone |
| User Manual |
| Quick Start Guide |
Certifications
| Iridium |
| WEEE |
| RoHS |
| EMC |
| Flame retardant |
| Safety - SELV |
Brochures
Brochure SatDOCK-G 9555
For more information please download our SatDOCK-G 9555 Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
