Iridium Beam Aero Dual Mode Antenna - TSO Approved - DISCONTINUED (RST704)

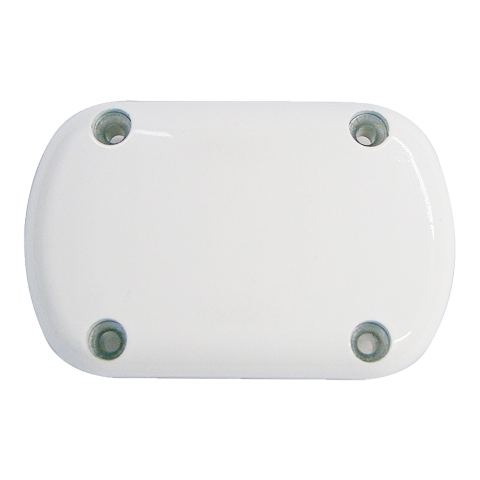

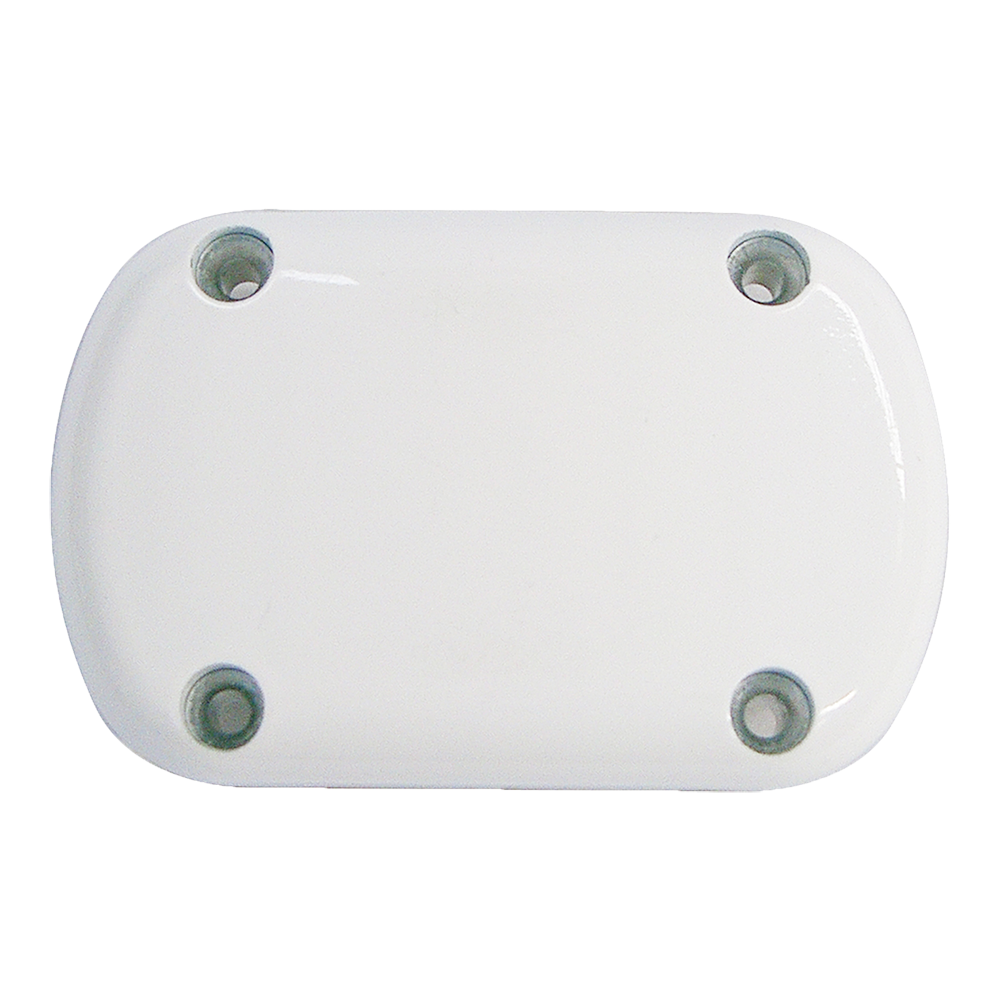

The Beam RST704 TSO is an Aero Approved dual mode all in one compact Iridium and GPS patch antenna, designed for aero applications.
Iridium Beam Aero Dual Mode Antenna - TSO Approved - DISCONTINUED Features
The RST704 dual mode patch Aero antenna is supplied complete with bulkhead mount that enables it to be securely mounted without the connectors being exposed to the environment. The Beam RST704 dual mode patch antenna is fitted with an SMA female connector for GPS and a TNC for Iridium and will work with all Beam tracking products or other Iridium / GPS based devices. TSO approved C - 144.
Key Features
• Iridium approved
• Designed for harsh environments
• Small and lightweight
• Weatherable polymer
• Manufactured in the USA
• TSO approved (C-144).
• 12 month repair or replacement warranty
• Designed for harsh environments
• Small and lightweight
• Weatherable polymer
• Manufactured in the USA
• TSO approved (C-144).
• 12 month repair or replacement warranty
Similar items you may be interested in
The Beam RST702 is a dual mode all in one Iridium and GPS antenna, designed ...
View product
The Beam RST703 is a dual mode Iridium and GPS patch antenna, designed predominantly for ...
View product
The Beam RST705 is a dual mode all in one compact Iridium and GPS magnetic ...
View product
The dual mode all in one Iridium and GPS Whip Antenna (RST706B) is designed for ...
View product
Iridium Beam Aero Dual Mode Antenna - TSO Approved - DISCONTINUED Specifications
General
| Antenna | Iridium | GPS |
| Polarization | Right Hand Circular | Right Hand Circular |
| Axial Ratio | 3dB Max | 3dB Max |
| Amplifier Gain | Passive | L1: 26dB (35mA) |
| Voltage | Passive | L1: 3 VDC |
| Noise Figure | 2.5dB Max | 2.5dB Max |
| Impedance | 50 Ohms | 50 Ohms |
| VSWR | ≤ 2.0 : 1 | ≤ 2.0 : 1 |
| Altitude | 16,764m/55,000ft | 16,764m/55,000ft |
| Power Handling | 10 Watts | |
| TSO Approved | C-144 |
Frequency
| Iridium | 1621 ± 5MHz |
| GPS | 1575 ± 5MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -55°C to +85°C | -67°F to 185°F |
Physical
| Colour | White | |
| Finish | Weatherable Polymer | |
| Dimensions | mm | inches |
| Antenna | 87.38L x 55.63W x 19.56H | 3.44L x 2.19W x 0.77H |
| Weight | kg | lbs |
| Antenna | 0.127 | 0.28 |
Connectors
| Iridium | TNC Female |
| GPS | SMA Female |
Brochures
Brochure RST704 Dual Mode Iridium GPS Patch Antenna
For more information please download our RST704 Dual Mode Iridium GPS Patch Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
Product supportAccessories
