Iridium Beam Magnetic Dual Mode Antenna - DISCONTINUED (RST705)

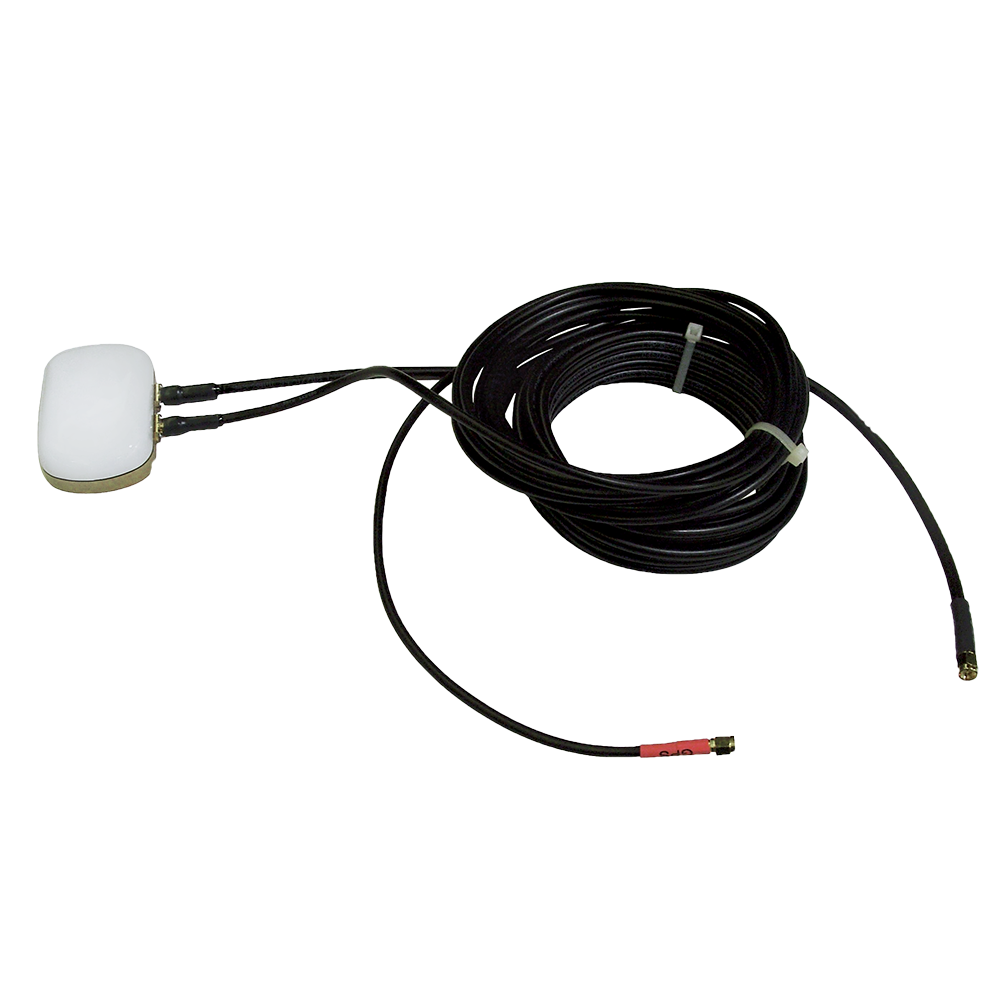

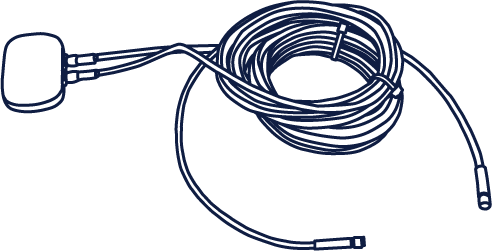

The Beam RST705 is a dual mode all in one compact Iridium and GPS magnetic patch antenna, designed for vehicular applications. Designed to work with Beam tracking products and can work with other Iridium/GPS based devices. The RST705 Magnetic Mount antenna is designed to be very low profile.
Iridium Beam Magnetic Dual Mode Antenna - DISCONTINUED Features
With a strong magnetic mount, the antenna is very easy to install and move from asset to asset and doesn’t require any holes to be drilled for fitting.
Included is 6m of both Iridium and GPS antenna cable, making the RST705 a very cost effective and easy to use solution.
Key Features
• Iridium approved
• Designed for harsh environments
• Small and lightweight
• Dual mode GPS / Iridium
• Magnetic mount, no need to drill holes
• Manufactured in the USA
• Includes 6m of both GPS & Iridium antenna cable attached
• 12 month repair or replacement warranty
• Designed for harsh environments
• Small and lightweight
• Dual mode GPS / Iridium
• Magnetic mount, no need to drill holes
• Manufactured in the USA
• Includes 6m of both GPS & Iridium antenna cable attached
• 12 month repair or replacement warranty
Similar items you may be interested in
The Beam RST702 is a dual mode all in one Iridium and GPS antenna, designed ...
View product
The Beam RST703 is a dual mode Iridium and GPS patch antenna, designed predominantly for ...
View product
The Beam RST704 TSO is an Aero Approved dual mode all in one compact Iridium ...
View product
The dual mode all in one Iridium and GPS Whip Antenna (RST706B) is designed for ...
View product
Iridium Beam Magnetic Dual Mode Antenna - DISCONTINUED Specifications
General
| Antenna | Iridium | GPS |
| Polarization | Right Hand Circular | Right Hand Circular |
| Axial Ratio | 3db Max at boresight | 3db Max at boresight |
| Amplifier Gain | Passive | 26db (35mA) |
| Voltage | Passive | L1: 3VDC |
| Noise Figure | 2.5db Max | 2.5db Max |
| Impedance | 50 OHMS | 50 OHMS |
| VSWR | < 2.0 : 1 | < 2.0 : 1 |
| Altitude | 6,000m/20,000ft | 6,000m/20,000ft |
| Cable | Includes 6m or 19.7 feet of LMR240 Iridium | Includes 6m or 19.7 feet of LMR240 GPS |
Frequency
| Iridium | 1616 – 1626MHz |
| GPS | 1575.42 ± 5MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -40°C to +70°C | -40°F to 158°F |
Physical
| Colour | White | |
| Finish | Base – Aluminum | Radome – High Impact, white |
| Dimensions | mm | inches |
| Antenna | 87.38L x 55.63W x 26.42H | 3.44L x 2.19W x 1.04H |
| Box | 210 W x 210 D x 90 H | 8.27 W x 8.27 D x 3.54 H |
| Weight | kg | lbs |
| Antenna (including cables) | 0.63 | 1.39 |
| Box | 0.707 | 1.56 |
Connectors
| Iridium | TNC Male |
| GPS | SMA Male |
Brochures
Brochure RST705 Iridium/GPS Magnetic Antenna
For more information please download our RST705 Iridium/GPS Magnetic Antenna Brochure.
Download brochure
