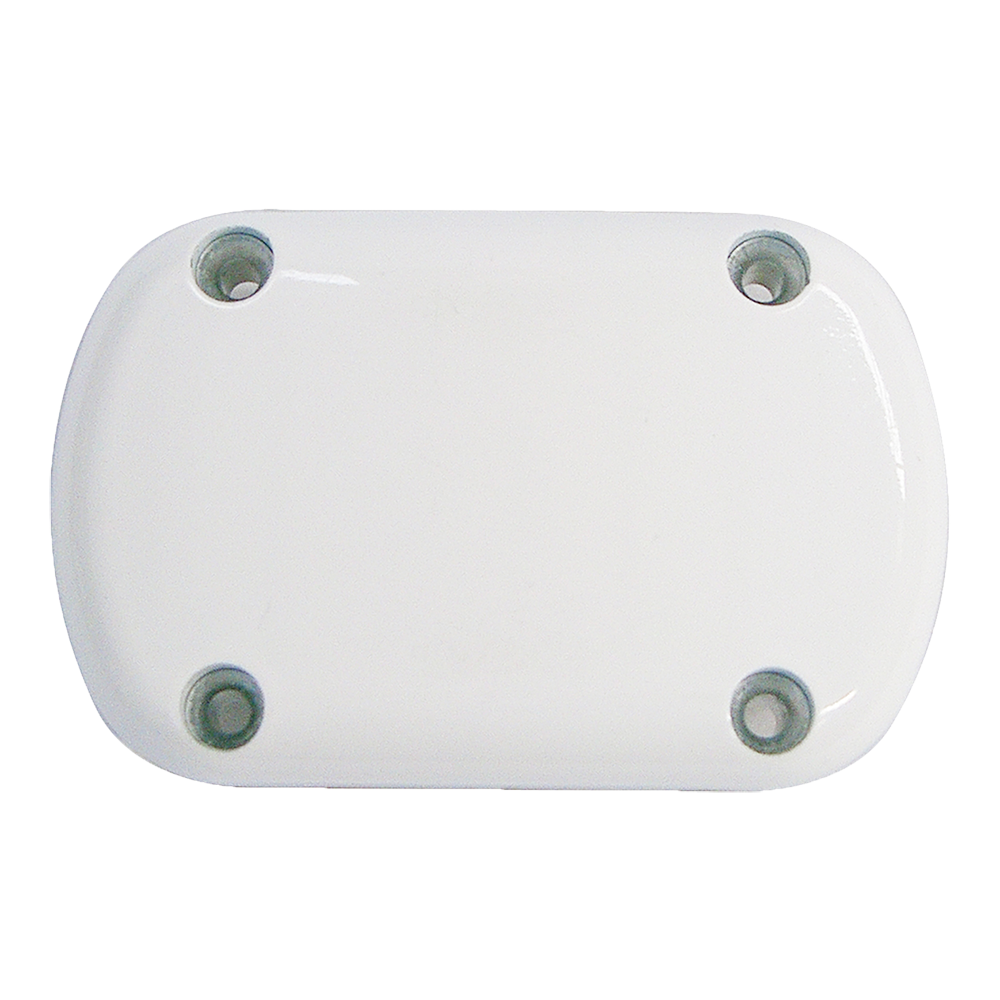

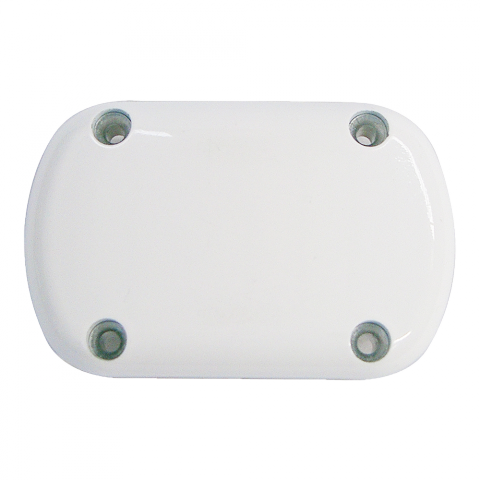

Iridium Beam Patch Dual Mode Antenna - DISCONTINUED (RST703)
MSRP $450 USD
The Beam RST703 is a dual mode Iridium and GPS patch antenna, designed predominantly for land and asset monitoring applications.
Iridium Beam Patch Dual Mode Antenna - DISCONTINUED Features
The RST703 dual mode patch antenna is supplied complete with bulkhead mount that enables it to be securely mounted without the connectors being exposed to the environment.
Beam RST703 dual mode patch antenna is fitted with an SMA female connector for GPS and a TNC for Iridium and will work with all Beam tracking products or other Iridium / GPS based devices.
Key Features
• Iridium approved
• Designed for harsh environments
• Small and lightweight
• Weatherable polymer
• Manufactured in the USA
• 12 month repair or replacement warranty
• Designed for harsh environments
• Small and lightweight
• Weatherable polymer
• Manufactured in the USA
• 12 month repair or replacement warranty
Similar items you may be interested in
The Beam RST702 is a dual mode all in one Iridium and GPS antenna, designed ...
View product
The Beam RST704 TSO is an Aero Approved dual mode all in one compact Iridium ...
View product
The Beam RST705 is a dual mode all in one compact Iridium and GPS magnetic ...
View product
The dual mode all in one Iridium and GPS Whip Antenna (RST706B) is designed for ...
View product
Iridium Beam Patch Dual Mode Antenna - DISCONTINUED Specifications
| Antenna | Iridium | GPS |
| Polarization | Right Hand Circular | Right Hand Circular |
| Axial Ratio | 3dB Max | 3dB Max |
| Amplifier Gain | Passive | L1: 26dB (35mA) |
| Voltage | Passive | L1: 3 VDC |
| Noise Figure | 2.5dB Max | 2.5dB Max |
| Impedance | 50 Ohms | 50 Ohms |
| VSWR | ≤ 2.0 : 1 | ≤ 2.0 : 1 |
| Altitude | 6,000m/20,000ft | 6,000m/20,000ft |
| Power Handling | 10 Watts |
Frequency
| Iridium | 1621 ± 5MHz |
| GPS | 1575 ± 5MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -55°C to +85°C | -67°F to 185°F |
Physical
| Colour | White | |
| Finish | Weatherable Polymer | |
| Dimensions | mm | inches |
| Antenna | 87.38L x 55.63W x 19.56H | 3.44L x 2.19W x 0.77H |
| Weight | kg | lbs |
| Antenna | 0.127 | 0.28 |
Connectors
| Iridium | TNC Female |
| GPS | SMA Female |
Brochures
Brochure RST703 Dual Mode Iridium GPS Patch Antenna
For more information please download our RST703 Dual Mode Iridium GPS Patch Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
