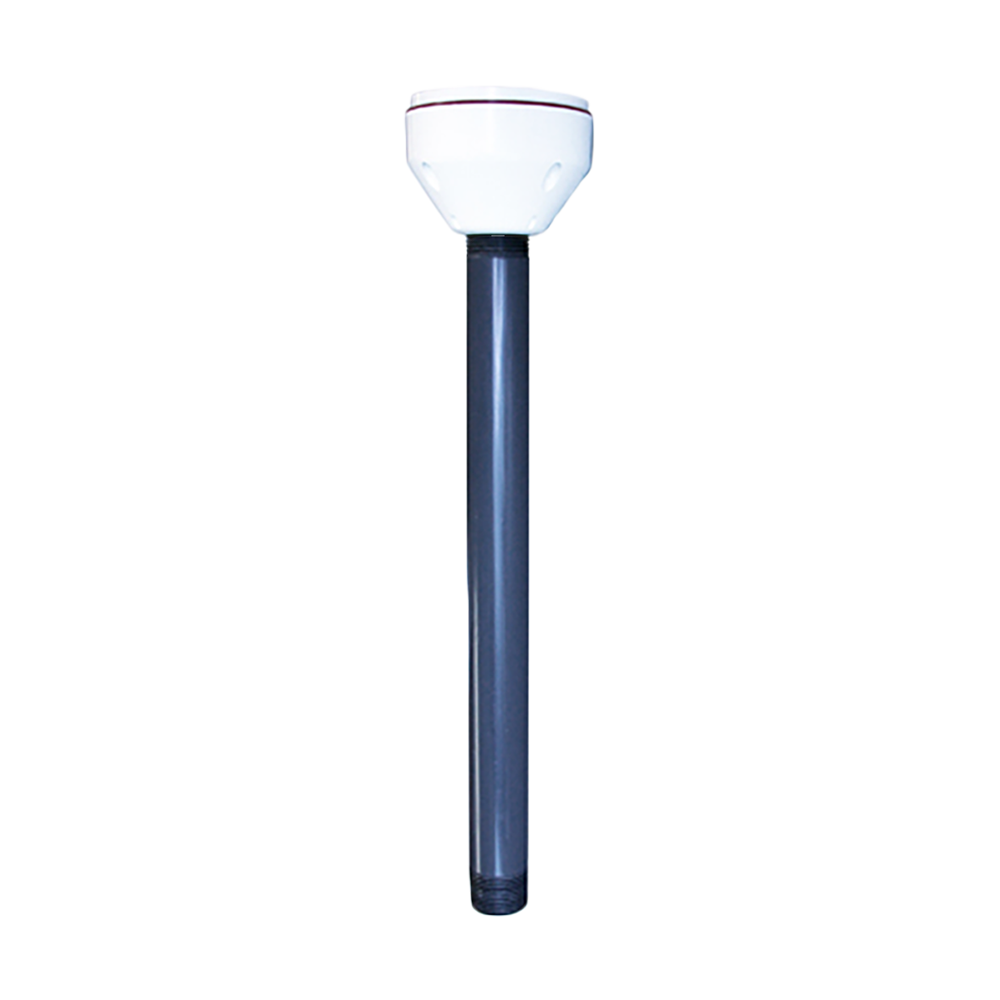

Iridium Beam Mast Dual Mode Antenna - DISCONTINUED (RST702)
The Beam RST702 is a dual mode all in one Iridium and GPS antenna, designed predominantly for maritime applications.
Iridium Beam Mast Dual Mode Antenna - DISCONTINUED Features

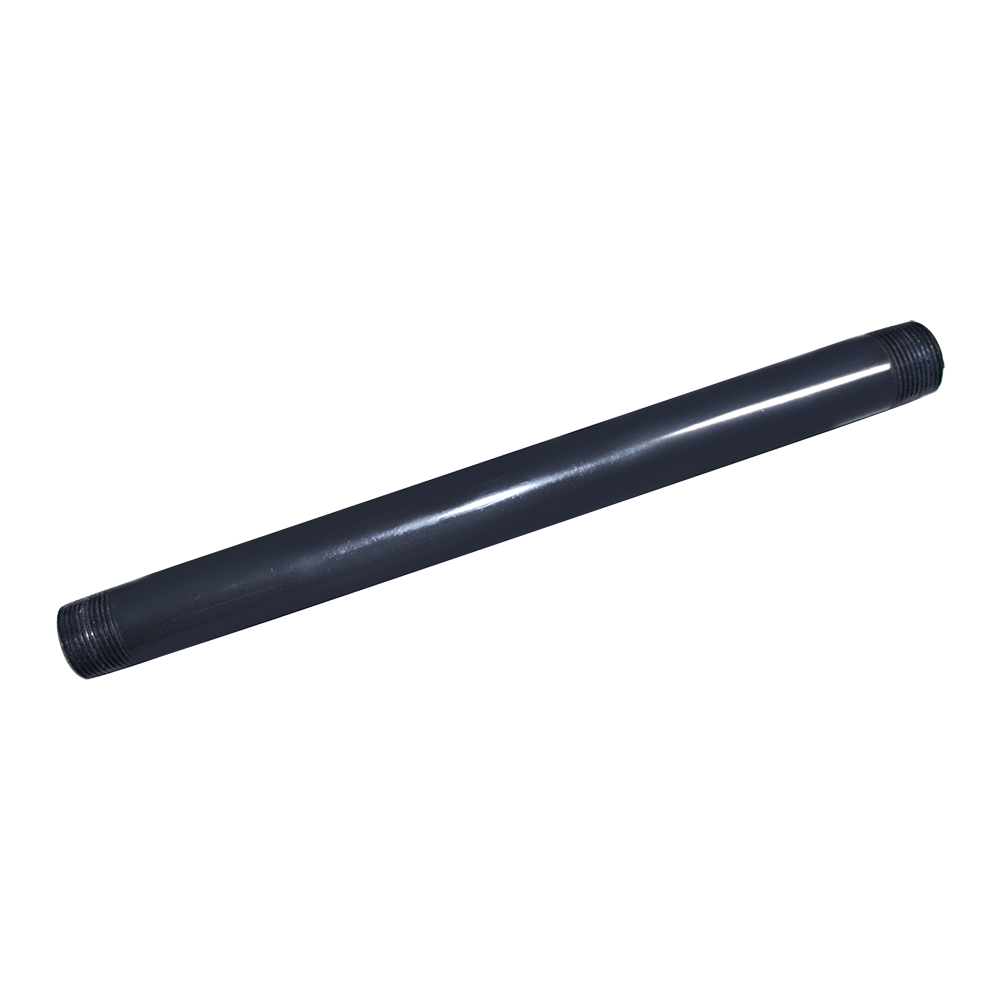

The antenna is supplied complete with a PVC pipe, 30cm (12 inches) that enables it to be securely mounted without the connectors being exposed to the environment. The antenna is fitted with an SMA female connector for GPS and a SMA for Iridium and will work with all Beam tracking products or other Iridium / GPS based devices.
Key Features
• Iridium approved
• Weatherable Polymer
• Designed for harsh environments
• SMA connector
• Very low profile
• Manufactured in the USA
• 12 month repair or replacement warranty
• Weatherable Polymer
• Designed for harsh environments
• SMA connector
• Very low profile
• Manufactured in the USA
• 12 month repair or replacement warranty
Similar items you may be interested in
The Beam RST703 is a dual mode Iridium and GPS patch antenna, designed predominantly for ...
View product
The Beam RST704 TSO is an Aero Approved dual mode all in one compact Iridium ...
View product
The Beam RST705 is a dual mode all in one compact Iridium and GPS magnetic ...
View product
The dual mode all in one Iridium and GPS Whip Antenna (RST706B) is designed for ...
View product
The BEAM Iridium Covert antenna has been specifically designed for the maritime market to help ...
View product
Iridium Beam Mast Dual Mode Antenna - DISCONTINUED Specifications
General
| Antenna | Iridium | GPS |
| Polarization | Right Hand Circular | Right Hand Circular |
| Axial Ratio | 3dB Max at boresight | 3dB Max at boresight |
| Amplifier Gain | Passive | L1: 26dB (35mA) |
| Voltage | Passive | L1: 3 VDC |
| Noise Figure | 2.5dB Max | 2.5dB Max |
| Impedance | 50 Ohms | 50 Ohms |
| VSWR | ≤ 2.0 : 1 | ≤ 2.0 : 1 |
| Power Handling | 10 Watts |
Physical
| Colour | White | |
| Finish | Weatherable Polymer | |
| Dimensions | mm | inches |
| Antenna | 80.52H x 76.2Dia | 3.17H x 3Dia |
| PVC Pole | 305 | 12.0 |
| Weight | kg | lbs |
| Antenna | 0.127 | 0.28 |
Frequency
| Iridium | 1621 ± 5MHz |
| GPS | 1575 ± 5MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -40°C to +71°C | -40°F to 160°F |
Connectors
| Connector | SMA Female |
| GPS | SMA Female |
Adapter Cables
| Adaptor 1 | |
| Satellite | 170mm / 6.69in. |
| Connectors | TNC-F to SMA-M |
| Adaptor 2 | |
| GPS | 240mm / 9.45in. |
| Connectors | SMA-F to SMA-M |
Brochures
RST702 Brochure
For more information please download our RST702 Dual Mode Iridium GPS Antenna Brochure.
Download brochure
