Iridium Beam Mast/Pole Antenna - DISCONTINUED (RST710)

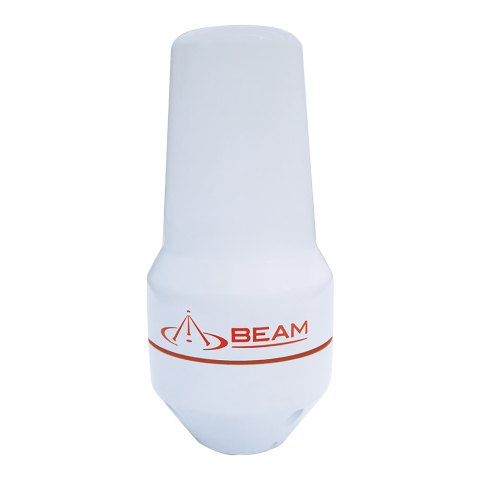

The Iridium Pole Mount Antenna RST710 is designed for Maritime and fixed site based applications. Designed to work with Iridium based devices.
Iridium Beam Mast/Pole Antenna - DISCONTINUED Features

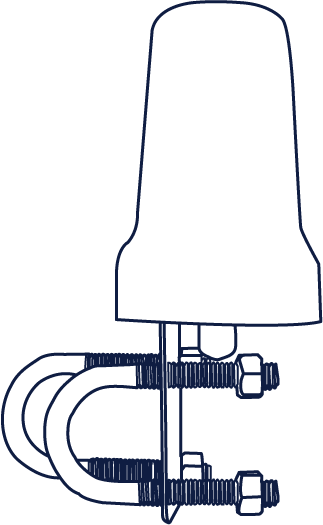

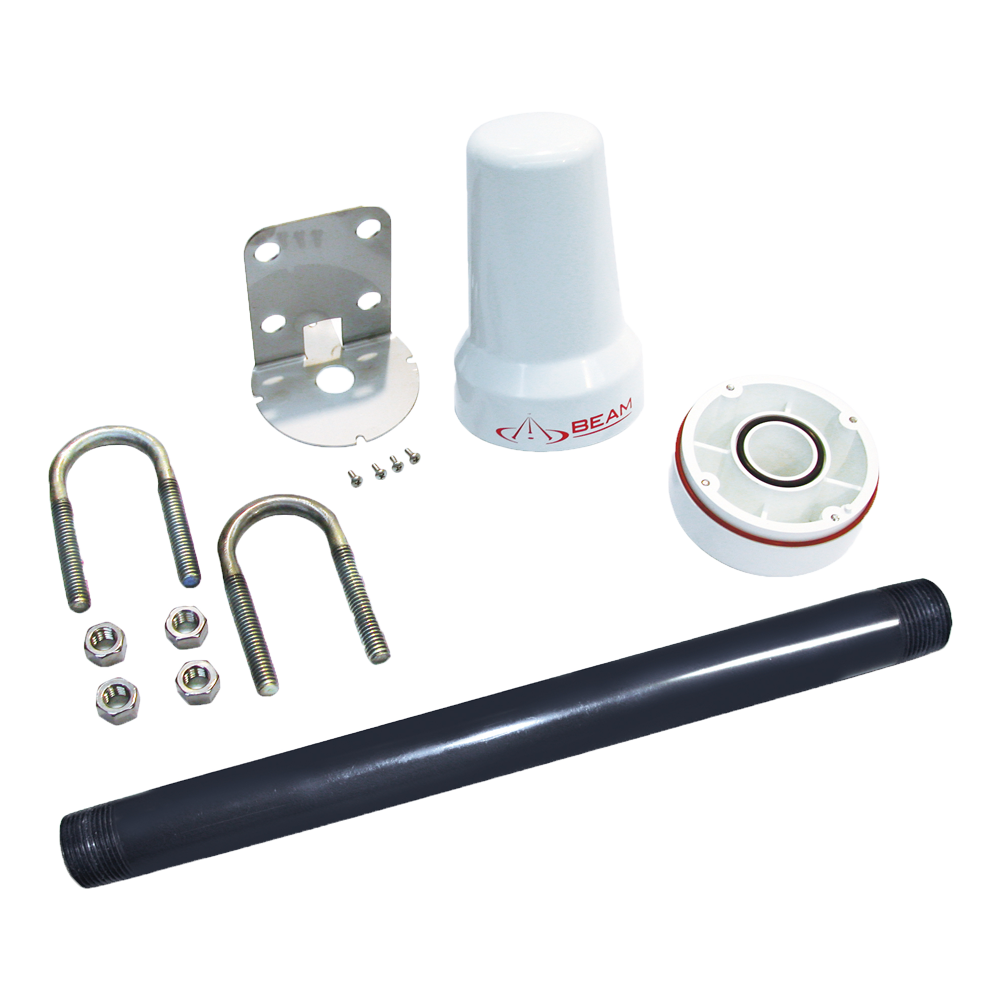

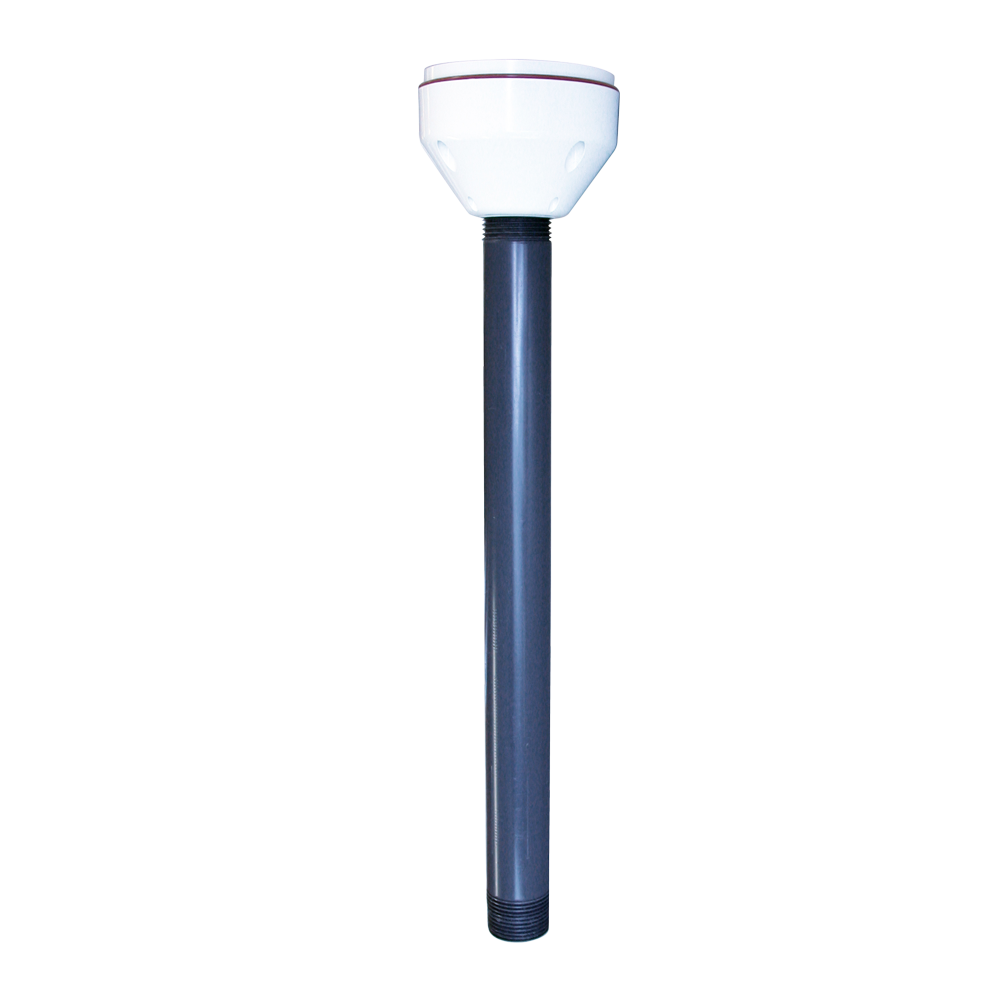

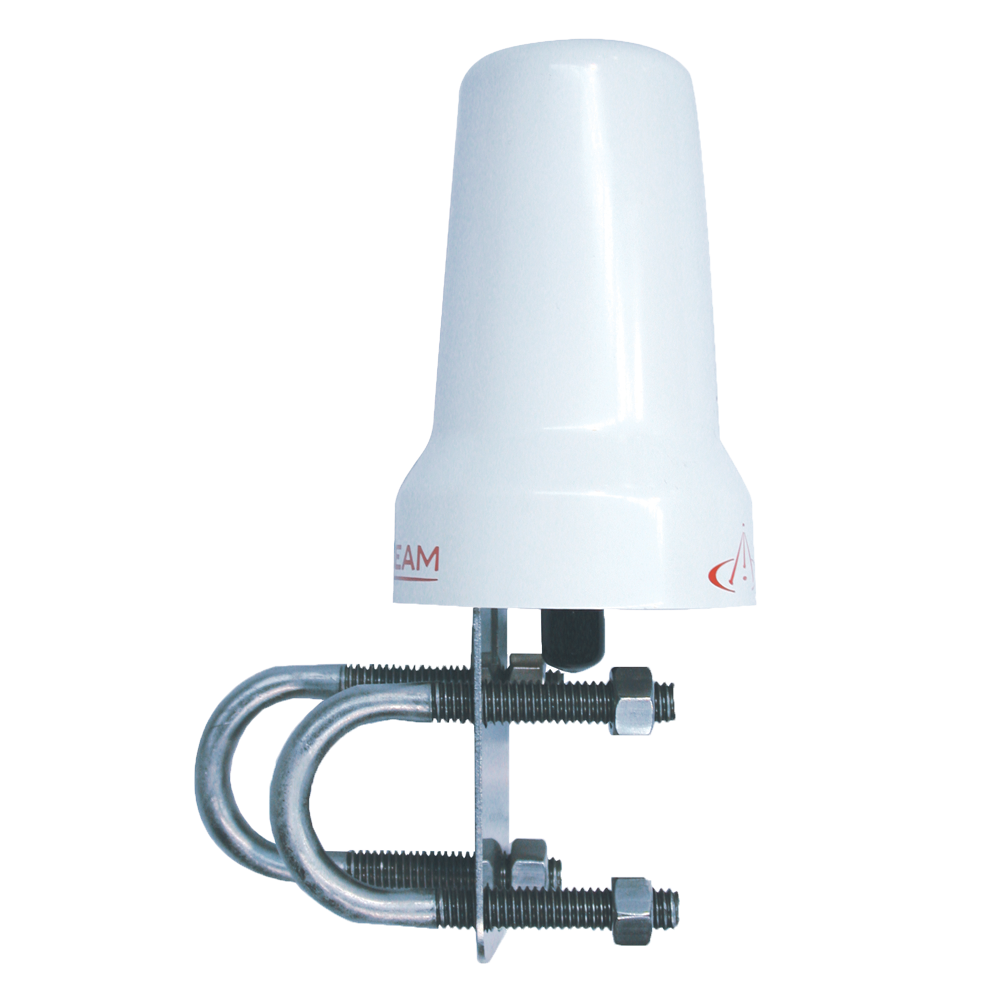

The antenna is omnidirectional and therefore makes it an easy installation in any location. The antenna is supplied with both straight pole mounting or right angle brackets depending on the installation location. The antenna has a recessed TNC female connector to make the cable connection inside the antenna and protected from harsh environments.
Key Features
• Iridium approved
• Designed for harsh environments
• Small and lightweight
• Weatherable polymer
• Manufactured in the USA
• 12 month repair or replacement warranty
• Designed for harsh environments
• Small and lightweight
• Weatherable polymer
• Manufactured in the USA
• 12 month repair or replacement warranty
Similar items you may be interested in
The Active / Powered Iridium antenna RST740 is designed for Land and Maritime applications specifically ...
View product
The Beam RST702 is a dual mode all in one Iridium and GPS antenna, designed ...
View product
The Iridium WHIP Antenna (RST714) is designed for vehicular or fixed site applications. ...
View product
The BEAM Iridium Covert antenna has been specifically designed for the maritime market to help ...
View product
Iridium Beam Mast/Pole Antenna - DISCONTINUED Specifications
General
| Polarization | Right Hand Circular |
| Axial Ratio | 3.0db Max at bore sight |
| Impedance | 50 Ohms |
| VSWR | < 2.0 : 1 |
| Power handling | 10 Watts |
| Altitude | 6,000m/20,000ft |
Frequency
| Iridium | 1616 – 1626 MHz |
Environmental
| Extreme rain exposure | 37 mm/10 min; 145 mm/24 h | |
| Extreme snow exposure | 3,0kN/m2 | |
| Wind | 35m/s | |
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -55°C to +85°C | -67°F to 185°F |
Physical
| Colour | White | |
| Finish | Weatherable Polymer | |
| Dimensions | mm | inches |
| Antenna | 76.2W x 162.31H | 3.0W x 6.39H |
| PVC Pole (length) | 305 | 12.0 |
| PVC Pole (ext. diameter) | 26.48 | 1 |
| Box | 320 W x 90 D x 95 H | 12.6 W x 3.54 D x 3.74 H |
| Weight | kg | lbs |
| Antenna | 0.311 | 0.687 |
| Box | 0.78 | 1.72 |
Connector
| Iridium | TNC Female |
Brochures
Brochure RST710 Iridium Mast Mount Antenna
For more information please download our RST710 Iridium Mast Mount Antenna Brochure.
Download brochure
