Beam Bulkhead Patch GPS Antenna Active - DISCONTINUED (RST701)

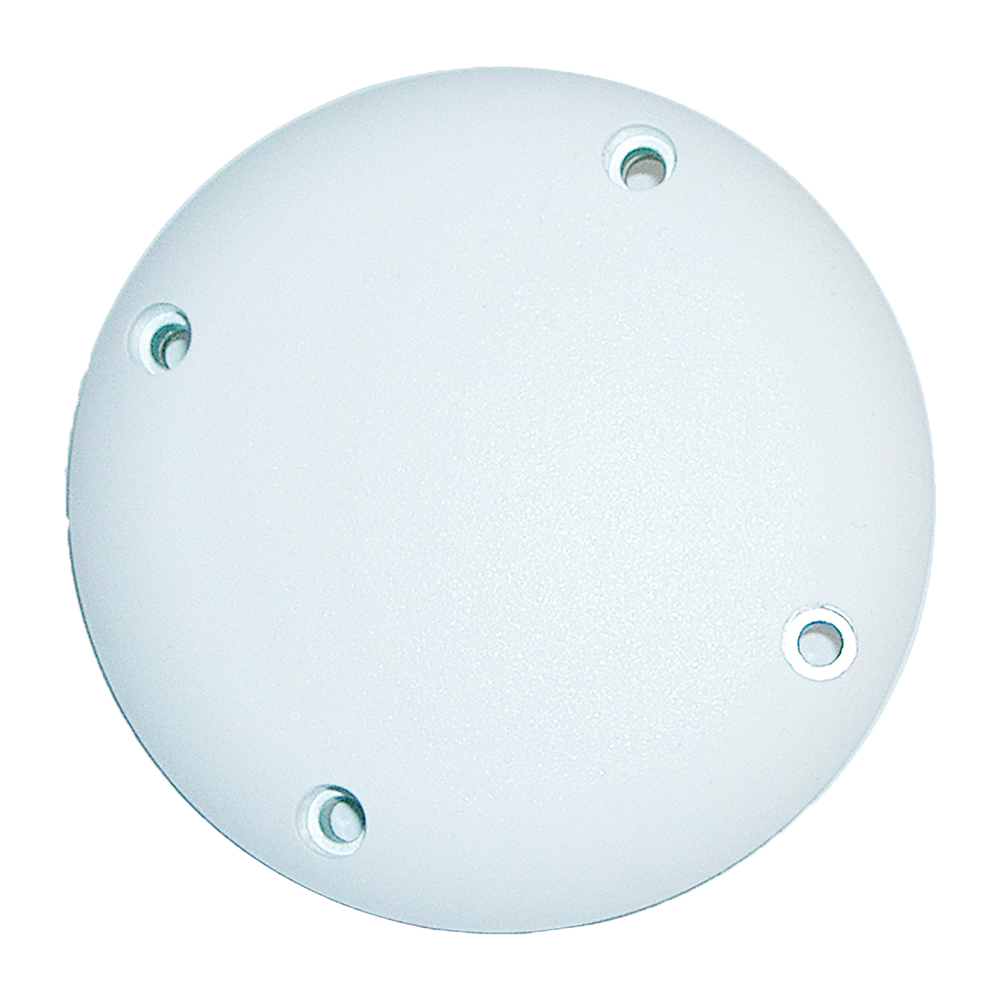

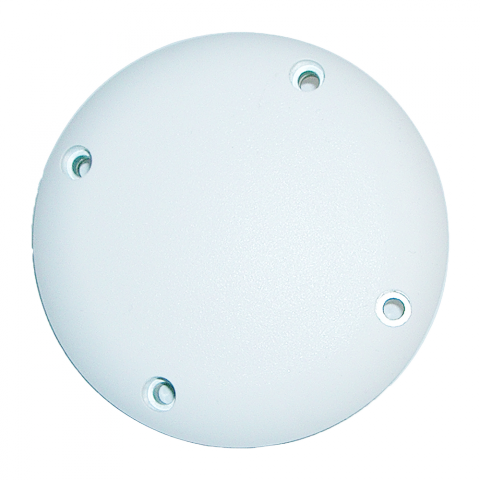

The Beam RST701 Active GPS Bulkhead Patch Antenna is designed predominantly for vehicle and asset monitoring applications.
Beam Bulkhead Patch GPS Antenna Active - DISCONTINUED Features
The RST701 antenna is supplied complete with bulkhead mount that enables it to be securely mounted without the connector being exposed to the environment. The Beam RST701 antenna is fitted with a SMA female connector and will work with all Beam tracking products or other GPS based devices.
Key Features
• Weatherable polymer
• Designed for harsh environments
• SMA connector
• Very low profile
• Manufactured in the USA
• 12 month repair or replacement warranty
• Designed for harsh environments
• SMA connector
• Very low profile
• Manufactured in the USA
• 12 month repair or replacement warranty
Similar items you may be interested in
The Beam Active GPS Antenna RST700 is designed predominantly for maritime applications. ...
View product
The Beam RST702 is a dual mode all in one Iridium and GPS antenna, designed ...
View product
The Beam RST703 is a dual mode Iridium and GPS patch antenna, designed predominantly for ...
View product
The Beam RST705 is a dual mode all in one compact Iridium and GPS magnetic ...
View product
Beam Bulkhead Patch GPS Antenna Active - DISCONTINUED Specifications
General
| Polarization | Right Hand Circular |
| Axial Ratio | 3db Max |
| Noise Figure | 2.5db Max |
| Impedance | 50 OHMS |
| VSWR | < 2.0 : 1 |
| Band Rejection | 35db |
| Power handling | 1 Watt |
| Altitude | 6,000m/20,000ft |
Frequency
| Iridium | 1575 ± 5MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -40°C to +70°C | -40°F to +185°F |
Physical
| Colour | White | |
| Finish | Weatherable Polymer – Matt texture | |
| Dimensions | mm | inches |
| Antenna | 16.51H x 76.2Dia | 0.65H x 3.0Dia |
| Weight | kg | lbs |
| Antenna | 0.11 | 0.25 |
Connector
| GPS | SMA Female |
Brochures
Brochure RST701 Active GPS Patch Antenna
For more information please download our RST701 Active GPS Patch Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
