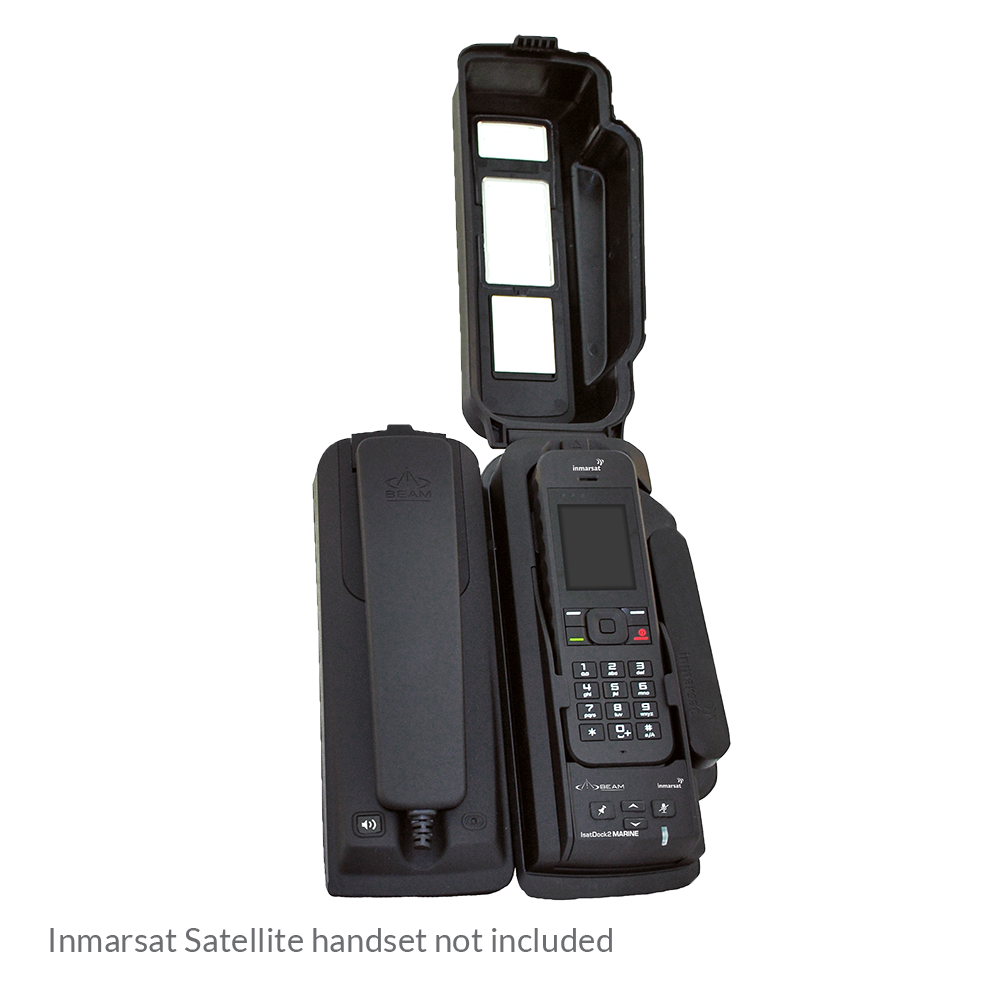

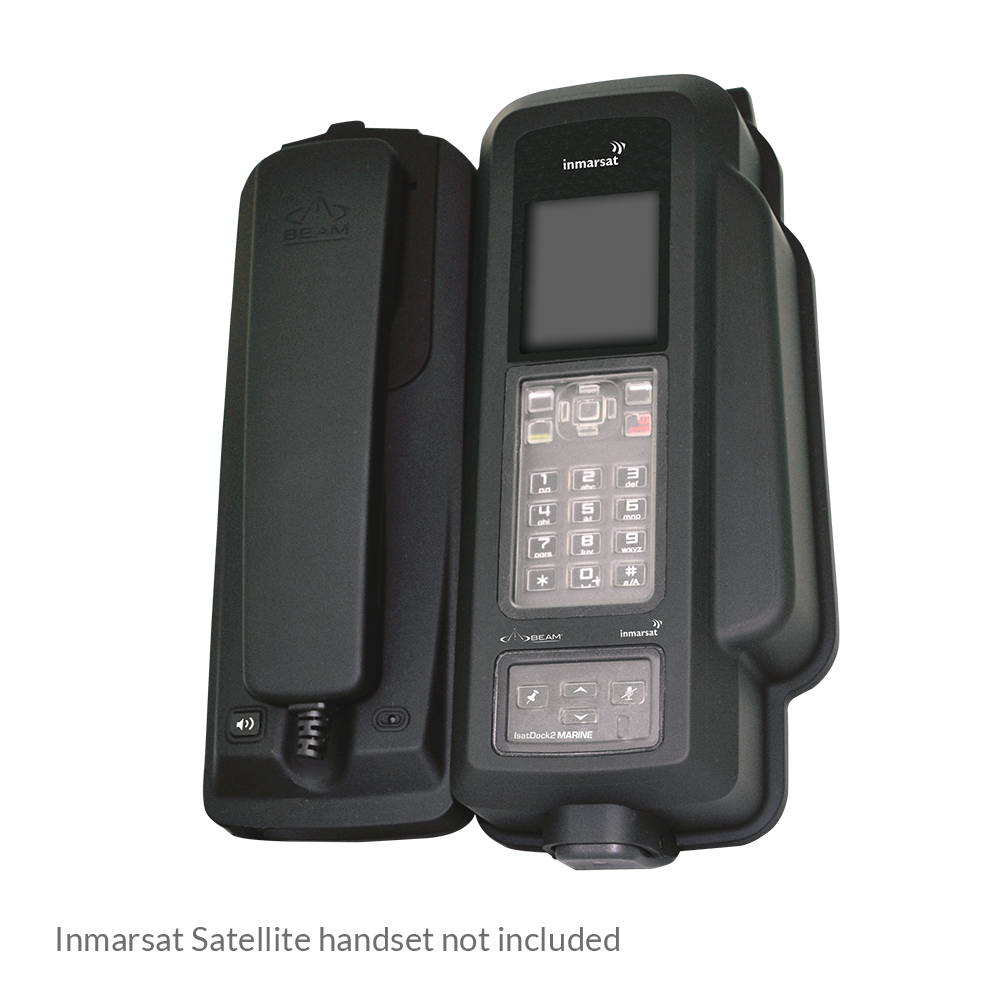

IsatDock2 MARINE (ISD2 MARINE)
Beam IsatDock2 MARINE, the only Inmarsat Certified Dock for the IsatPhone 2, is an IP54 rated intelligent docking station specifically designed for maritime application.
- RJ11/POTS
- PABX Integration
- Speakerphone
- Privacy Handset
- Tracking
- Docking
- Charging
- Ringer
- Mute
- USB
- External IO
- Alert
IsatDock2 MARINE Features
All-in-One Docking Station
The MARINE Dock supports voice services via Bluetooth, RJ11/POTS, hands free speakerphone or the active privacy handset inbuilt to the terminal. The IsatPhone 2 is completely enclosed in the docking unit whilst still giving full access and functionality to the user maintaining the IP54 rating of the handset.
Intelligent RJ11/POTS Interface
The intelligent RJ11 / POTS interface enables standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PABX system presenting standard ring, busy and dial tones up to 600m or 2000’ from the dock itself.
Key Benefits and Features
• High quality Marine Grade design
• Bluetooth connectivity, via IsatPhone 2
• RJ11/POTS interface, cable runs up to 600m/2000ft
• Dedicated Privacy Handset
• Voice, SMS and Circuit Switched Data capable
• Tracking and SOS (Via the ISatPhone 2 handset)
• USB data interface
• Accessory / Ignition sense
• 10-32V DC power input
• AC Plug pack included 110/240 input
• Supports Active and Passive Inmarsat antennas
• Full certified, Inmarsat, RoHS, CE, IEC60945 (vibration, IP rating, temperature and humidity), AS/EN60950
• 2 year repair or replacement warranty
• Bluetooth connectivity, via IsatPhone 2
• RJ11/POTS interface, cable runs up to 600m/2000ft
• Dedicated Privacy Handset
• Voice, SMS and Circuit Switched Data capable
• Tracking and SOS (Via the ISatPhone 2 handset)
• USB data interface
• Accessory / Ignition sense
• 10-32V DC power input
• AC Plug pack included 110/240 input
• Supports Active and Passive Inmarsat antennas
• Full certified, Inmarsat, RoHS, CE, IEC60945 (vibration, IP rating, temperature and humidity), AS/EN60950
• 2 year repair or replacement warranty
Instant Message and Tracking Features
• Dedicated internal GPS receiver
• Tracking:
• Periodic location messages
• SMS, SMS to email
• Location message sent upon button press
• Ignition ON/OFF reporting
• Remote location polling via SMS Instant Message Mode
• Single button press on terminal
• Instant GPS location messages
• Supports external “man down” pendant or button
• Remote clearing of alert via SMS
• Tracking/Instant Message
• Tracking:
• Periodic location messages
• SMS, SMS to email
• Location message sent upon button press
• Ignition ON/OFF reporting
• Remote location polling via SMS Instant Message Mode
• Single button press on terminal
• Instant GPS location messages
• Supports external “man down” pendant or button
• Remote clearing of alert via SMS
• Tracking/Instant Message
Watch IsatDock2 MARINE Video
The perfect partner for your IsatPhone 2, the IsatDock MARINE is an all-in-one dock specifically designed for maritime applications.
The Assistance Alert feature can be triggered from the IsatDock2 MARINE by using an external switch or wireless pendant connected to the BEAM Alert Loop of the dock.
The Personal Alert button is located on the front of the IsatDock2 MARINE. A single button press on the dock will send an instant GPS position along with a short message to the recipient/s.
The IsatDock2 MARINE has an Ingress Protection rating of 54. 5 = Protected against dust limited ingress (no harmful deposits) 4 = Protection against water sprayed from all directions - limited ingress permitted.
Similar items you may be interested in
The Inmarsat Beam IsatDock2 MARINE bundle includes:
IsatDock2 MARINE
ISD710 Active Marine Antenna
Important note: Must use a Beam ...
View product
The Beam IsatDock2 LITE, the only Inmarsat Certified Dock for the IsatPhone 2, is an ...
View product
Beam IsatDock2 PRO, the only Inmarsat Certified Dock for the IsatPhone 2, is an intelligent ...
View product
The Beam PotsDOCK Extreme, an Iridium 9575 dock, is a highly featured docking station for ...
View product
The Beam PotsDOCK 9555, an Iridium 9555 dock, is a highly featured docking station for ...
View product
IsatDock2 MARINE Specifications
Power
| Average Power Consumption Current @ 12V | Average | Watts |
| Power w/o IsatPhone 2 | 130mA | 1.6W |
| Standby + Charging | 360mA | 4.3W |
| Transmit + Charging | 875mA | 10.5W |
| Sleep Mode | 5mA | 60mW |
| Peak Current | 3.5A | 42W |
I/O Alarm/Alert
| Track | In-built - single key press |
| 1 x Alarm Loop | Bare wire - Normally Closed loop IN to OUT |
Connectors / Interfaces
| POTS/RJ11 | RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance. |
| Antenna | TNC-Female |
| GPS Antenna | SMA-Female |
| 10-32 VDC | 4-way microFit (AC/DC adaptor, or DC lead) |
| Privacy Handset Port | RJ9 connector |
| Configuration / Data | USB Micro |
| Speakerphone | In-built speaker/microphone |
| LEDs/Buttons | Status LED, Personal Alert/Track, Mute, Speakerphone, Up and Down |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range (Meets IEC60945) | -25°C to +55°C | -13°F to +131°F |
| Storage | -35°C to +85°C | -31°F to +185°F |
| Battery Charging | 0°C to +45°C | 32°F to +113°F |
| Humidity | <= 75% RH |
Physical
| Dimensions | mm | inches |
| Unit | 276L x 208W x 100H | 10.87L x 8.18W x 3.93H |
| Outer Box | 330W x 190D x 230H | 13W x 7.5D x 9.1H |
| Weight | kg | lbs |
| Dock | 1.67 | 3.67 |
| Box | 2.72 | 5.99 |
Kit Contents
| IsatDock2 MARINE |
| 2 x IsatDock2 Adaptors |
| 10-32 DC Power Cable |
| 110-240V AC Plug Pack |
| Privacy Handset |
| 2m Alert wiring loop |
| Wall mounting plate |
| User Manual |
| Quick Start Guide |
Certifications
| Inmarsat Type Approval |
| EMC Compliance |
| FCC |
| CE Compliance |
| Electrical Safety |
| RoHS |
| Industry Canada |
| C-Tick |
| IP54 Rating 5 = Protected against dust limited ingress (no harmful deposits). 4 = Protection against water sprayed from all directions - limited ingress permitted. |
Brochures
Brochure IsatDock2 MARINE
For more information please download our IsatDock2 MARINE Brochure.
Download brochure
Brochure IsatDock2 Series
.jpg)
For more information please download our IsatDock2 Series Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
Product supportAccessories
The Man Down Pendant is a user worn accessory (lanyard or hip holster) that works ...
View product

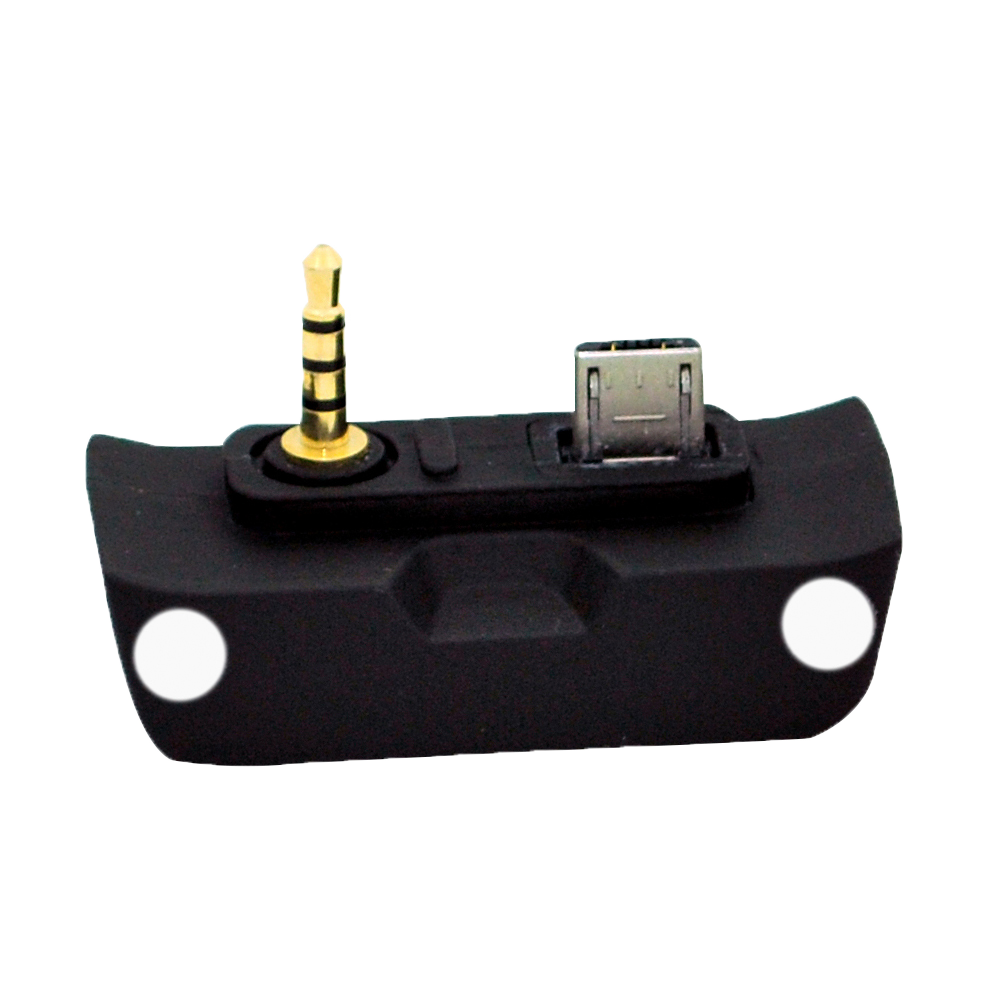

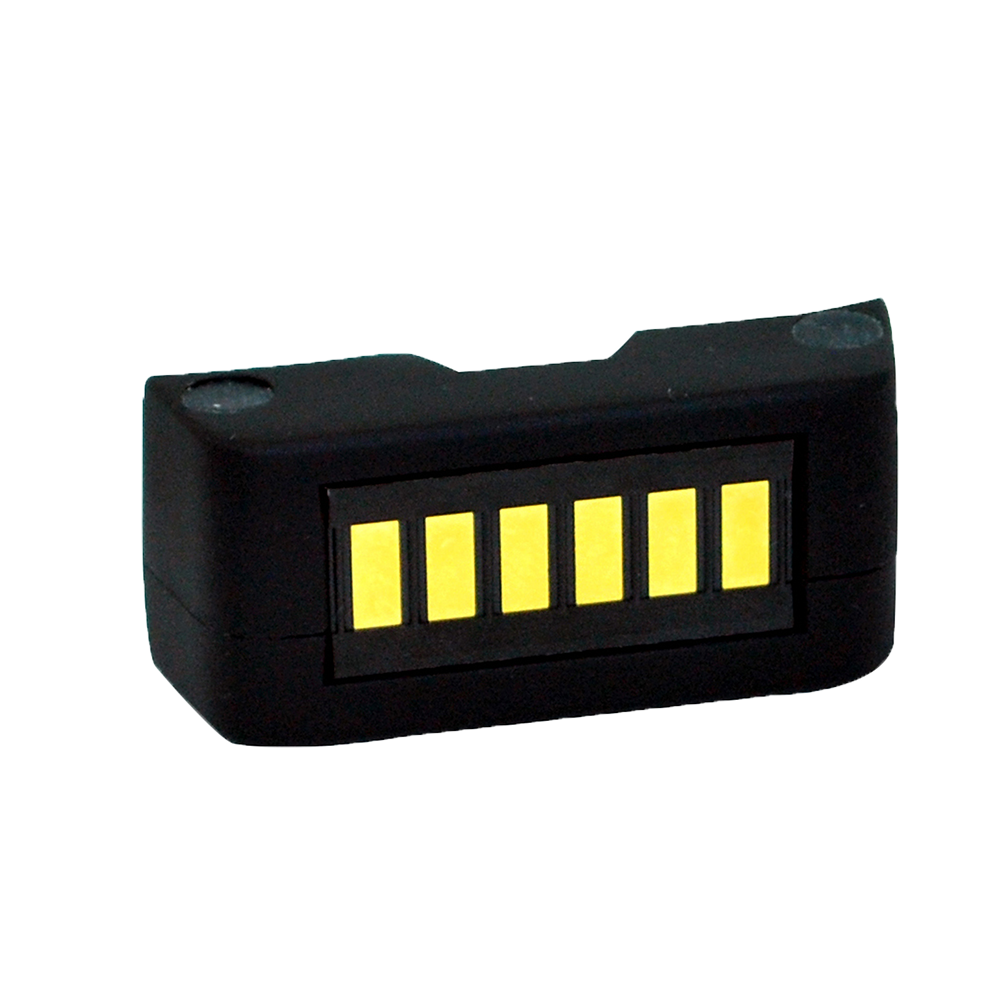

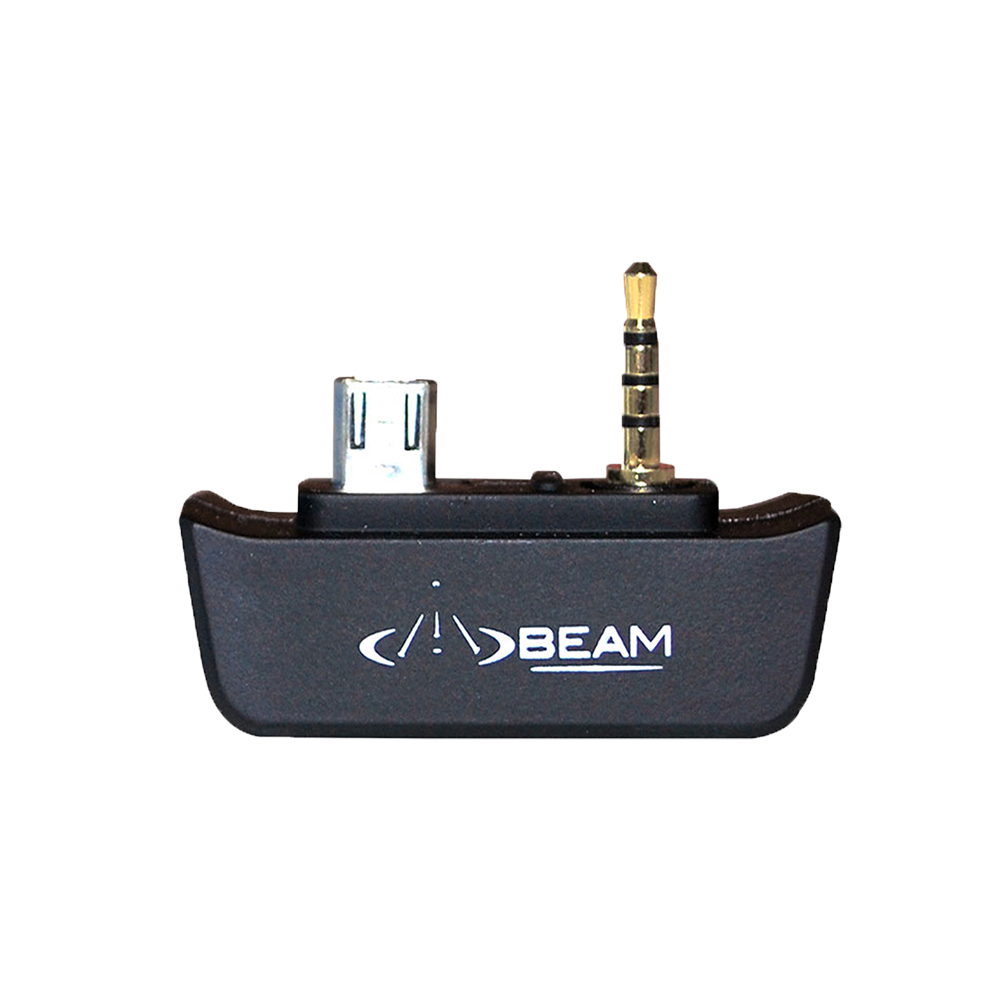

The IsatDock2 adapter has been designed to Inmarsat specifications to enhance docking mechanism for the ...
