Oceana 800 - DISCONTINUED (OC800)
MSRP $2,265 USD

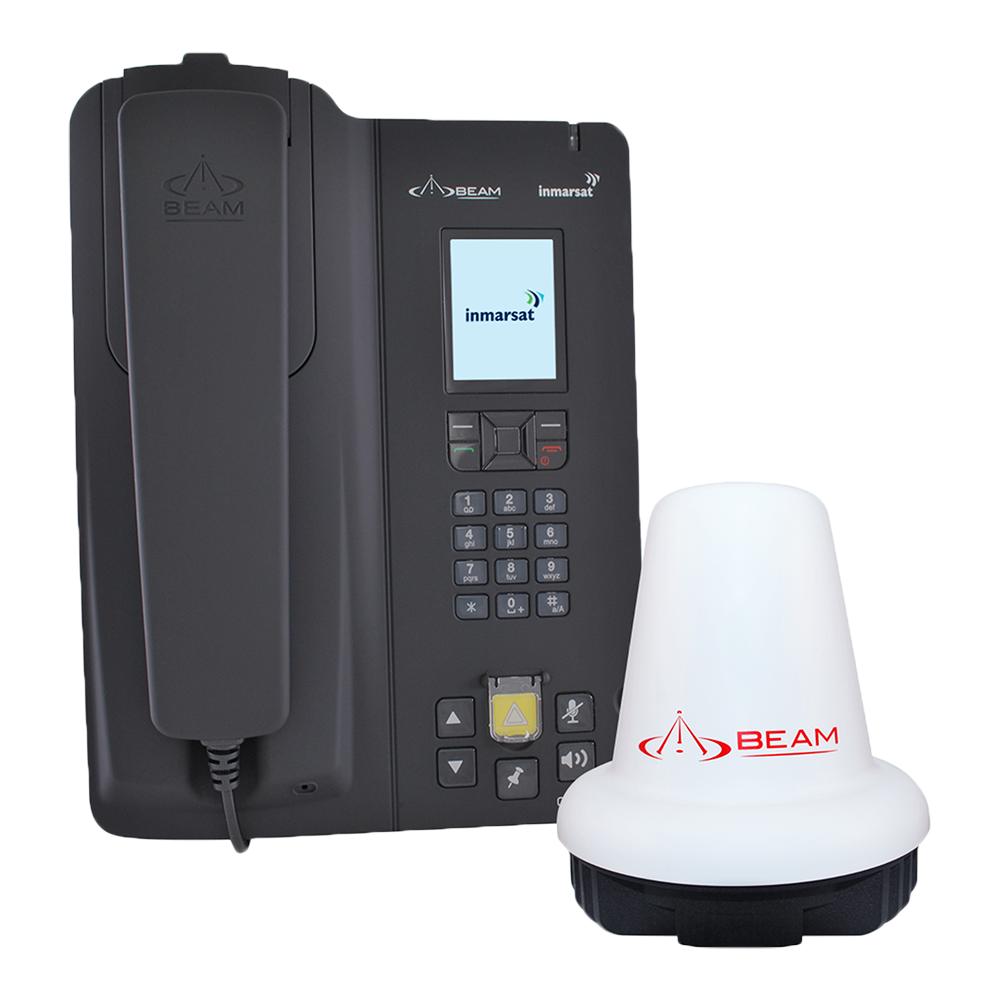

Beam Oceana 800 is a highly featured satellite terminal that allows connection to the Inmarsat GSPS, IsatPhone Link and FleetPhone satellite services.
- Data
- Voice
- SMS
- RJ11/POTS
- PABX Integration
- Speakerphone
- Bluetooth
- Privacy Handset
- GPS
- Tracking
- Ringer
- Mute
- USB
- External IO
- Personal Alert

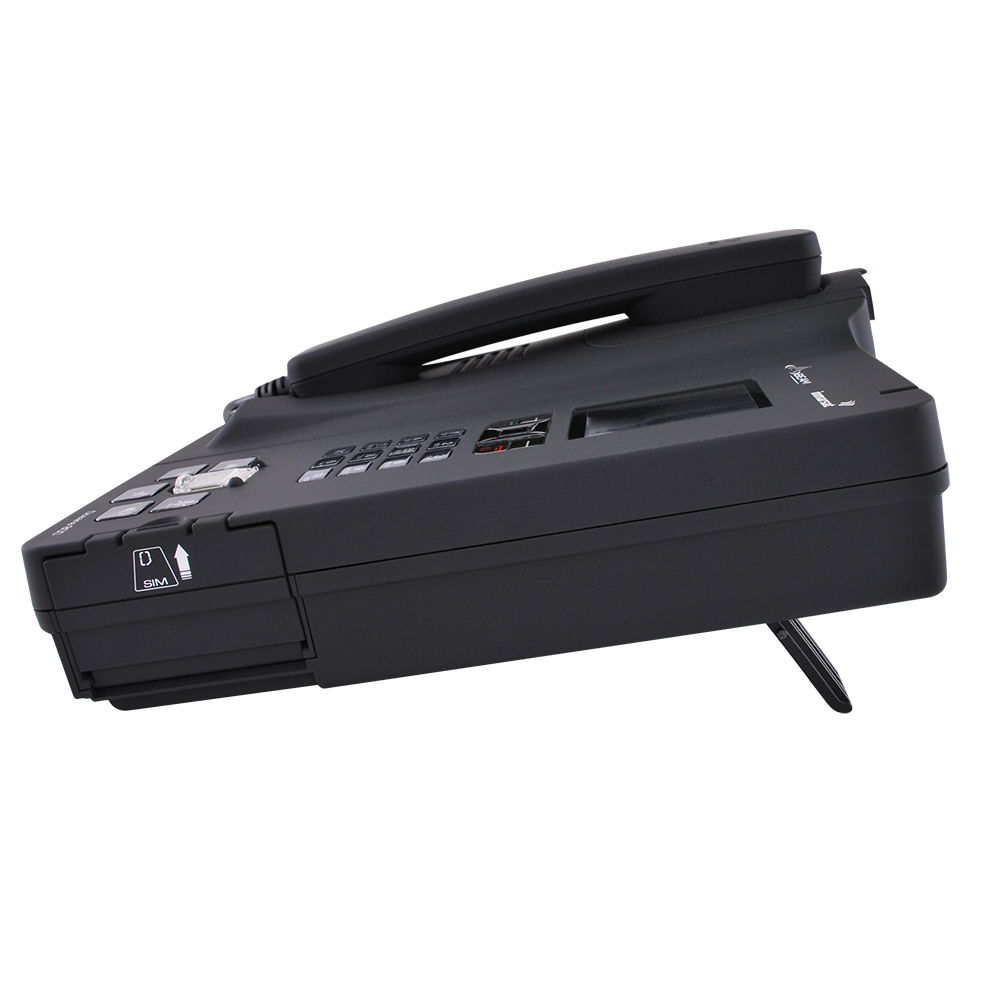

- SIM

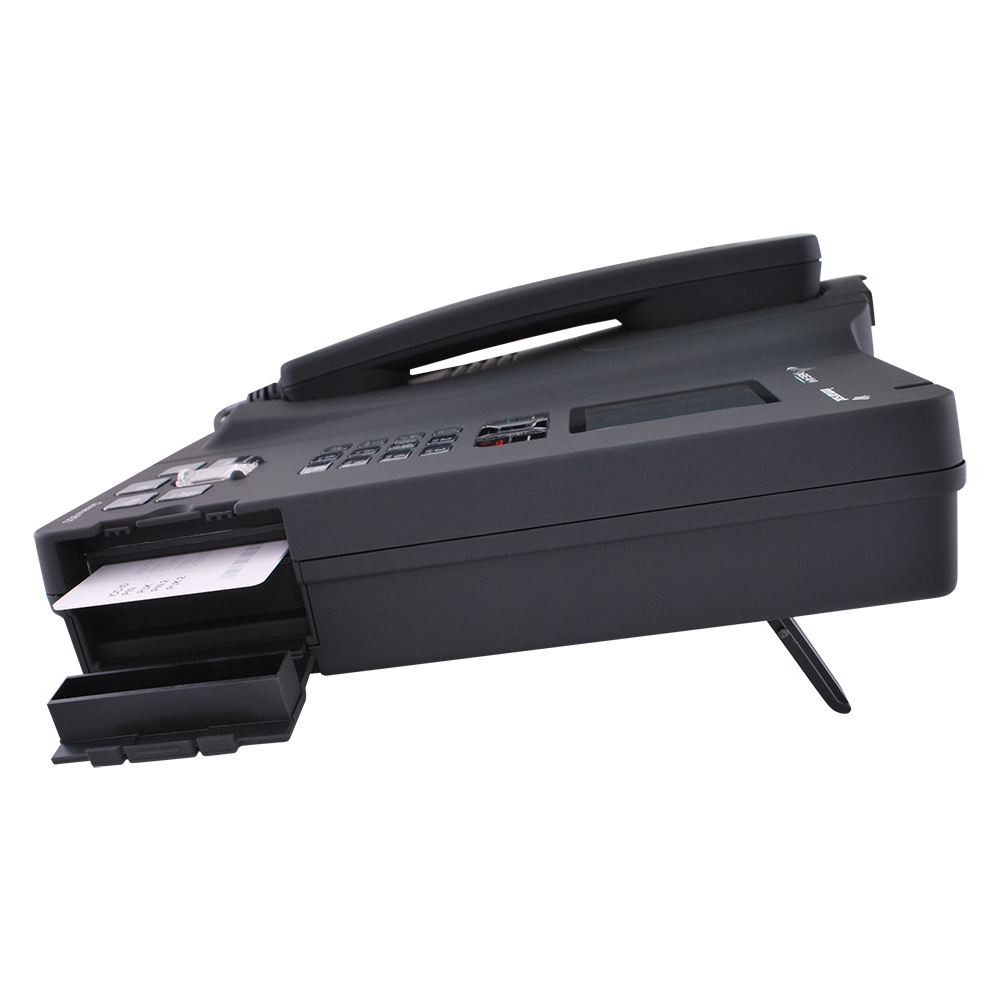

- Second SIM
- LCD
- Phonebook
Oceana 800 - DISCONTINUED Features
A highly featured terminal
Complete integrated solution
Key Benefits and Features
• High quality Marine Grade design, IP54 rating
• Dedicated Privacy Handset
• Bluetooth connectivity
• RJ11/POTS interface, cable runs upto 600m/2000ft
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS
• USB data interface
• Accessory / Ignition sense
• 10-32V DC power input
• AC Plug pack included 110/240 input
• Supplied with Active Mast Mount antenna ISD710
• Supports Active and Passive Inmarsat antennas
• Full certified, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
• 1 year repair or replacement warranty
* 505 Emergency calls only works when using a FleetPhone SIM card.
Instant Message and Tracking Features
• Tracking
• Periodic location messages
• SMS, SMS to email
• Location message sent upon button press
• Ignition ON/OFF reporting
• Remote location polling via SMS Instant Message Mode
• Single button press on terminal
• Instant GPS location messages
• Supports external “man down” pendant or button
• Remote clearing of alert via SMS
• Tracking/Instant Message content includes
o Message ID#
o Header
o Latitude/Longitude
o Speed
o Direction
Watch Oceana 800 Video
Oceana 800 is an all-in-one IP54 communications terminal specifically designed to be utilized in a wide variety of applications throughout the world.

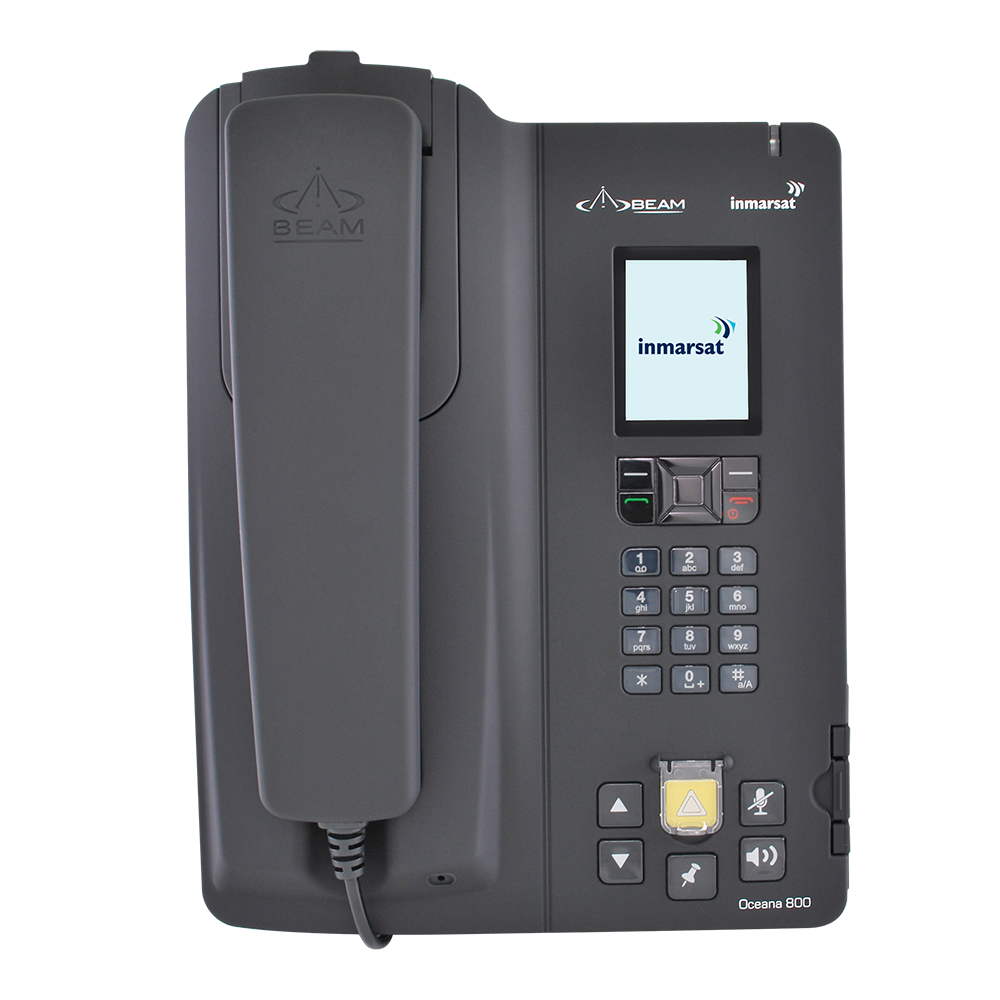

The terminal has a dedicated full color LCD display, to allow the user to access menus and details within the terminal.
Instant Message button can be configured to send an emergency message, including the GPS position, to a predetermined IP, email address or via SMS to notify of an emergency. The Instant Message functionality can be configured to support automated periodic polling or instant message reporting with a single button press.
the Oceana 800 features 2nd SIM, this feature will override a primary SIM when a secondary SIM is inserted into a terminal. Calls will be charged to the secondary SIM if it is inserted.
Reviews
Time Bandit
Adventurers in the Caribbean
Oceana 800 - DISCONTINUED Specifications
Inmarsat Transceiver
Inmarsat-4 Satellite | ||
GMR-2+ Frequency Bands | ||
Tx Operating Frequency | 1626.5 - 1660.5 MHz | |
Rx Operating Frequency | 1518 – 1565 MHz (Inmarsat) | 1565.19 – 1585.65 MHz (GPS) |
RF Output Impedance | 50 Ohms | |
Carrier frequencies | Channel 0 = 1626.525 MHz | Channel 169 = 1660.475 MHz |
TX Modulation | GMSK | |
RX Modulation | OQPSK |
Power
Average Power Consumption (Active Antenna Connected) | Current @ 15V Average | Power |
Standby | 0.22A | 3.2W |
Transmit (RJ11/POTS) | 0.58A | 8.7W |
Transmit (Speakerphone) | 0.53A | 7.9W |
Sleep Mode | 5mA | 75mW |
Peak Current | 1.7A | 26W |
GPS Module (Internal)
Channels | 14 tracking, 51 Channel Acquiring |
Update Rate | 1Hz |
Accuracy | Position 2.5m CEP, Velocity 0.1m/s, Timing 300ns |
Acquisition TTFF | Cold 29sec, Hot 1sec |
Sensitivity | -161 dBm |
Operational Limits | Altitude 18000m , Velocity 515m/s |
Dynamics | 4G |
Connectors / Interfaces
POTS/RJ11 | RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance. |

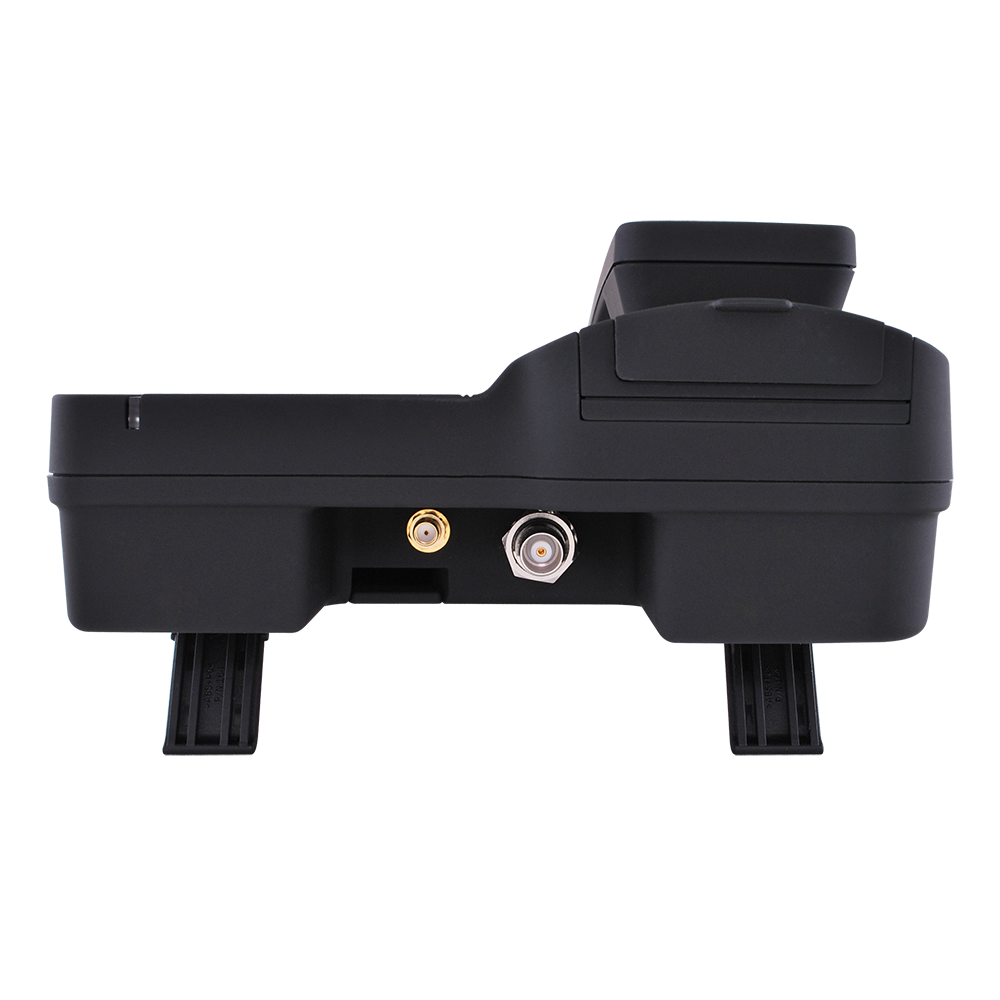

Inmarsat Antenna | TNC-Female |
GPS Antenna | SMA-Female |
10-32 VDC | 4-way microFit (AC/DC adaptor, or DC lead) |
Privacy Handset Port | RJ9 connector |
Configuration / Data | USB Mini B |
Speakerphone | In-built speaker/microphone |
LEDs/Buttons | Instant Message (IM), Mute, Speakerphone, Tracking, Volume/Brightness |
Instant Message
1 x Alarm Loop | Bare wire – Normally closed loop IN to OUT |
Instant Message | In-built - single key press |
Track | In-built - single key press |
Environmental
Temperature | Degrees °C | Degrees °F |
Operating Range | -20°C to +55°C | -4°F to +131°F |
Storage | -30°C to +80°C | -22°F to +176°F |
Humidity | 95% |
Physical
Dimensions | mm | inches |
Unit | 241 x 185 x 93 | 9.49 x 7.28 x 3.66 |
Outer Box | 420W x 180D x 300H | 16.54W x 7.09D x 11.81H |
Weight | kg | lbs |
Unit | 1.27 | 2.80 |
Box | 4.11 | 9.06 |
Kit Contents
Oceana 800 terminal |
ISD710 Maritime Antenna (Active) |
Privacy Handset |
1 x spring cup (attached to terminal) |
1 x Springless Cup |
110-240V AC Plug Pack 15v DC Out |
10-32V DC Power Cable |
USB Cable |
2m Instant Message wiring loop (ring/mute cable) |

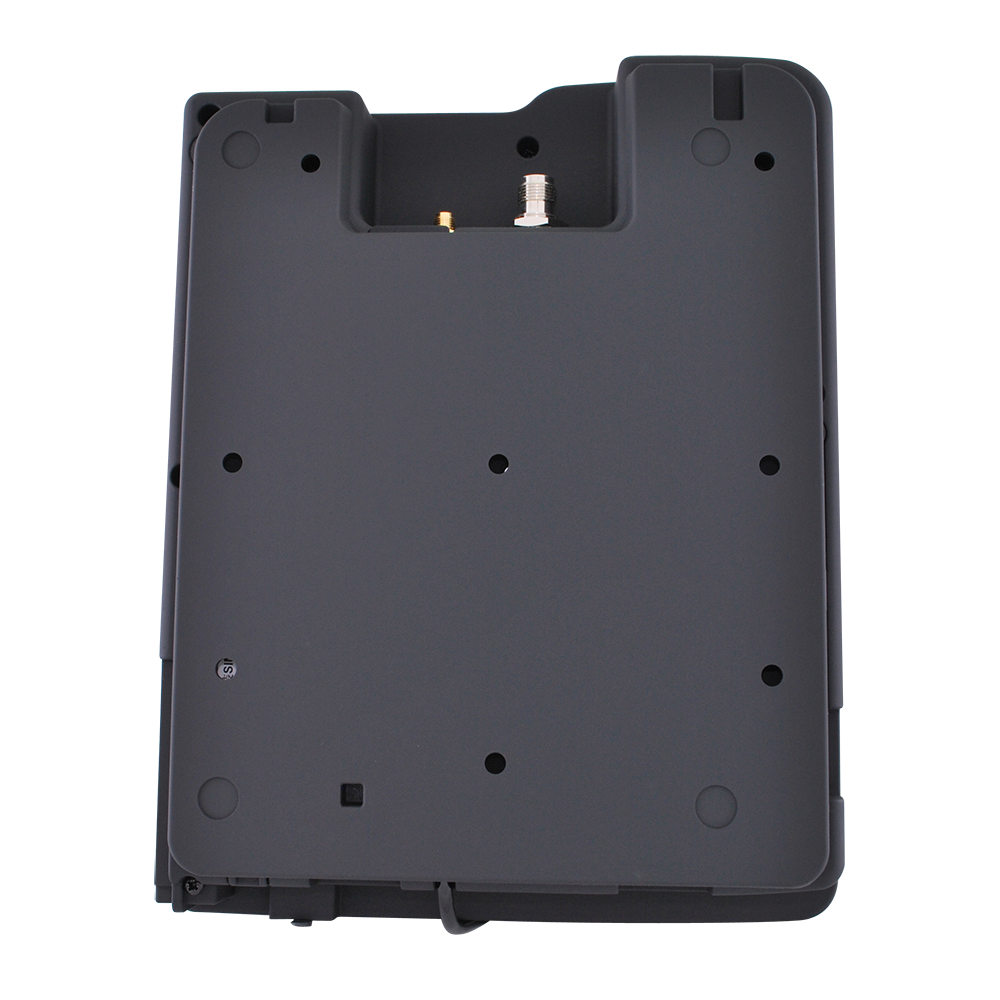

Wall mounting plate |
User Manual |
Quick Start Guide |
Antenna Installation Guide |
Certifications
Inmarsat Type Approval |
FCC |
CE Compliance |
Electrical Safety |
RoHS |
Industry Canada |
C-Tick |
IP54 Rating 5 = Protected against dust limited ingress (no harmful deposits). 4 = Protection against water sprayed from all directions - limited ingress permitted. |
BLUETOOTH® Legal
Bluetooth® | The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners. |
Brochures
Brochure Oceana Series
Visit our support page to download manuals, qsg, firmware upgrades for this product
Product supportAccessories
Testimonials
Time Bandit
Time Bandit, the 34.44 metre-long (113ft) boat, named after the motion picture of the same name, is only on a mission to capture king crabs rather than human beings. And although the exterior of their boat looks similar to a pirate ship from yesteryear, both of them prefer to rely on the latest modern technology systems while working off Alaska in the Bering Sea. Along with their four-man crew, they put BEAM's Oceana 800 terminal accessing Inmarsat's new low-cost satellite phone service, FleetPhone, through its paces. "We were extremely pleased with the performance of the BEAM Oceana 800 Fleetphone - particularly the voice quality of the service," said Captain Andy.
Weather reports
"We've been using it to call in for weather reports and to keep in touch with fish processors, as well as family and friends. Everyone we spoke to on the phone commented on its clarity saying they could hear us so well." The Oceana 800 FleetPhone Terminal phone was supplied by the BEAM Communications, with airtime from Inmarsat distribution partner Stratos.
Emergency calling
It offers mariners a host of features, including global coverage for its voice, text and low-speed data services, as well as Inmarsat's SOS emergency calling capability and an additional SIM for multiple users. Brothers Andy and Johnathan Hillstrand and their crew may take to the seas in a vessel resembling a pirate ship. But unlike the buccaneers of old, they prefer to rely on modern communications like FleetPhone (Inmarsat's new low-cost satellite phone service) while fishing in one of the most dangerous seas on the planet. "We were anticipating that the sound quality and reliability of the terminal might not perform in the areas we venture to, but the phone exceeded our expectations." The unit even provided service going through False Pass - except for a very narrow spot with steep mountainous sides, and however to be fair this is a location where our old other satellite equipment could not provide any service at all, said Captain Andy.
Voice quality
"And unlike our old satellite service, which couldn't be relied on 24 hours a day, with Fleetphone we found we could make calls at any time of the day and guarantee a connection". The voice quality of the FleetPhone came in particularly useful when the crew dialled into the National Weather Forecast Office in Alaska for weather predictions. Captain Andy said: "Getting the weather forecast can literally be a matter of life or death for s and voice quality is important because we have to state our position before we can get the forecast."
Reliable phone
The brothers - who are both third generation Alaskan fishermen - named their boat after the movie, Time Bandit, because they say "the sea steals your time". But having a FleetPhone helped them make up for lost time, especially when it came to getting their catch processed. Captain Andy said: "Around 60 fishing boats get their crab catches processed at one of two plants, and we need a reliable phone to keep in contact with staff at the plants."
Adventurers in the Caribbean
Beam’s Oceana 800 is used by adventurers Bob and Elaine Ebaugh on their two year long cruise in the Caribbean. They find the phone to be trouble free, reliable and offers additional tracking capabilities compared to other phones. They also found the installation really easy, the system only have 2 components, the handset and the active antenna. Connect the antenna to the handset with a pair of pre-made coaxial cables, then connect the handset to either 12 VDC or 110 AC, with the supplied transformer and you are up and running.
Quality Calls
With numerous calls back home the Oceana 800 only dropped out one call for the entire time. “Voice quality was very good, but you do have to allow for the conversational delay due to the distance to the satellite. Text, email and weather reports work quite nicely”, Bob Ebaugh said.
Additional tracking
The Oceana 800 has an integrated GPS engine providing intelligent tracking and instant message reporting via SMS which offers additional tracking capabilities. The Oceana 800 phone will update your position several different ways:
1) When you press the “tracking” button on the phone
2) Automatically based on a user defined reporting period
3) When someone logged on to the tracking website asks for an update Oceana 800
