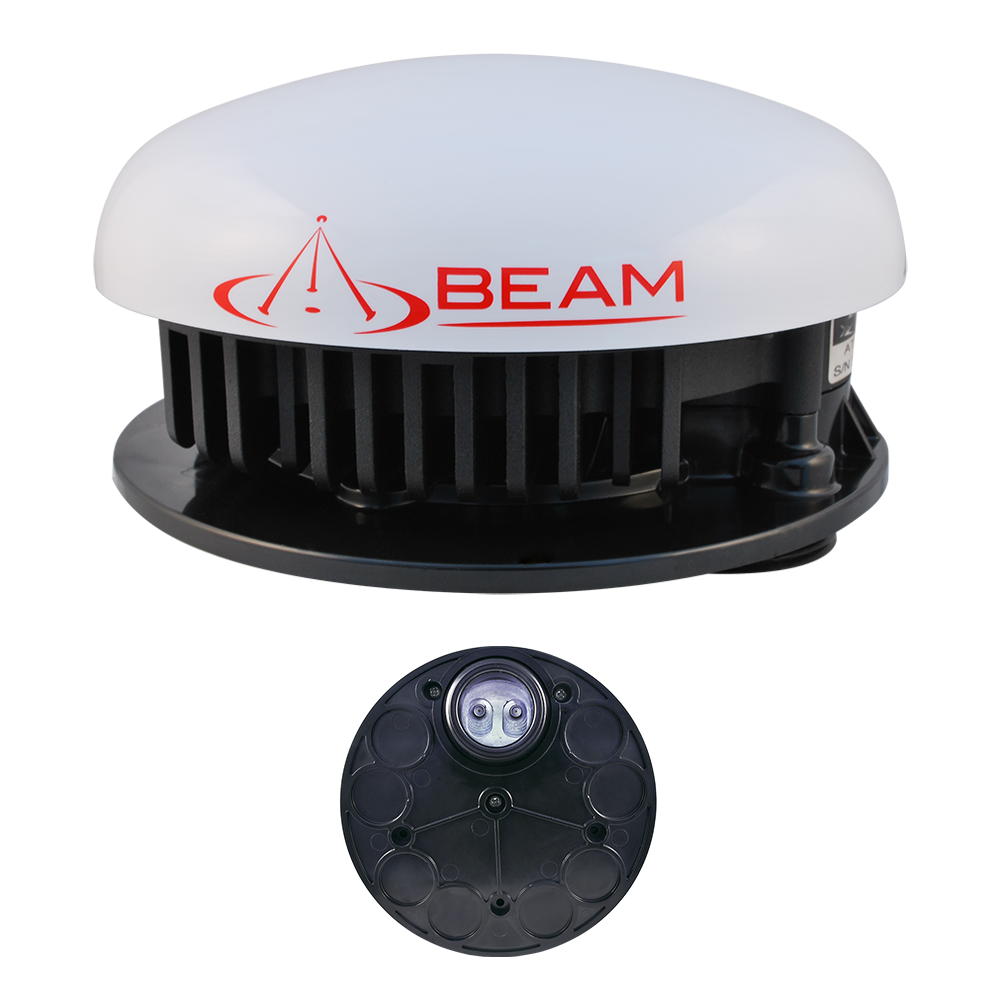

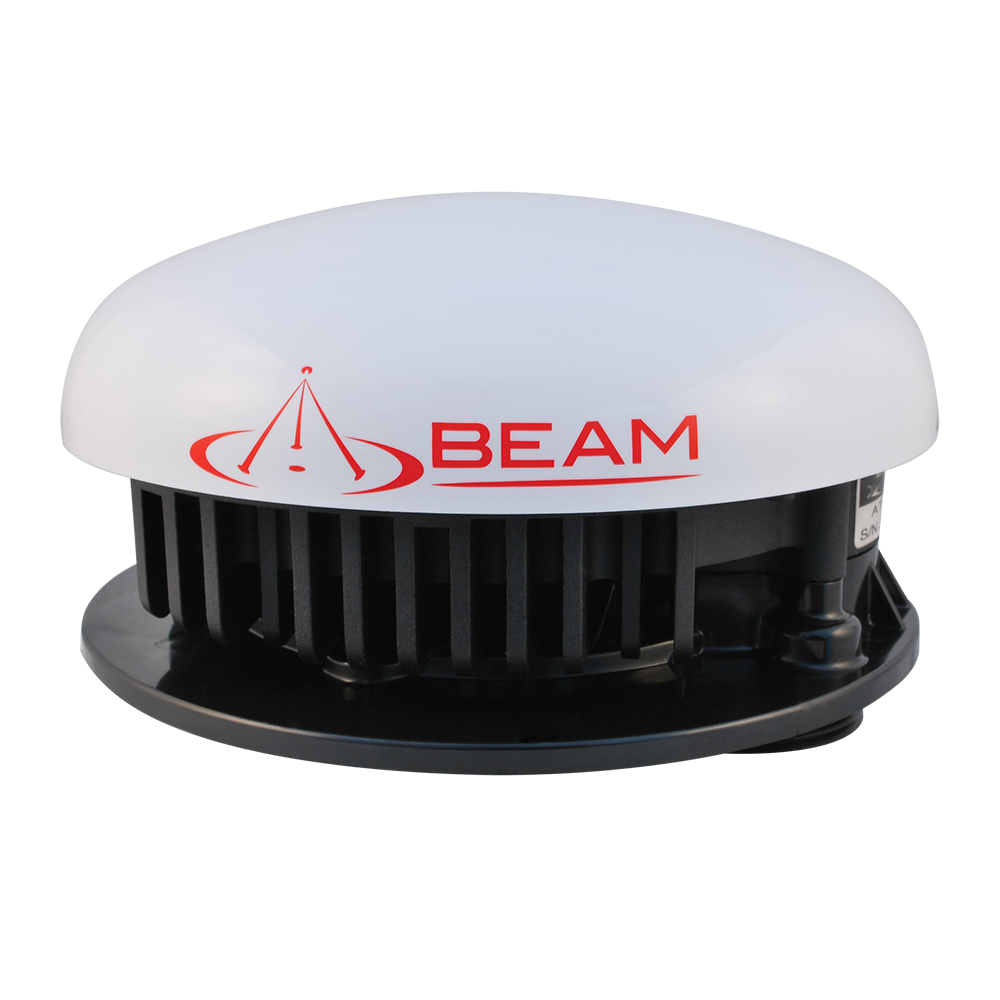

Inmarsat Beam Bolt Mount Transport Antenna Active (ISD720)
The Inmarsat Bolt Mount Antenna ISD720 is used for the Inmarsat GSPS service and whilst designed predominantly for vehicular based applications, it can be also used in fixed applications requiring a fixed mounting application.
Inmarsat Beam Bolt Mount Transport Antenna Active Features
The antenna is designed to allow horizontal or vertical entry
for the antenna cables as to provide some flexibility upon
installation. The ISD720 works with all of the Beam Inmarsat
IsatDock’s and Oceana terminal but must only be used with
Beam certified ACTIVE antenna cables.
Key Features
• Inmarsat type approved
• High quality enclosure
• Active antenna
• Bolt mounting
• SMA/SMA
• Low profile
• Omni directional
• 12 month repair or replacement warranty
• High quality enclosure
• Active antenna
• Bolt mounting
• SMA/SMA
• Low profile
• Omni directional
• 12 month repair or replacement warranty
Similar items you may be interested in
The Inmarsat Mast Active Antenna ISD710 is a marine grade antenna for the Inmarsat GSPS ...
View product
The Inmarsat Magnetic Antenna ISD715 is used for the Inmarsat GSPS service and whilst designed ...
View product
Inmarsat Beam Bolt Mount Transport Antenna Active Specifications
General
| RF Output Impedance | 50 Ohms |
| Intended Operating Environment | - Commercial - Light Inustry & Heavy Industry |
| Equipment Type | Mobile or Fixed Base Station |
| Power Supply Requirement | DC 12-32 Volts maximum |
| RF Input Power Rating (US & Canada) | 30.0 dBm or 1.0 Watt peak (conducted) |
| RF Output Power Rating (US & Canada) | 37.5 dBm or 5.6 Watts peak (conducted) |
| Duty Cycle | N/A |
| Antenna Description | Type Mobile Transport |
Frequency
| Inmarsat Transmit (operational) | 1626.5 to 1660.5 MHz |
| Inmarsat Transmit (extended) | 1668.0 to 1675.0 MHz |
| Inmarsat Receive (operational) | 1525.0 to 1559.0 MHz 1575.42 ± 10.25 MHz (GNSS (GPS) L1) |
| Inmarsat Receive (extended) | 1518.0 to 1525.0 MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Rating Storage | -40°C to +70°C | -40°F to +158°F |
| Operational | -25°C to +55°C | -13°F to +131°F |
Physical
| Dimensions | mm | inches |
| Antenna | 75 x 146 x 146 | 2.95 x 5.75 x 5.75 |
| Box | 250 W x 125 D x 230 H | 9.84 W x4.92 D x 9.05 H |
| Weight | kg | lbs |
| Antenna | 0.87 | 1.92 |
| Box | 1.1 | 2.42 |
Connectors
| Inmarsat (GSPS) | SMA Female |
| GNSS (GPS) | SMA Female |
Brochures
Brochure ISD720 Transport Bolt Antenna Active
For more information please download our ISD720 Transport Bolt Antenna Active Brochure.
Download brochure
