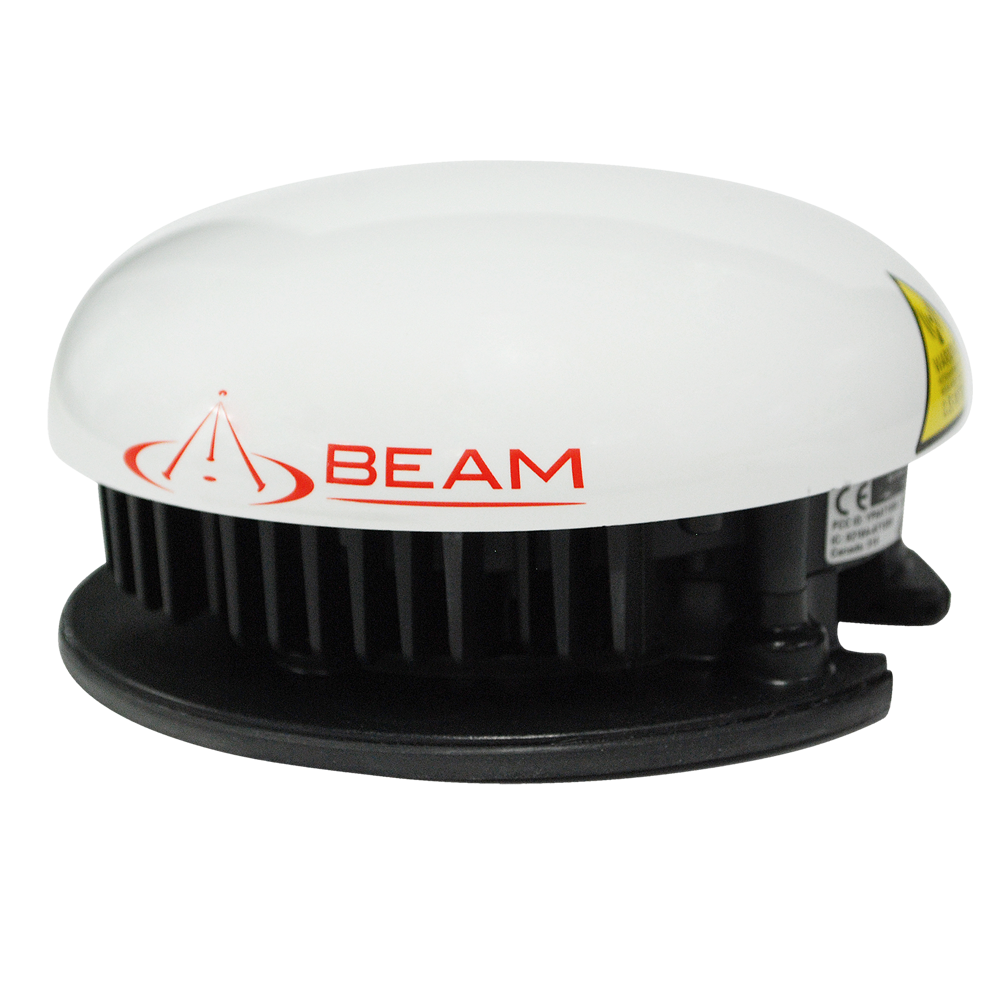

Inmarsat Beam Magnetic Transport Antenna Active (ISD715)

MSRP $675 USD

The Inmarsat Magnetic Antenna ISD715 is used for the Inmarsat GSPS service and whilst designed predominantly for vehicular based applications, it can be also used in fixed application requiring a magnetic mount.

Read more product features

Inmarsat Beam Magnetic Transport Antenna Active Features

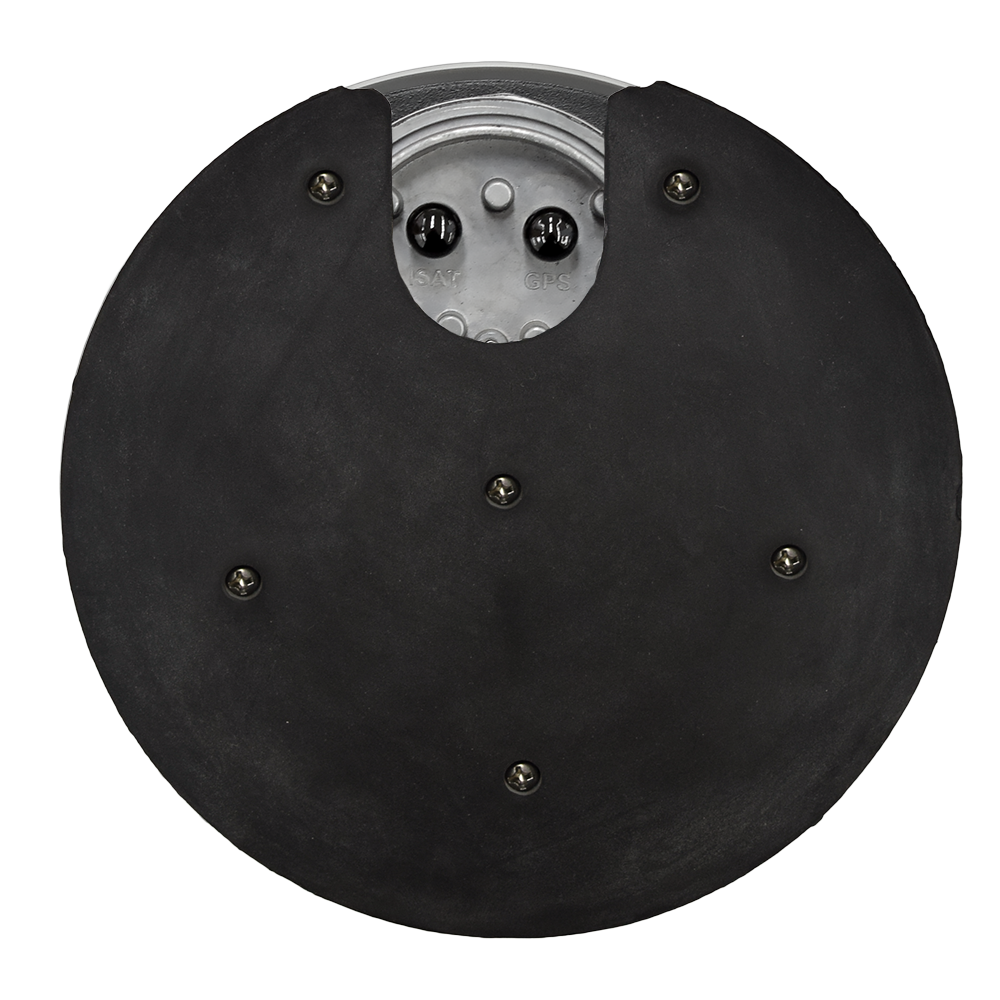

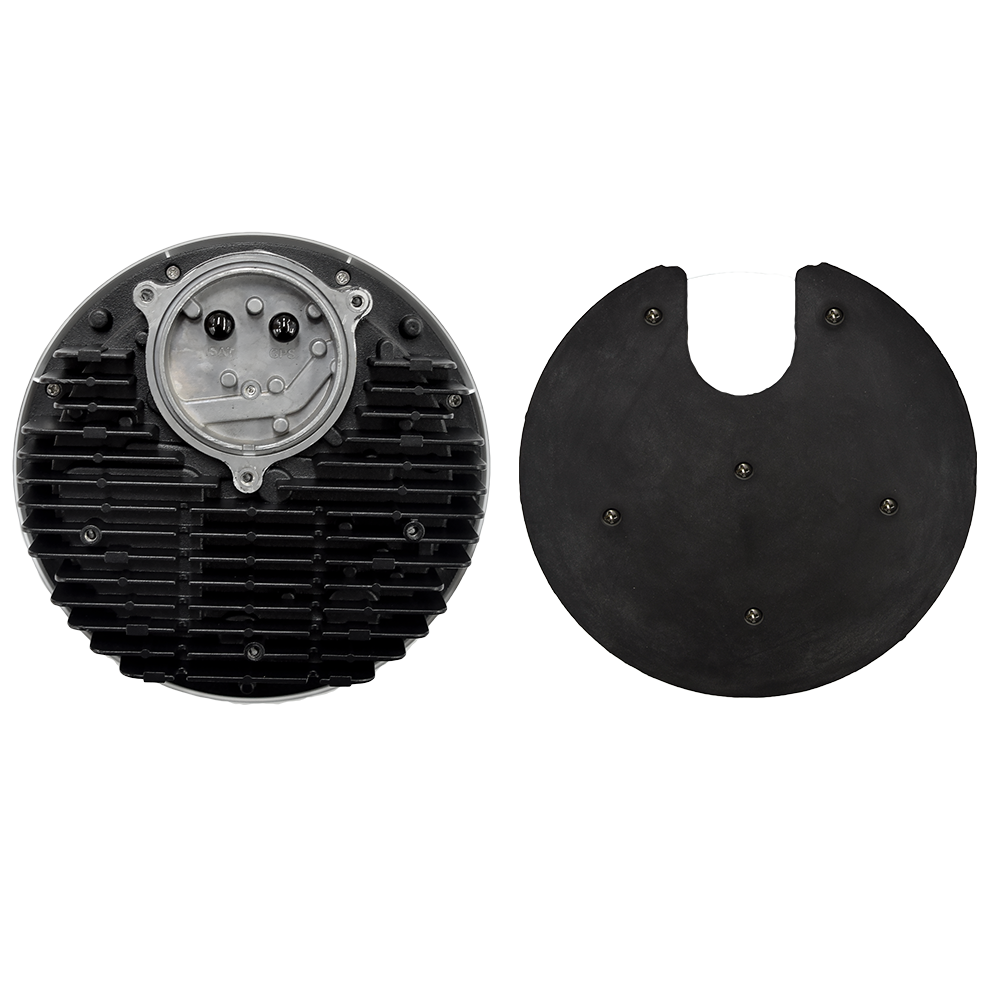

The antenna is designed to allow side entry for the antenna cables as to not interfere with the magnetic base when it is affixed to the vehicle. The ISD715 works with all of the Beam Inmarsat IsatDock’s and Oceana terminals but must only be used with Beam certified ACTIVE antenna cables.

Key Features

• Inmarsat type approved
• High quality enclosure
• Active antenna
• Magnetic mounting
• SMA/SMA
• Low profile
• Omni directional
• 12 month repair or replacement warranty

Similar items you may be interested in

Inmarsat Beam Magnetic Transport Antenna Active Specifications

General

RF Output Impedance 50 Ohms
Intended Operating Environment - Commercial
- Light Industry & Heavy Industry
Equipment Type Mobile or Fixed Base Station
Antenna Description Type Transport

Frequency

Inmarsat Transmit (operational) 1626.5 to 1660.5 MHz
Inmarsat Transmit (extended) 1668.0 to 1675.0 MHz
Inmarsat Receive (operational) 1525.0 to 1559.0 MHz 1575.42 ± 10.25 MHz (GPS L1)
Inmarsat Receive (extended) 1518.0 to 1525.0 MHz

Environmental

Temperature Degrees °C Degrees °F
Operational -40 to +70 -40 to +158

Physical

Dimensions mm inches
Antenna 207 x 142 x 142 8.15 x 5.60 x 5.60
Box 250 x 125 x 230 9.84 x 4.92 x 9.06
Weight kg lbs
Antenna 0.87 1.92
Box 1.17 2.58

Connectors

Inmarsat (GSPS) SMA Female
GPS SMA Female

Brochures

Brochure ISD715 Transport Magnetic Antenna Active

For more information please download our ISD715 Transport Magnetic Antenna Active Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support
