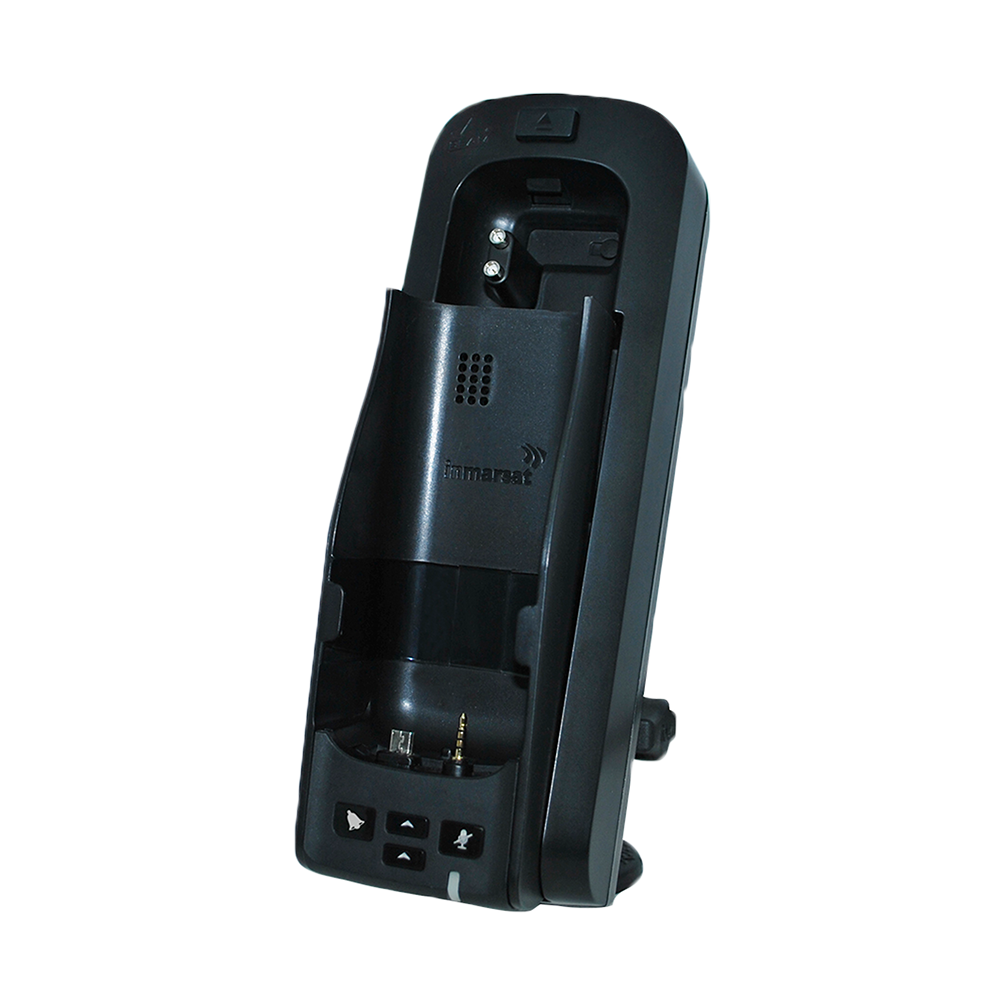

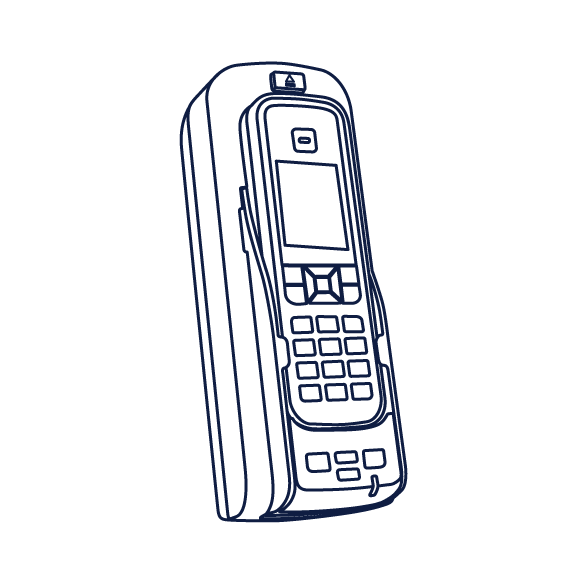

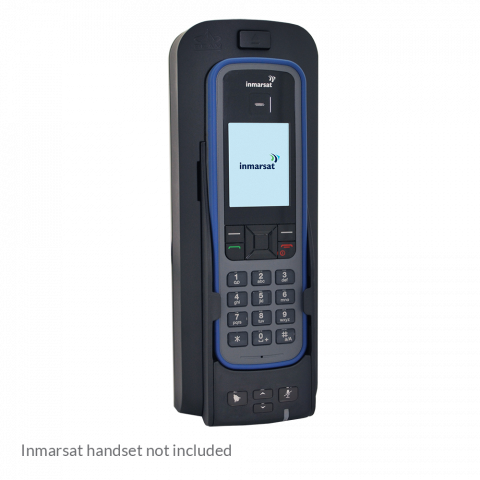

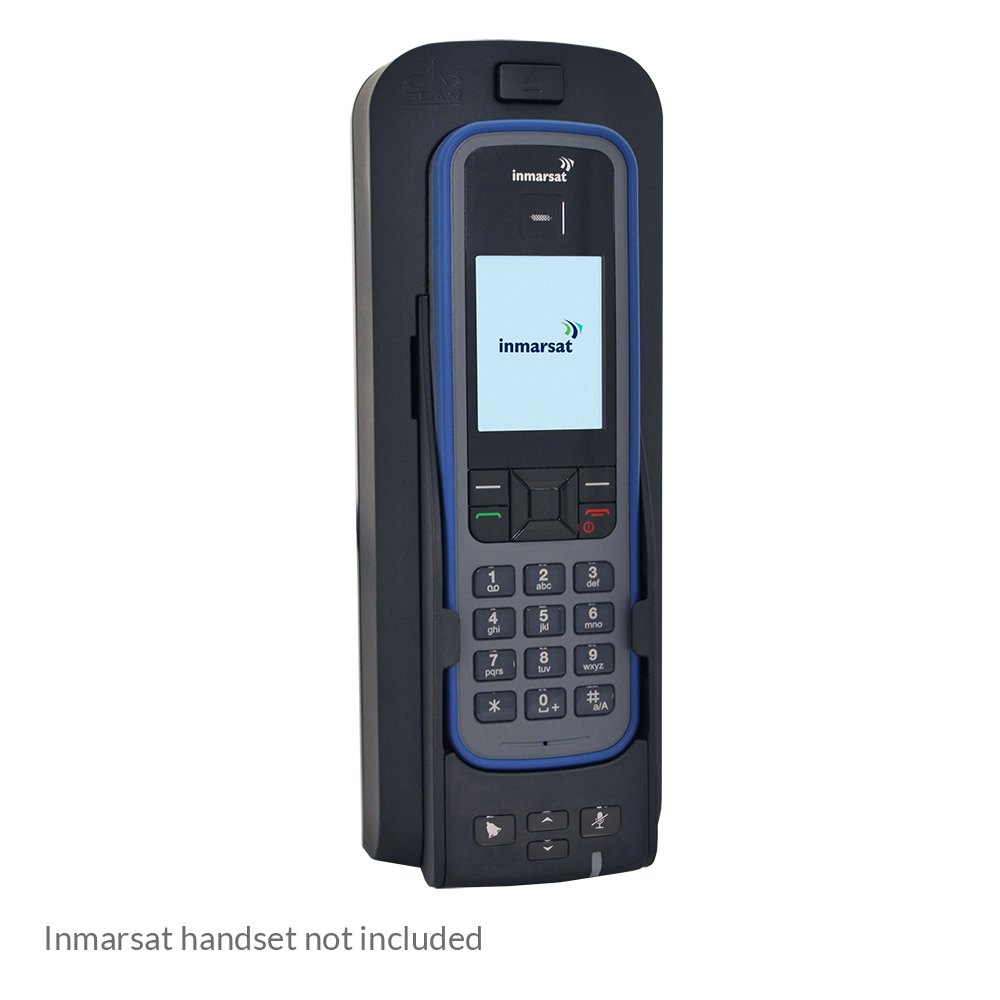

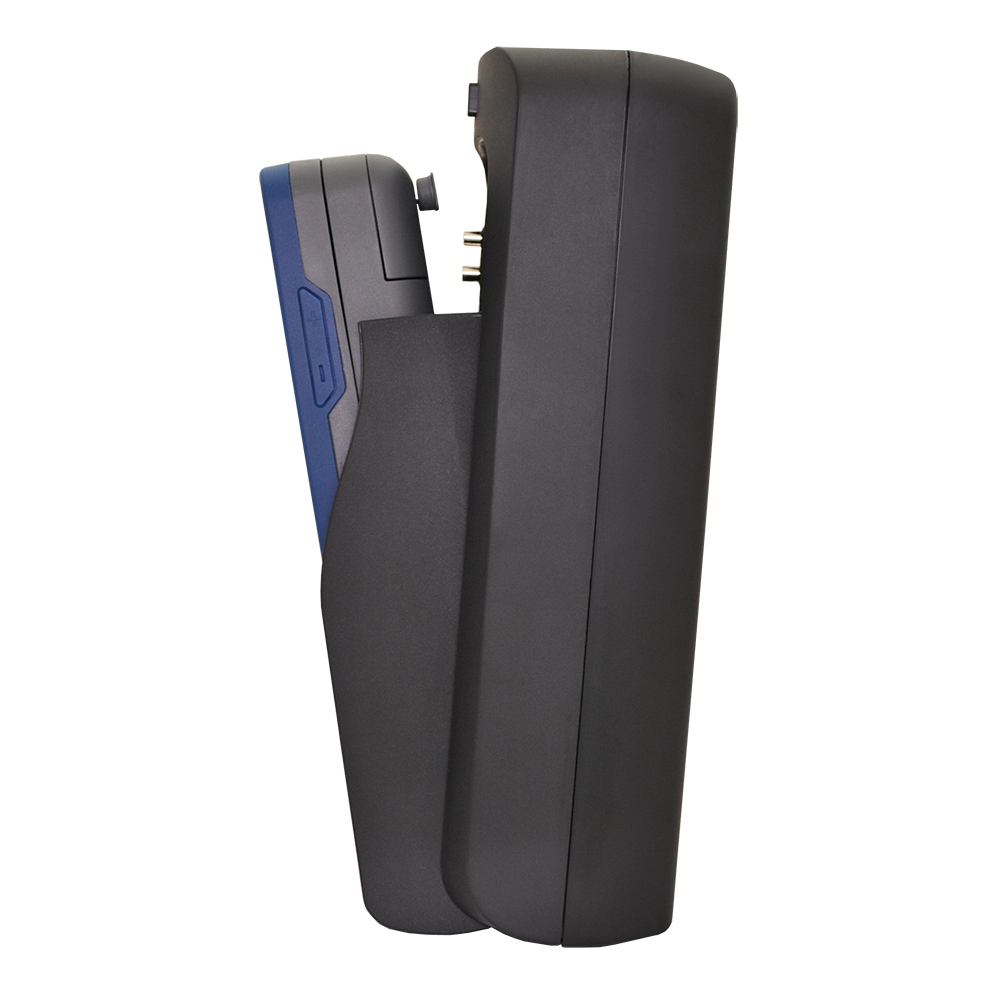

IsatDock LITE (ISD LITE)
MSRP $295 USD
The Beam IsatDock LITE for Inmarsat's IsatPhone Pro allows for a semi-permanent installation for a variety of land and sea applications, where easy access to standard voice and data services is required.
- Data
- Voice
- SMS
- Privacy Handset (optional)
- Docking
- Charging
- Ringer
- Mute
- USB
IsatDock LITE Features
Integrated Bluetooth Function
The IsatDock LITE enables the IsatPhone Pro to be always on and ready to receive incoming calls, that can be answered via a Bluetooth accessory (when docked) or the optional privacy handset. The IsatPhone Pro handset is easily inserted and removed by the press of a button making it quickly accessible away from the dock when required.
Key Features and Benefits
• Keeps phone always charged
• Adjustable in-built ringer
• Status LED with adjustable brightness
• Includes universal RAM bracket
• Voice & data support

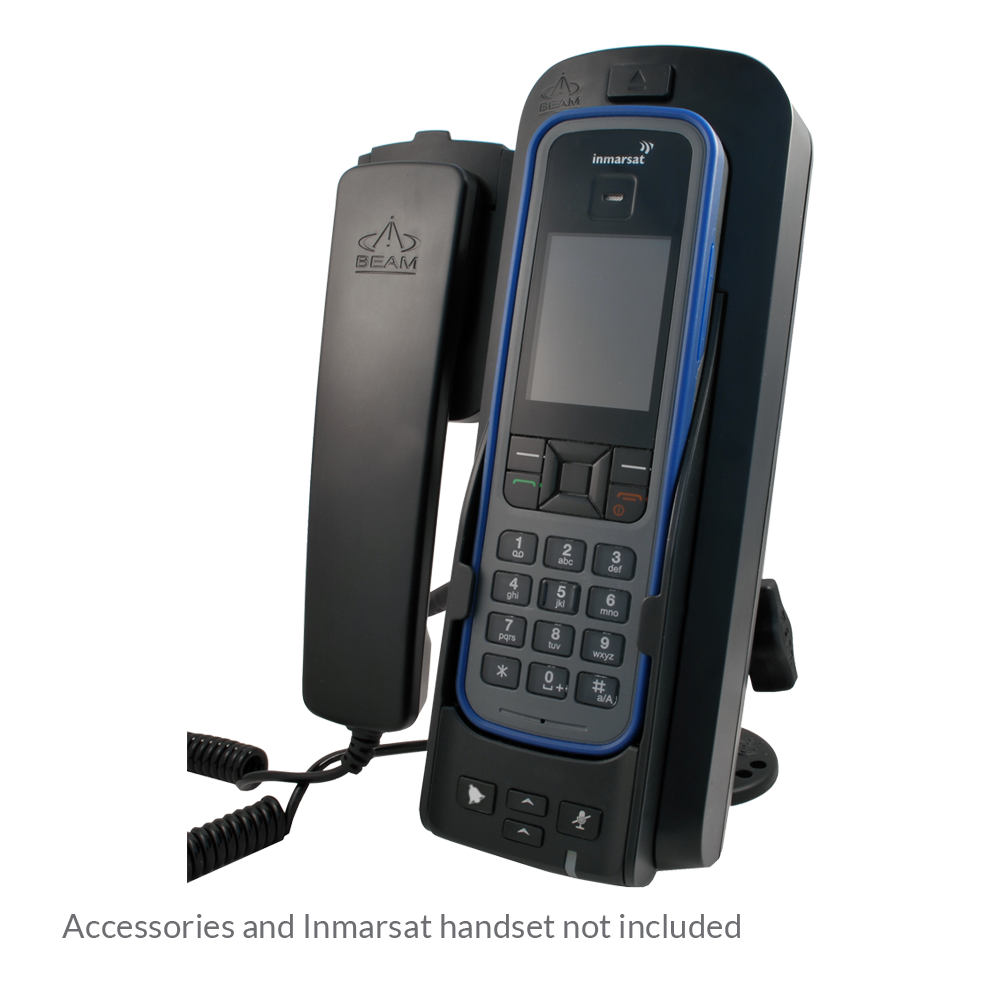

• Optional privacy handset

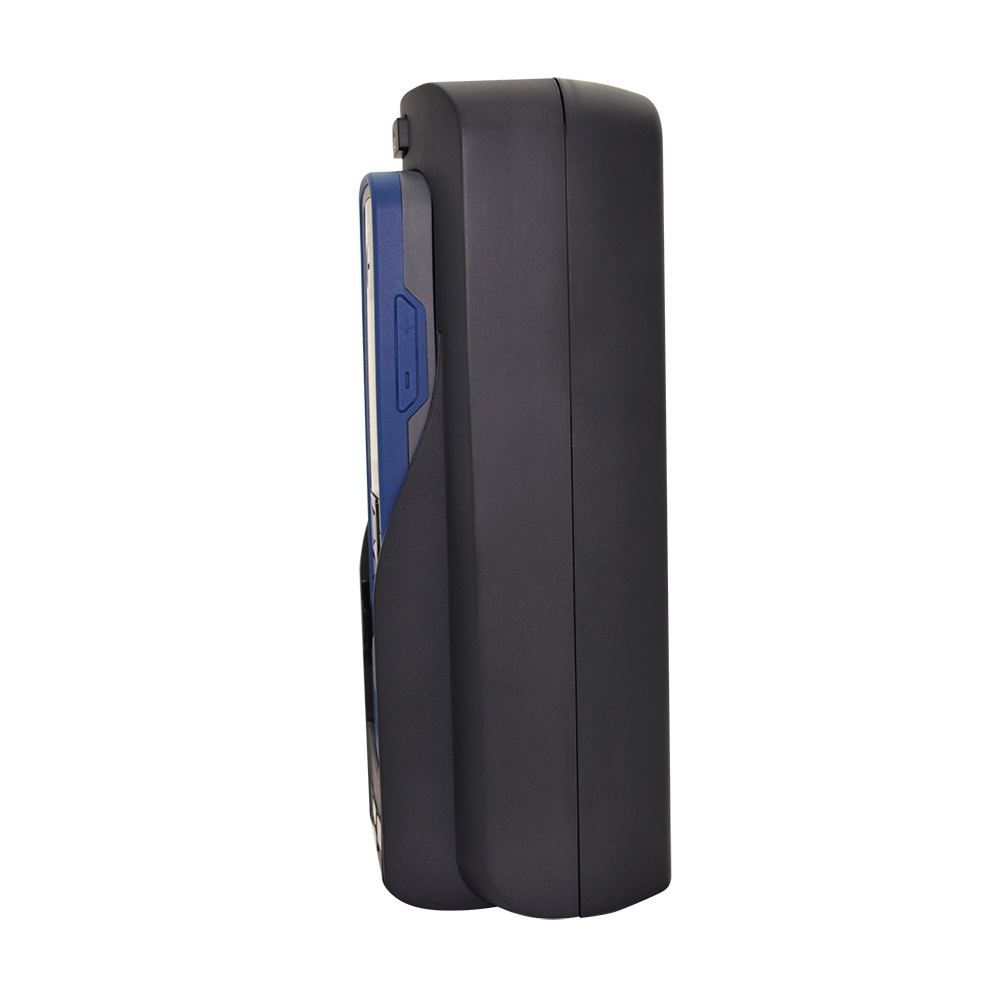

• Slimline design
• High quality ABS plastic
• Single action insertion mechanism
• Insertion guides
• Single button release

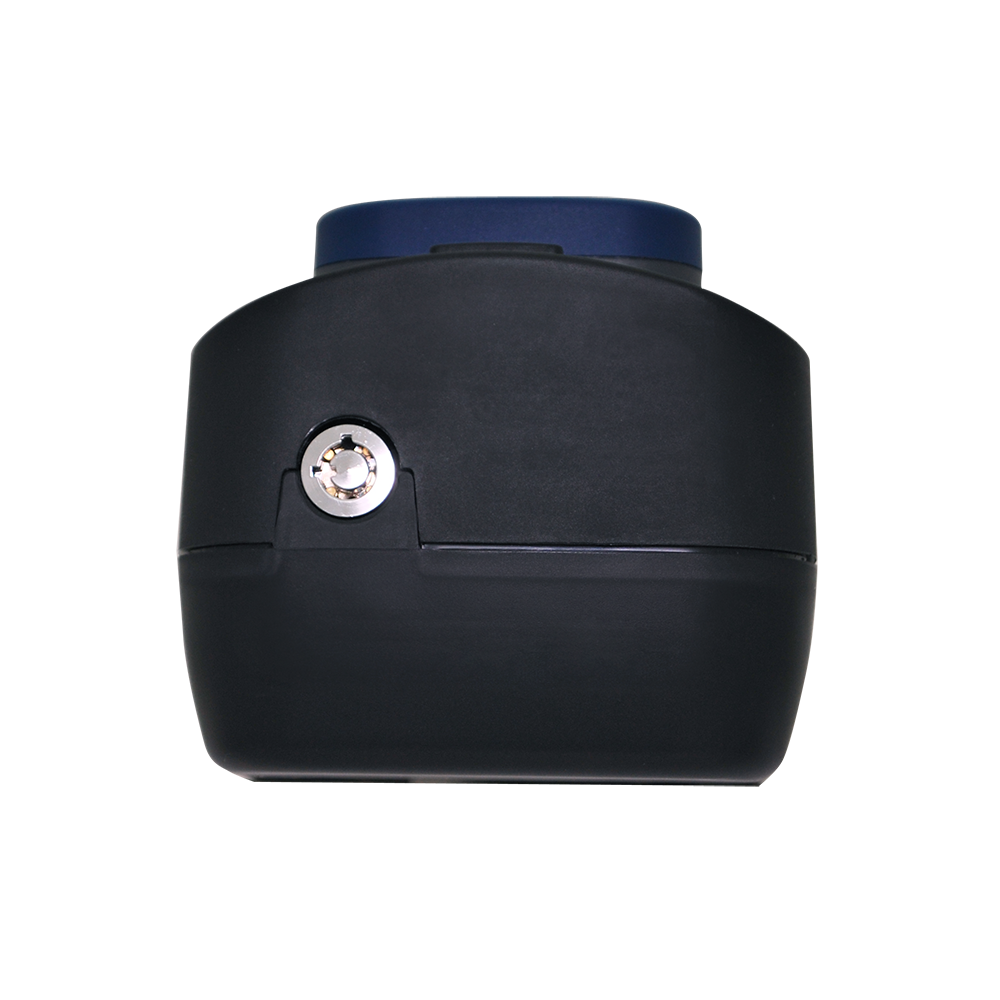

• Key lockable
• Universal mounting options
• Robust GSPS/GPS antenna connection
• Accessible control buttons
• 24 month warranty
• Adjustable in-built ringer
• Status LED with adjustable brightness
• Includes universal RAM bracket
• Voice & data support
• Optional privacy handset
• Slimline design
• High quality ABS plastic
• Single action insertion mechanism
• Insertion guides
• Single button release
• Key lockable
• Universal mounting options
• Robust GSPS/GPS antenna connection
• Accessible control buttons
• 24 month warranty
Watch IsatDock LITE Video
The Beam IsatDock LITE is the ideal low cost docking station for the Inmarsat IsatPhone Pro handset that can be used in various maritime, transport or fixed site applications.
The IsatDock LITE keeps the IsatPhone Pro handset charged at all times when docked.
The in-built ringer allows the user to select different ring tones.
Similar items you may be interested in
The Beam IsatDock2 LITE, the only Inmarsat Certified Dock for the IsatPhone 2, is an ...
View product
Beam’s IsatDock DRIVE handsfree docking station provides a high quality semi-permanent transport installation for the ...
View product
The Beam IntelliDOCK 9555, is the ideal low cost docking station for the Iridium 9555 ...
View product
IsatDock LITE Specifications
Inmarsat Network
| IsatPhone Pro | GSPS Network |
Power
| Average Power Consumption Current @ 12V | Average | Watts |
| Transmit + Charging | 875mA | 10.5W |
| Sleep Mode | 5mA | 3.5A |
| Peak Current | 60mW | 42W |
| Standby + Charging | 360mA | 4.3W |
| Power w/o IsatPhone Pro | 130mA | 1.6W |
Connectors / Interfaces
| Inmarsat Antenna | TNC-Female |
| GPS Antenna | SMA-Female |
| 10-32 VDC | 4-way microFit (AC/DC adaptor, or DC lead) |
| Privacy Handset Port | RJ9 connector |

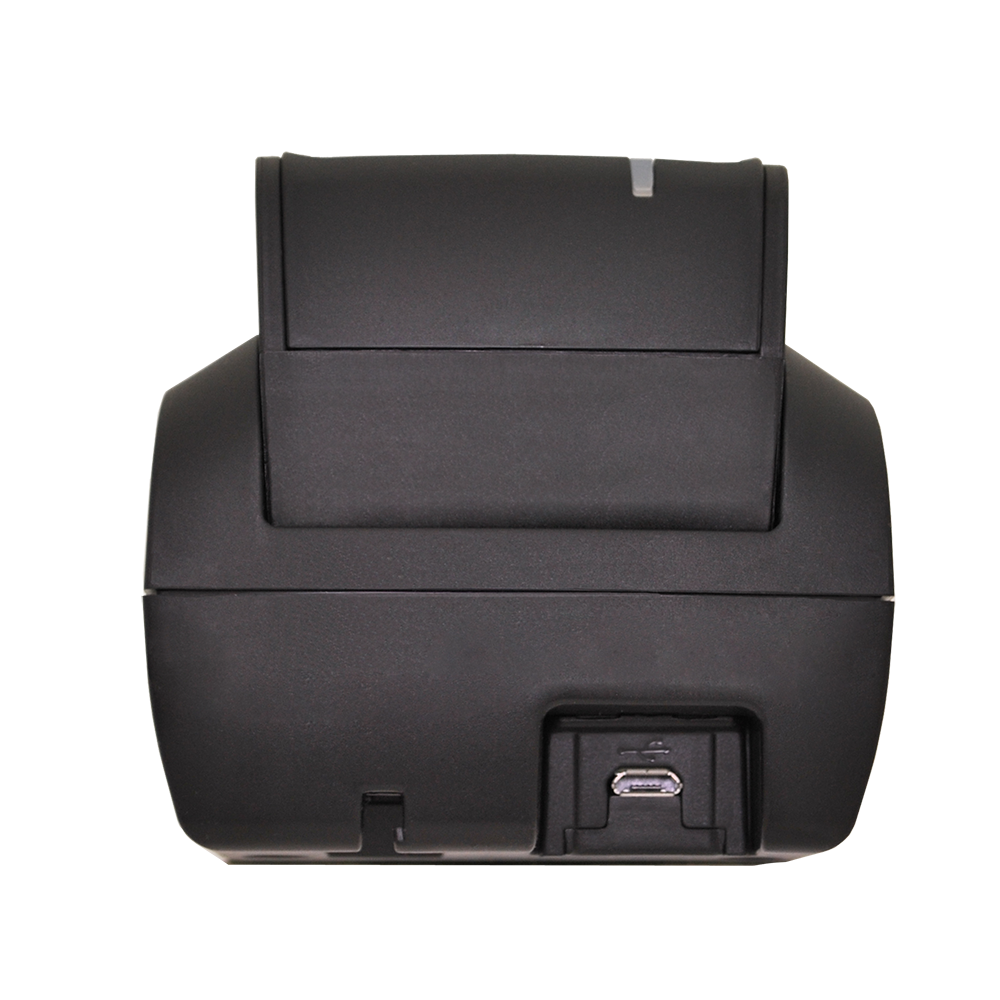

| Configuration / Data | USB Micro |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Battery Charging | 0°C to +45°C | 32°F to +113°F |
| Operating Range | -30°C to +70°C | -22°F to +158°F |
| Storage | -35°C to +85°C | -31°F to +185°F |
| Humidity | <= 75% RH |
Physical
| Dimensions | mm | inches |
| Dock | 230H x 84W x 80D | 9.1H x 3.3W x 3.2D |
| Outer Box | 290W x 170D x 190H | 11.42W x 6.69D x 7.48H |
| Weight | kg | lbs |
| Dock | 0.56 | 1.24 |
| Box | 1.35 | 2.98 |
Kit Contents
| IsatDock LITE |
| Universal Mounting Bracket (RAM) |
| Handset locking Key |
| 10-32V DC Power Cable |
| User Manual |
| Quick Start Guide |
Certifications
| Inmarsat |
| EMC Compliance |
| FCC |
| CE Compliance |
| Electrical Safety |
| RoHS |
| Industry Canada |
| C-Tick |
Brochures
Comparison Chart IsatDock
For more information please download our IsatDock Comparison Chart.
Download brochure
Brochure IsatDock LITE
For more information please download our IsatDock LITE Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
