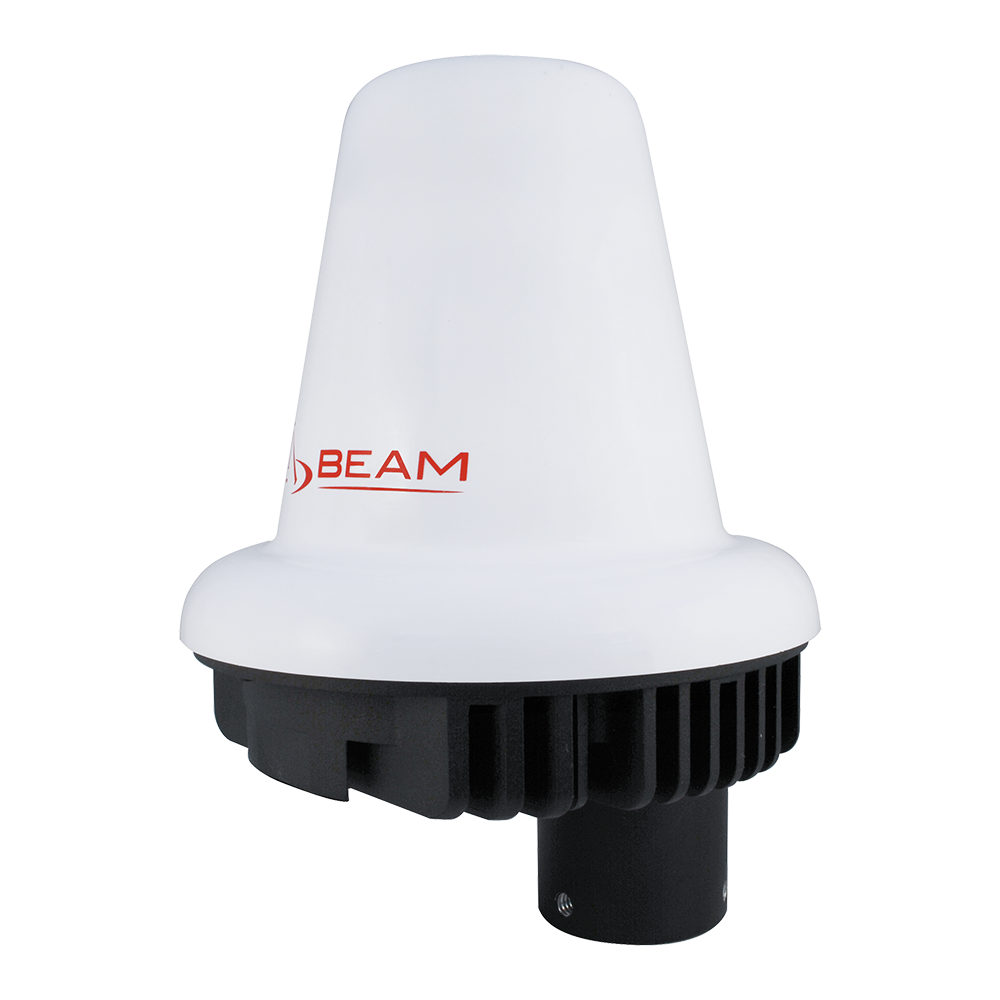

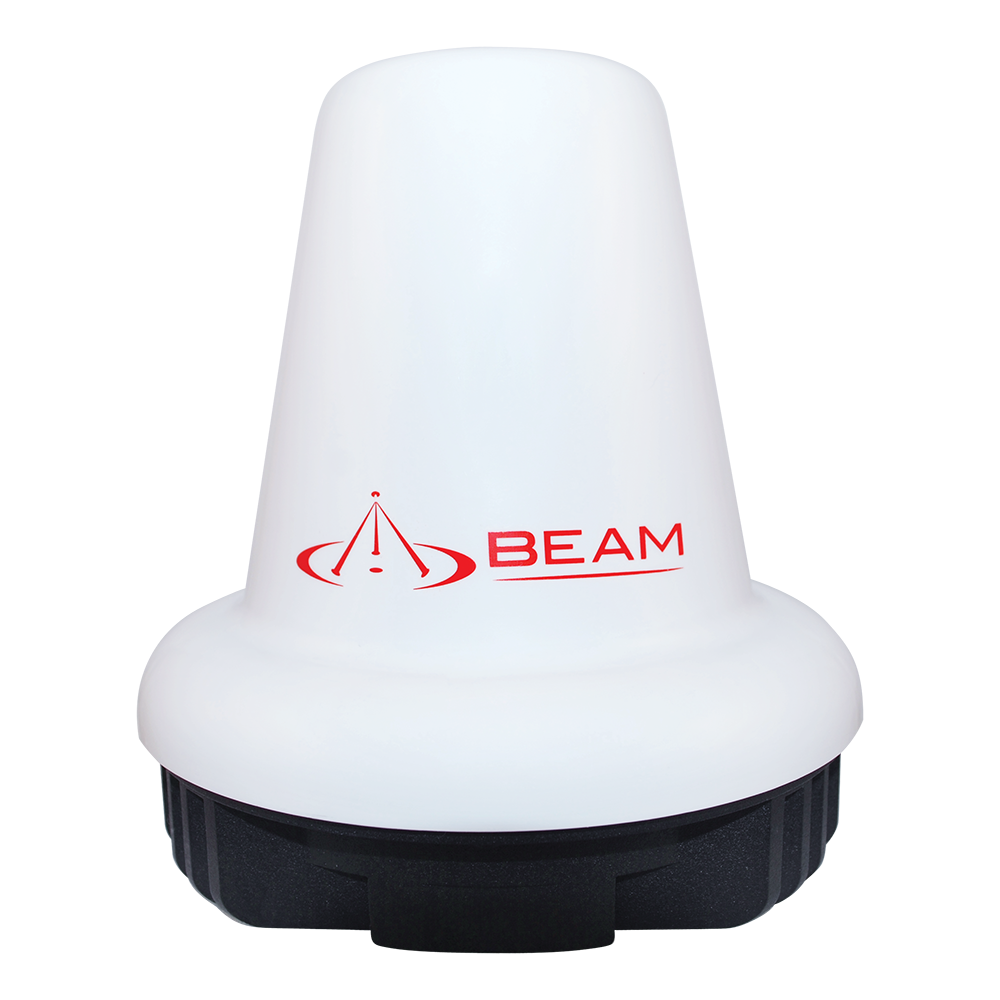

Inmarsat Mast Active Antenna
mast-pole-marine-antenna-active.1_l
mast-pole-marine-antenna-active.2_l
Download high res images (2.02 MB zip)
Inmarsat Mast Active Antenna

Inmarsat Mast Active Antenna (ISD710)

The Inmarsat Mast Active Antenna ISD710 is a marine grade antenna for the Inmarsat GSPS service and whilst designed predominantly for maritime based applications, it can be also used in fixed site or mobile applications.

Features

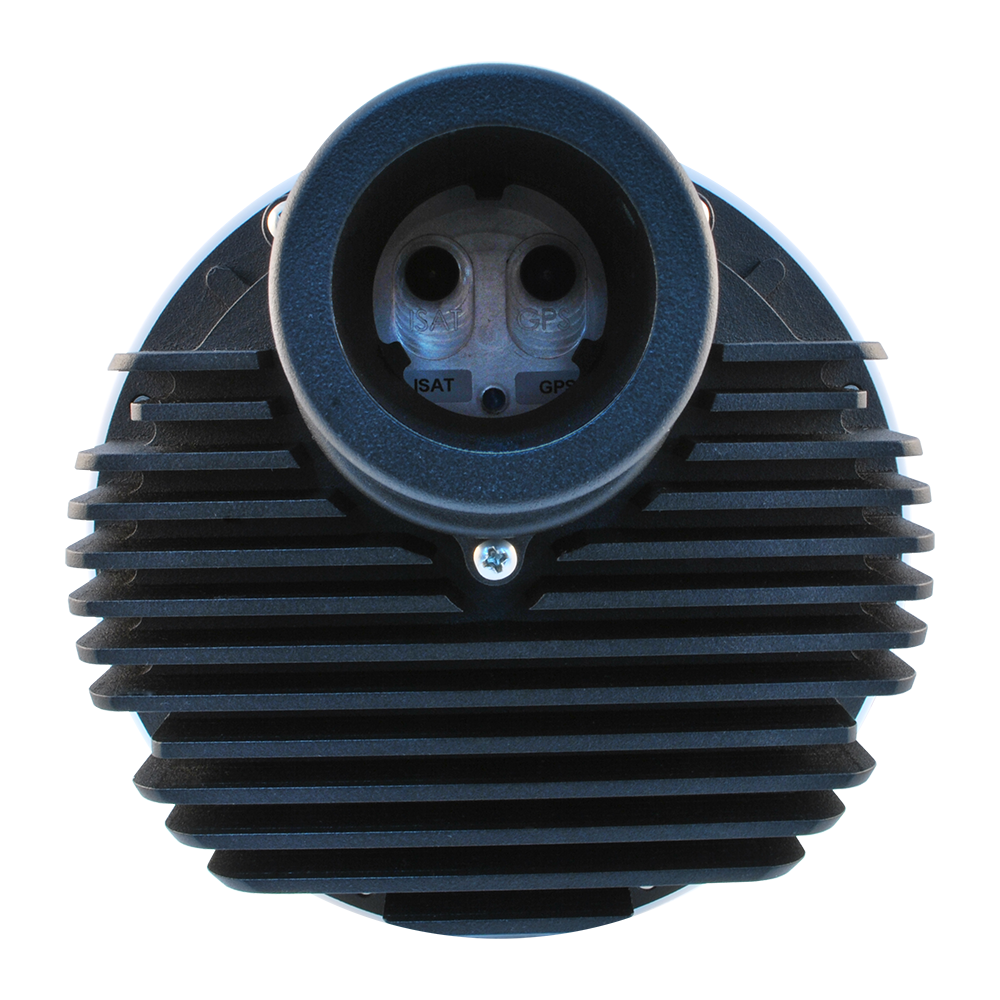

The antenna connections (GSPS and GPS) are protected from the environment with its solid bracket attached to the antenna. The pole mount system is designed so that the cables can be thread through a PVC pole and then attached to the antenna directly keeping the cables and the connector protected from the environment. The ISD710 works with all of the Beam Inmarsat IsatDock’s and Oceana terminals, however MUST only be used with Beam certified ACTIVE antenna cables.

Key Features

• Inmarsat type approved
• High quality marine enclosure
• Active antenna
• Pole/Mast mounting
• SMA/SMA
• Omni directional
• 12 month repair or replacement warranty
Key Features

Similar items you may be interested in

Specifications

General

RF Output Impedance Axial Ratio 50 Ohms
Intended Operating Environment Maritime
Equipment Type Mobile or Fixed Base Station
Operational Band ≤ 4dB, 0° ≤ 0 ≤ 85°
Extended Band ≤ 6dB, 0° ≤ 0 ≤ 85°
Antenna Description Type Maritime

Frequency

Inmarsat Transmit (operational) 1626.5 to 1660.5 MHz
Inmarsat Transmit (extended) 1668.0 to 1675.0 MHz
Inmarsat Receive (operational) 1525.0 to 1559.0 MHz 1575.42 ± 10.25 MHz (GNSS (GPS) L1)
Inmarsat Receive (extended) 1518.0 to 1525.0 MHz

Environmental

Temperature Degrees ºC Degrees ºF
Operating Range (Meets IEC60945) -25 to +55 -13 to +131

Physical

Dimensions mm inches
Antenna 207 x 142 x 142 8.15 x 5.60 x 5.60
Box 260 W x 210 D x 170 H 10.23 W x 8.27 D x 6.69 H
Mounting Bracket (diameter) 35.56 mm 1.4 inches
Mounting Pole (recommended diameter) 25.4 1
Weight kg lbs
Antenna 0.87 1.92
Box 1.11 2.25

Connectors

Inmarsat (GSPS) SMA Female
GNSS (GPS) SMA Female
Brochures

Brochure ISD710 Mast/Pole Marine Antenna Active

For more information please download our ISD710 Mast/Pole Marine Antenna Active Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support
Accessories

Product support

Inmarsat Mast Active Antenna support

Manuals, technical information and support resources for this product.

Frequently Asked Questions

Frequently Asked Questions

Watch Beam Inmarsat Maritime Mast/Pole Active Antenna Installation Video

{/tabs}
Manuals & Guides

Manuals & Guides

Installation Guide ISD710 Mast/Pole Marine Antenna Active

For more information please download our Mast/Pole Marine Antenna Active Installation Guide.
Download
Compliance

Compliance

RoHS Beam AT1595 82 Inmarsat Type Approval AT1595-82 ISDxxx Antenna COO
