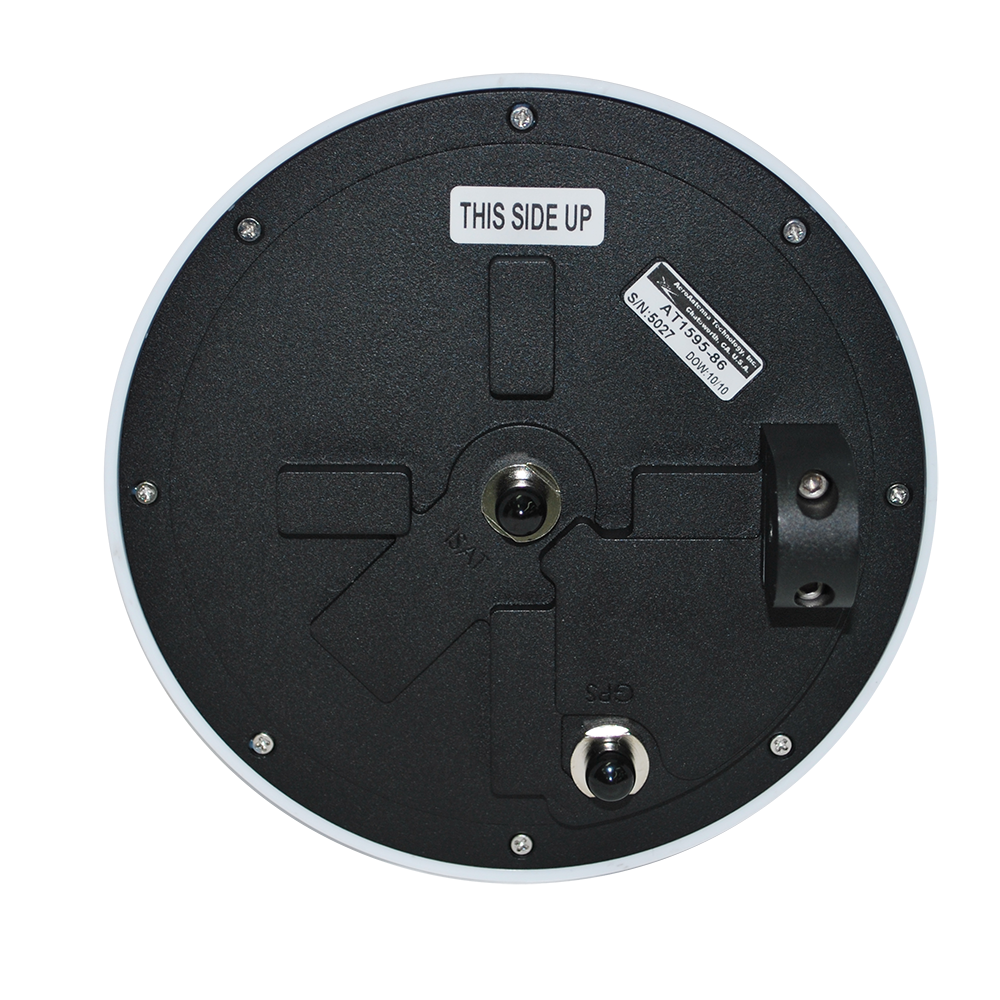

fixed-directional-antenna-passive.2_l

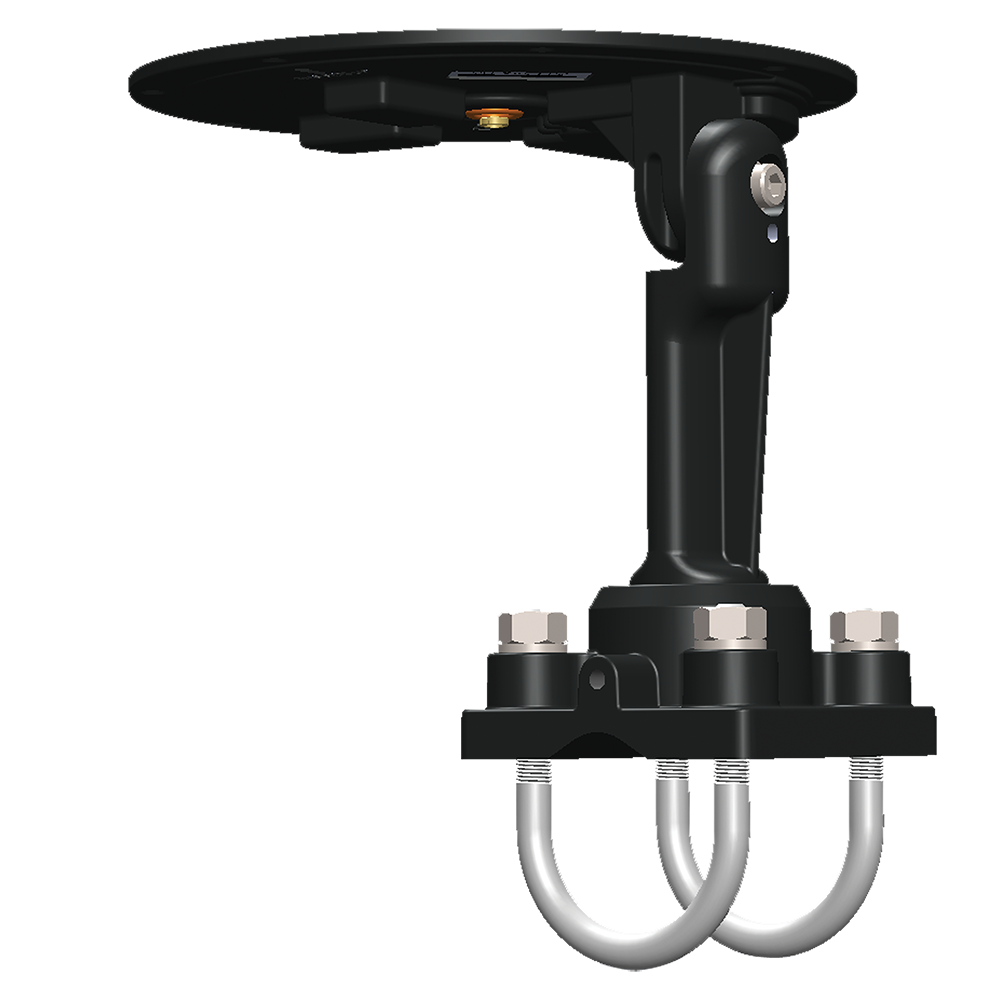

fixed-directional-antenna-passive.3_l
Download high res images (1.85 MB zip)
Inmarsat Beam Fixed/Directional Antenna Passive

Inmarsat Beam Fixed/Directional Antenna Passive (ISD700)

The Beam Inmarsat GSPS Direction passive Antenna ISD700 is a land based antenna for the Inmarsat GSPS service and is specifically designed for fixed site application.

Features

The ISD700 is supplied with an adjustable mounting bracket it allows the antenna to be mounted and then pointed in the direction of the Inmarsat GSPS satellite within the coverage area of installation. The antenna connections (GSPS and GPS) are connected directly to the base of the antenna. The ISD700 works with all of the Beam Inmarsat IsatDock’s and Oceana terminals, however MUST only be used with Beam certified passive antenna cables and should never be used in a maritime or vehicular installation.

Key Features

• Inmarsat type approved
• High quality fixed antenna
• Passive antenna
• Temp range: -40°C to +70°C
• Pole / mast mounting
• SMA / SMA
• Directional
• 12 month repair or replacement warranty
Key Features

Similar items you may be interested in

Specifications

General

RF Output Impedance 50 Ohms
Equipment Type Fixed Base Station
Antenna Description Type Transport
Intended Operating Environment - Commercial - Light Industry & Heavy Industry

Frequency

Inmarsat Transmit (operational) 1626.5 to 1660.5 MHz
Inmarsat Transmit (extended) 1668.0 to 1675.0 MHz
Inmarsat Receive (operational) 1525.0 to 1559.0 MHz 1575.42 ± 10.25 MHz (GNSS (GPS) L1)
Inmarsat Receive (extended) 1518.0 to 1525.0 MHz

Environmental

Temperature Degrees ºC Degrees ºF
Operating -40 to +70 -40 to +158

Physical

Dimensions mm inches
Antenna 231 x 142 x 142 9.10 x 5.60 x 5.60
U-Bolt 25.4 dia 1 dia
Box 260 W x 210 D x 170 H 10.24 W x 8.27 D x 6.69 H
Weight kg lbs
Antenna 0.9kg 1.95lbs
Box 1 kg 2.20 lbs

Connector

Inmarsat (GSPS) SMA Female
GNSS (GPS) SMA Female
Brochures

Brochure ISD700 Fixed/Directional Antenna (Passive)

For more information please download our ISD700 Fixed/Directional Antenna Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support
Accessories

Product support

Inmarsat Beam Fixed/Directional Antenna Passive support

Manuals, technical information and support resources for this product.
