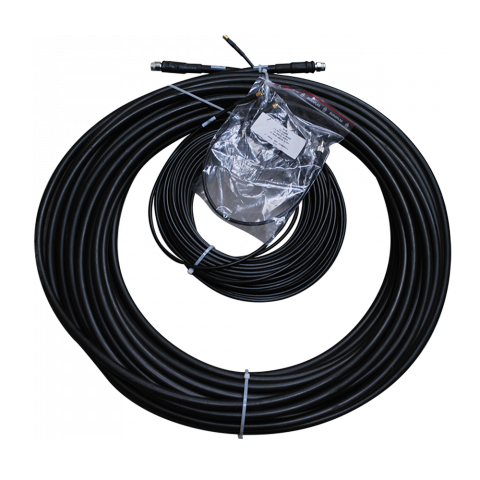

Inmarsat Beam Passive SMA/TNC Cable Kit - 50m/164ft
Inmarsat Beam Passive SMA/TNC Cable Kit - 50m/164ft

Inmarsat Beam Passive SMA/TNC Cable Kit - 50m/164ft (ISD941)

Beam ISD941 Inmarsat 50m (164 feet) antenna cable provides fixed site installations with the flexibility to run long distances and is pre-terminated with SMA/TNC connectors.

Features

The kit includes 50m of Inmarsat antenna cable and 50m of GPS antenna cable. The cable is only for fixed installations.
Passive Cable kits can be specially ordered of lengths up to 50m. Allow up to 4-6 weeks.
* ONLY use with the ISD700 Passive Antenna
Download Certificate of Origin

Similar items you may be interested in

Specifications

Inmarsat Cable

SAT Cable Length Passive 49.5m SAT TNC(m)-TNC(m)
Dimensions mm inches
Connector Diameter 19.04/19.04 0.75 / 0.75
Cable Diameter 14.99 0.59
Thickest Diameter 22 0.87
Bend Radius Single 38 1.5
Bend Radius Repeat 152 5.98

Cable Kit

Weight kg lb
Cable Kit ~30 66.14 (box)
Dimensions m ft
Cable Kit 50 164

GPS Cable

GPS Cable Length Passive 50m GPS SMA(m)-SMA(m)
Dimensions mm inches
Connector Diameter 8.2/8.2 0.32 / 0.32
Thickest Diameter 9 0.35
Cable Diameter 7.62 0.3
Bend Radius Single 22.2 0.87
Bend Radius Repeat 76.2 3

Fly Lead Inmarsat Cable

Adaptor length Adaptor 1 50cm TNC(f)-SMA(m)
Dimensions mm inches
Connector Diameter 13.7/8.1 0.54 / 0.32
Cable Diameter 6.1 0.24
Thickest Diameter 14 0.55
Bend Radius Single 19.1 0.75
Bend Radius Repeat N/A N/A
