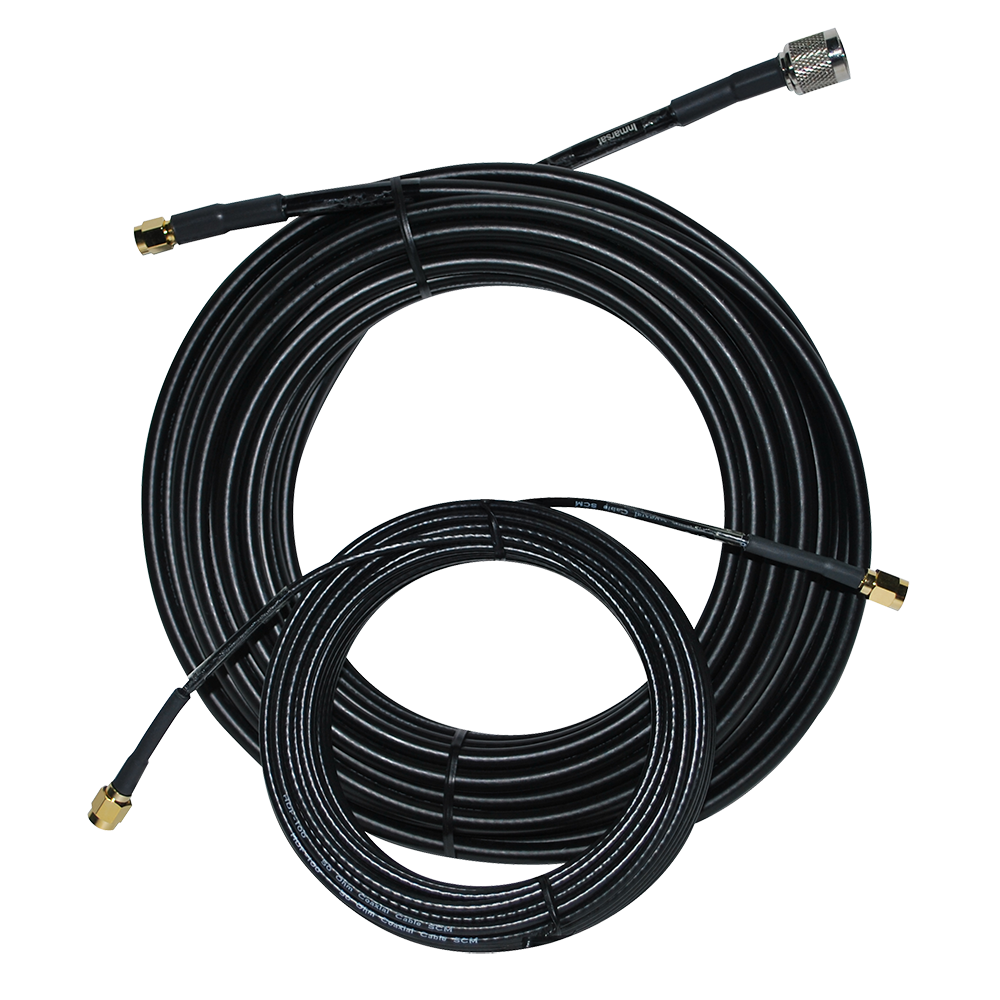

Inmarsat Beam Passive SMA/TNC Cable Kit - 10m/32.8ft (ISD936)
Beam ISD936 Inmarsat 10m (33 feet) antenna cable provides fixed site installations and is pre-terminated with SMA/TNC connectors.
Features
The kit includes 10m of Inmarsat antenna cable and 10m of GPS antenna cable.
This cable is only for fixed installations and can only be used with the Beam Inmarsat ISD700 antenna.
Download Certificate of Origin
This cable is only for fixed installations and can only be used with the Beam Inmarsat ISD700 antenna.
Similar items you may be interested in
Inmarsat Beam Passive SMA/TNC Cable Kit - 30m/98ft
Beam ISD939 Inmarsat 30m (98 feet) antenna cable provides fixed site installations with the flexibility ...
View productInmarsat Beam Passive SMA/TNC Cable Kit - 40m/131ft
Beam ISD940 Inmarsat 40m (131 feet) antenna cable provides fixed site installations with the flexibility ...
View productInmarsat Beam Passive SMA/TNC Cable Kit - 50m/164ft
Beam ISD941 Inmarsat 50m (164 feet) antenna cable provides fixed site installations with the flexibility ...
View productSpecifications
Inmarsat Cable
| SAT Cable Length | Passive 10m SAT TNC-SMA | |
| Dimensions | mm | inches |
| Connector Diameter | 14.5/9.23 | 0.57 / 0.36 |
| Cable Diameter | 6.1 | 0.24 |
| Thickest Diameter | 15 | 0.59 |
| Bend Radius Single | 19.1 | 0.75 |
| Bend Radius Repeat | 63.5 | 2.5 |
Cable Kit
| Weight | kg | lbs |
| Cable Kit | 0.7 | 1.54 (bag) |
| Dimensions | m | ft |
| Cable Kit | 10 | 32 |
GPS Cable
| GPS Cable Length | Passive 10m GPS SMA-SMA | |
| Dimensions | mm | inches |
| Connector Diameter | 9.23/9.23 | 0.36 / 0.36 |
| Thickest Diameter | 10 | 0.39 |
| Cable Diameter | 2.8 | 0.11 |
| Bend Radius Single | 19.1 | 0.75 |
| Bend Radius Repeat | 26 | 1.02 |
Note
| * ONLY use with the ISD700 Passive Antenna |
