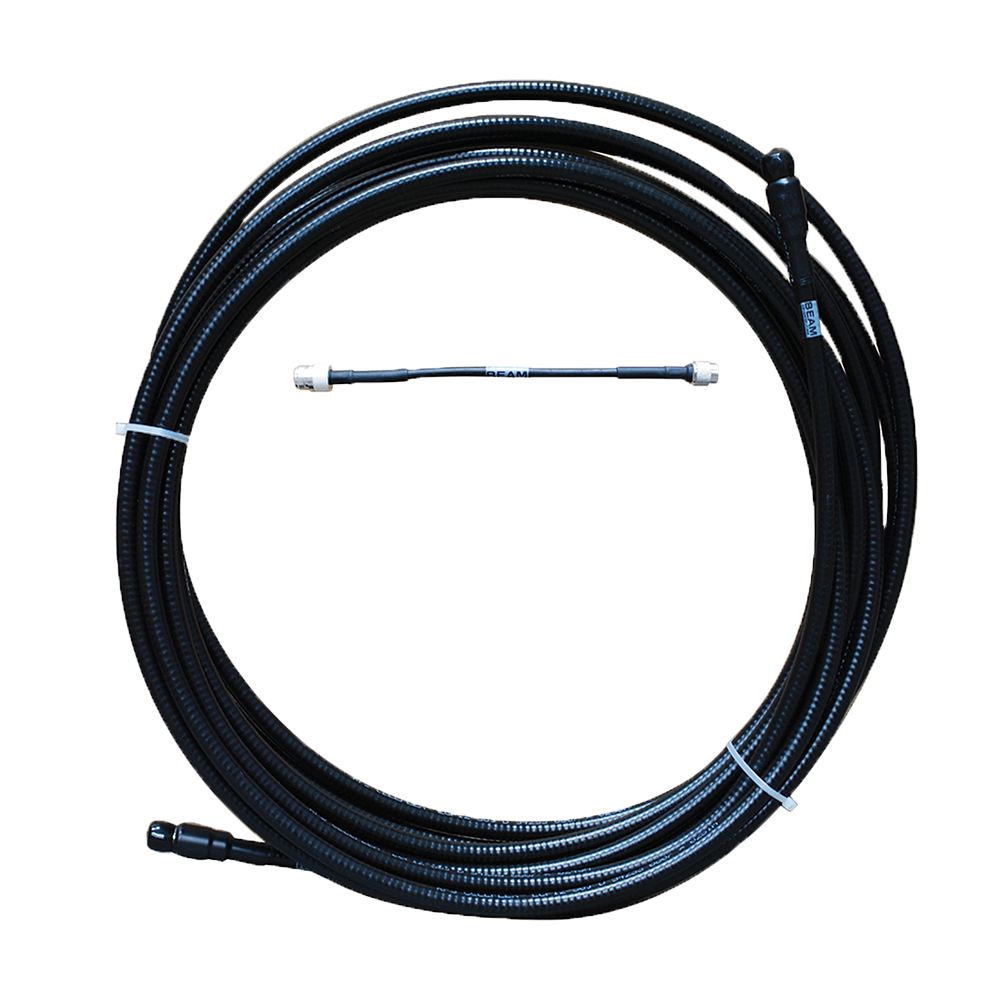

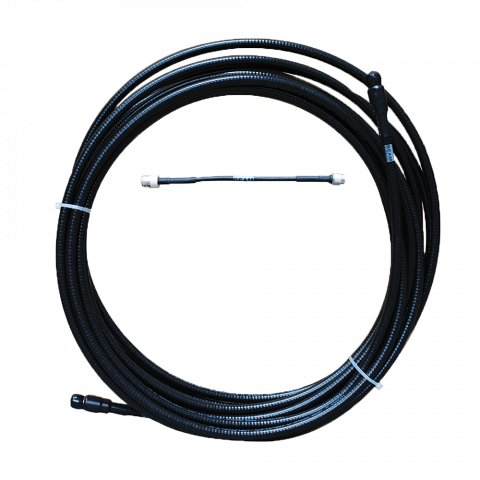

Iridium Beam Passive Antenna Cable Kit - 19m/62ft (RST935)

MSRP $1,045 USD

Beam RST935 Iridium 20 metre (65 feet) antenna cable provides the ability to run long distance installations for larger marine vessels and fixed installations and is pre-terminated with TNC male connectors.

Read more product features

Iridium Beam Passive Antenna Cable Kit - 19m/62ft Features

Beam RST935 Iridium 20 metre (65 feet) antenna cable provides the ability to run long distance installations for larger marine vessels and fixed installations and is pre-terminated with TNC male connectors.
Download Certificate of Origin

Similar items you may be interested in

Iridium Beam Passive Antenna Cable Kit - 19m/62ft Specifications

Main Cable (Passive)

Length m ft
Main Cable 19 62
Dimension mm inches
External Diameter 19.2 0.76
Bend Radius 50.8 2
Bend Radius - repeated 127 5
Temperature Degrees °C Degrees °F
Operating -40°C to +85°C -40°F to +185°F

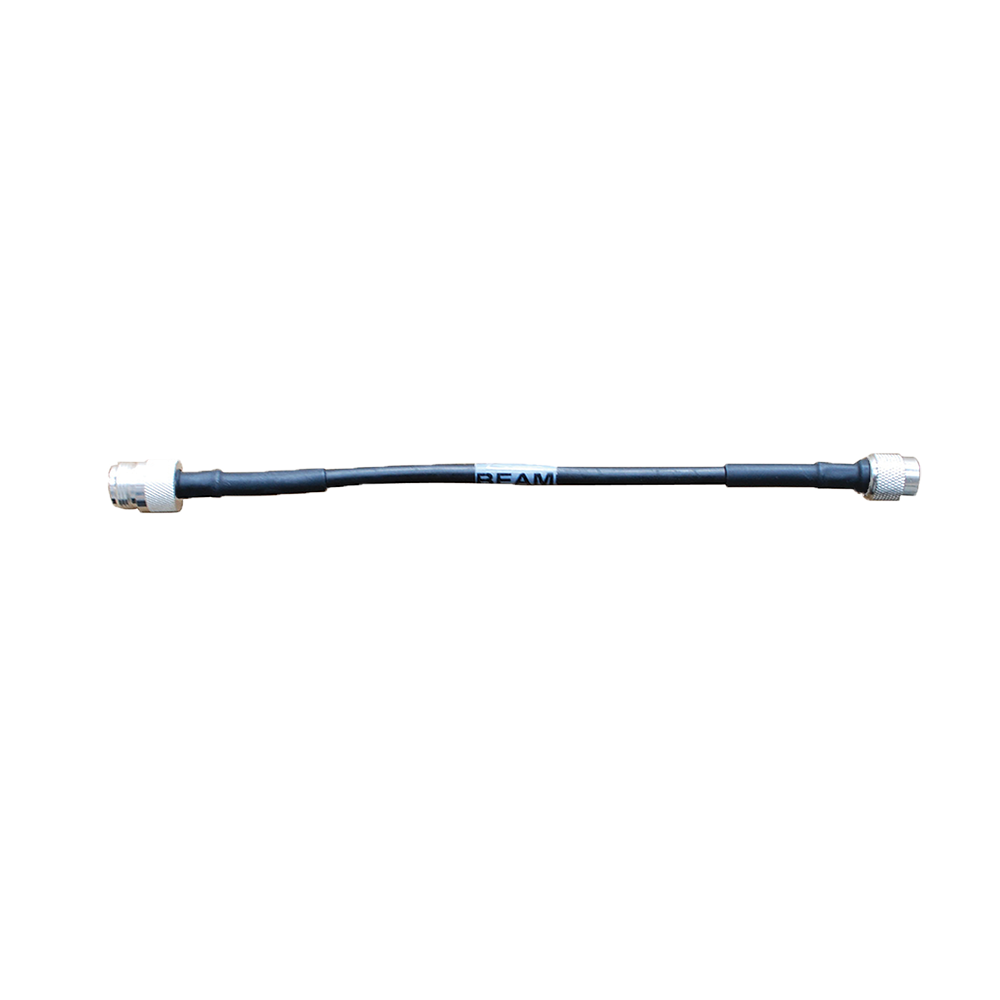

Fly-Leads (Passive)

Length cm in
Fly-Lead 1 50 19.7
Fly-Lead 2 50 19.7
Dimensions mm inches
External Diameter 6.1 0.24
Bend Radius 19.1 0.75
Bend Radius - repeated 63.5 2.5
Temperature Degrees °C Degrees °F
Operating -40°C to +85°C -40°F to +185°F

Connectors

Main Cable N-Male to N-Male
Fly-Lead 1 TNC-Male to N-Female
Fly-Lead 2 TNC-Male to N-Female

Total Kit Weight

kg lbs
5.39 11.88
