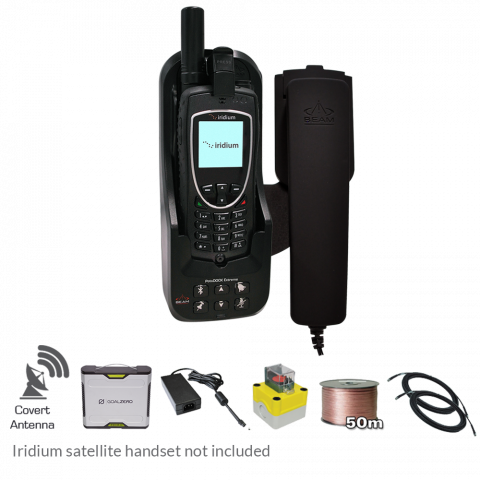

PotsDOCK Extreme Deluxe Anti-Piracy Solution (EXTRMPD-DPB)
The Beam PotsDOCK Extreme Anti-Piracy Solution, uses a Beam Iridium 9575 dock and an Iridium Extreme handset to provide a complete bundled installation for an anti-piracy installation allowing emergency communications and SOS message to be sent if under threat.
- Data
- Voice
- SMS
- RJ11/POTS
- PABX Integration
- Bluetooth
- SBD
- Privacy Handset
- GPS
- Tracking
- Docking
- Charging
- Ringer
- Mute
- USB
- Alert
PotsDOCK Extreme Deluxe Anti-Piracy Solution Features
Communication matters
Pinpoint Accuracy
Activate Alert/Alarm Messages
Key Benefits and Features
• Anti-Piracy Covert Antenna
• Integrated Bluetooth connectivity
• RJ11/POTS interface, cable runs up to 600m/2000ft
• Voice, SMS, SBD and Circuit Switched Data capable
• Tracking and SOS (via the 9575 handset)
• USB data interface
• Accessory / Ignition sense
• 9-32V DC power input
• AC Plug pack included
• SMA Connectors – Iridium Antenna
• Full certified, Iridium, RoHS, CE, IEC60945, AS/EN60950
• 2 year repair or replacement warranty
Watch Beam Piracy Solutions Video
The Beam Piracy Solution is a complete bundled installation that provides an immediate contact/message under threat with the added ability to be able to make or receive a telephone call from the "safe room" at any time.
The PotsDOCK Extreme covert Piracy Solution has an in-built GPS module that provides pinpoint accuracy and enables tracking worldwide.
The PotsDOCK Extreme utilizes the Iridium Exterme's tracking and emergency notification functions. It can be configured to activate the alert system and will trigger the emergency SOS function of the handset.
The PostDOCK Extreme has integrated Bluetooth in-built in the cradle. It supports voice connectivity for handsfree communications.
PotsDOCK Extreme Deluxe Anti-Piracy Solution Specifications
PotsDOCK Extreme Physical
Dimensions | mm | inches |
Dock | 82.2W x 212H x 75.9D | 3.24W x 8.35H x 2.99D |
Outer Box | 140W x 330H x 125D | 5.51W x 13.0H x 4.92D |
Weight | kg | lbs |
Dock | 0.45 | 1.0 |
Box | 1.54 | 3.4 |
PotsDOCK Extreme Connectors/Interfaces
Alarm Mode | Normally-Closed' Loop IN to OUT Up to 50m cable run / multiple buttons in series. Brown wire is Input,Green wire is Output. |
RJ11/POTS | RJ11 connector / 2-wire, up to 600m. Auto Impedance - or country selectable. Adjustable Dial & Busy Tones. Ringer output 56Vrms, 5REN load. Adjustable Ringer Frequency / Cadence |
Privacy Handset (Line In/Out) | 4-pole 3.5mm jack, ground referenced in/out with cup-switch. In biased with ~2Vdc via 2k2. Out 40mW power into 16-32Ω. |
Data Port (USB) | USB Mini-B 5-pin female (USB Slave). USB 2.0 compliant, CDC Serial profile |
Alarm (Alert) Loop | 1 input, 1 output. |
Power Cable | 4-way Microfit socket. +Vin, 0V (GND), and ACC (On/Off Sense). 9-32VDC tolerant. ACC sense: High(1) > +7Vdc and < +32Vdc Low (0) 0V < +5Vdc |
PotsDOCK Extreme Environmental
Temperature | Degrees °C | Degrees °F |
Charging Temp. Range | 0°C to 45°C | 32°F to 113°F |
Operating Range - PotsDOCK | -20°C to +70°C | -4°F to +158°F |
Operating Range - Extreme Handset | -10°C to +55°C | -50°F to +131°F |
Storage Temperature | -30°C to +85°C | -22°F to +185°F |
Operating Humidity Range | < 85% RH non-condensing |
PotsDOCK Extreme
Buttons on Dock | Bluetooth Track Button / Alert 2 button press Mute / Ringer |
Physical Dimensions | 200 x 75 x 65mm Operating Range: -30°C to +70°C Storage: -40°C to +85°C Humidity: <- 93% RH |
Quality | Professional Industrial design 2 year peace of mind Repair/Replacement Warranty 100% factory tested Fully certified, Inmarsat, RoHS, CE, EMC, & C Tick |
BEAM Covert Dual Mode Antenna
Physical Dimensions | Height – 250mm (9.84”) Diameter - 150mm 5.90” Weight – 1.1kg (2.42lbs) |
Physical Specifications | High quality Marine enclosure Passive antenna Temp Range -40°C to + 71° C Pole / Mast mounting TNC / SMA Omni directional |
BEAM Covert Dual Mode Antenna Physical Dimensions
Dimensions | mm | inches |
Antenna | 244.86H x 149.0dia | 9.64H x 5.87dia |
Outer Box | 265 W x 220 D x 120 H | 10.43 W x 8.66 D x 4.72 H |
RST060 UPS Battery Pack Physical
Dimensions | mm | inches |
Dimensions | 147 x 38 x 133 | 5.8 x 1.5 x 5.25 |
Weight | kg | lbs |
Unit Weight | 0.8 | 1.9 |
RST060 UPS Battery Pack Environmental
Temperature | Degrees °C | Degrees °F |
Operating Usage Temperature | 0°C to -40°C | 32°F to -104°F |
Brochures
Brochure PotsDOCK Extreme
BEAM Anti-Piracy Solutions for Iridium
Visit our support page to download manuals, qsg, firmware upgrades for this product
