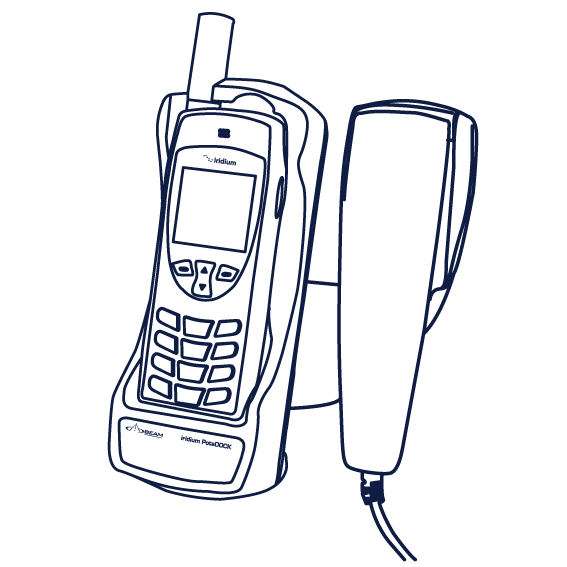

PotsDOCK 9555 Anti-Piracy Solution (9555PD-DPB)
The Beam PotsDOCK 9555 Anti-Piracy Solution, uses a Beam Iridium 9555 dock and an Iridium 9555 handset to provide a complete bundled installation for an Anti-Piracy installation allowing emergency communications and SOS message to be sent if under threat.
- Data
- Voice
- SMS
- RJ11/POTS
- PABX Integration
- Bluetooth
- SBD
- Privacy Handset
- GPS
- Tracking
- Docking
- Charging
- Ringer
- Mute
- USB
- External IO
- SOS
- Alert
- LED
PotsDOCK 9555 Anti-Piracy Solution Features
Communication is Vital
Pin Point Accuracy
Key Benefits and Features
• Anti-Piracy Covert Antenna
• Integrated Bluetooth connectivity
• RJ11/POTS interface
• Voice, SMS, SBD and Circuit Switched Data capable
• Inbuilt tracking and SOS
• USB data interface
• RS232 D9 Serial Interface
• Accessory/Ignition sense
• 9-32V DC power input
• SMA Connectors – Iridium Antenna
• Full certified, Iridium, RoHS, CE, IEC60945
• 2 year repair or replacement warranty
PotsDOCK 9555 Anti-Piracy Solution Specifications
PotsDOCK 9555
Environmental Temperature |
Degrees °C | Degrees °F |
PotsDOCK 9555 Operating Temperature Range | -20 to +70 | -4 to +158 |
9555 Handset Operating Temperature Range | -10 to +55 | -14 to +131 |
Charging Temp. Range | 0 to +40 | 32 to 113 |
Storage Temperature | -30 to +70 | -22 to +158 |
Operating Humidity Range | < 85% RH non-condensing | |
Physical Specifications Dimensions |
mm | inches |
Dock | 200 x 75 x 65 | 7.87 x 2.95 x 2.55 |
Iridium Beam Covert Anti-Piracy Antenna
Environmental Specifications Temperature |
Degrees °C | Degrees °F |
Temp Range | -40° C to + 71° C | -40° F + 159.8° F |
Physical Specifications Dimensions |
mm | inches |
Antenna | 244.86H x 149.0dia | 9.64H x 5.87dia |
Outer Box Dimensions | 265 W x 220 D x 120 H | 10.43 W x 8.66 D x 4.72 H |
Weight | kg | lbs |
Antenna | 1.1 | 2.42 |
Box Weight | 0.94 | 2.07 |
Colour | White | |
Finish | Weatherable Polymer | |
Network Specifications | ||
Altitude | 20,000' | |
Power handling | 1 Watt | |
VSWR | < 2.0 : 1 | |
Impedance | 50 OHMS | |
Axial Ratio | 3.0 db Max at bore sight | |
Polarization | Right Hand Circular | |
Iridium Frequency | 1616 – 1626 MHz |
RST060 UPS Battery Pack
Physical Specifications Dimensions |
mm | inches |
Dimensions | 147 x 38 x 133 | 5.8 x 1.5 x 5.25 |
Weight | kg | lbs |
Unit Weight | 0.8 | 1.9 |
Environmental Specifications Temperature |
Degrees °C | Degrees °F |
Operating Usage Temperature | 0°C to -40°C | 32°F to -104°F |

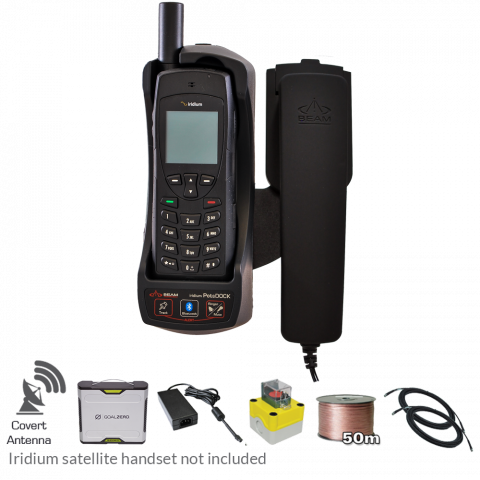

Kit Contents
Beam 9555 PotsDOCK |
Beam Iridium Dual Mode Cover Antenna |
RST755 Privacy Handset |
RST060 UPS Battery Pack |
RST933 12m Iridium Cable Kit |
RST923 12m GPS Cable Kit |
RST995 Beam Alert Button |
RST996 Beam Alert Button Loop Wire 50m |
Brochures
BEAM Anti-Piracy Solutions for Iridium
Visit our support page to download manuals, qsg, firmware upgrades for this product
