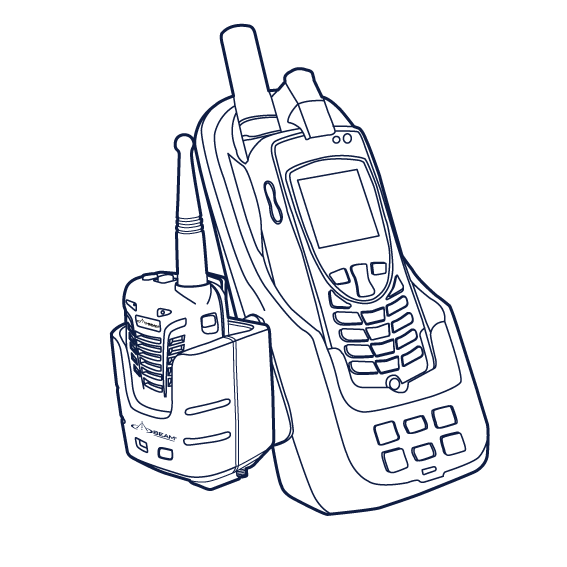

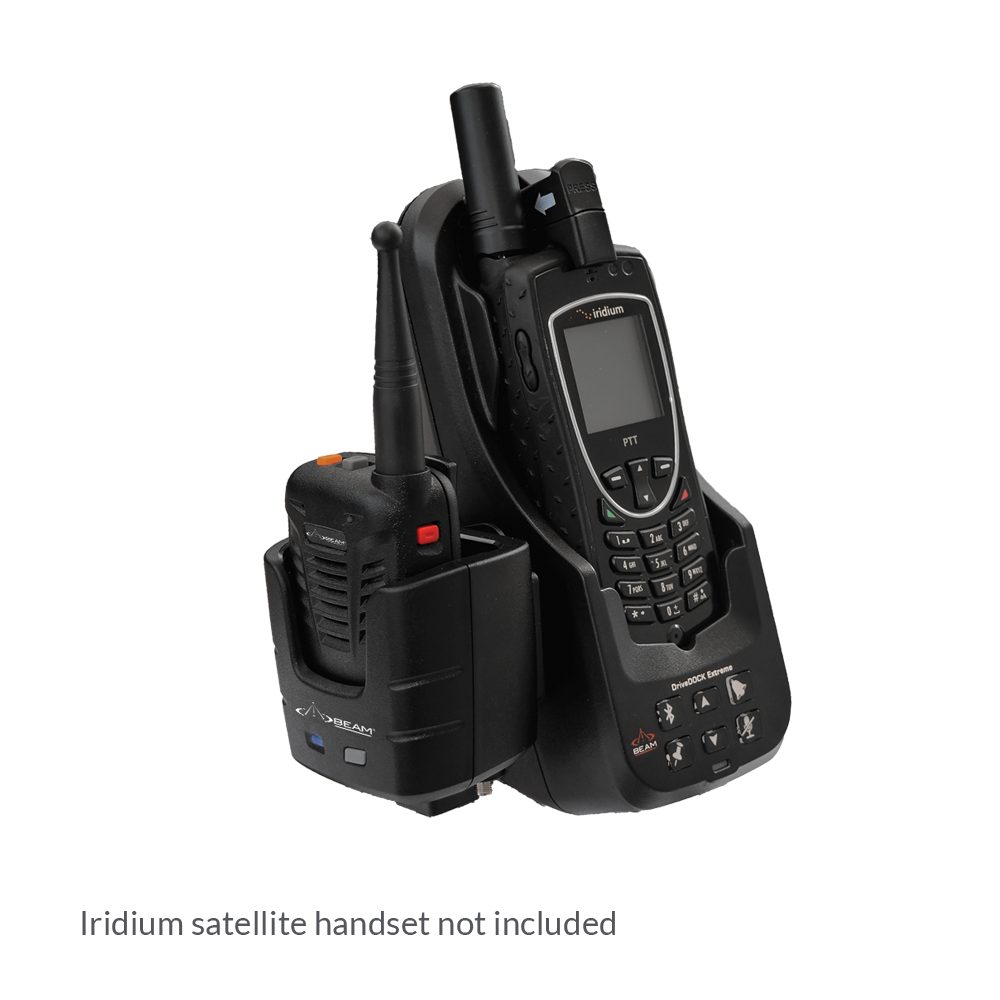

DriveDOCK Extreme Wireless Push-To-Talk (PTT-W1A) Bundle (EXTRMDD-PTT-W1A)
NEW Wireless Push-To-Talk Handset Kit is a powerful communication device that can transmit and receive audio for up to 500m/1640ft away from the base unit. Its powerful speaker provides a clear, high quality audio that surpasses the output of the Extreme phone.
- Data
- Voice
- SMS
- Bluetooth
- SBD
- Handsfree
- Privacy Handset (optional)
- GPS
- Tracking
- Docking
- Charging
- Ringer
- Mute
- Horn Alert
- Intelligent Handset (optional)
- USB
- SOS
- Supports PTT
- Supports Voice via 9575
- Wireless PTT Handset
- External PTT Antenna
DriveDOCK Extreme Wireless Push-To-Talk (PTT-W1A) Bundle Features
The wireless handset’s rugged premium remote speaker microphone, deliver outstanding clear audio in every situation when connected to the Beam Extreme Docking Station. The microphone features a highly tactile PTT button that provides both mechanical and audible feedback every time you press, so you know your call is being sent.
Key Benefits and Features
• Durable and reliable mic/speaker handset
• IP55 weatherproof compliance, built vibration and drop resistant
• Enhanced clear audio quality
• Compatible with existing BEAM DriveDOCK Extreme
• Supports BOTH Phone and PTT modes of the Iridium Network
• Ability to amplify PTT audio to external cabin loudspeaker
• Left or right side bracket mounting
• 3.5mm earpiece jack for optional earpiece accessories
• IP55 weatherproof compliance, built vibration and drop resistant
• Enhanced clear audio quality
• Compatible with existing BEAM DriveDOCK Extreme
• Supports BOTH Phone and PTT modes of the Iridium Network
• Ability to amplify PTT audio to external cabin loudspeaker
• Left or right side bracket mounting
• 3.5mm earpiece jack for optional earpiece accessories
Similar items you may be interested in
This complete kit includes: Extreme DriveDock / 2 x Wireless PTT handsets PTT-W1A & PTT-100A/ ...
View product
DriveDOCK Extreme Wireless Push-To-Talk (PTT-W1A) Bundle Specifications
DriveDOCK Extreme Power
| Average Power Consumption | Current @ 12VDC | Watts |
| Rated Input | 9-32V DC | 2A max |
| Standby | 70mA | 0.84W |
| Transmit + Charging | 0.7A | 8.4W |
| Sleep Mode | 5mA | 60mW |
DriveDOCK Extreme BLUETOOTH® MODULE (INTERNAL)
| Legal | The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners. |
| Regulatory | Bluetooth® identifier: B03005. CE 89/336/EEC - #EC/2006/20013C. FCC part 15 class B: DriveDOCK contains Transmitter Module FCC ID: QOQWT11. Canada: Cert# 5123A-BGTWT11E Japan: 07215089/AA/00 |
| Antenna | Integrated chip antenna |
| Power | Default = Class 2 (< 10 metres). 2.4GHz - 2.4835GHz Unlicensed ISM Band |
| Profiles | HFP - Hands-Free Profile v.1.5 HFP-AG - Hands-Free Audio Gateway Profile v.1.5 & SPP - Serial Port Profile |
| System | Bluetooth® 2.0v+EDR (Enhanced Data Rates), 802.11 coexistence. |
DriveDOCK Extreme Interfaces
| Privacy Handset (Line In/Out) | 4-pole 3.5mm audio jack at the bottom of the DriveDOCK cradle. |
| External Speaker and Microphone | One horizontal 2-pin Microfit connector on the cable loom for speaker and one vertical 2-pin Microfit connector for microphone. |
| Data Port (USB) | USB Mini-B 5-pin female (USB Slave). USB 2.0 compliant, CDC Serial profile. |
| Alarm (Alert) Loop | Alarm Mode: “Normally-Closed” Loop IN to OUT Up to 50m cable run multiple buttons in series. Brown wire is Input, Green wire is Output. |
| Horn Output / Audio System Mute | Blue wire on the cable loom. Open collector output can be interfaced to 12V or 24V DC with up to 120mA current sink capability. |
| Power Cable | 4-way Microfit socket. +Vin (Red wire),0V (GND, Black wire), and ACC (On/Off Sense, Yellow wire). 9-32VDC tolerant. ACC sense: High(1) > +7Vdc Low (0) 0V < +5Vdc |
| LEDs/Buttons | Bluetooth, Ringer, Track, Mute, Up & Down |
DriveDOCK Extreme Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30°C to +70°C* | -22°F to +158°F |
| Charging Range | 0°C to 45°C # | +32°F to 113°F |
| Storage | -35°C to +85°C | -31°F to 185°F |
| Operating Humidity Range | < 85% RH non-condensing | |
| Notes | * When 9575 Battery is fully charged | # Derived from the charging temperature range of the Iridium 9575 handset battery. |
Wireless Push-To-Talk Handset Kit Environmental
| Humidity/Rain/Dust | IEC529, IP67 (Wireless Handset only) | |
| Temperature | Degrees °C | Degrees °F |
| Operating Temperature | -20°C to +55°C | -4°F to +122°F |
| Vibration and Shock | Mil Std 810 C/D/E/F |
Wireless Push-To-Talk Handset Kit Connectors / Interfaces
| Handset | |
| Hirose Audio Port | Industry standard – 6-pin accessory port |
| Audio Port | Standard 3.5mm mono jack (TS) |

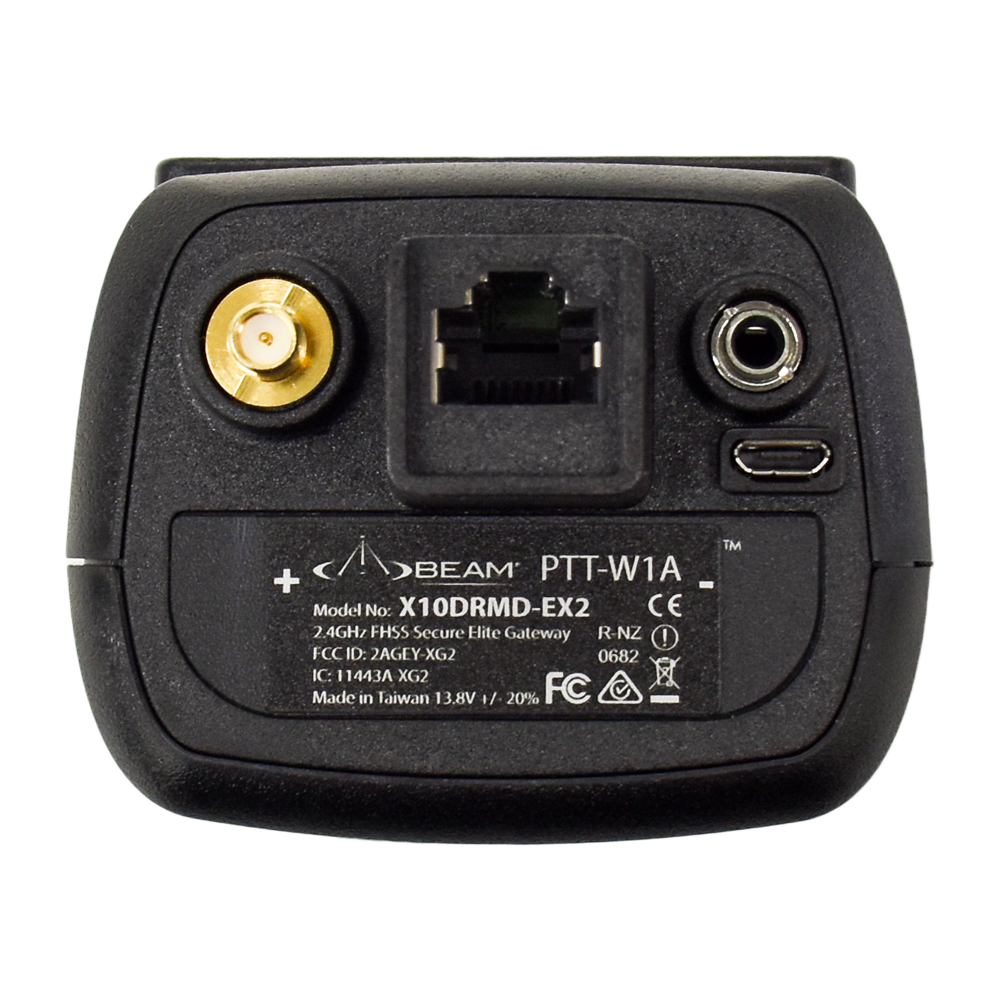

| Gateway Cradle | |
| Interface Connector | RJ45 |
| Antenna Connector | RP SMA Female |
Wireless Push-To-Talk Handset Kit Battery Pack
| Battery Type | 3.7V @1450mA Lithium Polymer |
| Battery Life | >15 Hours @ 30% receive time |
DriveDOCK Extreme Physical
| Dimensions | mm | inches |
| Dock | 83W x 76D x 212H | 3.3 W x 3D x 8.3H |
| Outer Box | 140W x 125D X 330H | 5.51W x 4.92D x 13H |
| Weight | kg | lbs |
| Dock | 0.48 | 1.1 |
| Box | 1.5 | 3.4 |
Wireless Push-To-Talk Handset Kit Physical
| Dimensions | mm | inches |
| Dimensions - PTT Wireless Handset | 88 x 28 x 63 | 3.46 x 1.1 x2.48 |
| Dimensions - PTT Cradle | 80 x 80 x 60 | 3.15 x 3.15 x 2.36 |
| Weight | kg | lbs |
| Weight - PTT Wireless Handset | 0.150 | 1.10 |
| Weight - PTT Cradle | 0.125 | 0.27 |
DriveDOCK Extreme Bundle Kit Contents
| DriveDOCK Extreme |
| DriveDOCK Extreme |
| DC Power Cable/Fuse Kit |
| Universal Mounting Bracket (RAM) |
| Speaker & Microphone |
| Manual |
| Quick Start Guide |

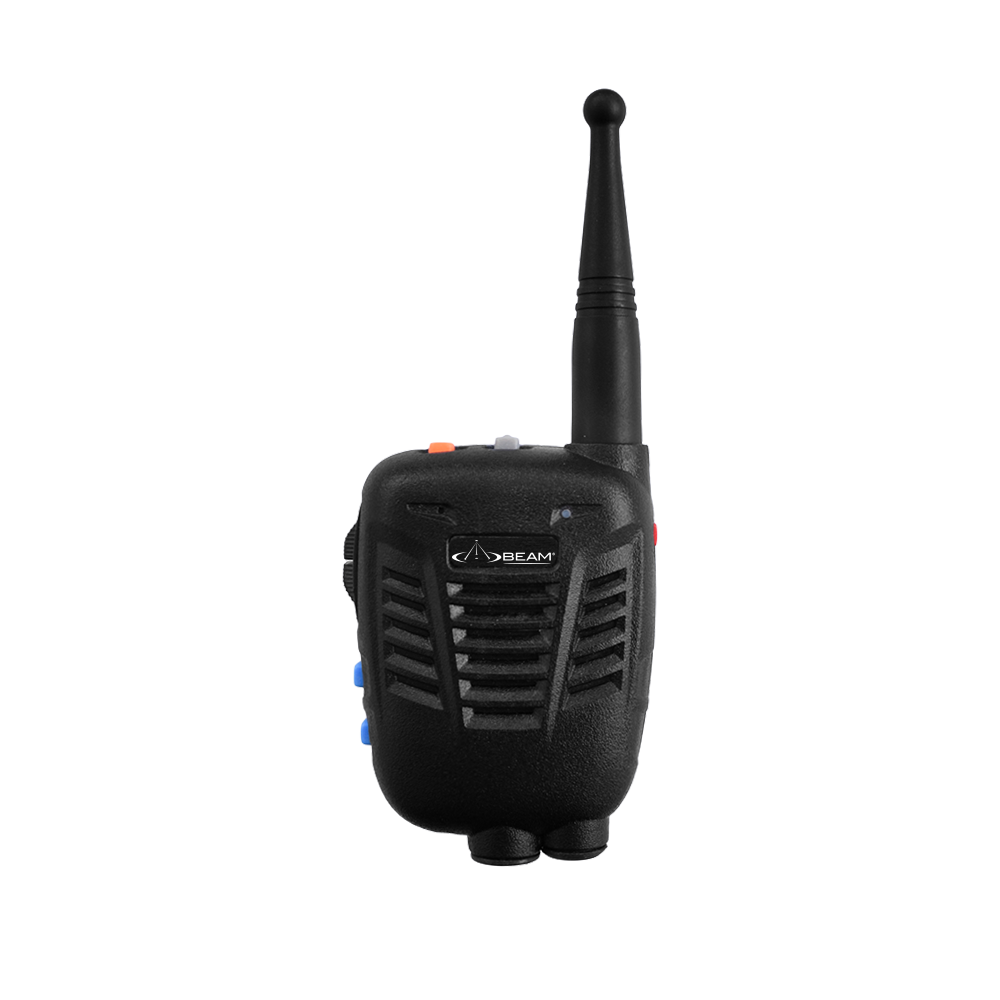

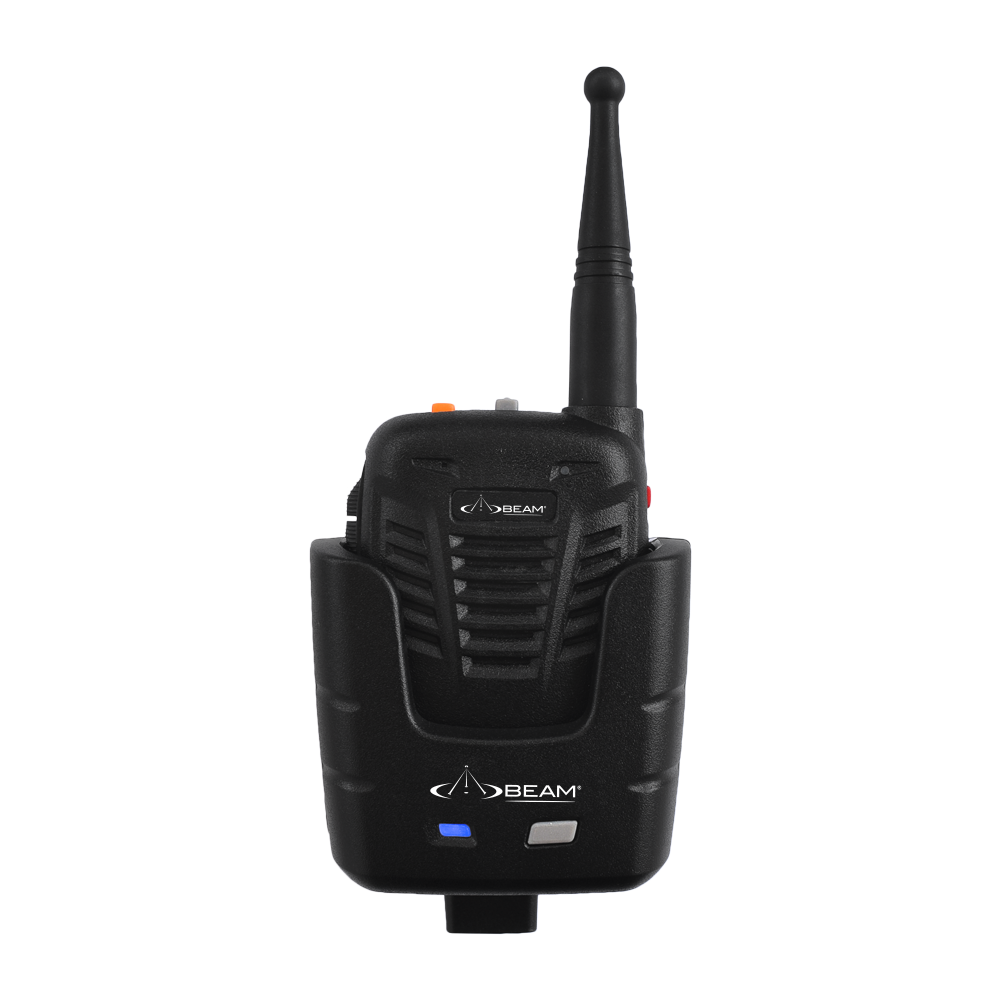

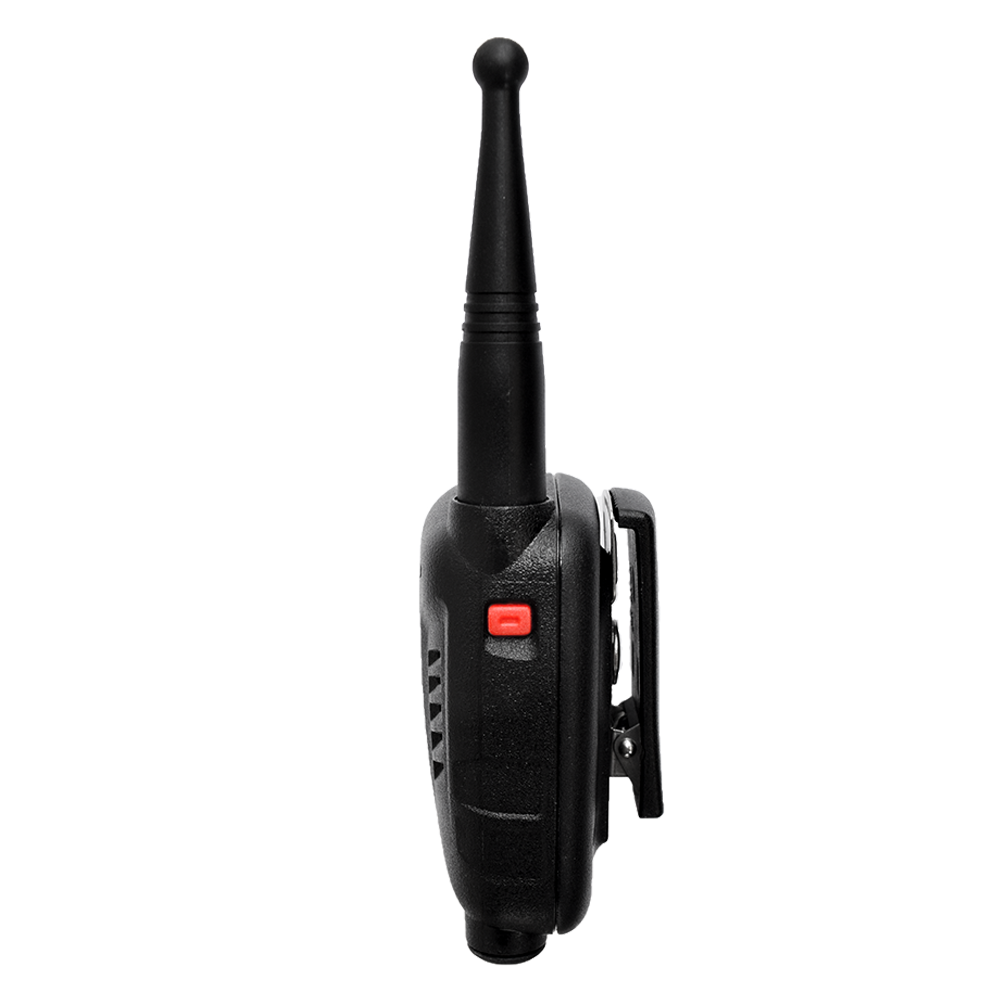

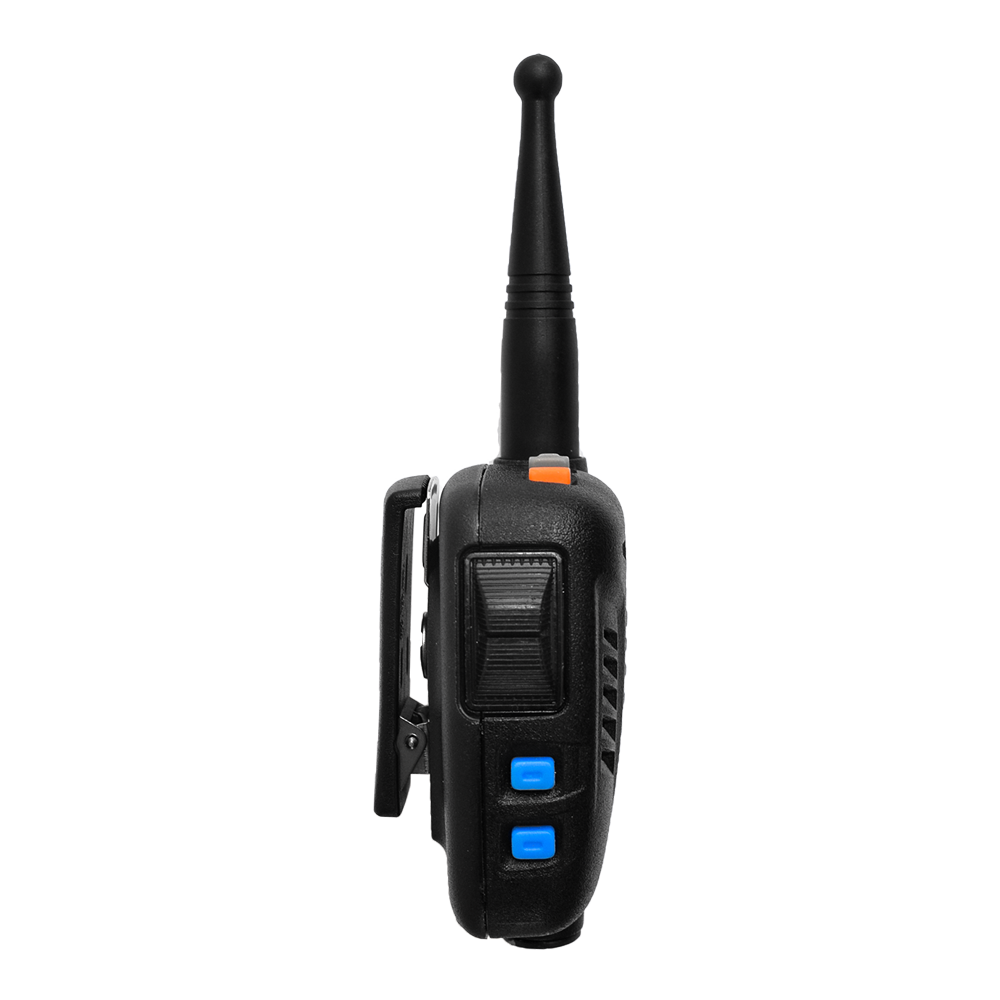

| Wireless PTT Handset |
| Wireless PTT Handset |

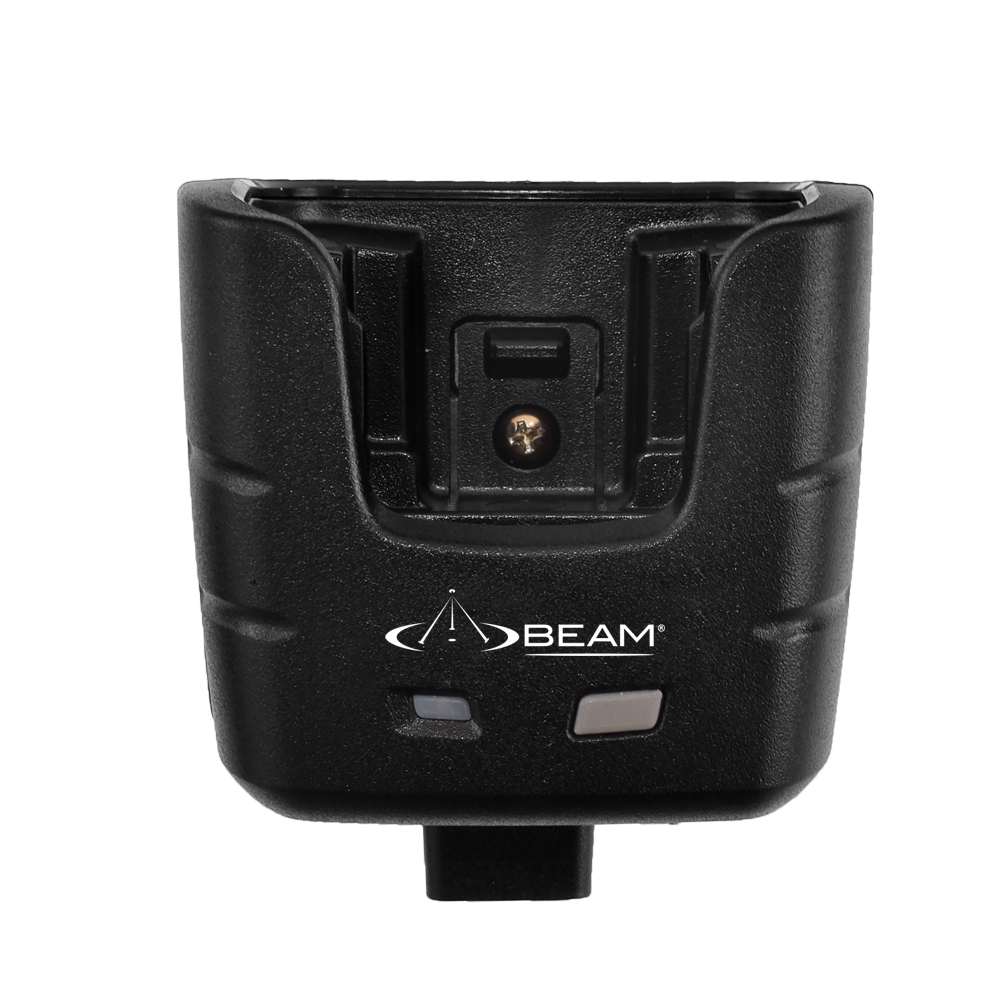

| Charging Cradle |
| Interface Cable |

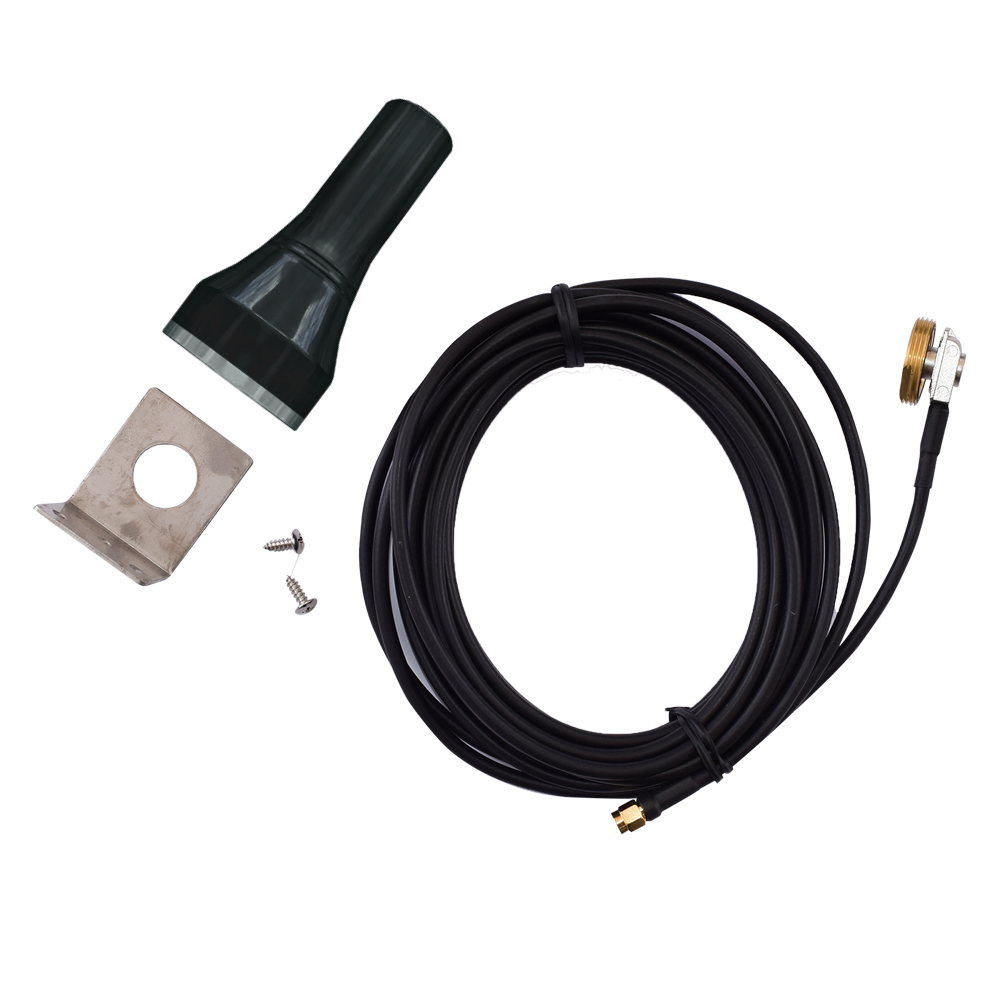

| Fixed Mount External Antenna |
| PTT Bracket Kit |
Certifications
| DriveDOCK Extreme |
| Iridium |
| EMC Compliance |
| CE Compliance |
| Electrical Safety |
| RoHS |
| C-Tick |
| Wireless PTT Handset |
| Aust/NZ |
| FCC |
| CE Compliance |
| Industry Canada |
Brochures
DriveDOCK Extreme PTT Bundles
For more information please download our DriveDOCK Extreme Push-To-Talk Bundles Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
Product supportAccessories
 |
 |
 |
PTT100AMSRP $645 USD*Seconday Wireless PTT Handset |
PTT619MSRP $450 USD* Wireless Handset 6 unit charger |

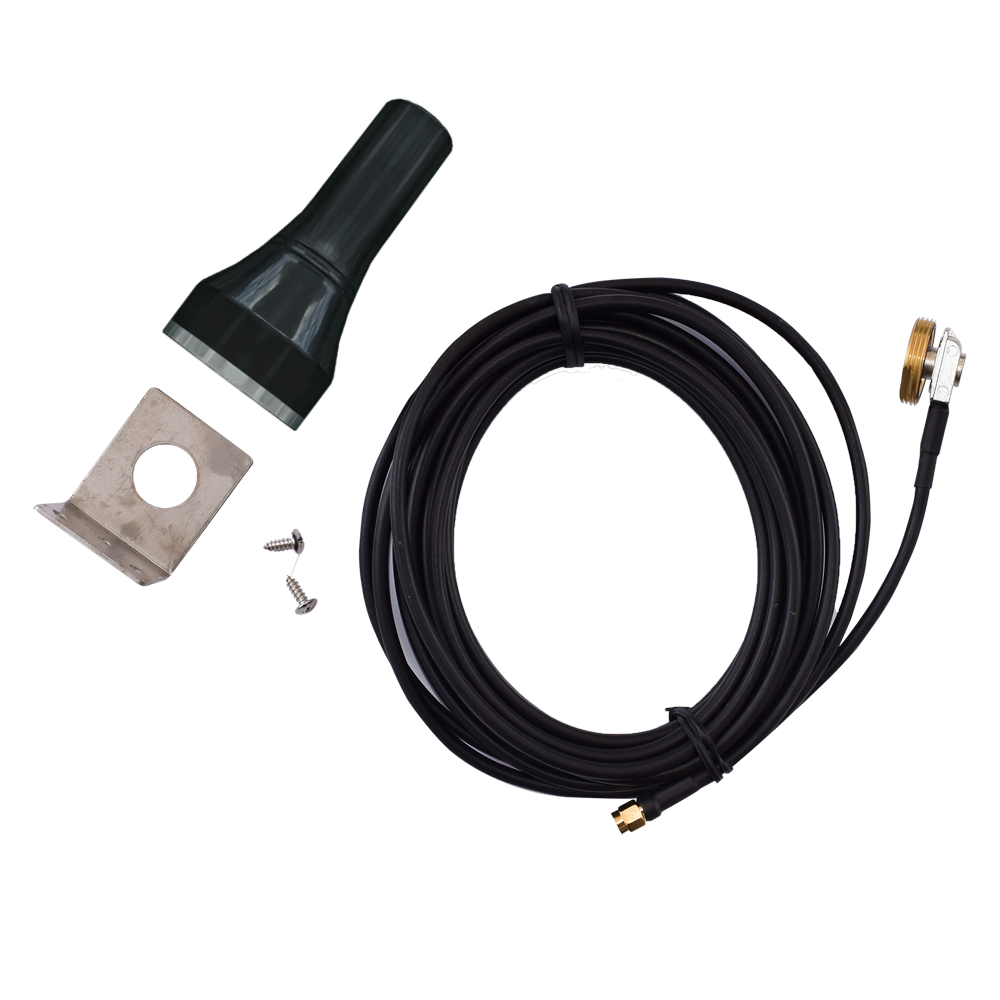

PTT620AMSRP $160 USD* Vehicle Mount Antenna Kit |
* Manufacturers Suggested US Dollar ($USD) Retail Price, Excluding Freight, Taxes and Duties from Australia. Contact a Reseller for your local price.
