Iridium Beam Mast/Pole Antenna - DISCONTINUED

Iridium Beam Mast/Pole Antenna - DISCONTINUED (RST710)

Name: Iridium Beam Mast/Pole Antenna - DISCONTINUED
Brand: Beam Communications
Availability: InStock

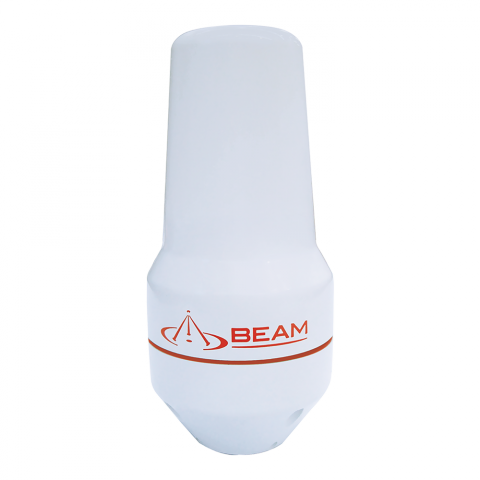

The Iridium Pole Mount Antenna RST710 is designed for Maritime and fixed site based applications. Designed to work with Iridium based devices.

Features

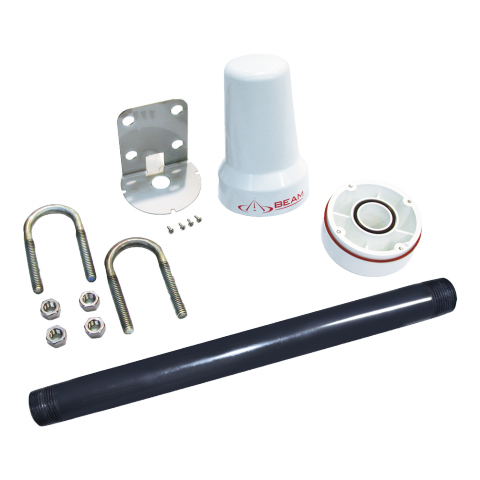

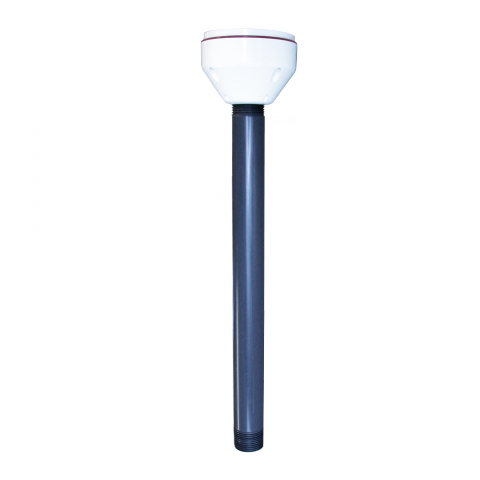

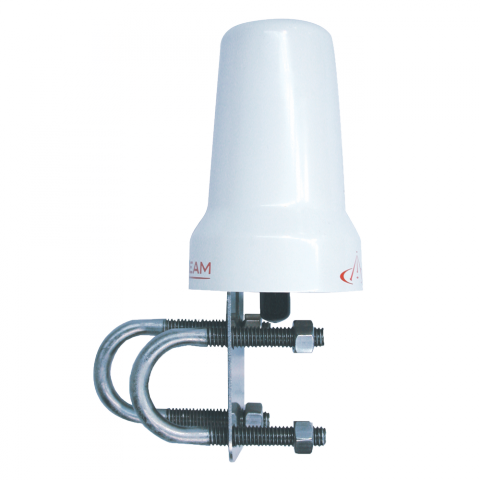

The antenna is omnidirectional and therefore makes it an easy installation in any location. The antenna is supplied with both straight pole mounting or right angle brackets depending on the installation location. The antenna has a recessed TNC female connector to make the cable connection inside the antenna and protected from harsh environments.

Key Features

• Iridium approved
• Designed for harsh environments
• Small and lightweight
• Weatherable polymer
• Manufactured in the USA
• 12 month repair or replacement warranty

Specifications

General

Polarization	Right Hand Circular
Axial Ratio	3.0db Max at bore sight
Impedance	50 Ohms
VSWR	< 2.0 : 1
Power handling	10 Watts
Altitude	6,000m/20,000ft

Frequency

Iridium

1616 – 1626 MHz

Environmental

Extreme rain exposure	37 mm/10 min; 145 mm/24 h
Extreme snow exposure	3,0kN/m2
Wind	35m/s
Temperature	Degrees °C	Degrees °F
Operating Temp	-55°C to +85°C	-67°F to 185°F

Physical

Colour	White
Finish	Weatherable Polymer
Dimensions	mm	inches
Antenna	76.2W x 162.31H	3.0W x 6.39H
PVC Pole (length)	305	12.0
PVC Pole (ext. diameter)	26.48	1
Box	320 W x 90 D x 95 H	12.6 W x 3.54 D x 3.74 H
Weight	kg	lbs
Antenna	0.311	0.687
Box	0.78	1.72

Connector

Iridium

TNC Female

Brochures

Brochure RST710 Iridium Mast Mount Antenna

For more information please download our RST710 Iridium Mast Mount Antenna Brochure.

Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support

Accessories

Iridium Beam Passive Antenna Cable Kit - 3m/9.8ft

Product support

Iridium Beam Mast/Pole Antenna - DISCONTINUED support

Manuals, technical information and support resources for this product.

Manuals & Guides

Installation Guide RST710 Mast/Pole

For more information please download our RST710 Mast/Pole Installation Guide.

Download

Specifications RST710 Mast/Pole Antenna

For more information please download our RST710 Mast/Pole Antenna Specifications.

Download

Compliance

RSTxxx Antenna COO
