Iridium Beam Active Antenna
iridium-beam-active-antenna_l
iridium-active-antenna_l
iridium-active-antenna.2_l
iridium-active-antenna.1_l
Download high res images (3.19 MB zip)
Iridium Beam Active Antenna

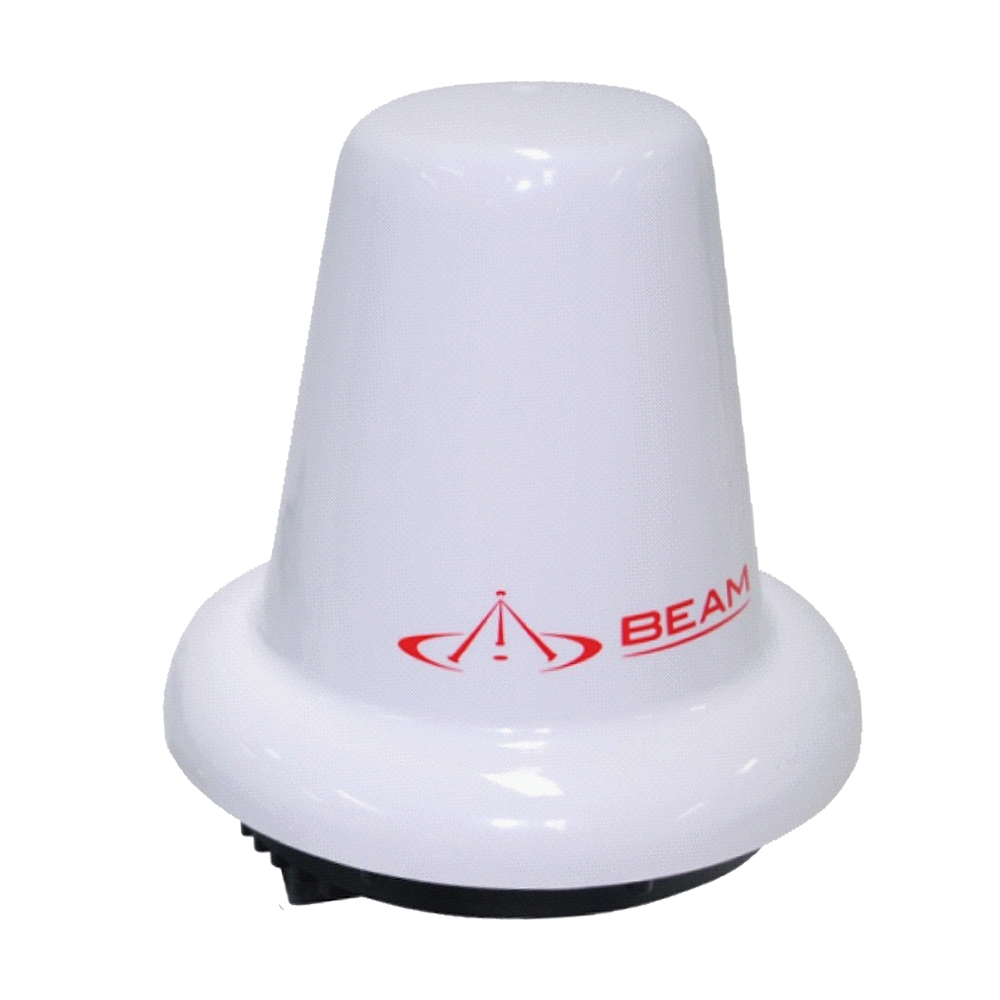

Iridium Beam Active Antenna (RST740)

The Active / Powered Iridium antenna RST740 is designed for Land and Maritime applications specifically for use where long cable runs are required to reach between the required antenna location and the terminal.

Features

Where an installation exceeds 20m / 60’ it becomes more cost effective to use an Active/Powered Iridium antenna that allows much thinner and cheaper cable to run up to 100m / 300’ where this would never be possible with a passive Iridium antenna. The Active Antenna RST740 will work on all Beam products and any Iridium devices, however requires an approved Beam Active Antenna cable for use in order to manage the power amplification across the RF line to the antenna.

Key Benefits and Features

• Iridium approved
• High quality enclosure
• Active antenna
• Pole/Mast mounting
• White small size/footprint
• Omni directional
• Supports long cable runs

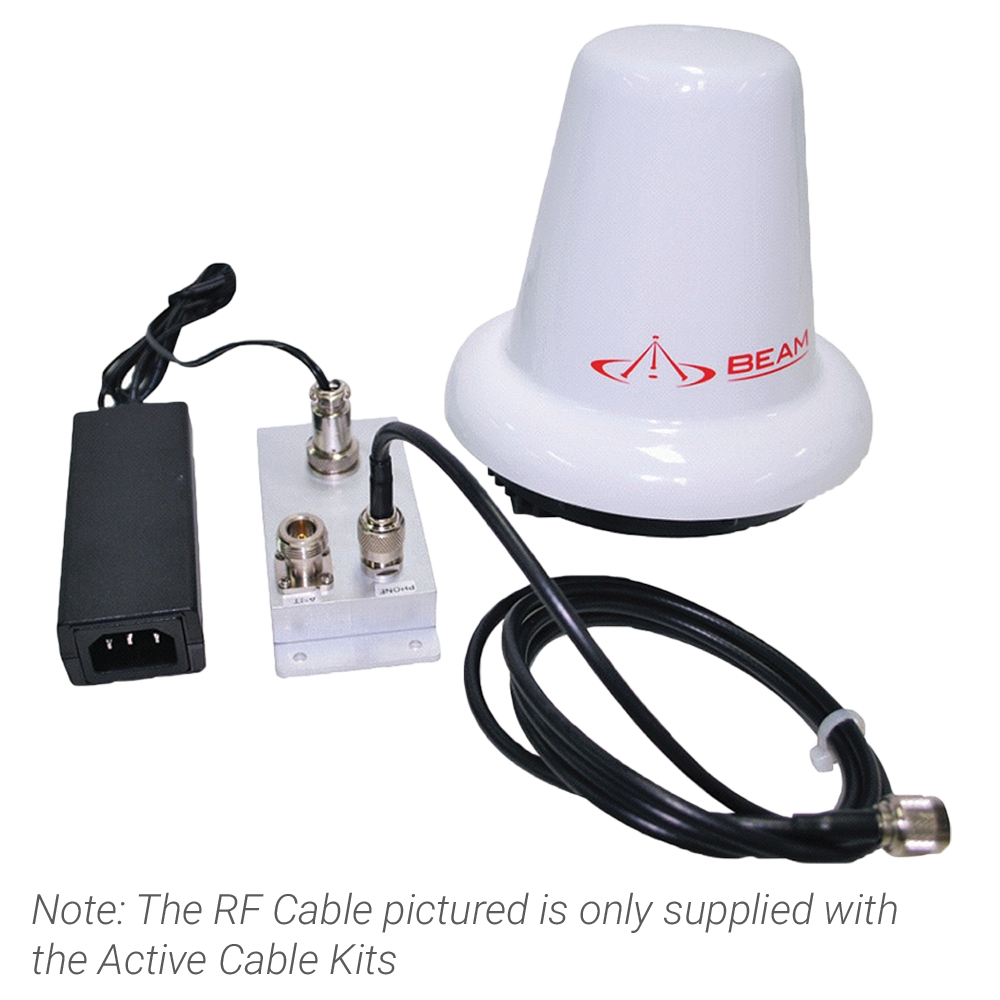

• Power breakout box included (required 9-32 VDC)
• 12 month repair or replacement warranty
Key Benefits and Features
Specifications

General

Impedance 50 Ohms
DC Peak Power Draw 30W
DC RMS Power Draw 3.2W
DC RMS Standby Power Draw 0.32W
Active Antenna Cable Loss 11.5 - 13.5dB (total end to end loss including the Amp Lead)
Amp Lead*

* Amp Lead is not part of the RST740 Antenna kit. The Amp Lead cable is bundled with the Beam - Iridium active cable kit.		 <0.5dB at 1.5m (TNC-M to TNC-M)

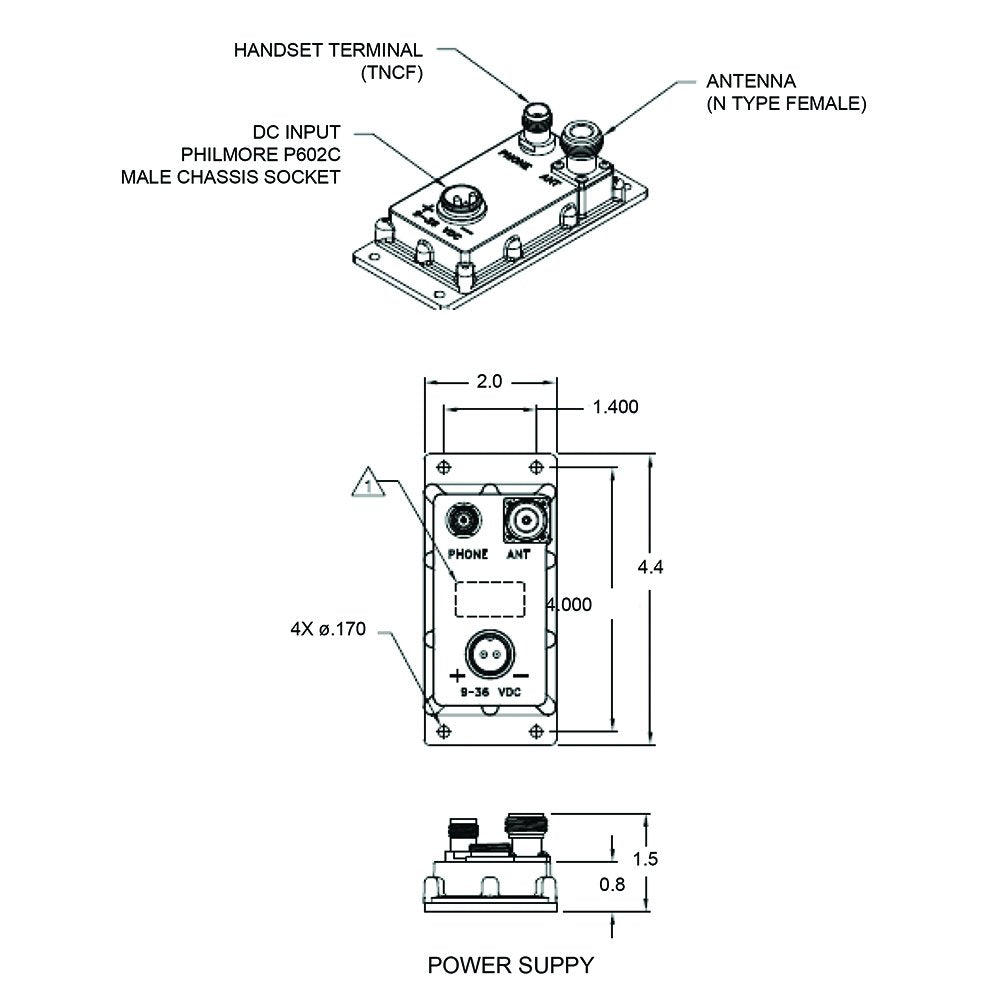

Bias Box

Input Voltage 9 - 36 VDC
RF Input 0.5 dB Max
Current Req 4 Amps Min
Output Voltage 30 - 32 VDC

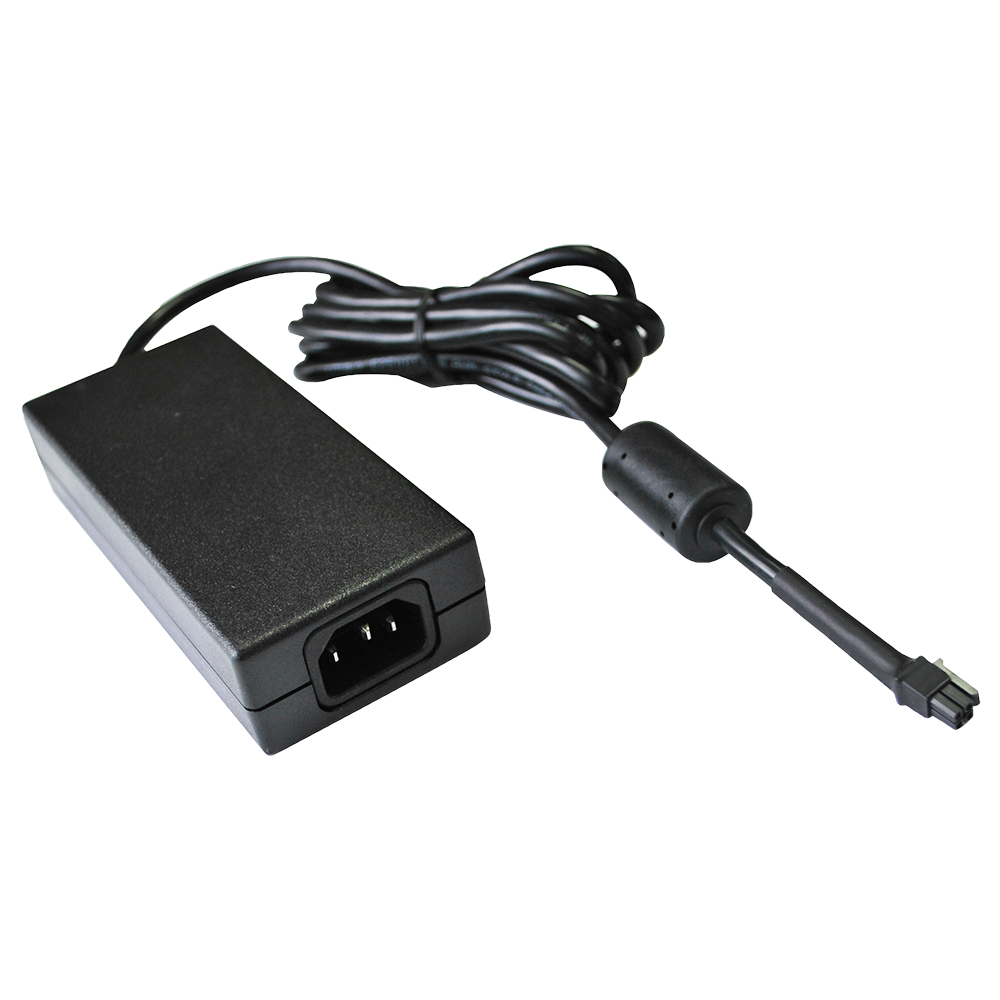

Rec. Power Supply ISD951 + Adapter Cable (CBLASY015501)

Frequency

Iridium 1616.0 - 1626.5 MHz

Environmental

Extreme rain exposure 37 mm/10 min; 145 mm/24 h
Extreme snow exposure 3,0kN/m2
Wind 35 m/s
Temperature Degrees °C Degrees °F
Storage -40°C to +80°C -40°F to +176°F
Operational -25°C to +55°C -13°F to +131°F

Physical

Ingress Protection IPX7 Waterproof and can be submerged in water of 1-meter depth for 30-minutes

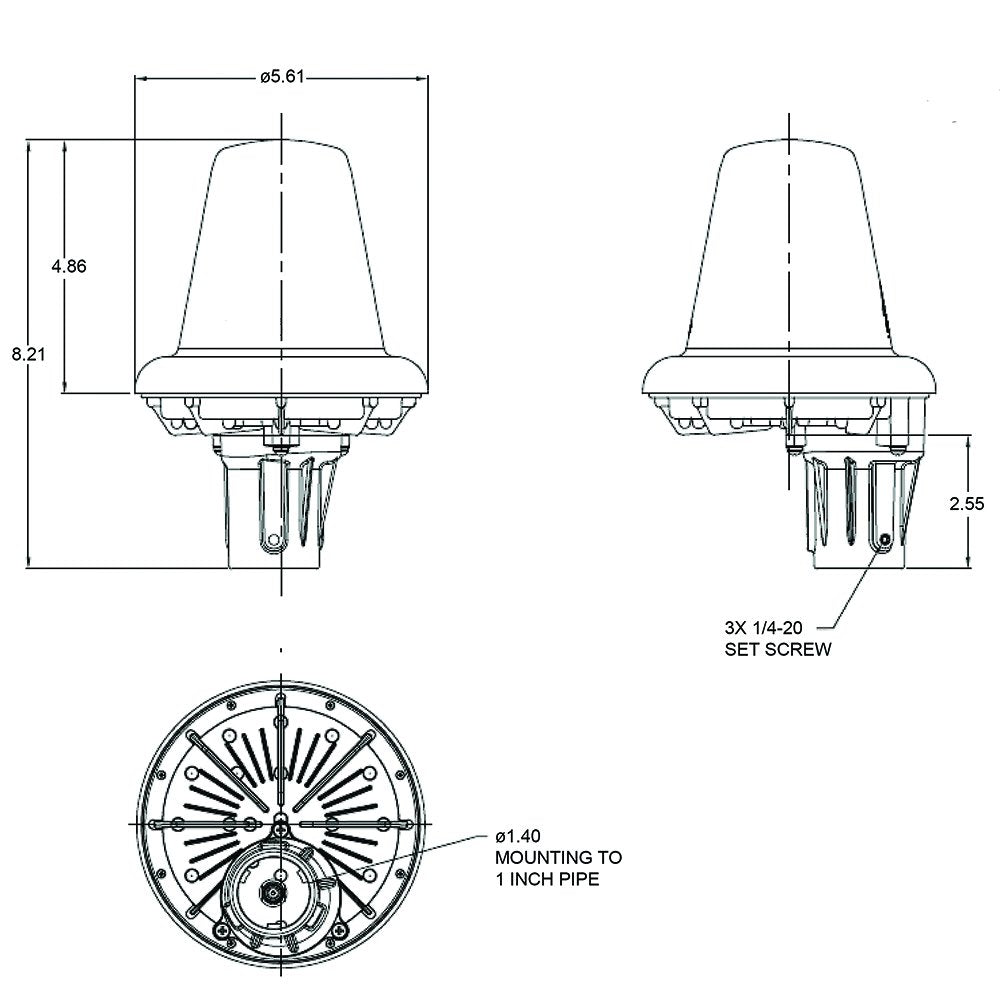

Dimensions mm inches
Antenna 208.53H x 142.49Dia 8.21H x 5.61Dia
Box 260 W x 210 D x 170 H 10.24 W x 8.27 D x 6.69 H
Weight kg lbs
Antenna 0.51 1.125
Box 2.22 4.89

Connector

Iridium TNC Female
Brochures

Brochure RST740 Iridium Active Antenna

For more information please download our RST740 Iridium Active Antenna Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support
Accessories

Product support

Iridium Beam Active Antenna support

Manuals, technical information and support resources for this product.

Manuals & Guides

Manuals & Guides

Iridium Active Antenna (RST740) Installation Manual

For more information please download our RST740 Iridium Active Antenna Quick Start Guide.
Download
Compliance

Compliance

BeamIridium FCC RST740ActiveAntenna BeamIridium IridiumTypeApproval RST740ActiveAntenna ROHS RST740 RSTxxx Antenna COO Certificate of Conformance RST740
