Iridium Beam Passive Antenna Cable Kit - 20m/65ft
iridium-antenna-cable-kit-passive-20m-65-6ft_l
Download high res images (713.55 KB zip)
Iridium Beam Passive Antenna Cable Kit - 20m/65ft

Iridium Beam Passive Antenna Cable Kit - 20m/65ft (RST935)

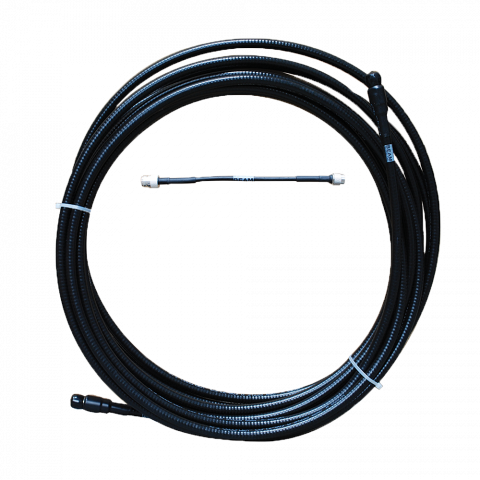

Beam RST935 Iridium 20 metre (65 feet) antenna cable provides the ability to run long distance installations for larger marine vessels and fixed installations and is pre-terminated with TNC male connectors.

Features

Beam RST935 Iridium 20 metre (65 feet) antenna cable provides the ability to run long distance installations for larger marine vessels and fixed installations and is pre-terminated with TNC male connectors.
Download Certificate of Origin

Similar items you may be interested in

Specifications

Main Cable (Passive)

Length m ft
Main Cable 19 65
Dimension mm inches
External Diameter 19.2 0.76
Bend Radius 50.8 2
Bend Radius - repeated 127 5
Temperature Degrees °C Degrees °F
Operating -40°C to +85°C -40°F to +185°F

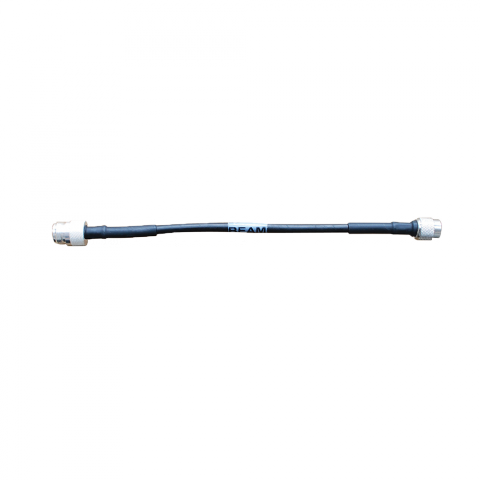

Fly-Leads (Passive)

Length cm in
Fly-Lead 1 50 19.7
Fly-Lead 2 50 19.7
Dimensions mm inches
External Diameter 6.1 0.24
Bend Radius 19.1 0.75
Bend Radius - repeated 63.5 2.5
Temperature Degrees °C Degrees °F
Operating -40°C to +85°C -40°F to +185°F

Connectors

Main Cable N-Male to N-Male
Fly-Lead 1 TNC-Male to N-Female
Fly-Lead 2 TNC-Male to N-Female

Total Kit Weight

kg lbs
5.39 11.88
