Iridium Beam Mast Dual Mode Antenna - DISCONTINUED

Iridium Beam Mast Dual Mode Antenna - DISCONTINUED (RST702)

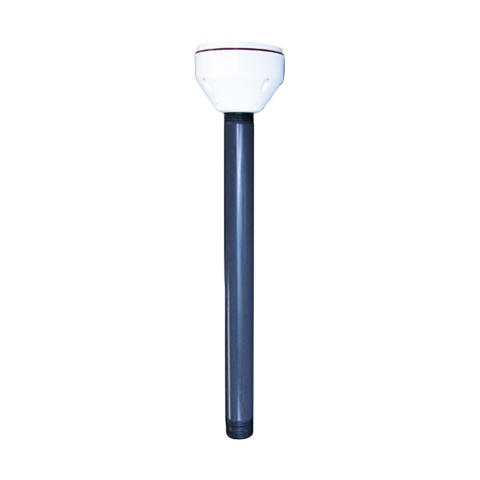

The Beam RST702 is a dual mode all in one Iridium and GPS antenna, designed predominantly for maritime applications.

Features

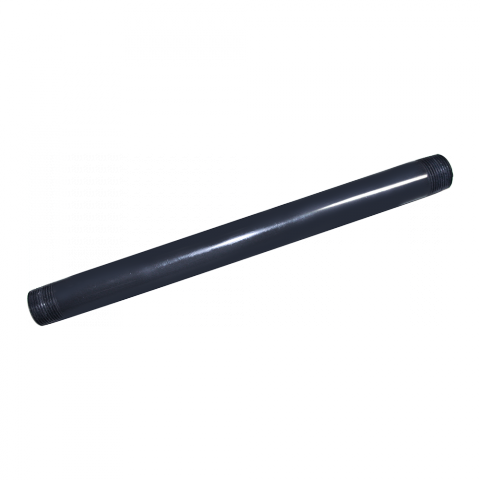

The antenna is supplied complete with a PVC pipe, 30cm (12 inches) that enables it to be securely mounted without the connectors being exposed to the environment. The antenna is fitted with an SMA female connector for GPS and a SMA for Iridium and will work with all Beam tracking products or other Iridium / GPS based devices.

Key Features

• Iridium approved
• Weatherable Polymer
• Designed for harsh environments
• SMA connector
• Very low profile
• Manufactured in the USA
• 12 month repair or replacement warranty
Key Features

Similar items you may be interested in

Specifications

General

Antenna Iridium GPS
Polarization Right Hand Circular Right Hand Circular
Axial Ratio 3dB Max at boresight 3dB Max at boresight
Amplifier Gain Passive L1: 26dB (35mA)
Voltage Passive L1: 3 VDC
Noise Figure 2.5dB Max 2.5dB Max
Impedance 50 Ohms 50 Ohms
VSWR ≤ 2.0 : 1 ≤ 2.0 : 1
Power Handling 10 Watts

Physical

Colour White
Finish Weatherable Polymer
Dimensions mm inches
Antenna 80.52H x 76.2Dia 3.17H x 3Dia
PVC Pole 305 12.0
Weight kg lbs
Antenna 0.127 0.28

Frequency

Iridium 1621 ± 5MHz
GPS 1575 ± 5MHz

Environmental

Temperature Degrees °C Degrees °F
Operating Range -40°C to +71°C -40°F to 160°F

Connectors

Connector SMA Female
GPS SMA Female

Adapter Cables

Adaptor 1
Satellite 170mm / 6.69in.
Connectors TNC-F to SMA-M
Adaptor 2
GPS 240mm / 9.45in.
Connectors SMA-F to SMA-M
Brochures

RST702 Brochure

For more information please download our RST702 Dual Mode Iridium GPS Antenna Brochure.
