Iridium Beam Aero Dual Mode Antenna - TSO Approved - DISCONTINUED

Iridium Beam Aero Dual Mode Antenna - TSO Approved - DISCONTINUED (RST704)

Name: Iridium Beam Aero Dual Mode Antenna - TSO Approved - DISCONTINUED
Brand: Beam Communications
Availability: InStock

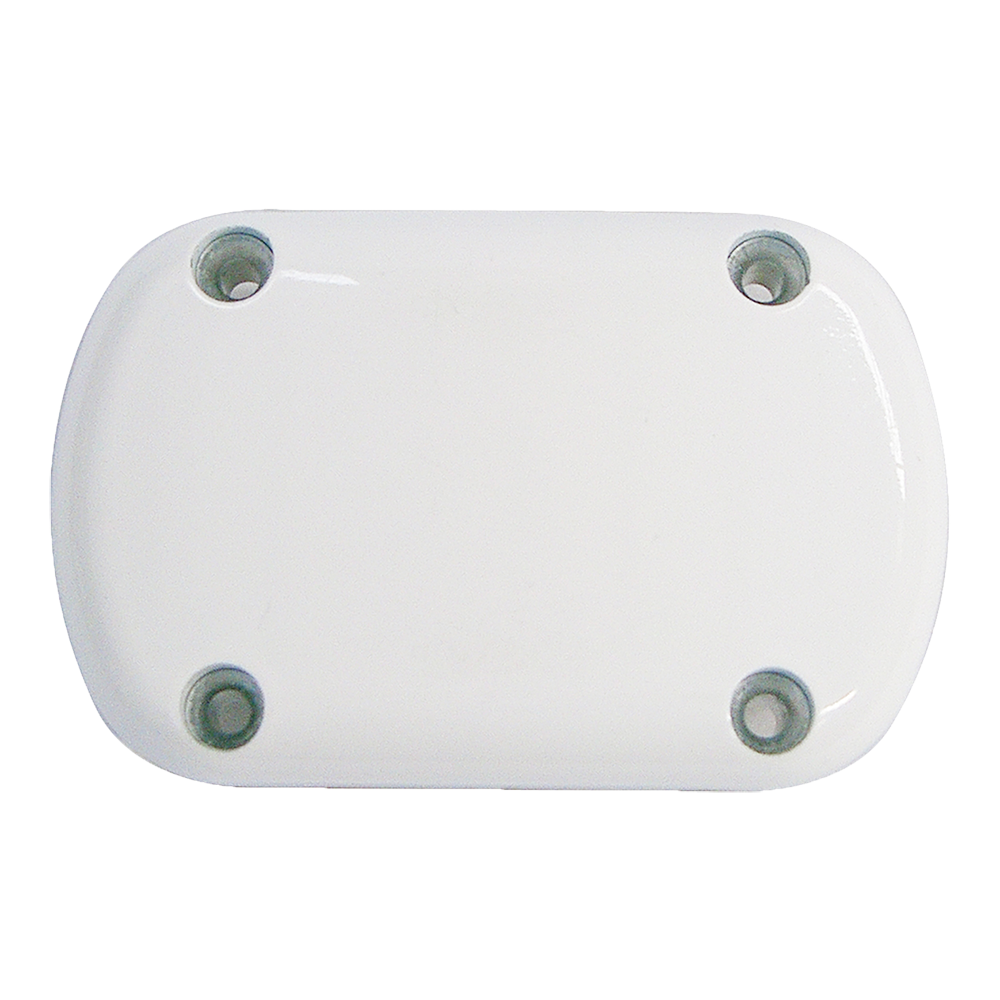

The Beam RST704 TSO is an Aero Approved dual mode all in one compact Iridium and GPS patch antenna, designed for aero applications.

Features

The RST704 dual mode patch Aero antenna is supplied complete with bulkhead mount that enables it to be securely mounted without the connectors being exposed to the environment. The Beam RST704 dual mode patch antenna is fitted with an SMA female connector for GPS and a TNC for Iridium and will work with all Beam tracking products or other Iridium / GPS based devices. TSO approved C - 144.

Key Features

• Iridium approved
• Designed for harsh environments
• Small and lightweight
• Weatherable polymer
• Manufactured in the USA
• TSO approved (C-144).
• 12 month repair or replacement warranty

Specifications

General

Antenna	Iridium	GPS
Polarization	Right Hand Circular	Right Hand Circular
Axial Ratio	3dB Max	3dB Max
Amplifier Gain	Passive	L1: 26dB (35mA)
Voltage	Passive	L1: 3 VDC
Noise Figure	2.5dB Max	2.5dB Max
Impedance	50 Ohms	50 Ohms
VSWR	≤ 2.0 : 1	≤ 2.0 : 1
Altitude	16,764m/55,000ft	16,764m/55,000ft
Power Handling	10 Watts
TSO Approved	C-144

Frequency

Iridium	1621 ± 5MHz
GPS	1575 ± 5MHz

Environmental

Temperature	Degrees °C	Degrees °F
Operating Temp	-55°C to +85°C	-67°F to 185°F

Physical

Colour	White
Finish	Weatherable Polymer
Dimensions	mm	inches
Antenna	87.38L x 55.63W x 19.56H	3.44L x 2.19W x 0.77H
Weight	kg	lbs
Antenna	0.127	0.28

Connectors

Iridium	TNC Female
GPS	SMA Female

Brochures

Brochure RST704 Dual Mode Iridium GPS Patch Antenna

For more information please download our RST704 Dual Mode Iridium GPS Patch Antenna Brochure.

Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support

Accessories

Product support

Iridium Beam Aero Dual Mode Antenna - TSO Approved - DISCONTINUED support

Manuals, technical information and support resources for this product.

Manuals & Guides

Installation Guide RST704 Dual Mode Iridium/GPS Aero

For more information please download our RST704 Dual Mode Iridium/GPS Aero Installation Guide.

Download

Specifications RST704 Dual Mode Iridium GPS Antenna TSO Approved

For more information please download our RST704 Dual Mode Iridium GPS Antenna TSO Approved Specifications.

Download

Compliance

RSTxxx Antenna COO
