Iridium Beam Magnetic Dual Mode Antenna - DISCONTINUED
Iridium Beam Magnetic Dual Mode Antenna - DISCONTINUED

Iridium Beam Magnetic Dual Mode Antenna - DISCONTINUED (RST705)

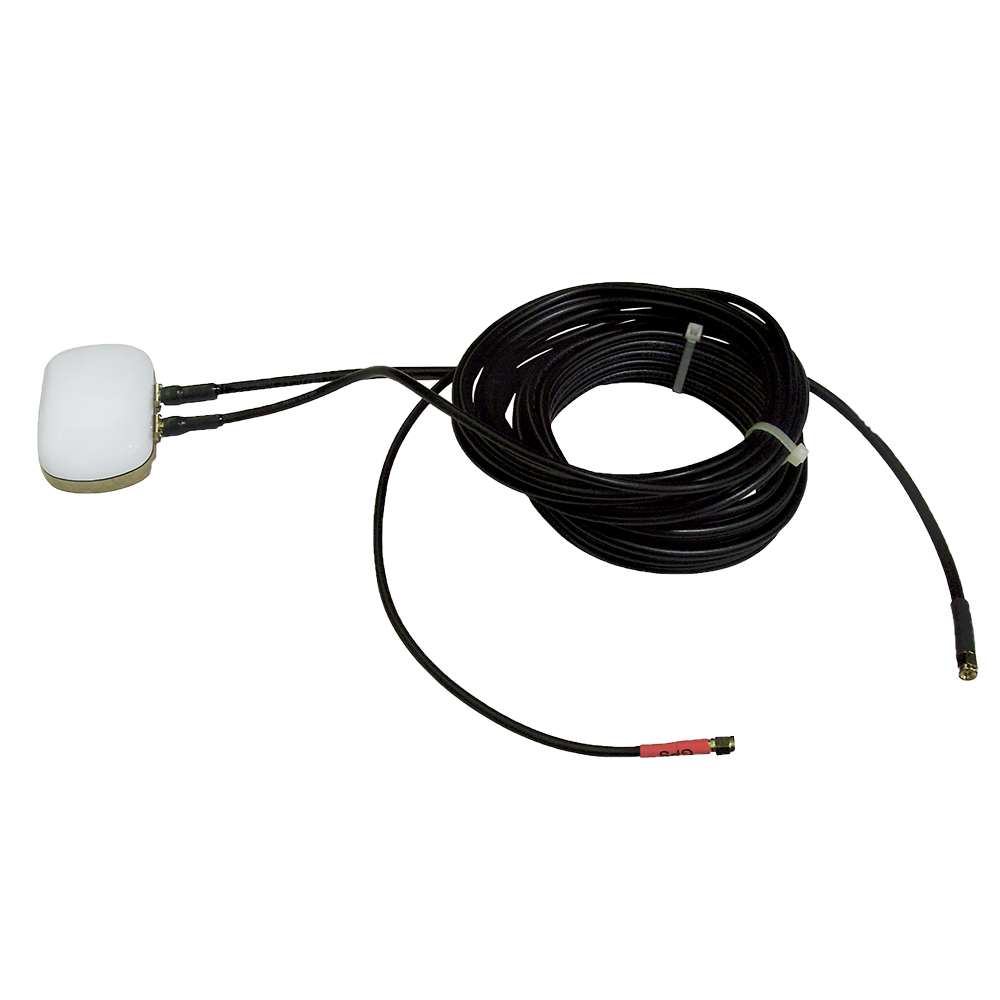

The Beam RST705 is a dual mode all in one compact Iridium and GPS magnetic patch antenna, designed for vehicular applications. Designed to work with Beam tracking products and can work with other Iridium/GPS based devices. The RST705 Magnetic Mount antenna is designed to be very low profile.

Features

With a strong magnetic mount, the antenna is very easy to install and move from asset to asset and doesn’t require any holes to be drilled for fitting. Included is 6m of both Iridium and GPS antenna cable, making the RST705 a very cost effective and easy to use solution.

Key Features

• Iridium approved
• Designed for harsh environments
• Small and lightweight
• Dual mode GPS / Iridium
• Magnetic mount, no need to drill holes
• Manufactured in the USA
• Includes 6m of both GPS & Iridium antenna cable attached
• 12 month repair or replacement warranty
Key Features

Similar items you may be interested in

Specifications

General

Antenna Iridium GPS
Polarization Right Hand Circular Right Hand Circular
Axial Ratio 3db Max at boresight 3db Max at boresight
Amplifier Gain Passive 26db (35mA)
Voltage Passive L1: 3VDC
Noise Figure 2.5db Max 2.5db Max
Impedance 50 OHMS 50 OHMS
VSWR < 2.0 : 1 < 2.0 : 1
Altitude 6,000m/20,000ft 6,000m/20,000ft
Cable Includes 6m or 19.7 feet of LMR240 Iridium Includes 6m or 19.7 feet of LMR240 GPS

Frequency

Iridium 1616 – 1626MHz
GPS 1575.42 ± 5MHz

Environmental

Temperature Degrees °C Degrees °F
Operating Temp -40°C to +70°C -40°F to 158°F

Physical

Colour White
Finish Base – Aluminum Radome – High Impact, white
Dimensions mm inches
Antenna 87.38L x 55.63W x 26.42H 3.44L x 2.19W x 1.04H
Box 210 W x 210 D x 90 H 8.27 W x 8.27 D x 3.54 H
Weight kg lbs
Antenna (including cables) 0.63 1.39
Box 0.707 1.56

Connectors

Iridium TNC Male
GPS SMA Male
Brochures

Brochure RST705 Iridium/GPS Magnetic Antenna

For more information please download our RST705 Iridium/GPS Magnetic Antenna Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support

Product support

Iridium Beam Magnetic Dual Mode Antenna - DISCONTINUED support

Manuals, technical information and support resources for this product.

Manuals & Guides

Manuals & Guides

Installation Guide RST705 Dual Mode Iridium/GPS Magnetic Antenna

For more information please download our RST705 Dual Mode Iridium/GPS Magnetic Antenna Installation Guide.
Download

Specifications RST705 Dual Mode Iridium/GPS Magnetic Antenna

For more information please download our RST705 Dual Mode Iridium/GPS Magnetic Antenna Specifications.
Download
