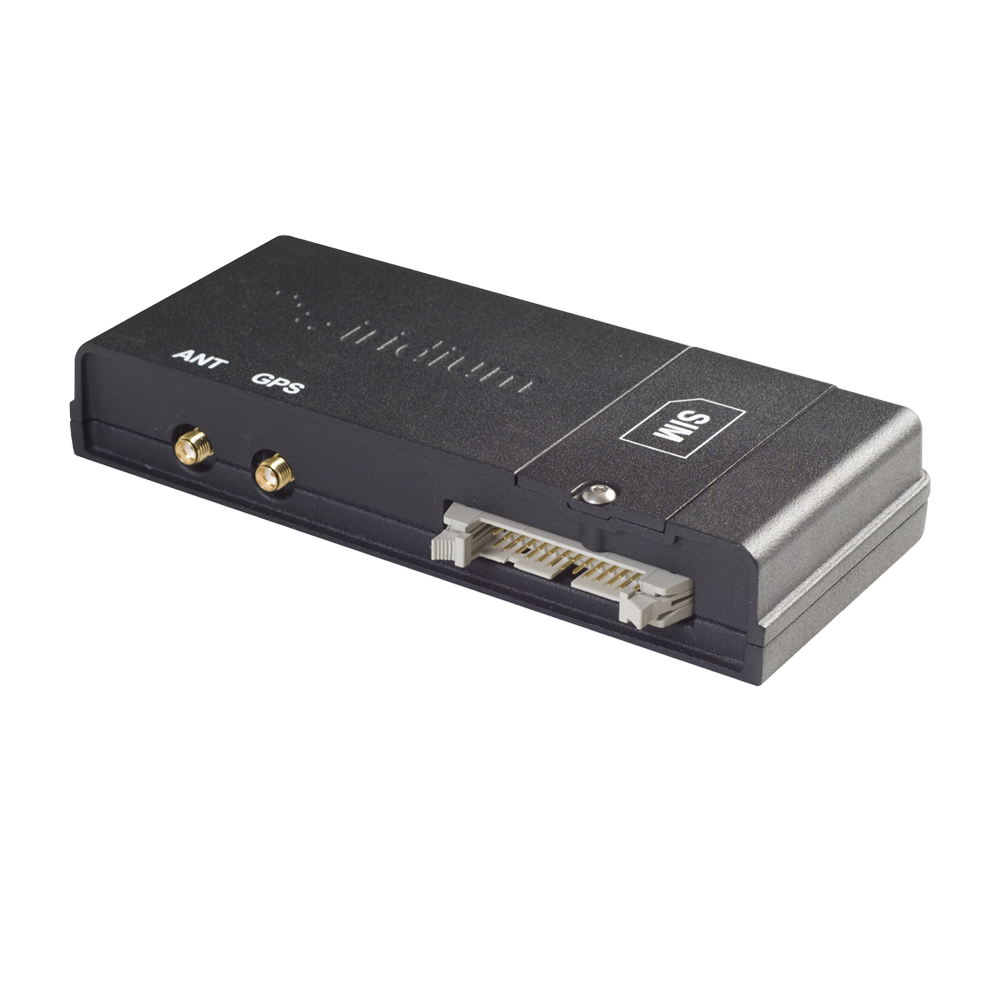

Iridium L-Band Transceiver 9522B Ex Demo (LBT9522B_SC)

Ex-Demo – 12 months full warranty. Limited quantity available until sold out

The 9522B is Iridium’s 2nd-generation satellite transceiver for truly global voice and data communications. It is ideal for sending and receiving voice and data from equipment everywhere on the planet.

Read more product features
  • Data
  • Voice
  • SBD
  • SIM

Iridium L-Band Transceiver 9522B Ex Demo Features

Integrated Solution

It easily integrates into a wide variety of applications through a RS232 serial interface and AT command set, and a pass-thru connector allows a GPS receiver to use the same antenna as the Iridium 9522B LBT.

The 9522B functionality supports

Voice Telephony

Short Burst Data (SBD) and Circuit Switched Data

Short Message Service (SMS)

Iridium L-Band Transceiver 9522B Ex Demo Specifications

Power Input Specifications & Consumption

Power Average - Voice / Data Call (see note) 4W
Typical current during call (see note) 800mA
Max current during call 2.5A
Input Standby current (average) 250mA
Main Input Voltage - Consumption at +5VDC 40mV peak to peak
Main Input Voltage Range +4.0V DC to +32V DC

RF Characteristics

Multiplexing Method TDMA / FDMA
Input/Output Impedance 50Ω
Oscillator Stability ± 1.5 ppm
Duplexing Method TDD (Time Domain Duplex)
Frequency Range 1616 MHz to 1626.5 MHz
Receiver Spurious Rejection at offsets > 1 MHz (typical) 60dB
Receiver Sensitivity at 50Ω (typical) -118.5dBm
Average Power during a frame (typical) 0.6W
Average power during a transmit slot (max) 7W

Environmental

Temperature Degrees °C Degrees °F
Operating Temperature Range -30ºC to +60ºC -22ºF to +140ºF
Storage Temperature Range -40ºC to +85ºC -40ºF to +185ºF
Operating Humidity Range 25 to 75% RH
Storage Humidity Range ≤ 93% RH

Physical

Dimensions mm inches
Width 81 x 28 x 162 3.19 x 1.10 x 6.38
Weight kg lbs
Transceiver 0.420 0.925

Brochures

9522B Brochure

For more information please download our Iridium L-Band Transceiver 9522B Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support
