9602N SBD Modem (SBD9602N)

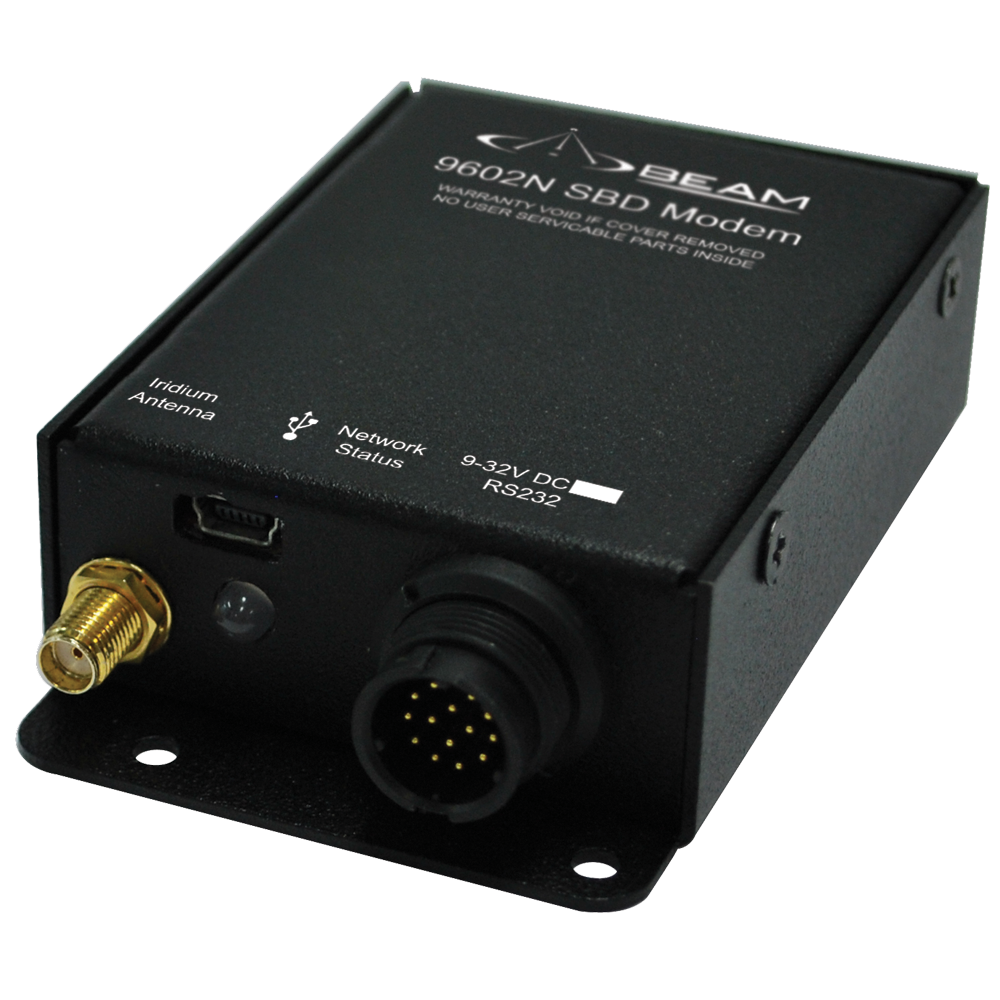

The Beam Iridium 9602N Short Burst Data (SBD) Modem is a robust data terminal specifically designed to incorporate the Iridium 9602N SBD transceiver module.
- SBD
- USB
9602N SBD Modem Features
Integrated Solution
With an inbuilt 9-32V DC power supply, it provides easy integration to an existing system via USB or Serial connectivity contained within a robust enclosure.
Key Benefits and Features
• Compact robust form factor
• Pole-to-pole global coverage
• 9-32V DC input
• Short Burst Data capable
• Inbuilt Iridium 9602 SBD Module
• USB Data port
• Serial RS232 Data Port
• Simple AT command set
• Automatic message queue notification
• Simple Installation
• Signal LED
• Fully certified
• 12 month warranty
• Pole-to-pole global coverage
• 9-32V DC input
• Short Burst Data capable
• Inbuilt Iridium 9602 SBD Module
• USB Data port
• Serial RS232 Data Port
• Simple AT command set
• Automatic message queue notification
• Simple Installation
• Signal LED
• Fully certified
• 12 month warranty
The USB port allows the ability to connect to a computer to allow for access to data and configuration of the modem settings.
In-built Iridium 9602 SBD Module. Short Burst Data capable: Mobile Originated - 340 bytes, Mobile Terminated - 270 bytes
100% global coverage ideal use for remote management, equipment monitoring, data communications and transport tracking.
Similar items you may be interested in
Beam DataMODEM RST600B utilizes the Iridium 9522B L-Band transceiver module that provides access to all ...
View product
The Iridium 9603N Short Burst Data (SBD) transceiver module is Iridium’s smallest, lightest and most ...
View product
The 9522B is Iridium’s 2nd-generation satellite transceiver for truly global voice and data communications. It ...
View product
9602N SBD Modem Specifications
Power Consumption
| EMC Compliance | CE |
| Speed | 2400 bps |
| Modem Type | SBD Data only |
| Transmit Mode Peak | 125mA (1.5W at 12V in) |
| Idle Average (measured over 5 min with one full message Tx/Rx every minute) | 30mA (0.36W at 12V in) |
RF Characteristics
| Multiplexing Method | TDMA / FDMA |
| Input/Output Impedance | 50 Ohms – SMA F Connector |
| Oscillator Stability | ±1.5ppm |
| Frequency Range | 1616MHz to 1626.5MHz |
| Receiver Spurious Rejection at offsets > 1 MHz (typical) | 60 dB |
| Standby Power | 0.225W |
| Average Power | 0.95 W (During message transfer) |
| Receiver Sensitivity | -117 dBm at 50 Ohms (typical) |
| Peak Power | 7.5W (max) |
Electrical
| Plug-pack (if provided) | 100-240VAC 50/60Hz input |
| Power | 9 – 32 VDC, 1A |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operate Temp. Range | -40°C to +85°C ambient | -40°F to +185°F |
| Storage Temperature | -40°C to +85°C | -40°F to +185°F |
| Operating Humidity Range | <75% RH |
Physical
| Dimensions | mm | inches |
| Modem Dimensions | 90W x 59L x 25H | 3.54W x 2.32L x 0.98H |
| Outer Box Dimensions | 145W x 150L x 55H | 5.71W x 5.91L x 2.16H |
| Weight | kg | lbs |
| Modem Weight | 0.25 | 0.55 |
| Box Weight | 0.576 | 1.27 |
Kit Contents
| Resources CD (includes User Manual) |
| Coaxial Adaptor |
| DC External Cable |

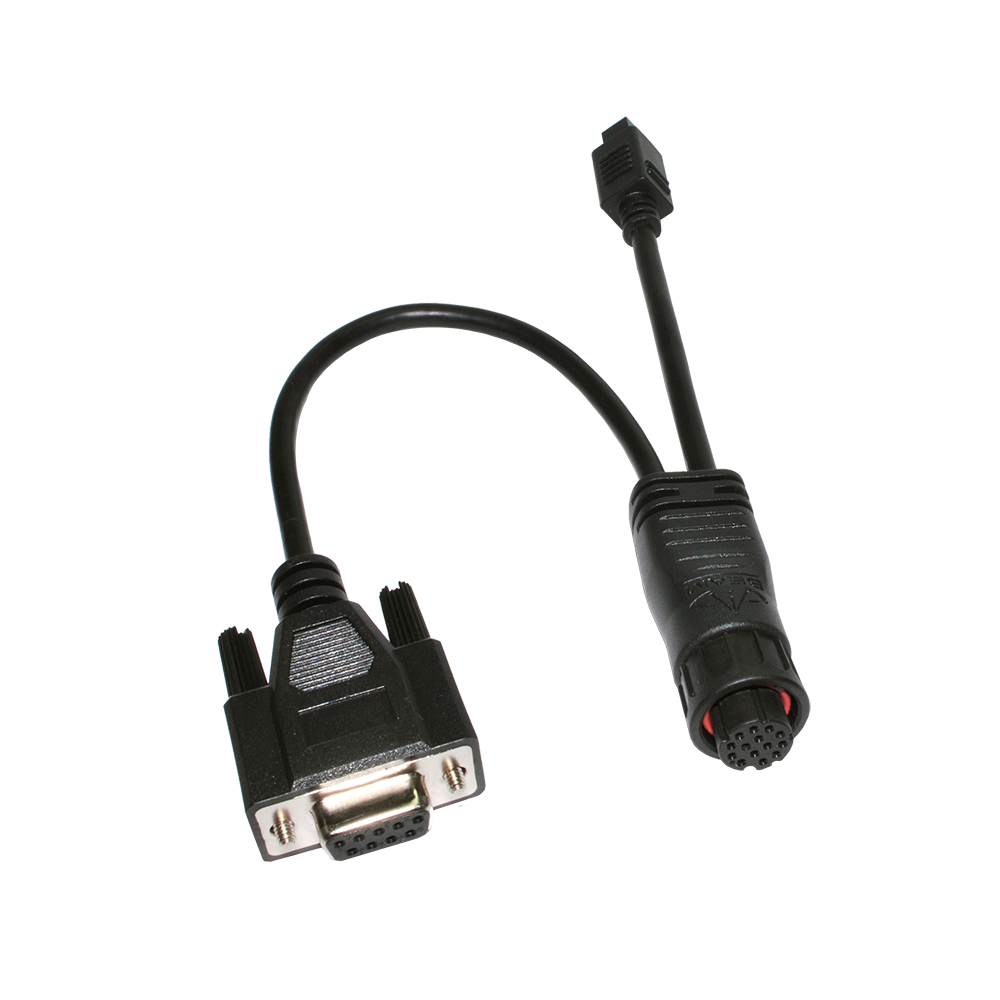

| Power & IO Cable |
| Mounting L Bracket with screws |
| 9602 SBD Modem |
| Quick Start Guide |
Brochures
Brochure 9602 SBD Modem
For more information please download our 9602 SBD Modem Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
