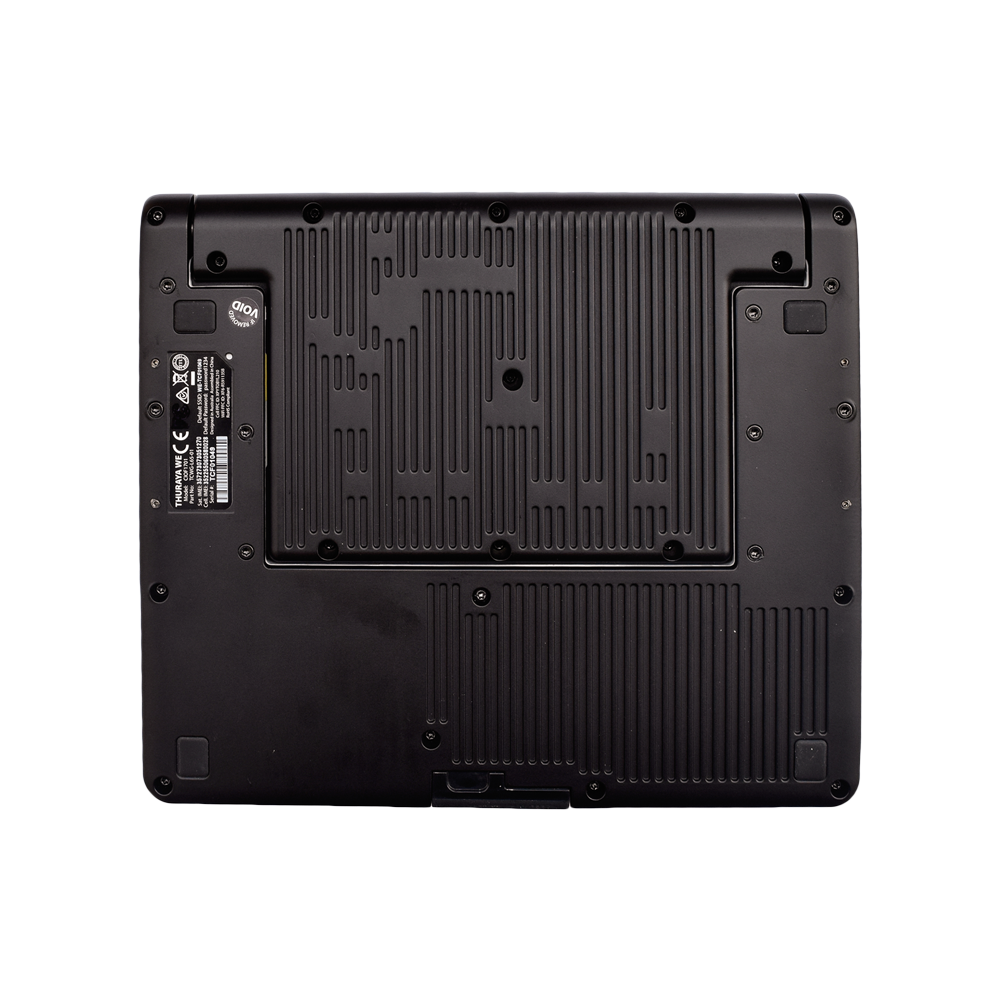

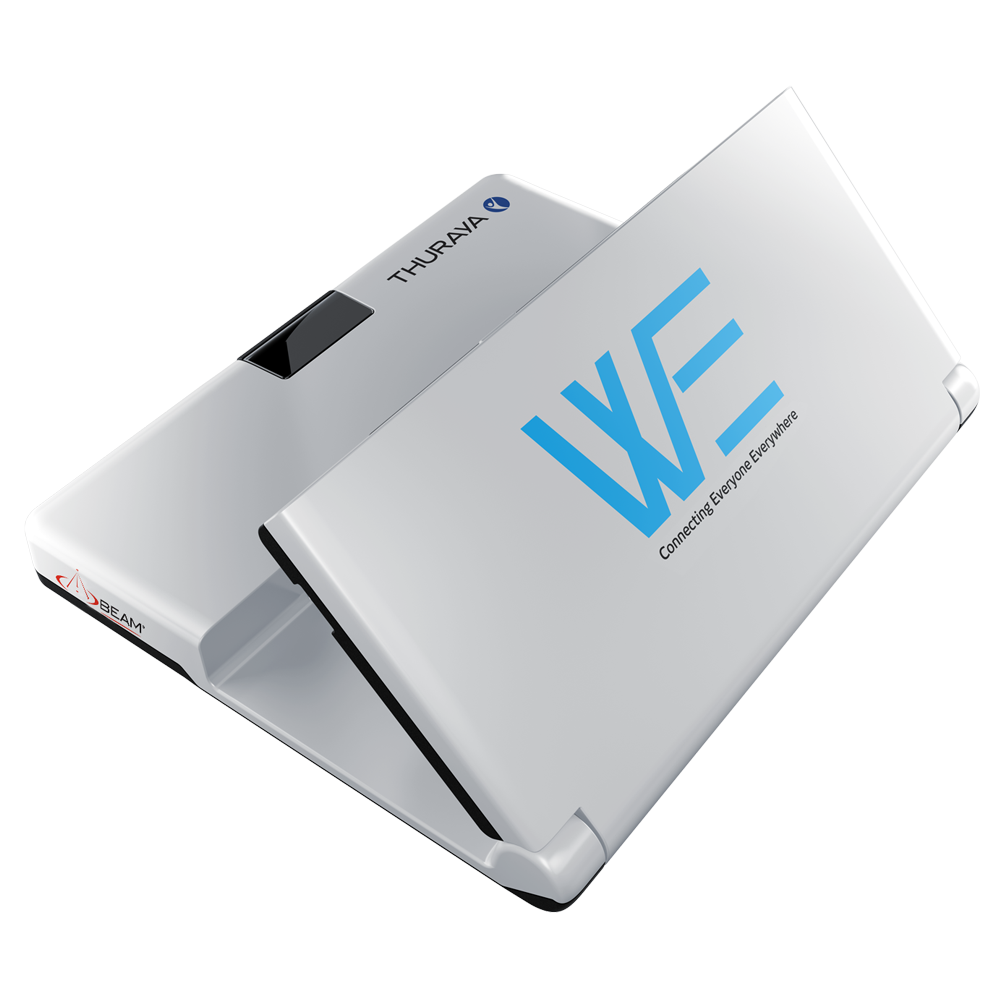

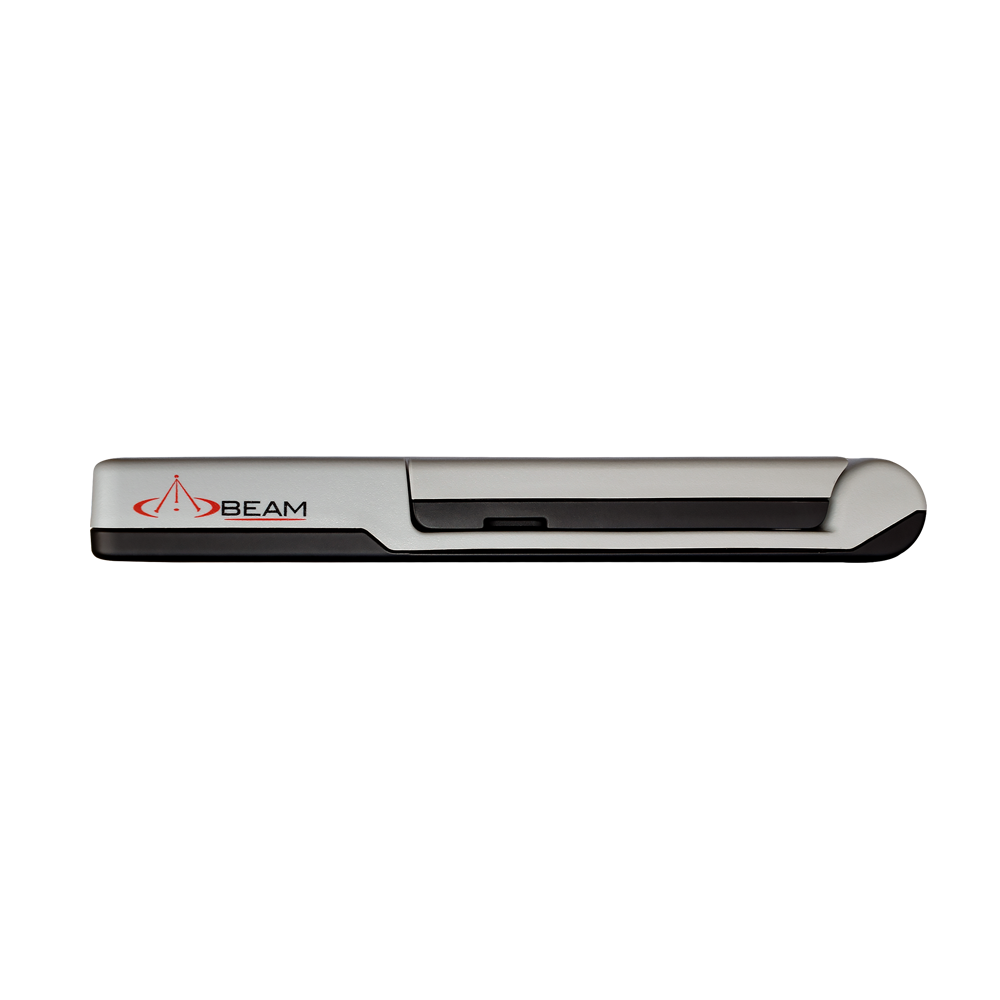

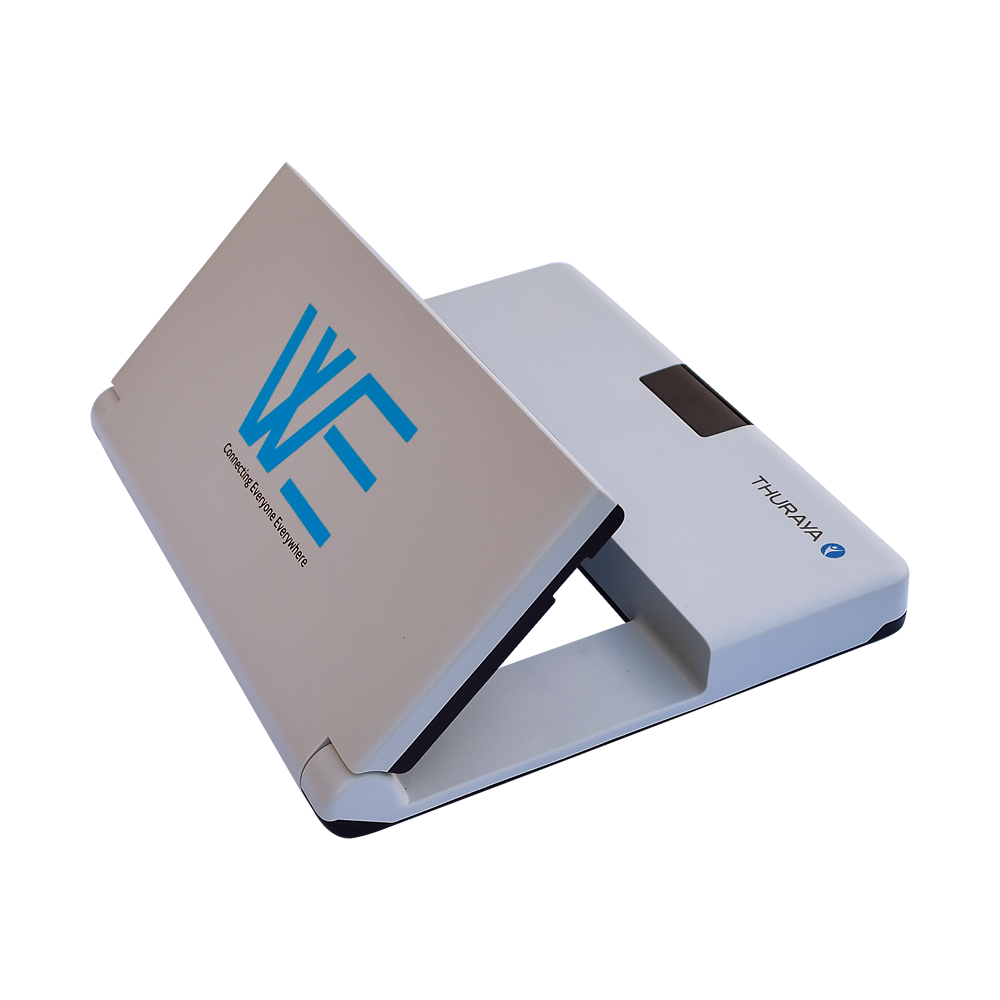

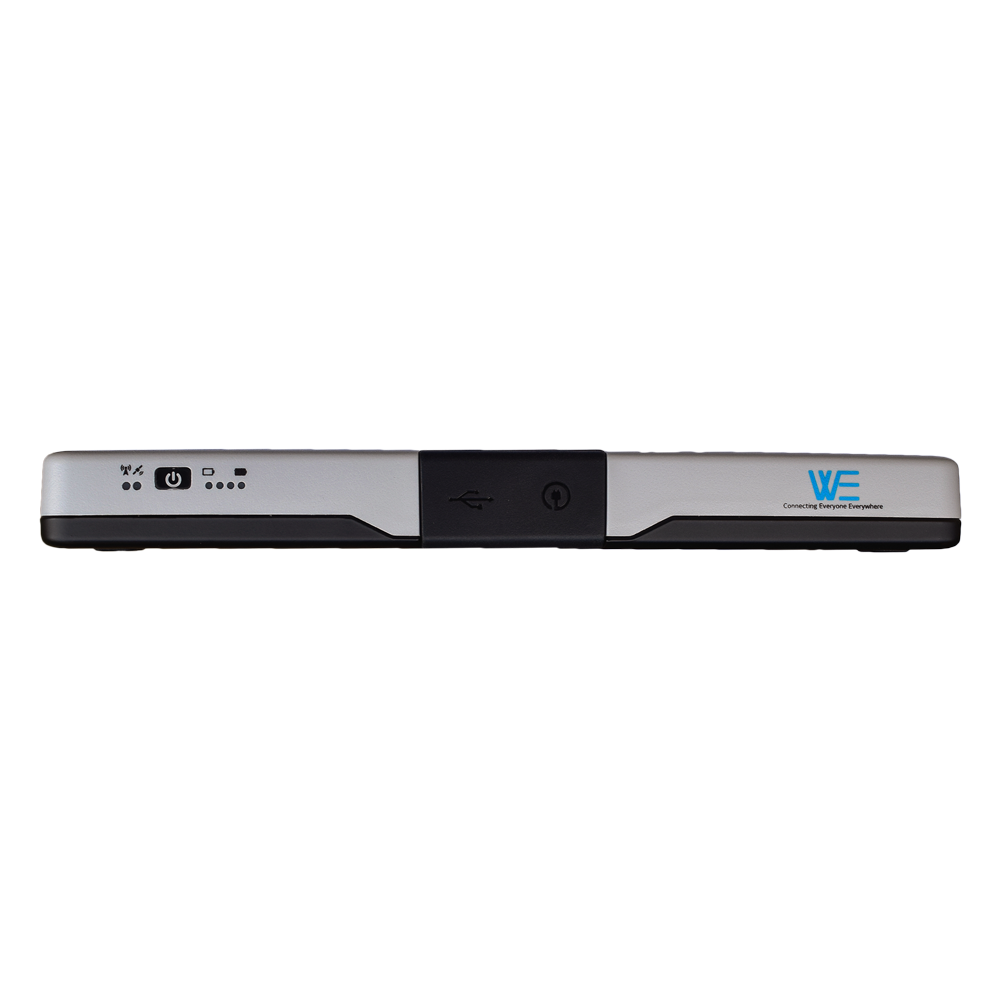

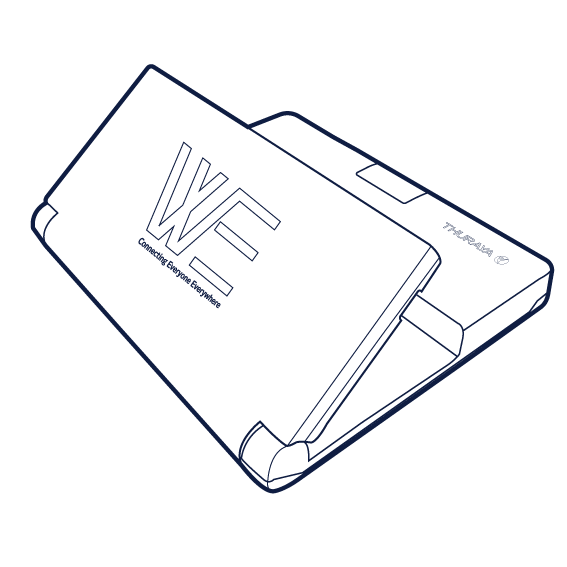

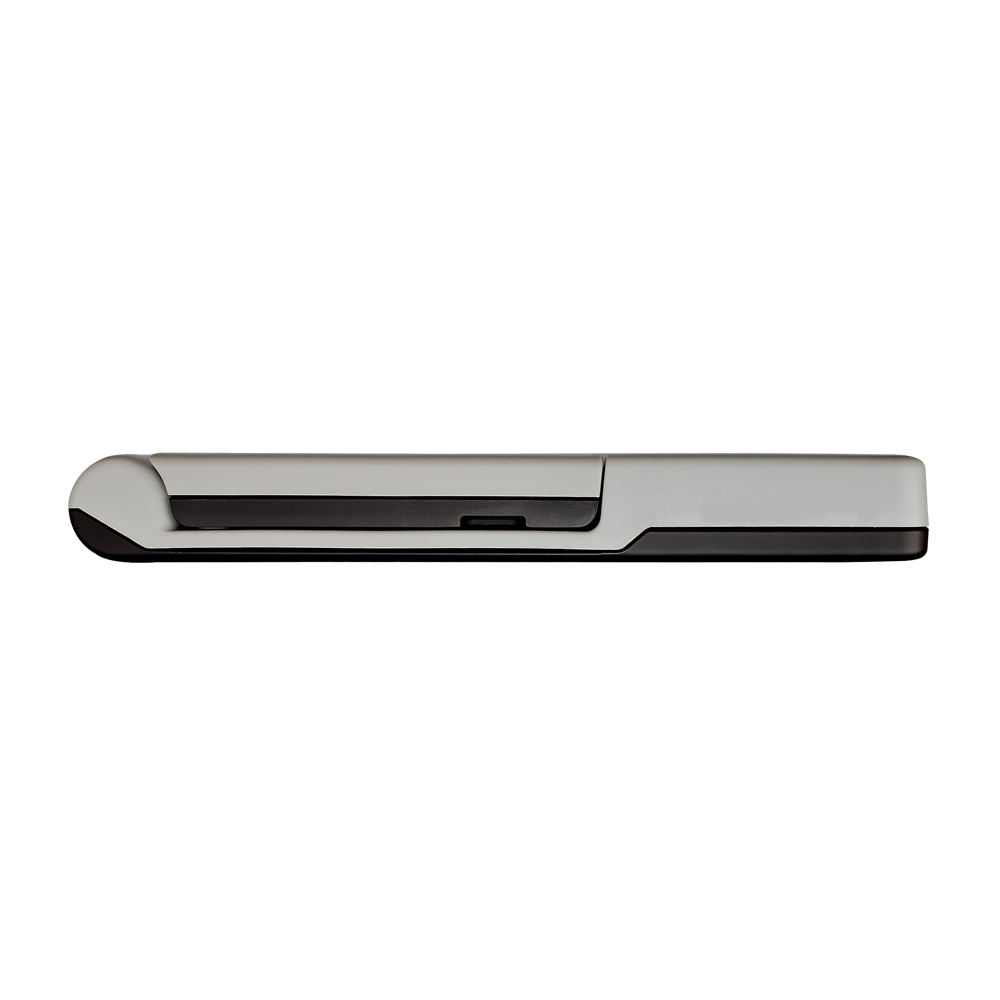

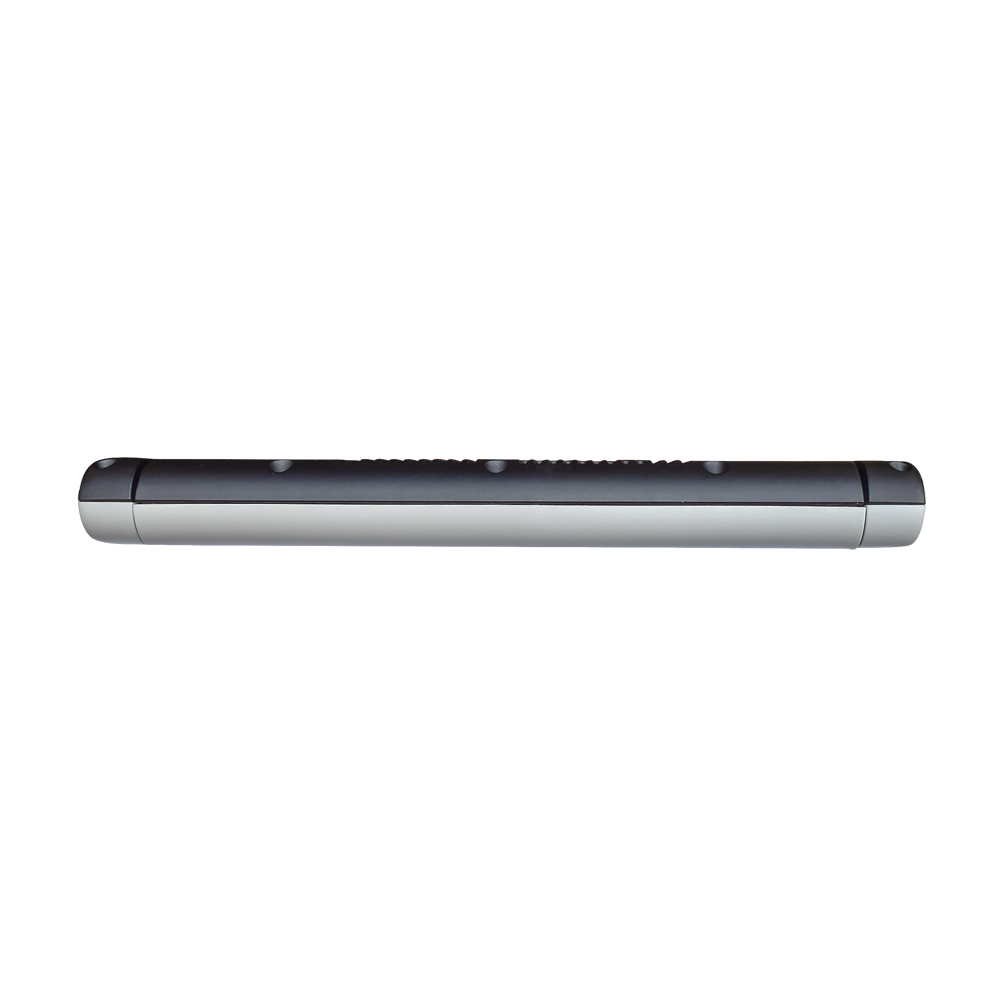

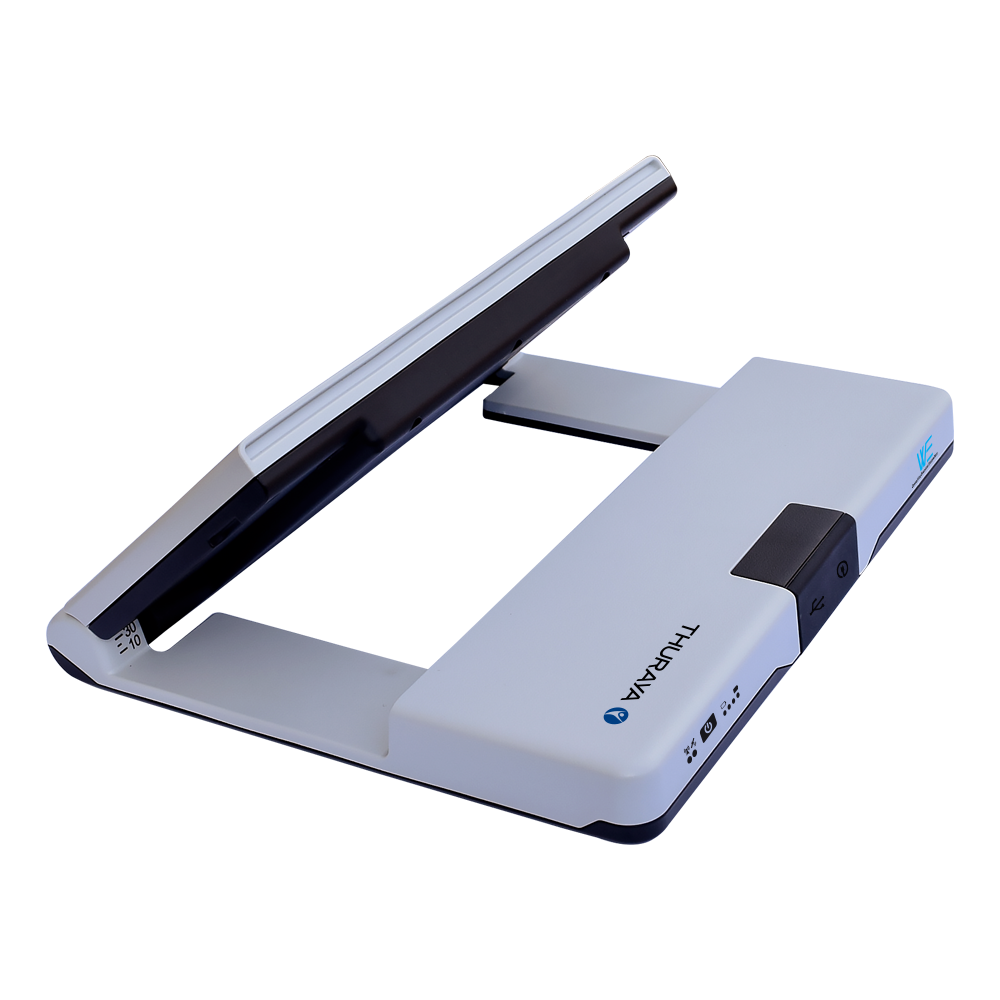

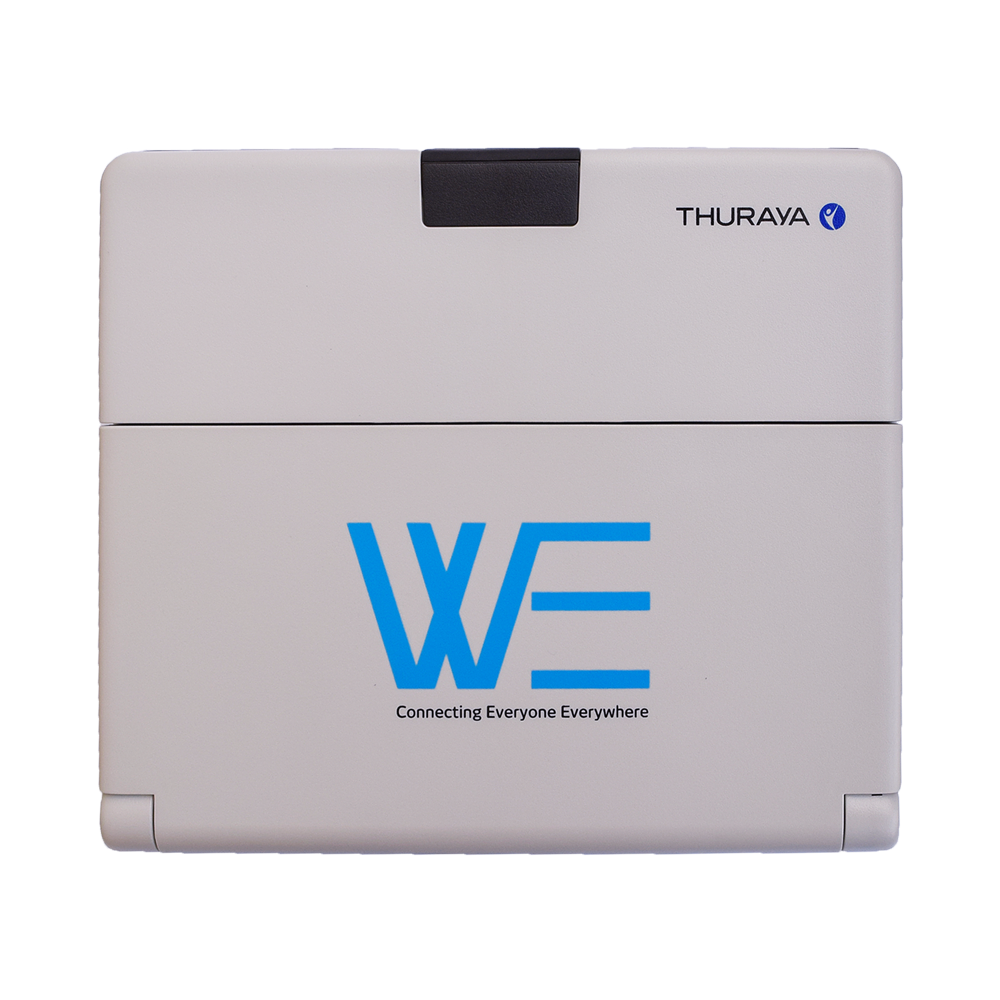

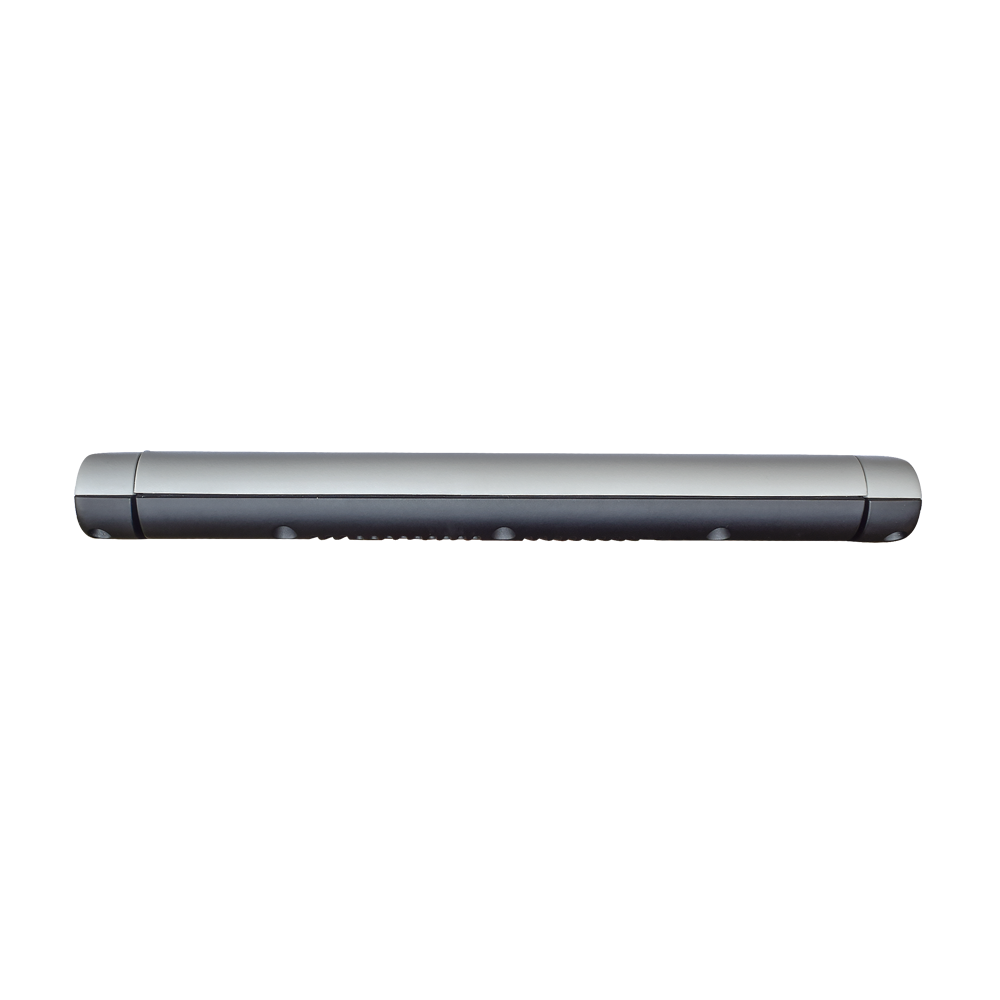

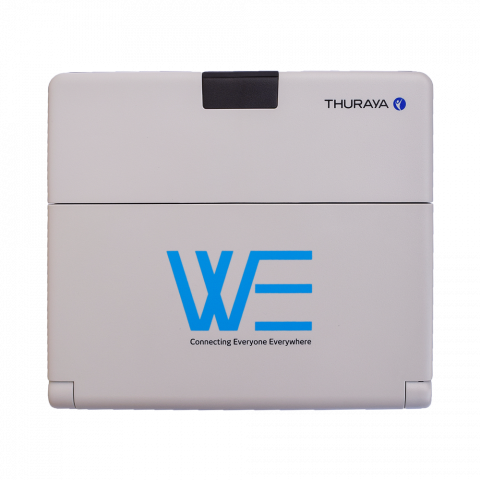

Thuraya WE
Please visit: https://www.thuraya.com/we for more details.
Staying connected is a priority. It’s at the heart of your social identity and self-expression. It’s how you reach out to your family and closest friends, to share with them your experiences and news.
Thuraya WE was developed to converge satellite with terrestrial communications. It is the world’s first dual mode Satellite & LTE hotspot that keeps you in contact with your family and friends all the time, no matter where you are.
Thuraya WE allows you to automatically switch between Satellite and GSM networks with a click of a button using the Thuraya WE mobile app and web interface. With Thuraya WE, you can transform any area into a Wi-Fi hotspot, and allow up to 10 smart devices to connect and share internet within a range of 30m or more.
- GPS
- SIM
- LED
- Supports Voice
- Supports Data
- All Weather Resistant Case
Thuraya WE Features
Features
Manual or auto-network selection
Calls and text messages in Satellite Mode
Easy to use interface
Unified communications
Lightweight and durable
Single SIM, dual mode hotspot
Thuraya WE
Thuraya WE was developed to converge satellite with terrestrial communications. It is the world’s first dual mode Satellite & LTE hotspot that keeps you in contact with your family and friends all the time, no matter where you are. Thuraya WE allows you to automatically switch between Satellite and GSM networks with a click of a button using the Thuraya WE mobile app and web interface. With Thuraya WE, you can transform any area into a Wi-Fi hotspot, and allow up to 10 smart devices to connect and share internet within a range of 100 ft or more.
Thuraya WE Specifications
POWER SPECIFICATIONS
| Rated Input: | 12V DC, 3A Max, 12V + 0.6V |
| Battery Type: | Lithium Ion, Rechargeable |
| Battery Capacity: | 7.4V, 6700mAh, (2S2P) |
| Min Charge Cycles: | 300 at 75% Depth of Discharge (DoD) |
PHYSICAL
| Weight | 1.0kg | |
| Size | 230mm x 197mm x 24mm | |
| DC Input Connector | 2.5mm ID / 5.5 OD Jack, Centre Positive | |
| SIM Port | Mini |
RUN TIMES (BATTERY)
| Cellular - Standby: | 20 hrs |
| Cellular - Data: | 9 hrs |
| Sat - Standby: | 6 hrs |
| Sat - Voice: | 5 hrs |
| Sat – Data: | 3 hrs |
ENVIRONMENTAL
| Operating Temperature | -20oC to +55oC, | Device Ambient Temperature |
| Transport Temperature With Battery | 20oC to +60oC, | |
| Storage Temperature With Battery | 20oC to +60oC, | |
| Battery Charging Temperature | 0oC to +45oC, | Battery Cell Temperature |
| Humidity | 5% to 95% RH, | At a Temperature of 40oC |
| Ingress Protection | IP54 Compliant (Device Only) |
SATELLITE SERVICES
| Voice Calls | Circuit Switch |
| Data | Up to 384Kbps on standard mode |
| SMS | Voice Mode Only |
CELLULAR SERVICES
| Data | 3G, 4G(LTE) |
| SMS | 3G, 4G(LTE) |
WI-FI
| Range | Up to 100ft/30m clear line of sight |
| Number of Clients | Up to 10 users |
| Security | WPA2 Personal Authentication |
GNSS SUPPORTED SYSTEMS
| GPS, Glonass, Beidou |
ROUTER FEATURES
| Firewall, MAC Filtering, DMZ, NAT, Port Forwarding |
NATIVE CLIENT APPLICATIONS
| Android | Minimum Version 4.2(API17), Integrated Phonebook |
| iOS | Minimum Version iOS9, Integrated Phonebook |
| Published API | For 3rd Party Client Application Development |
COMPATIBLE BROWSERS
AC plug pack
| Input | 100-240V, 50-60Hz |
| Output | 12.0VDC, 3A |
| Operating Temperature | 0oC to +40oC |
| Efficiency Level | VI |
TRANSMISSION FREQUENCIES
| Satellite | Tx 1626.5 - 1660.5 MHz, (earth to space) Rx 1525 - 1559 MHz, (space to earth) |
| 4G (LTE) | 800, 850, 900, 1800, 2100, 2600 MHz |
| 3G | 850, 900, 1800, 1900, 2100 MHz |
| Wi-Fi | Type G, 2.4 GHz band IEEE 802.11 b/g/n Module |
REGULATORY & APPROVALS
| FCC, CE, Safety IEC 60950 & CB certificate, ITU, RCM, REACH, RoHS, IP54 |
