DriveDOCK Extreme Wireless Push-To-Talk Bundle (EXTRMDD-PTT-W1)

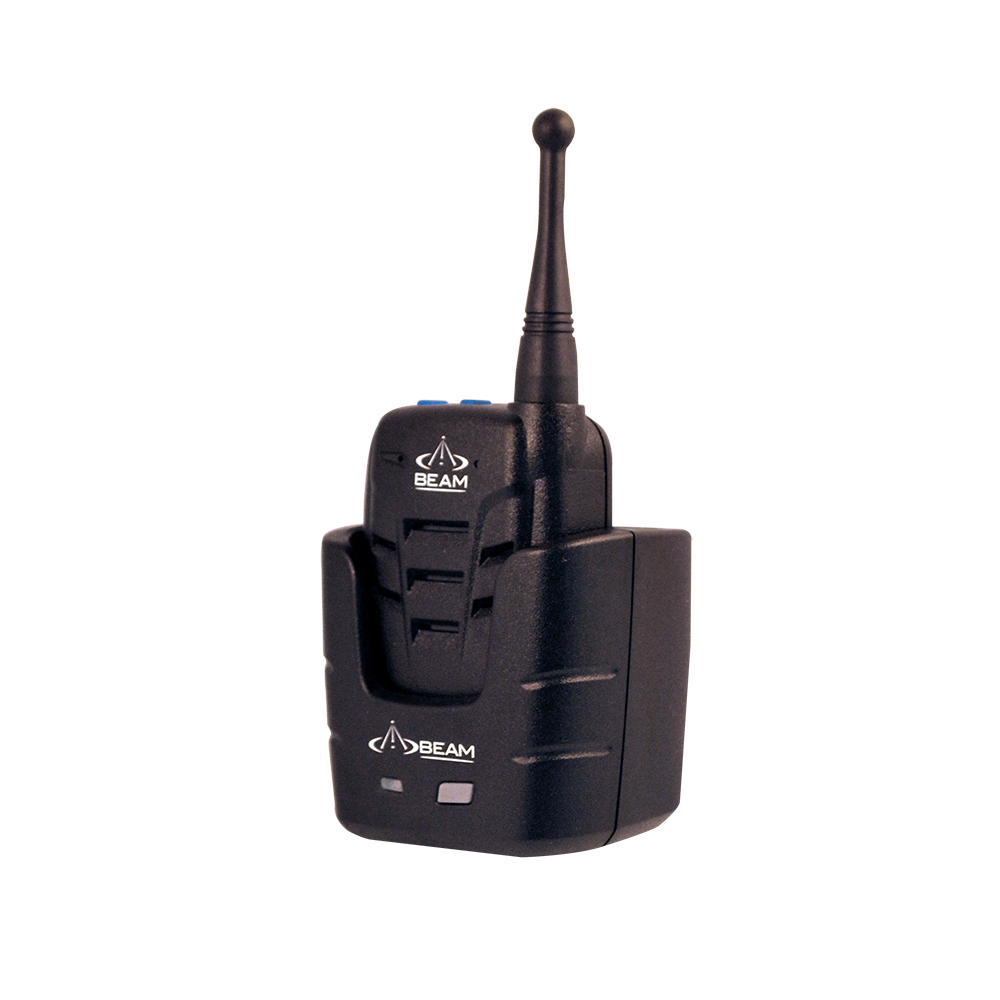

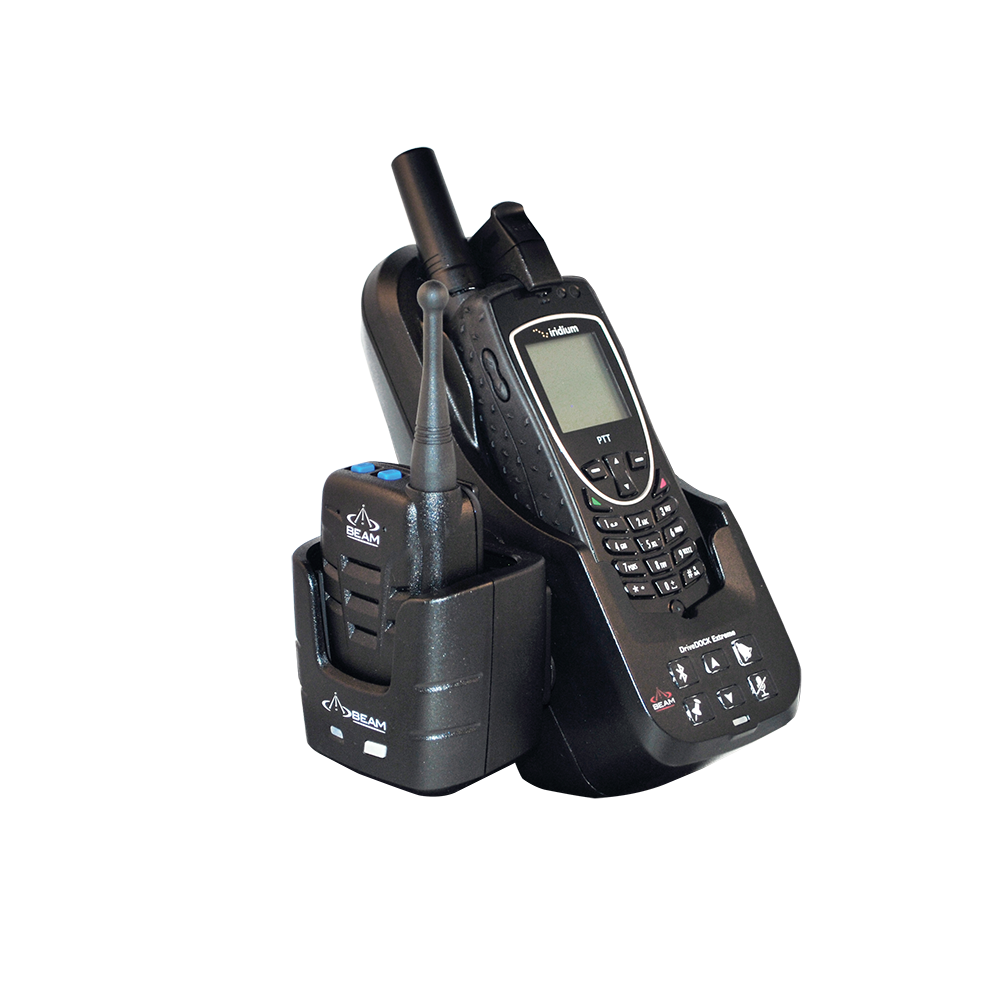

The DriveDOCK Extreme Wireless PTT Bundle is a high quality transport installation using the Iridium Extreme® PTT service. This combination extends the power of the Extreme PTT Device to the palm of your hand, whether in or out of a vehicle.

DriveDOCK Extreme Wireless Push-To-Talk Bundle Features

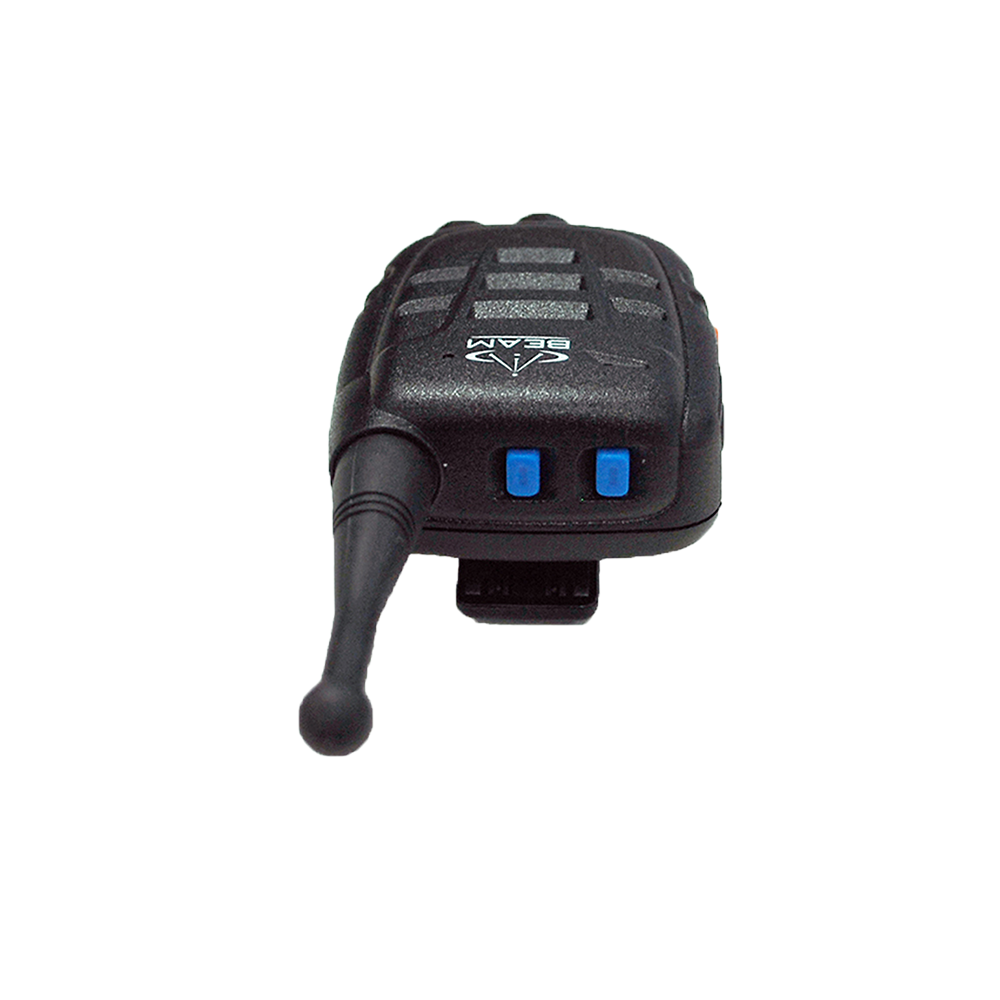

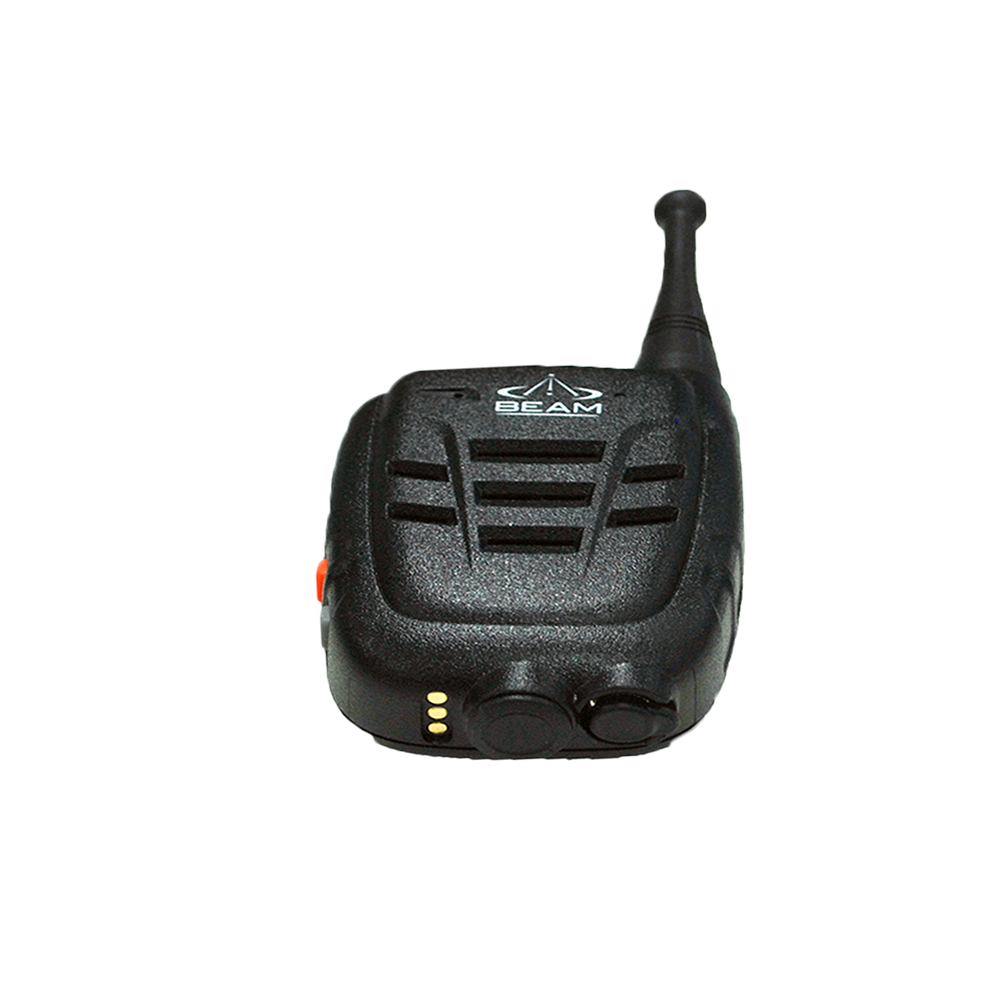

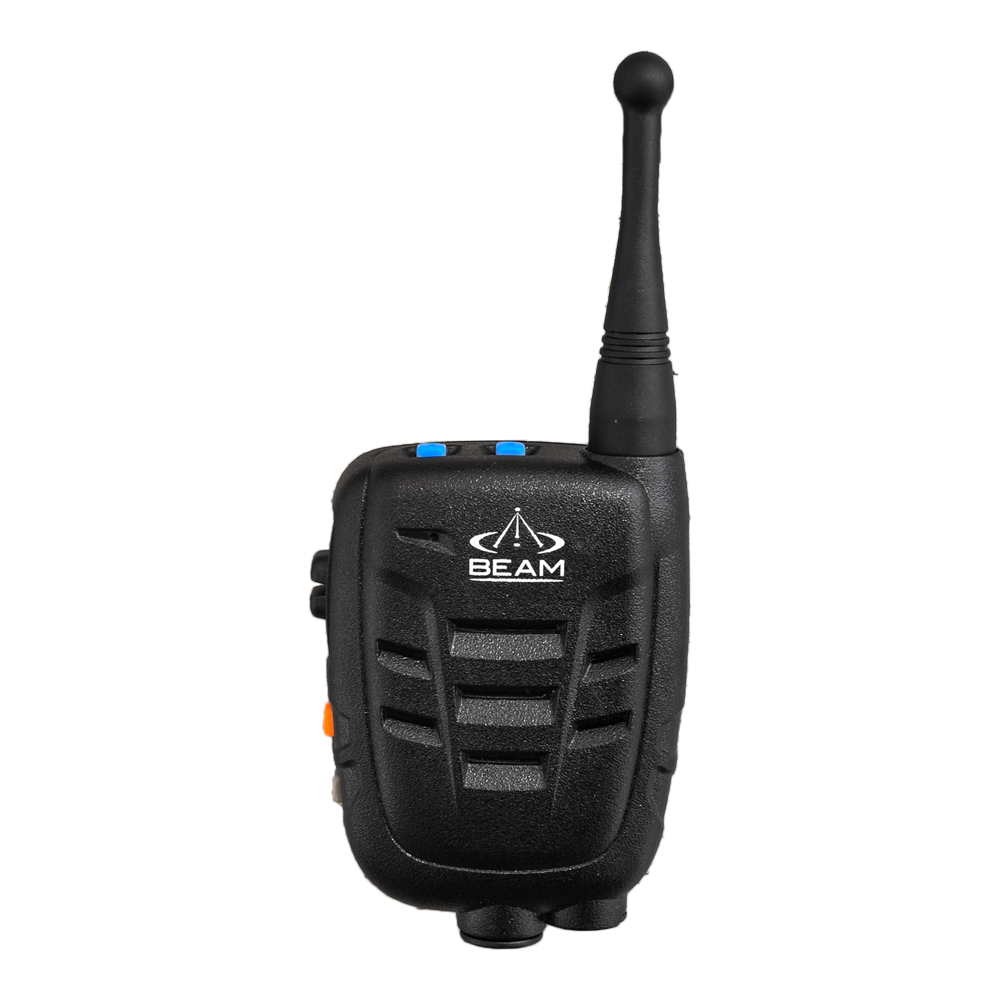

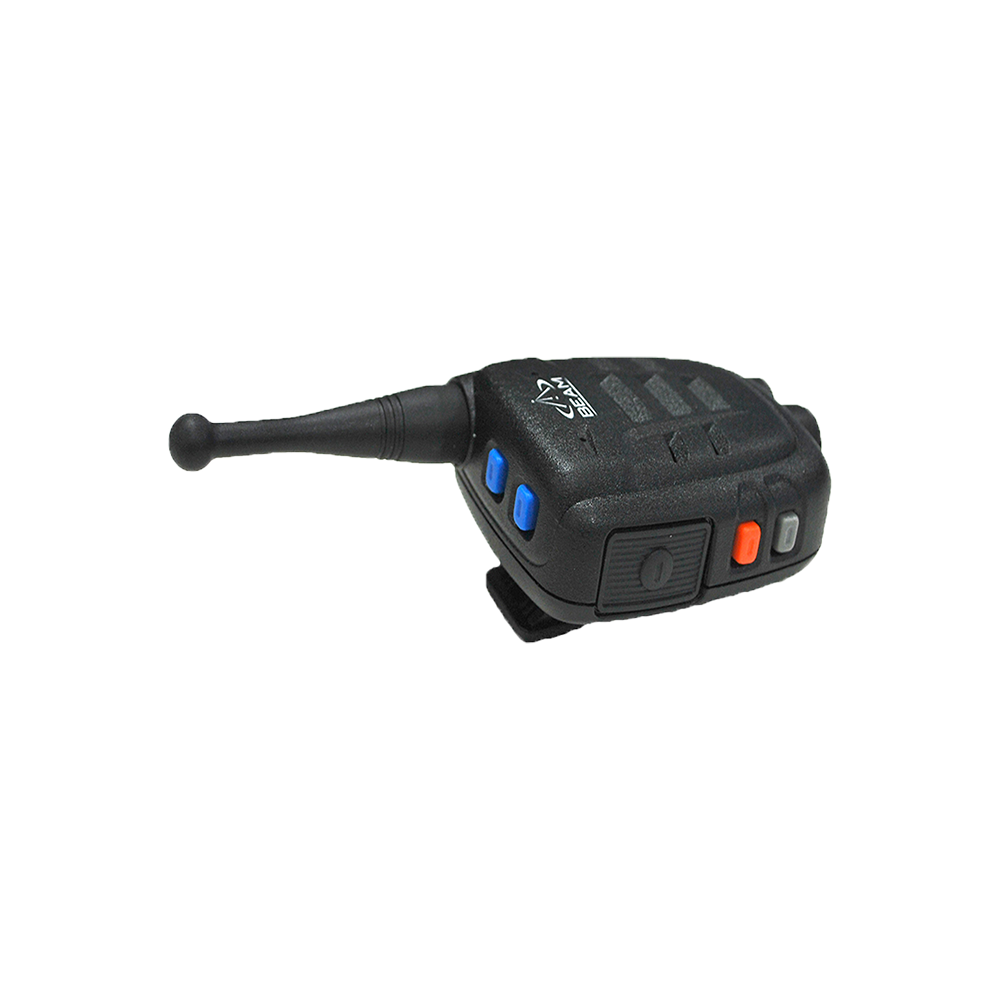

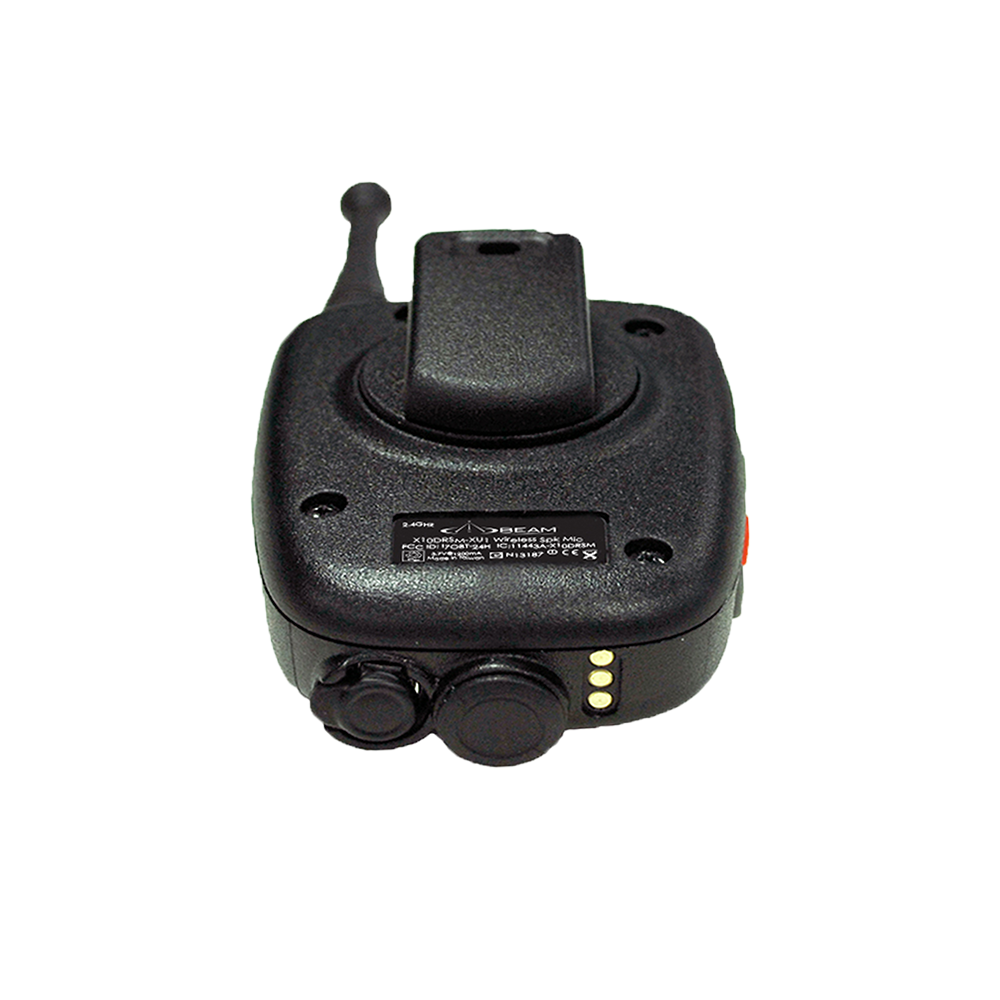

The wireless handset’s rugged premium remote speaker microphone, deliver outstanding clear audio in every situation when connected to the Beam Extreme Docking Station. The microphone features a highly tactile PTT button that provides both mechanical and audible feedback every time you press, so you know your call is being sent.

Key Benefits and Features

• Durable and reliable mic/speaker handset
• IP55 weatherproof compliance, built vibration and drop resistant
• Enhanced clear audio quality
• Compatible with existing BEAM DriveDOCK Extreme
• Supports BOTH Phone and PTT modes of the Iridium Network
• Ability to amplify PTT audio to external cabin loudspeaker
• Left or right side bracket mounting
• 3.5mm earpiece jack for optional earpiece accessories

DriveDOCK Extreme Wireless Push-To-Talk Bundle Specifications

DriveDOCK Extreme Power

Average Power Consumption	Current @ 12VDC	Watts
Rated Input	9-32V DC	2A max
Standby	70mA	0.84W
Transmit + Charging	0.7A	8.4W
Sleep Mode	5mA	60mW

DriveDOCK Extreme BLUETOOTH® MODULE (INTERNAL)

Legal	The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners.
Regulatory	Bluetooth® identifier: B03005. CE 89/336/EEC - #EC/2006/20013C. FCC part 15 class B: DriveDOCK contains Transmitter Module FCC ID: QOQWT11. Canada: Cert# 5123A-BGTWT11E Japan: 07215089/AA/00
Antenna	Integrated chip antenna
Power	Default = Class 2 (< 10 metres). 2.4GHz - 2.4835GHz Unlicensed ISM Band
Profiles	HFP - Hands-Free Profile v.1.5 HFP-AG - Hands-Free Audio Gateway Profile v.1.5 & SPP - Serial Port Profile
System	Bluetooth® 2.0v+EDR (Enhanced Data Rates), 802.11 coexistence.

DriveDOCK Extreme Interfaces

Privacy Handset (Line In/Out)	4-pole 3.5mm audio jack at the bottom of the DriveDOCK cradle.
External Speaker and Microphone	One horizontal 2-pin Microfit connector on the cable loom for speaker and one vertical 2-pin Microfit connector for microphone.
Data Port (USB)	USB Mini-B 5-pin female (USB Slave). USB 2.0 compliant, CDC Serial profile.
Alarm (Alert) Loop	Alarm Mode: “Normally-Closed” Loop IN to OUT Up to 50m cable run multiple buttons in series. Brown wire is Input, Green wire is Output.
Horn Output / Audio System Mute	Blue wire on the cable loom. Open collector output can be interfaced to 12V or 24V DC with up to 120mA current sink capability.
Power Cable	4-way Microfit socket. +Vin (Red wire),0V (GND, Black wire), and ACC (On/Off Sense, Yellow wire). 9-32VDC tolerant. ACC sense: High(1) > +7Vdc Low (0) 0V < +5Vdc
LEDs/Buttons	Bluetooth, Ringer, Track, Mute, Up & Down

DriveDOCK Extreme Environmental

Temperature	Degrees °C	Degrees °F
Operating Range	-30°C to +70°C*	-22°F to +158°F
Charging Range	0°C to 45°C #	+32°F to 113°F
Storage	-35°C to +85°C	-31°F to 185°F
Operating Humidity Range	< 85% RH non-condensing
Notes	* When 9575 Battery is fully charged	# Derived from the charging temperature range of the Iridium 9575 handset battery.

Wireless Push-To-Talk Handset Kit Environmental

Humidity/Rain/Dust	IEC529, IP55 (Wireless handset only)
Temperature	Degrees °C	Degrees °F
Operating Temperature	-20°C to +50°C	-4°F to +122°F
Vibration and Shock	Mil Std 810 C/D/E/F

DriveDOCK Extreme Physical

Dimensions	mm	inches
Dock	83W x 76D x 212H	3.3 W x 3D x 8.3H
Outer Box	140W x 125D X 330H	5.51W x 4.92D x 13H
Weight	kg	lbs
Dock	0.48	1.1
Box	1.5	3.4

Wireless Push-To-Talk Handset Kit Physical

Dimensions	mm	inches

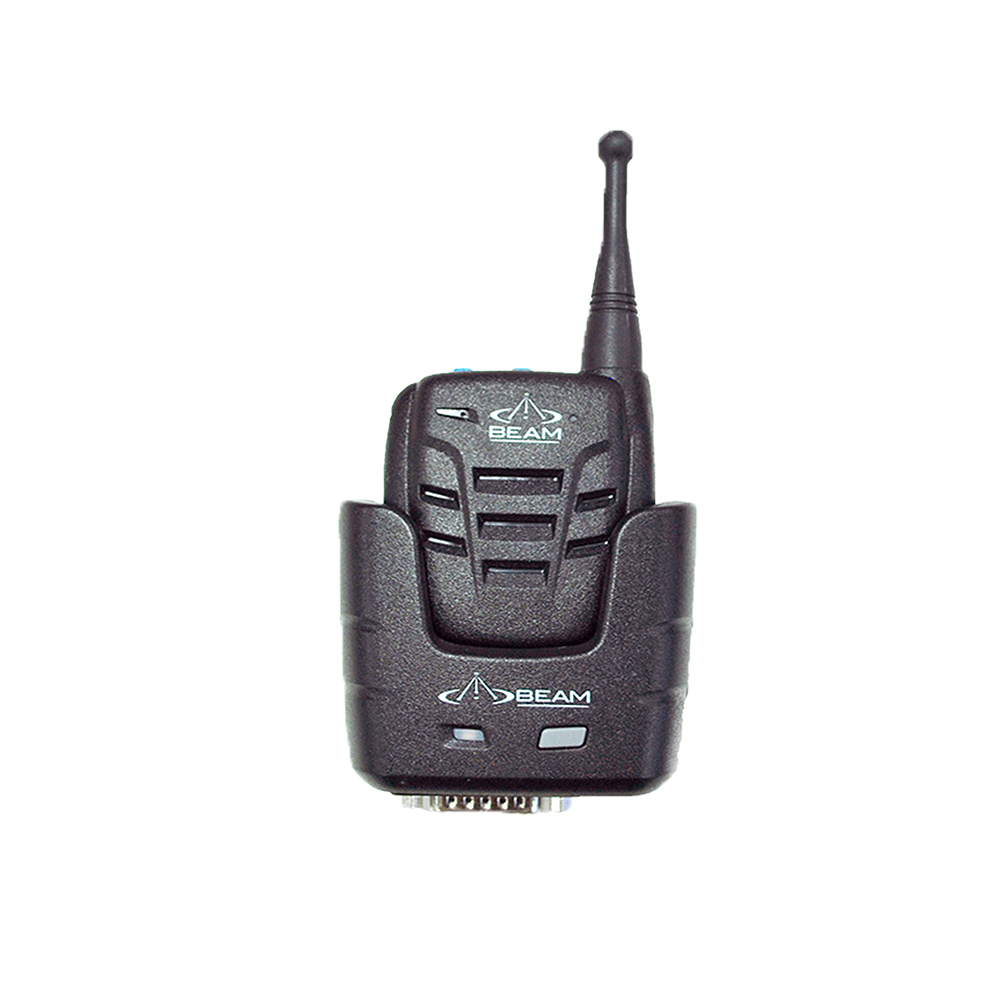

Dimensions - PTT Wireless Handset	88 x 28 x 63	3.46 x 1.1 x2.48
Dimensions - PTT Cradle	80 x 80 x 60	3.15 x 3.15 x 2.36
Weight	kg	oz
Weight - PTT Wireless Handset	0.149	5.25
Weight - PTT Cradle	0.125	4.4

DriveDOCK Extreme Bundle Kit Contents

DriveDOCK Extreme

DC Power Cable/Fuse Kit

Universal Mounting Bracket (RAM)

Speaker & Microphone

Manual

Quick Start Guide

Wireless PTT Handset

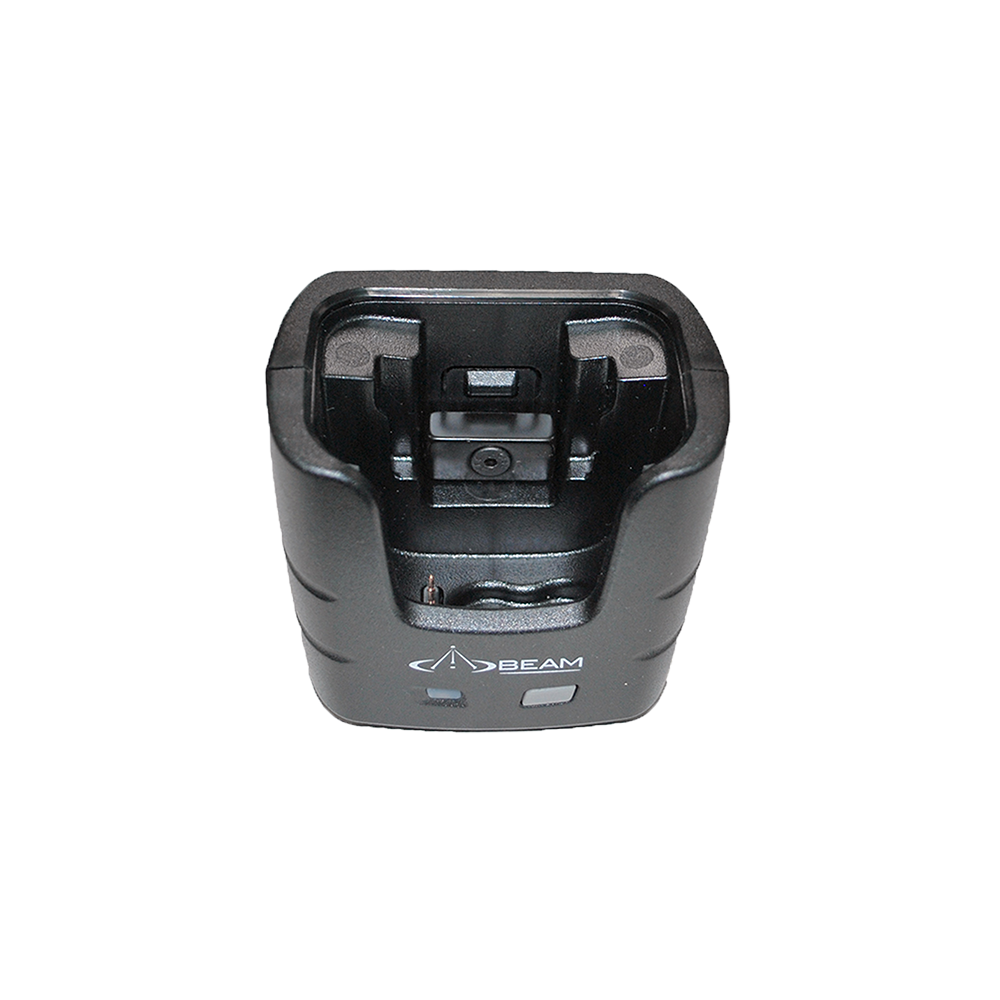

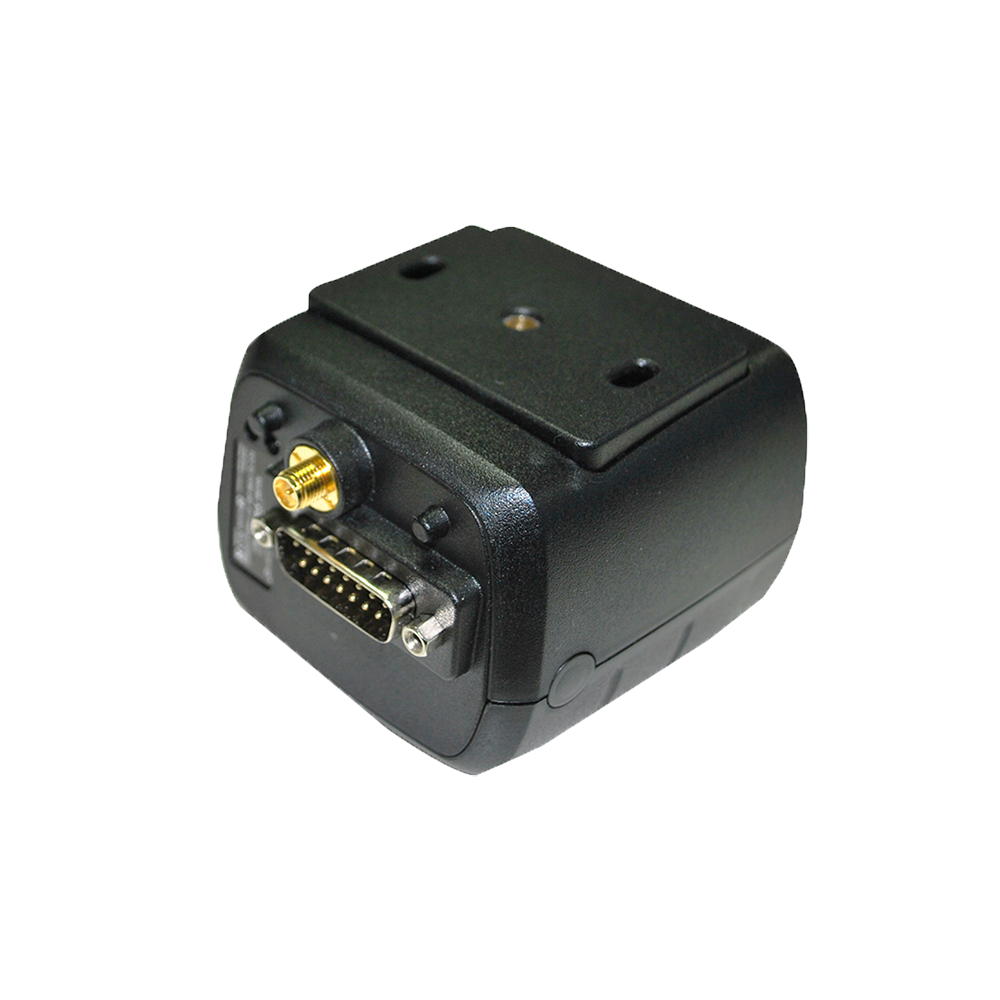

Charging Cradle

Interface Cable

Fixed Mount External Antenna

PTT Bracket Kit

DriveDOCK Extreme Certifications

Iridium

EMC Compliance

CE Compliance

Electrical Safety

RoHS

C-Tick

Brochures

DriveDOCK Extreme PTT Handset Bundles

The DriveDOCK Extreme PTT Bundle (wireless or corded) solution provides a high-quality transport installation using

Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support

Accessories

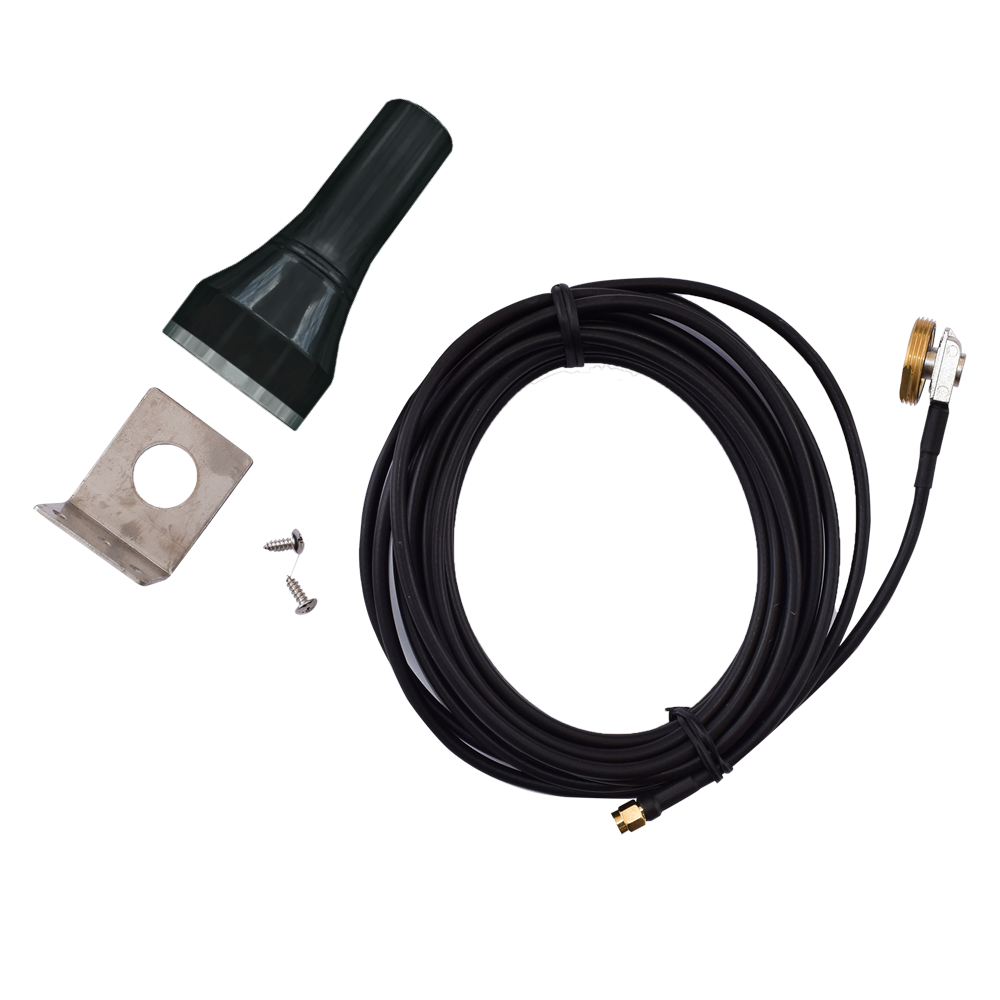

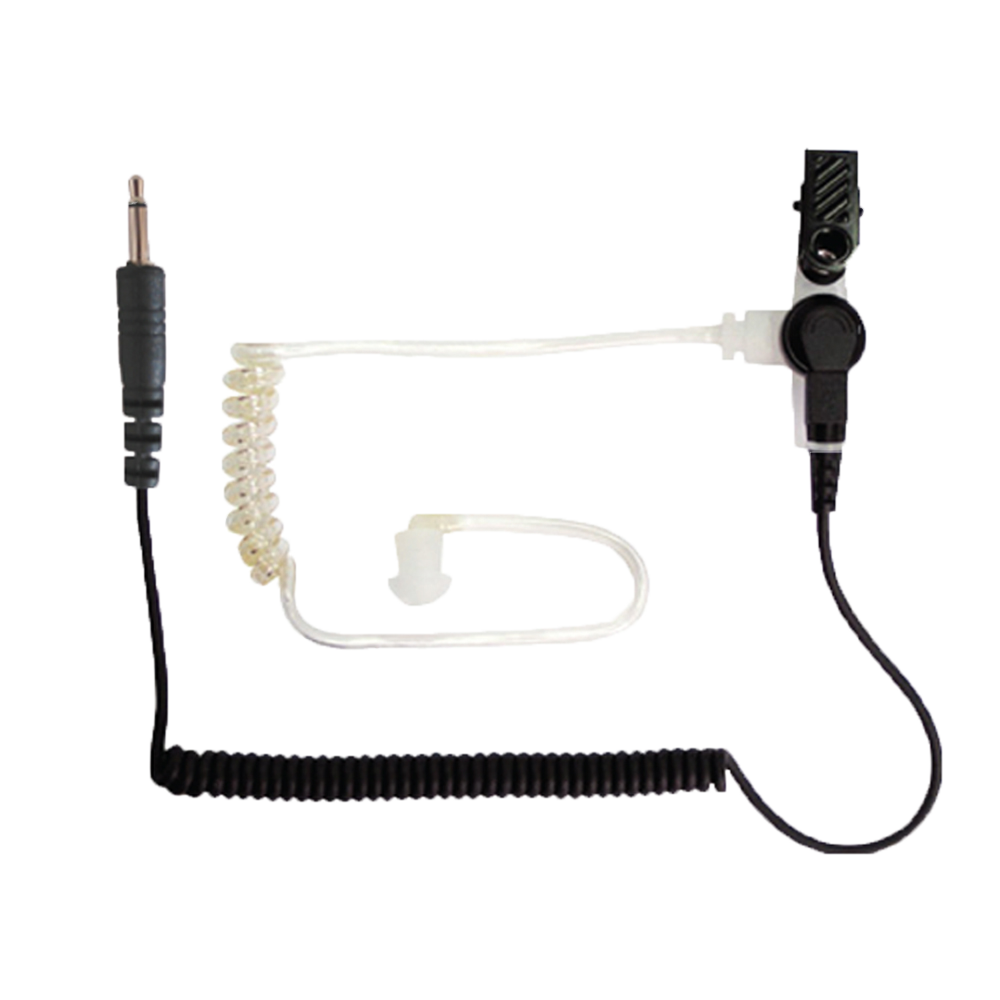

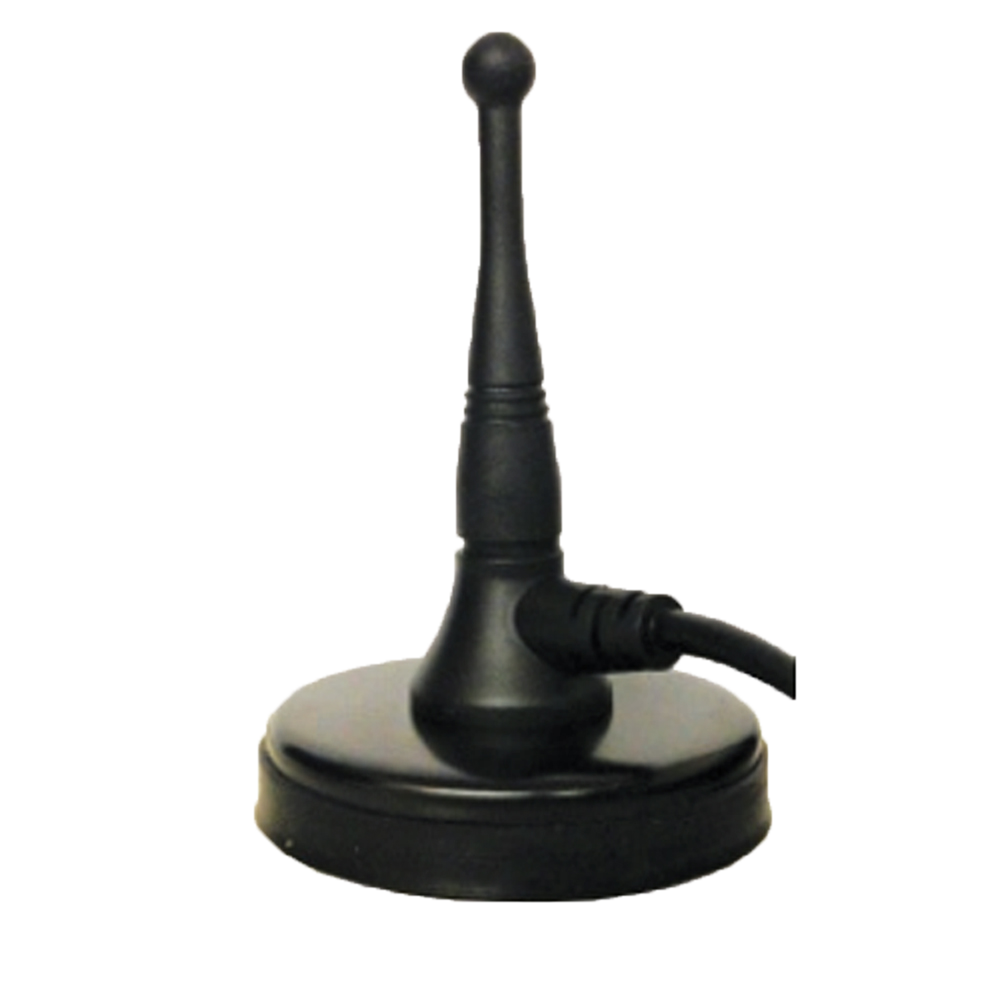

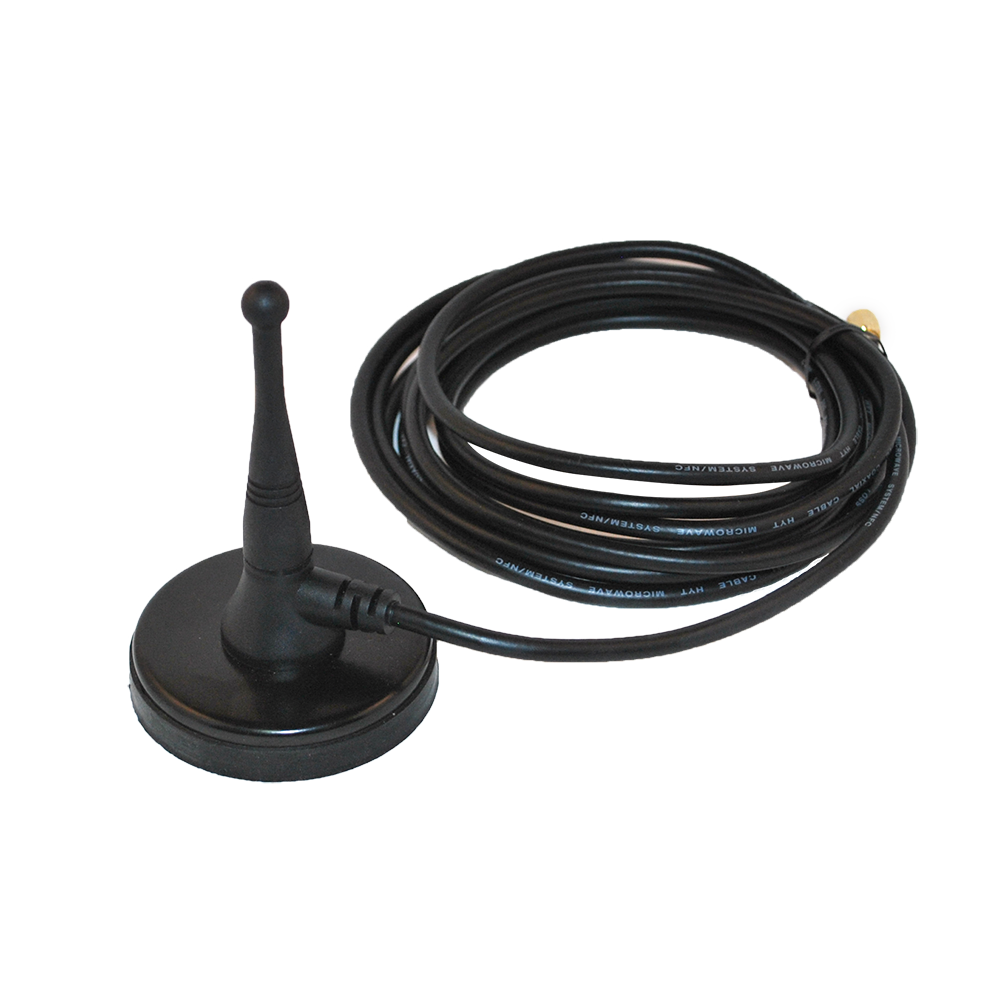

PTT500 MSRP $395 USD* Multi Unit Interface upto 3 EXTRM-PTT-W1 off one dock	PTT615 MSRP $395 USD* Vehicle Mount Antenna Kit 3.5m Cable	PTT620A MSRP $110 USD* Vehicle Mount Antenna Kit 5.2m Cable

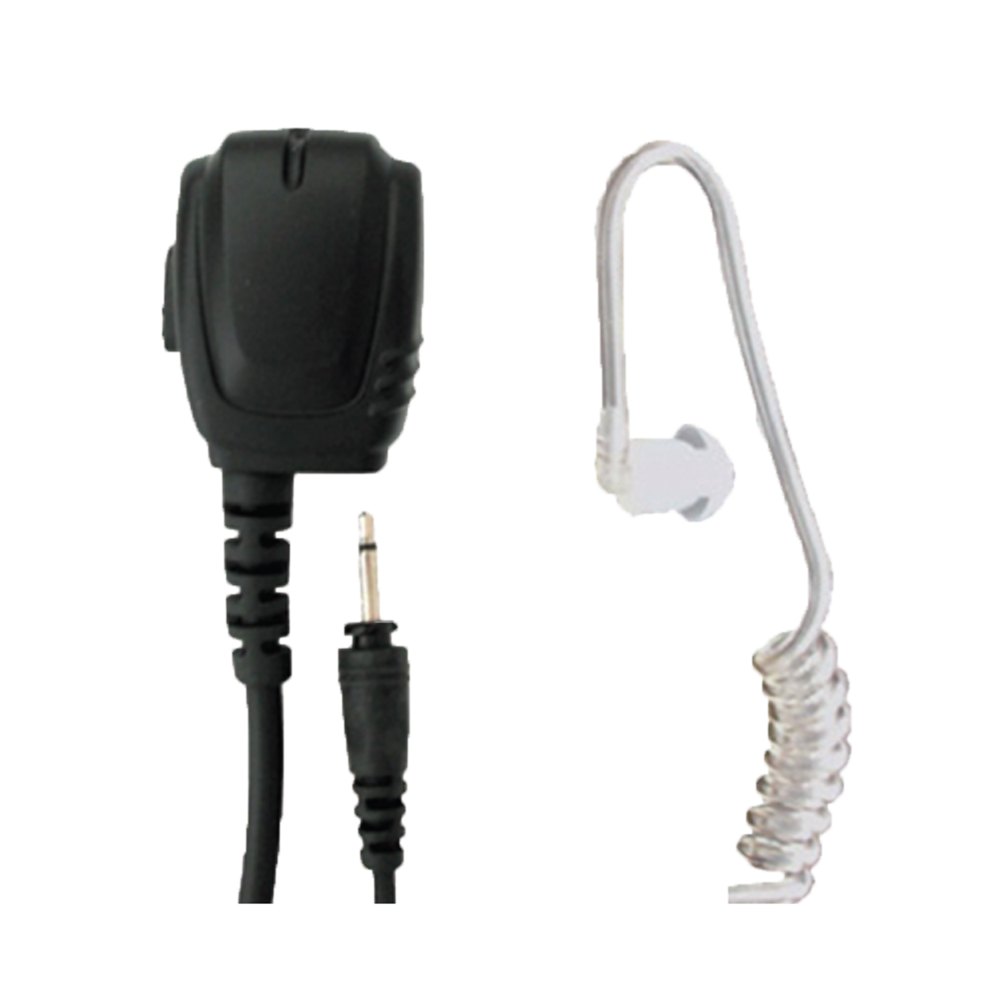

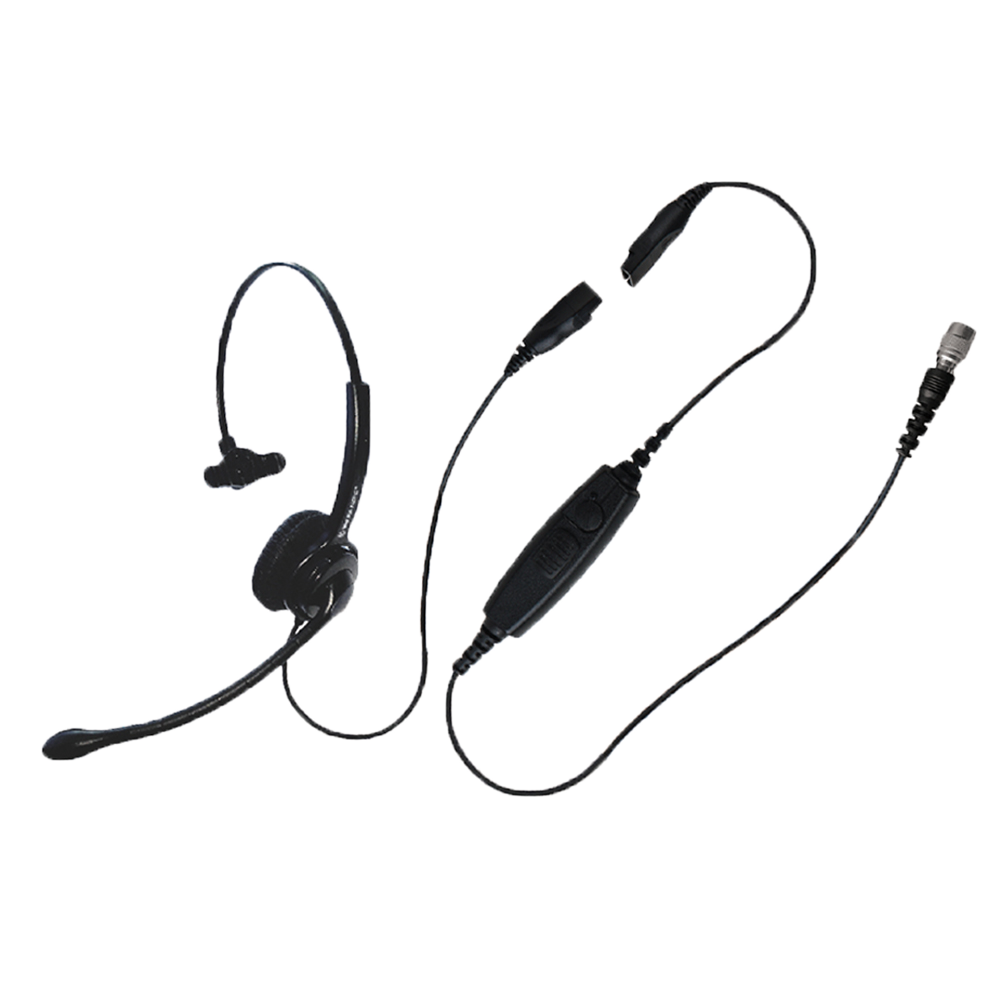

PTT700 MSRP $120 USD* Surveillance Accessory Kit (includes tube style earpiece)	PTT702 MSRP $30 USD* Simple 3.5 Tube Style Earpiece	PTT703 MSRP $110 USD* Lightweight Dispatcher Headset

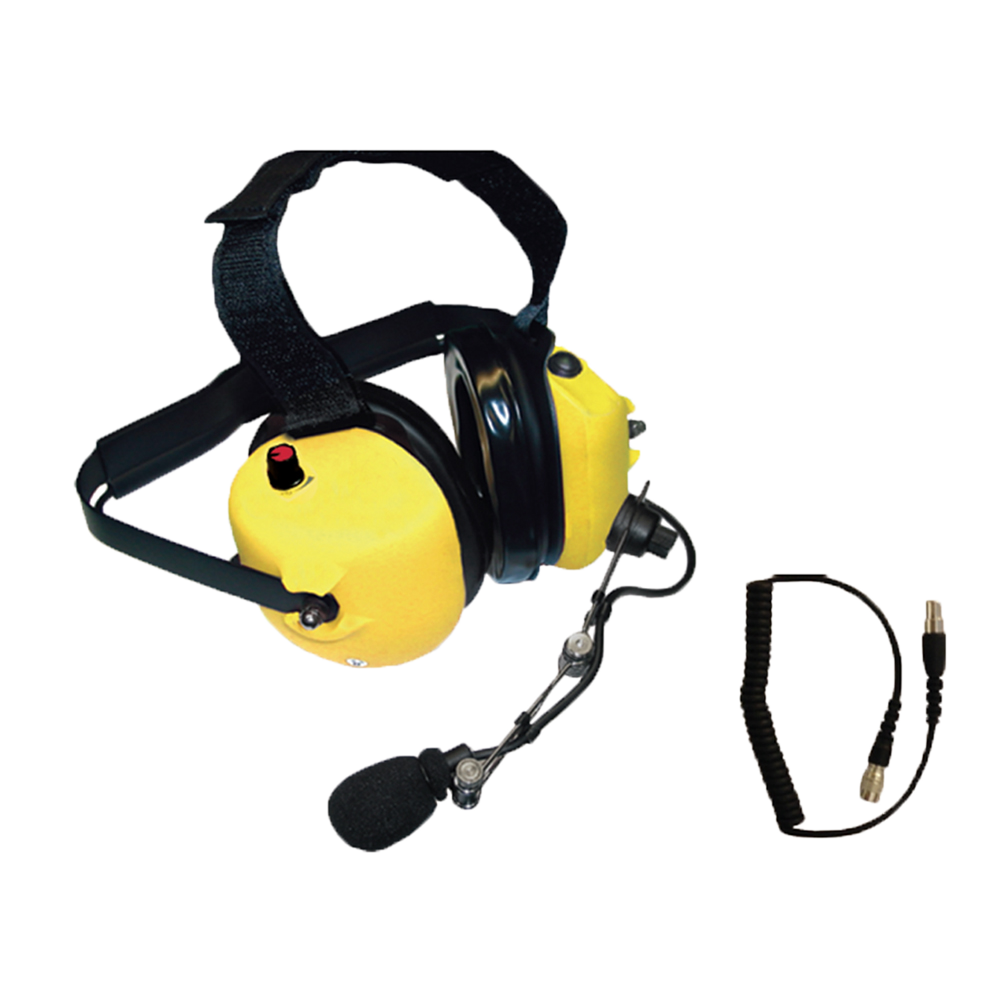

PTT704 MSRP $90 USD* Inline PTT Switch	PTT800 MSRP $370 USD* Heavy Duty Noise Cancelling Headset (includes Interface Cable)

* Manufacturers Suggested US Dollar ($USD) Retail Price, Excluding Freight, Taxes and Duties from Australia. Contact a Reseller for your local price.
