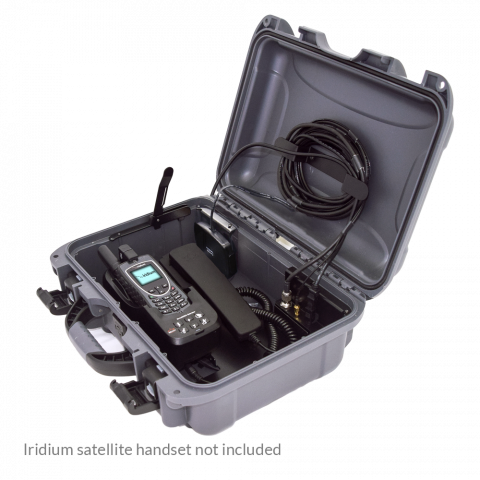

Iridium Extreme® Beam RapidSAT (EXTRMDD-RS-P)
This Iridium Extreme Beam RapidSAT with Privacy Handset solution provides clear and improved audio quality via the loudspeaker in the privacy handset when cupped and it allows for private conversations when un-cupped.
- Privacy Handset
- Docking
- Supports Voice via 9575
- All Weather Resistant Case
- Dual Mode Antenna
- AC/DC Power
Iridium Extreme® Beam RapidSAT Features
The Beam Grab ‘N’ Go Privacy Handset solution provides clear and improved audio quality via the loudspeaker when cupped and it allows for private conversations when un-cupped. The Grab ‘N’ Go kit supports the Extreme Handset in standard voice mode.
Key Benefits and Features
• Durable speaker and mic handset
• Enhanced clear audio
• Talk in or out of the vehicle
• Intuitive design, all in-built to a durable easy to carry case
• Integrated Iridium and GPS Antenna
• Includes 5m dual mode antenna
• Enhanced clear audio
• Talk in or out of the vehicle
• Intuitive design, all in-built to a durable easy to carry case
• Integrated Iridium and GPS Antenna
• Includes 5m dual mode antenna
Iridium Extreme® Beam RapidSAT Specifications
DriveDOCK Extreme Power
| Average Power Consumption | Current @ 12VDC | Watts |
| Rated Input | 9-32V DC | 2A max |
| Standby | 70mA | 0.84W |
| Transmit + Charging | 0.7A | 8.4W |
| Sleep Mode | 5mA | 60mW |
DriveDOCK Extreme Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Range | -30°C to +70°C* | -22°F to +158°F |
| Charging Range | 0°C to 45°C # | +32°F to 113°F |
| Storage | -35°C to +85°C | -31°F to 185°F |
| Operating Humidity Range | < 85% RH non-condensing | |
| Notes | * When 9575 Battery is fully charged | # Derived from the charging temperature range of the Iridium 9575 handset battery. |
Privacy Handset Physical
| Dimensions | mm | inches |
| Cable Cord (relaxed length) | 595 | 23.43 |
Beam Dual Mode MAG Antenna Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -40°C to +70°C | -40°F to 158°F |
Beam Dual Mode Antenna Frequency
| Iridium | 1616 – 1626MHz |
| GPS | 1575.42 ± 5MHz |
Grab ‘N’ Go Case Physical
| Dimensions | mm | inches |
| Case | 401L x 307W x 173H | 15.8L x 12.1W x 6.8H |
BLUETOOTH® Legal
| Bluetooth® | The Bluetooth® word, mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by BEAM Communications is under license. Other trademarks and trade names are those of their respective owners. |
Brochures
Brochure Iridium Extreme PTT Grab 'N' Go Kits
For more information please download our Iridium Extreme PTT Grab 'N' Go Kits Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
