Inmarsat Beam Passive SMA/TNC Cable Kit - 30m/98ft (ISD939)

MSRP $1,045 (USD) USD

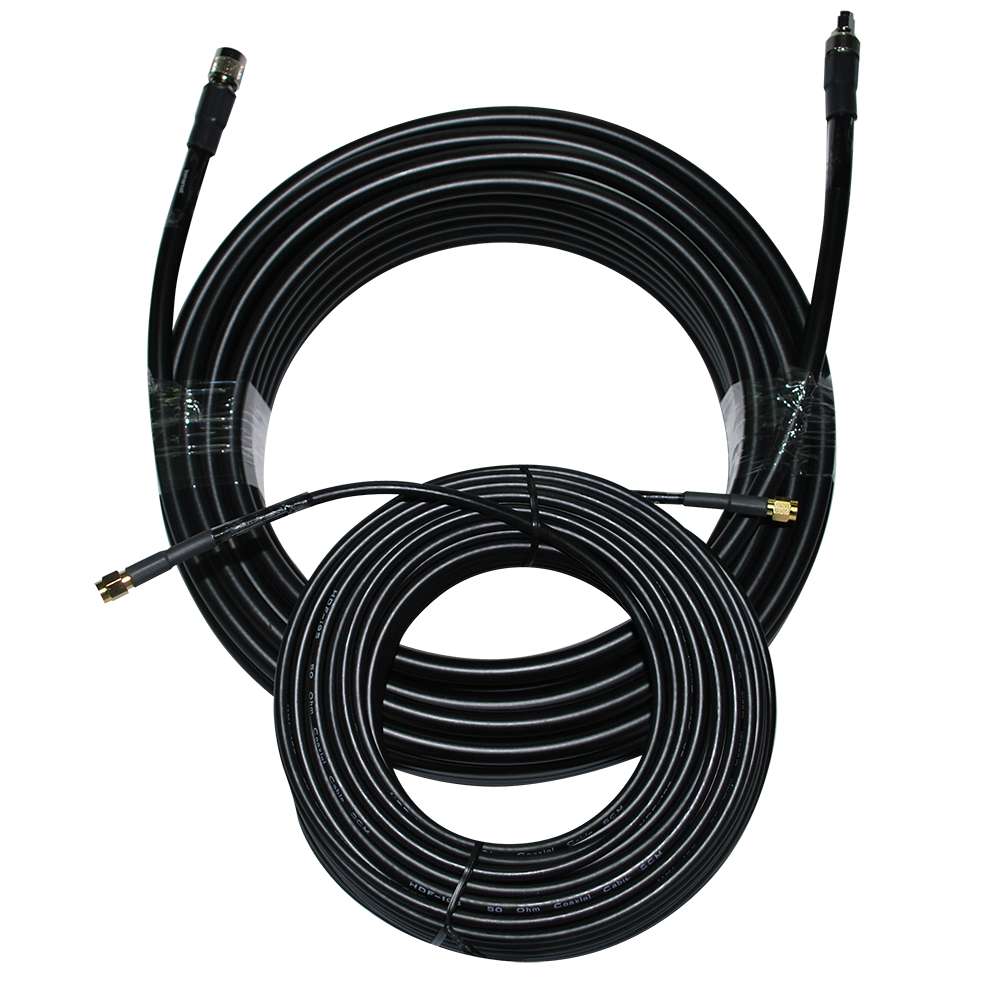

Beam ISD939 Inmarsat 30m (98 feet) antenna cable provides fixed site installations with the flexibility to run long distances and is pre-terminated with SMA/TNC connectors.

Read more product features

Inmarsat Beam Passive SMA/TNC Cable Kit - 30m/98ft Features

The kit includes 30m of Inmarsat antenna cable and 30m of GPS antenna cable. The cable is only for fixed installations.
Passive Cable kits can be specially ordered of lengths up to 50m. Allow up to 4-6 weeks.
* ONLY use with the ISD700 Passive Antenna
Download Certificate of Origin

Similar items you may be interested in

Inmarsat Beam Passive SMA/TNC Cable Kit - 30m/98ft Specifications

Inmarsat Cable

SAT Cable Length Passive 29.5m SAT TNC(m)-TNC(m)
Dimensions mm inches
Connector Diameter 15.5 / 15.5 0.61 / 0.61
Cable Diameter 12.7 0.5
Thickest Diameter ~15.70 ~0.62
Bend Radius Single 32 1.26
Bend Radius Repeat 127 5

GPS Cable

GPS Cable Length Active 30m GPS SMA(m)-SMA(m)
Dimensions mm inches
Connector Diameter 8.1/8.1 0.32 / 0.32
Thickest Diameter ~ 8.3 ~ 0.32
Cable Diameter 6.1 0.24
Bend Radius Single 19.1 0.75
Bend Radius Repeat 63.5 2.5

Cable Kit

Weight kg lb
Cable Kit 6.1 (bag) 13.45
Dimensions m ft
Cable Kit 30 98.42

Fly Lead Inmarsat Cable

Adaptor length Adaptor 1 50cm TNC(f)-SMA(m)
Dimensions mm inches
Connector Diameter 13.7/8.1 0.54 / 0.32
Cable Diameter 6.1 0.24
Thickest Diameter 14 0.55
Bend Radius Single 19.1 0.75
Bend Radius Repeat N/A N/A
