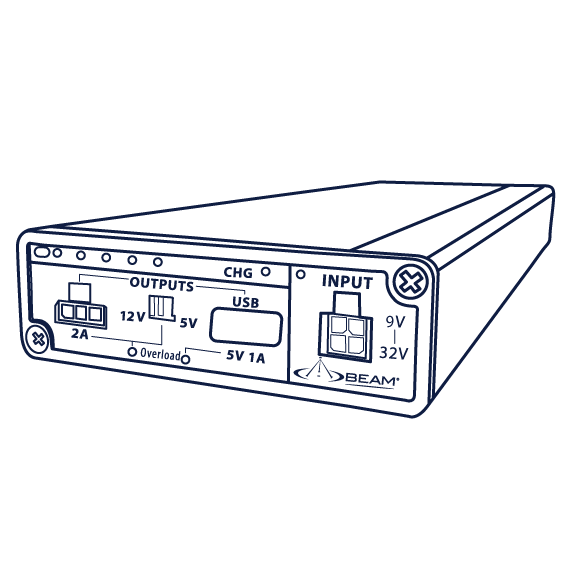

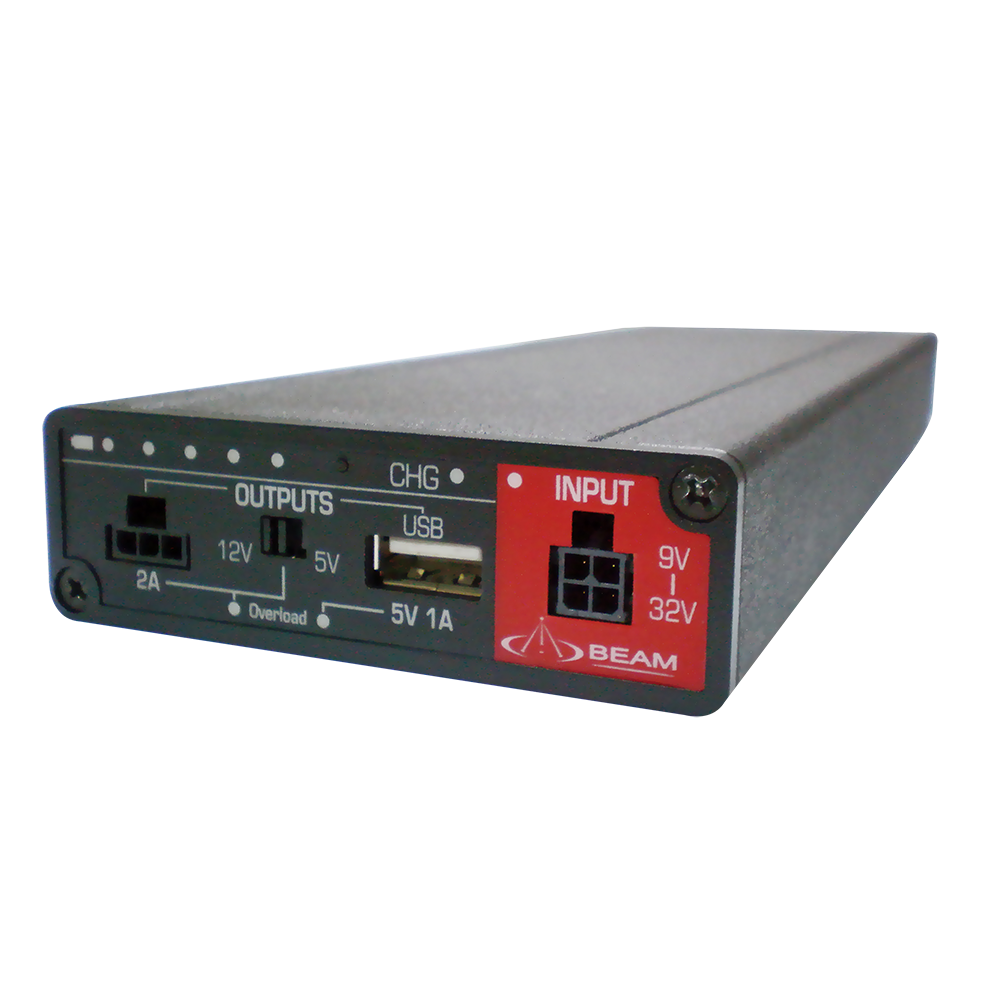

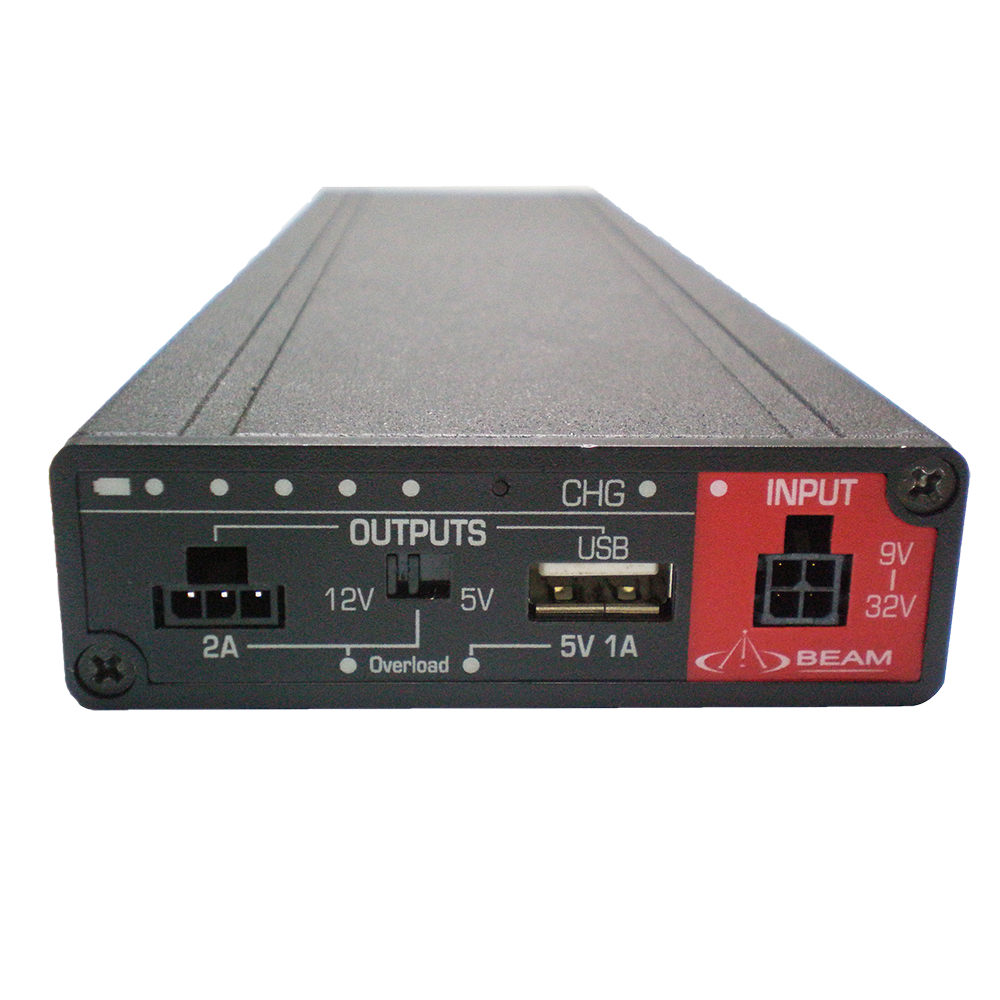

RST055 UPS Battery Pack - DISCONTINUED (RST055)
MSRP $375 USD
The RST055 UPS Battery Pack is Suitable for most Beam equipment requiring 5V or 12V input power, Iridium 9555 phone and most of the USB powered portable devices including smartphones.
- Charging
- USB
- Power
RST055 UPS Battery Pack - DISCONTINUED Features
A Powerful Battery Pack
The RST055 is specifically designed so that it can contiguously charges whilst being used, operating as a full UPS system unlike some other battery packs that cannot be charged and used simultaneously. The kit is supplied with an AC plug pack and DC auto accessory adaptor for charging and a range of connectors to charge various devices.
Key Benefits and Features
• Output USB 5V or 12VDC terminal connector.
• Robust yet portable mechanical design with aluminium enclosure.
• Provides backup power to the Iridium 9555 phone, Beam Terminals / Accessories as well as most USB chargeable portable devices including iPhone*.
• Push button remaining battery capacity LEDs.
• Can power external device whilst charging.
• Over-current protection.
• Can be powered directly from a vehicle 9-32VDC Input or AC Plug Pack.
*iPhone® is a registered trademark of Apple Corporation
• Robust yet portable mechanical design with aluminium enclosure.
• Provides backup power to the Iridium 9555 phone, Beam Terminals / Accessories as well as most USB chargeable portable devices including iPhone*.
• Push button remaining battery capacity LEDs.
• Can power external device whilst charging.
• Over-current protection.
• Can be powered directly from a vehicle 9-32VDC Input or AC Plug Pack.
*iPhone® is a registered trademark of Apple Corporation
RST055 UPS Battery Pack - DISCONTINUED Specifications
Power
| Power Input Voltage | 9-32V DC @4-1A |
| Main Output | 5/12V @ 2A selectable |
| USB Output | 5V @1A |
Connectors/Interface
| Input Connector | 4-way molex micro-fit |
| Main Output Connector | 3-way molex micro-fit |
| USB Output Connector | USB type A |
Battery
| Type | Lithium Ion |
| Capacity | 98Wh |
| Charging Time | 4 hours fast charging to 80% additional 3 hours to 100% |
Physical
| Dimensions | mm | inches |
| UPS Battery | 254L x 80W x 25H | 10L x 3.15W x 0.98H |
| Outer Box | 330W x 90D x 140H | 12.99W x 3.54D x 5.51H |
| Weight | kg | lbs |
| UPS Battery | 0.88 | 1.94 |
| Box | 1.76 | 3.88 |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating | -20°C to +60°C | -4°F to 140°F |
| Charging | 0°C to +45°C | 32°F to 113°F |
| Storage | -25°C to 60°C | -13°F to +140°F |
| Humidity | <85% RH non-condensing |
Kit Contents
| UPS Batttery |
| 12V DC Power Adaptor (output) |
| DC Input Cable |
| Auto Accessory Input Cable |
| 4-way Molex Output Cable |
| USB to Iridium Phone Output 9555 cable |
| Quick Start Guide |
Certification
| EMC |
| Safety |
