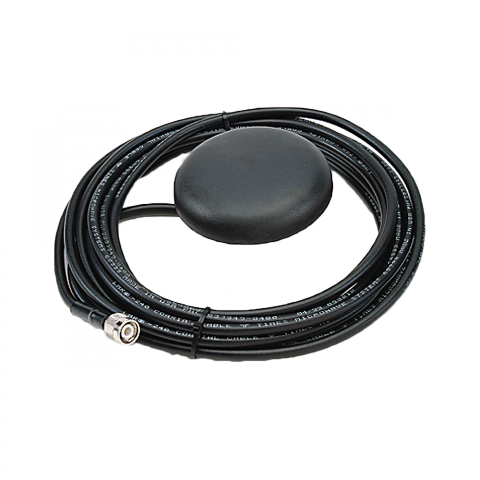

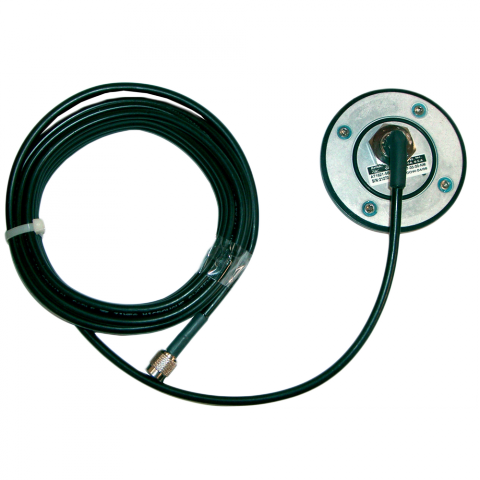

Iridium Beam Bolt Mount Antenna (RST720) - DISCONTINUED (RST720)
The Iridium bolt or bulkhead mount antenna (RST720) is designed for Land based applications, specifically for vehicles or fixed site locations.
Features
The antenna will work with all Iridium terminals and is supplied with 5m/16.4ft of cable pre terminated to a TNC Male connector.
Key Features
• Iridium approved
• Designed for harsh environments
• Small and lightweight
• Aluminium alloy casting
• Manufactured in the USA
• 5m cable attached
• 12 month repair or replacement warranty
• Designed for harsh environments
• Small and lightweight
• Aluminium alloy casting
• Manufactured in the USA
• 5m cable attached
• 12 month repair or replacement warranty
Similar items you may be interested in
Iridium Beam Aero Dual Mode Antenna - TSO Approved - DISCONTINUED
The Beam RST704 TSO is an Aero Approved dual mode all in one compact Iridium ...
View productIridium Beam Magnetic Dual Mode Antenna - DISCONTINUED
The Beam RST705 is a dual mode all in one compact Iridium and GPS magnetic ...
View productSpecifications
General
| Polarization | 3db Max |
| Axial Ratio | 3.0dB Max |
| Impedance | 50 Ohms |
| VSWR | < 2.0 : 1 |
| Power handling | 1 Watt |
| Altitude | 6,000m/20,000ft |
| Cable | Includes 5m or 16.4 feet LMR240 antenna cable attached |
Frequency
| Iridium | 1616 – 1626MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -40°C to +85°C | -40°F to 185°F |
Physical
| Colour | Black | |
| Finish | Base - A380 AL Casting Alloy | Radome - High Impact Xenoy |
| Dimensions | mm | inches |
| Antenna | 21.08H x 89.66 Dia | 0.83H x 3.53 Dia |
| Box | 215 W x 10 D x 90 H | 8.46 W x 0.39 D x 3.54 H |
| Weight | kg | lbs |
| Antenna | 0.283 | 0.625 |
| Box | 0.66 | 1.45 |
Connector
| Iridium | TNC Male |
Brochures
Brochure RST720 Iridium Bolt Mount Antenna
For more information please download our RST720 Iridium Bolt Mount Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
Product supportProduct support
Iridium Beam Bolt Mount Antenna (RST720) - DISCONTINUED support
Manuals, technical information and support resources for this product.
Specifications
Iridium Beam Bolt Mount Antenna (RST720) - DISCONTINUED Specifications
General
| Polarization | 3db Max |
| Axial Ratio | 3.0dB Max |
| Impedance | 50 Ohms |
| VSWR | < 2.0 : 1 |
| Power handling | 1 Watt |
| Altitude | 6,000m/20,000ft |
| Cable | Includes 5m or 16.4 feet LMR240 antenna cable attached |
Frequency
| Iridium | 1616 – 1626MHz |
Environmental
| Temperature | Degrees °C | Degrees °F |
| Operating Temp | -40°C to +85°C | -40°F to 185°F |
Physical
| Colour | Black | |
| Finish | Base - A380 AL Casting Alloy | Radome - High Impact Xenoy |
| Dimensions | mm | inches |
| Antenna | 21.08H x 89.66 Dia | 0.83H x 3.53 Dia |
| Box | 215 W x 10 D x 90 H | 8.46 W x 0.39 D x 3.54 H |
| Weight | kg | lbs |
| Antenna | 0.283 | 0.625 |
| Box | 0.66 | 1.45 |
Connector
| Iridium | TNC Male |
Manuals & Guides
Manuals & Guides
Specifications RST720 Beam Iridium Bolt Mount Antenna
For more information please download our RST720 Beam Iridium Bolt Mount Antenna Specifications.
Download
Installation Guide RST720 Antenna
For more information please download our RST720 Antenna Installation Guide.
Download
