Beam LTE Off-Road Bundle (MG200-ORB) - DISCONTINUED (MG200-ORB)

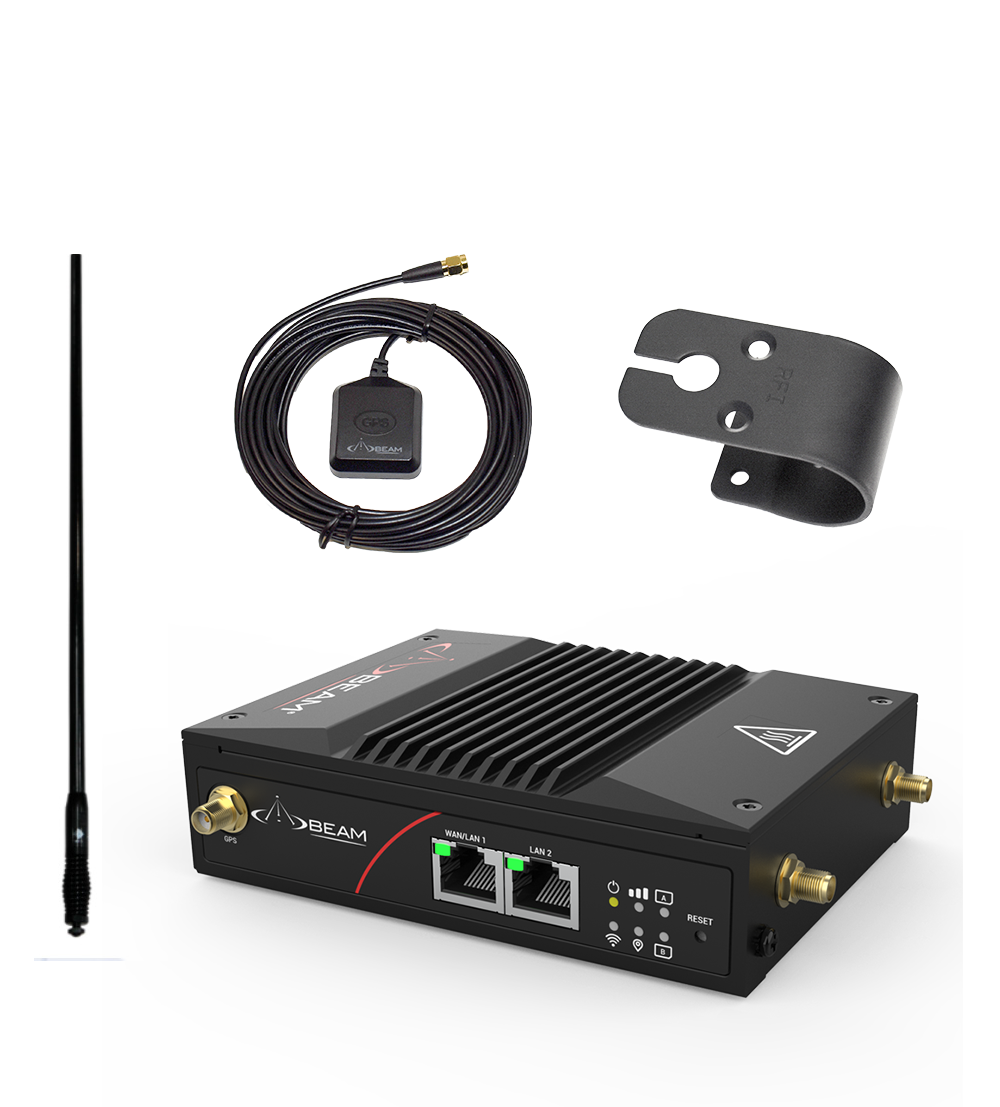

The Beam LTE Off-Road Bundle, combines the Beam MG200 LTE Gateway with the Beam LTE714 Whip Antenna to deliver outstanding performance, suiting vehicles that often drive out to fringe and rural locations.

The Beam LTE Off-Road Bundle is ideal for in-vehicle applications as the unique antenna has a quick and simple Whip Antenna removal function for low height environments. This bundle is suitable to operate across all mobile 4G networks in Australia.

The Beam LTE714 Whip Antenna is a highly durable and robust antenna and is weatherproof, designed for harsh environments.

The Beam LTE Fixed Installation bundle is also compatible with the Beam MG400 LTE Gateway, ask us about this upgrade solution.

Read more product features
  • Data
  • GPS
  • Tracking

Beam LTE Off-Road Bundle (MG200-ORB) - DISCONTINUED Features

Key Features

• Simple and affordable high-speed connectivity
• 4G LTE Category 13 (up to 391Mbps DL) with failover to 3G
• Dual SIM failover protection
• Location tracking with GPS
• Wi-Fi access point and hotspot functionality
• Industrial design for vehicle environments
• High gain whip antenna for robust communication even in rural low coverage areas
• Vibration and shock resistant

Beam LTE Off-Road Bundle (MG200-ORB) - DISCONTINUED Specifications

MG200 LTE GATEWAY PHYSICAL SPECIFICATIONS

Dimensions mm (L x W x H) inches (L x W x H)
Unit (w/o Bracket kit) 131 x 99 x 31 5.2 x 3.9 x 1.2
Unit (with Bracket kit) 167 x 99 x 39 6.6 x 3.9 x 1.5
Outer Box 278 x 247 x 69 10.94 x 9.72 x 2.60
Weight kgs lbs
Unit 0.625 1.377

MG200 LTE GATEWAY ENVIRONMENT

Temperature Degrees °C Degrees °F
Operating Range -30 to +70 -22 to +158
Storage -40 to +85 -40 to +185
Humidity 10%~95% (non condensing)

MG200 LTE GATEWAY RF CHARACTERISTICS

LTE Module 1 x LTE-Cat.13, 2 x SIM, with GNSS
Ethernet 2 x RJ45 FE
Wi-Fi 802.11n 2T2R (2.4GHz)
Log Storage 1 x MicroSD Card Slot
Power Input 1 x DC 9V ~ 36V (Terminal Block)
Antenna Con. Power Input
Power Input 2 x SMA (F)-LTE, 2 x SMA(M)-Wi-Fi, 1 x SMA(F)-GPS

MG200 LTE GATEWAY WAN & UPLINK

WAN Cellular & Config. Ether-WAN; Failover, Load Balance,
Cellular 3GPP, 3G/LTE, IP Pass-through, IPv4/6
Ether-WAN Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Network Monitor ICMP/DNS Query

MG200 LTE GATEWAY Wi-Fi SPECIFICATIONS

Standard 2.4GHz MIMO 802.11n
Mode AP Router, WDS, WDS Hybrid Modes
Functions Multi-SSID, WMM
Security WEP, WPA,WPA2, WPA-PSK, WPA2- PSK, 802.1x
Captive Portal Wi-Fi hotspot

MG200 LTE GATEWAY CERTIFICATIONS

EMC EN 55032, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 301489-52
Radio ETSI EN 300 328, AS/ACIF S042.1 & AS/CA S042.4
Safety AS/NZS 2772.2, IEC62368

LTE714 WHIP ANTENNA PHYSICAL SPECIFICATIONS

Color Black
Material Flexible PCB
Cable Length (m) 5
Dimensions mm (L x W x H) inches (L x W x H)
Unit 1210 (L) Radome Ø 15.6-22.5 47.63 (L) Radome Ø 0.61-0.88
Packing Dimensions 1270 x 120 x 40 50 x 4.72 x 1.57
Weight kgs lbs
Unit 1.25 2.75
Packing Weight 1.3 2.86

LTE714 WHIP ANTENNA ENVIRONMENTAL SPECIFICATIONS

Temperature Degrees °C Degrees °F
Operating Temperature -40° + 85°C -40° to + 185°F

LTE714 WHIP ANTENNA ANTENNA SPECIFICATIONS

Frequency (MHz) 698-960 / 1710-2170 / 2300-2700
Gain (dBi) 7.5/4.5/5.5
Polarization Vertical
Antenna Type Cellular/LTE
V.S.W.R (dB) <2.5:1
Impedance (ohm) 50
Max Input Power (W) 10
Radiation Pattern Omni-Directional

KIT CONTENTS

LTE OFF-ROAD BUNDLE
1 x Beam MG200 LTE Gateway
2 x Cellular Antennas
2 x Wi-Fi Antenna
1 x Terminal Block ( 2-pin for DC Power )
2 x Mounting Brackets
1 x Screw Bag
1 x Din Rail Bracket with Screws
1 x Spare Device Label
1 x AC Power Adapter with AU Plug
1 x Fused Power Cable
4 x Rubber Feet
1 x MG200 LTE Gateway Quick Start Guide
1 x Beam LTE714 Whip Antenna with 5m Cable
1 x LTE151 Bull Bar Mount 45mm
1 x Beam RST708 GPS Antenna with 5m Cable
1 x Beam LTE Off-Road Bundle Installation Guide

Brochures

Beam lte bundle series

For more information please download our Beam LTE Bundle series brochure.
Download brochure

Beam LTE Off-Road Bundle

For more information please download our Beam LTE Off-Road Bundle Brochure.
Download brochure

Visit our support page to download manuals, qsg, firmware upgrades for this product

Product support
