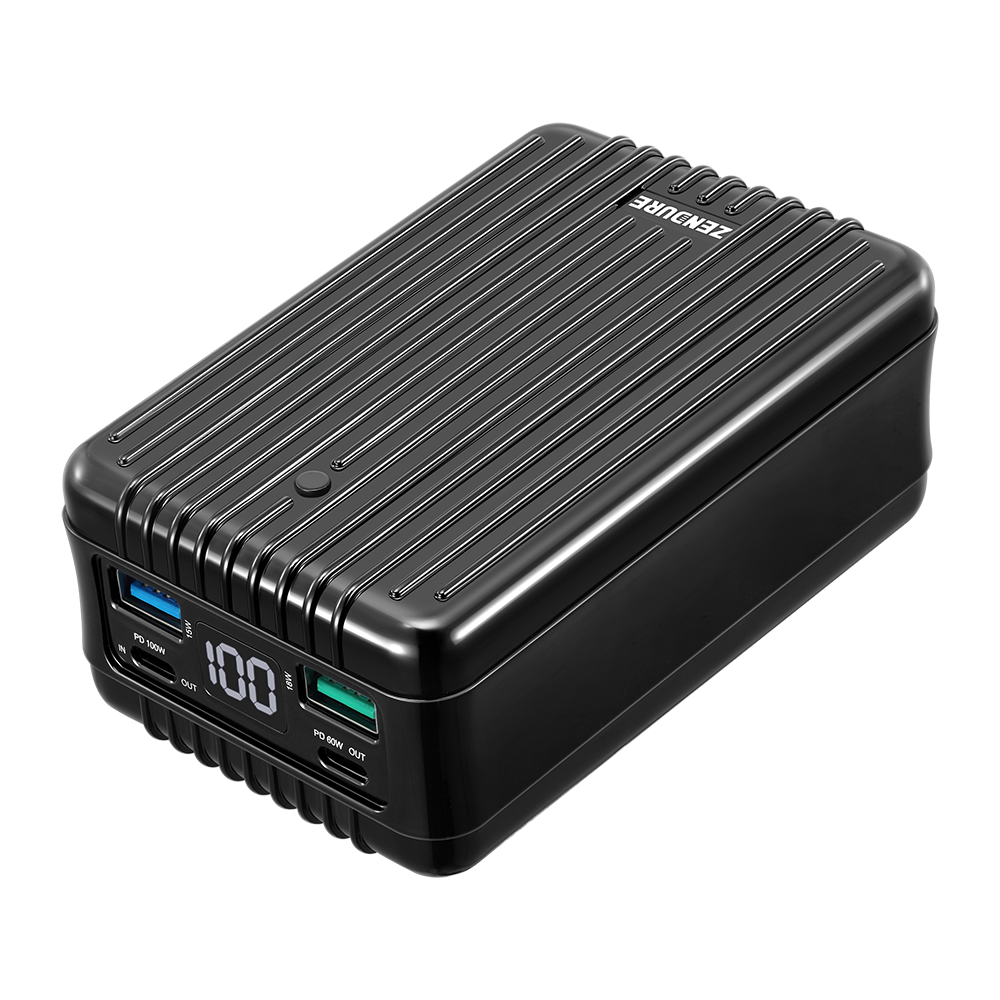

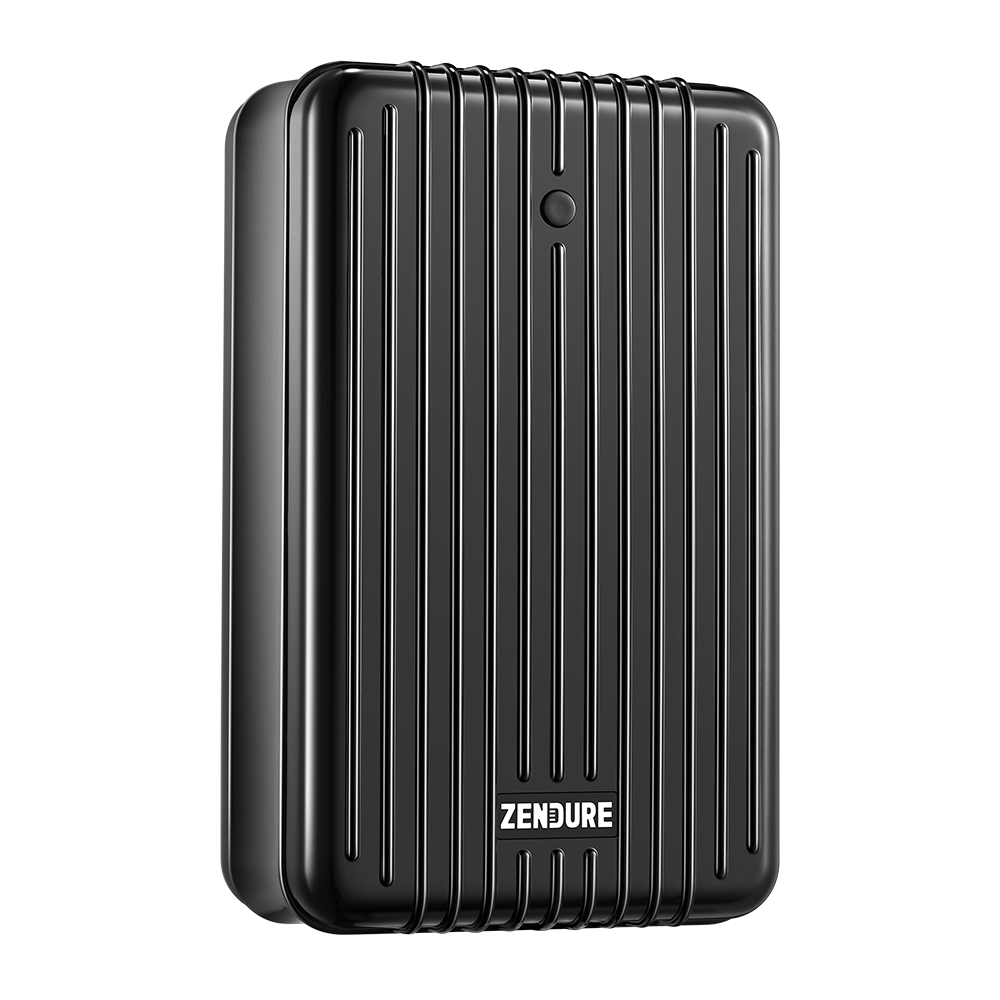

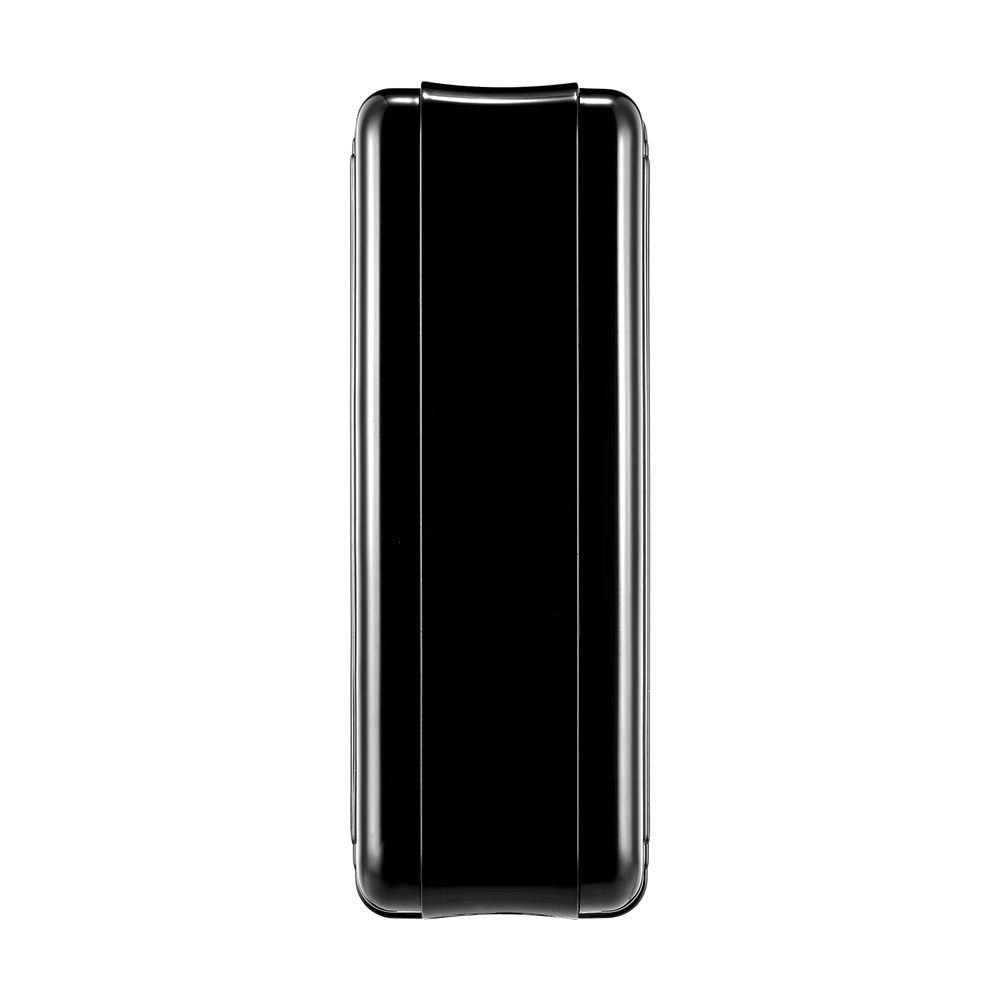

Beam Power Backup Kit - DISCONTINUED (RST068)
MSRP $395 USD
The RST068 Beam Power Backup Kit provides 4 accessible ports that allow you to charge more than one device at a time.
The two (2) PD ports* can power Beam Communications products such as terminals, docking stations and modems using the Beam Intelligent Power Cable. It can also power any PD enabled devices laptops and mobile phones.
The USB ports offers quick charge feature to compatible devices such as mobile phones, tablets, cameras, wearables and other USB compatible devices.
*1 x PD port is also the Power Bank’s charging port.
- Charging
- Power
Beam Power Backup Kit - DISCONTINUED Features
KEY FEATURES

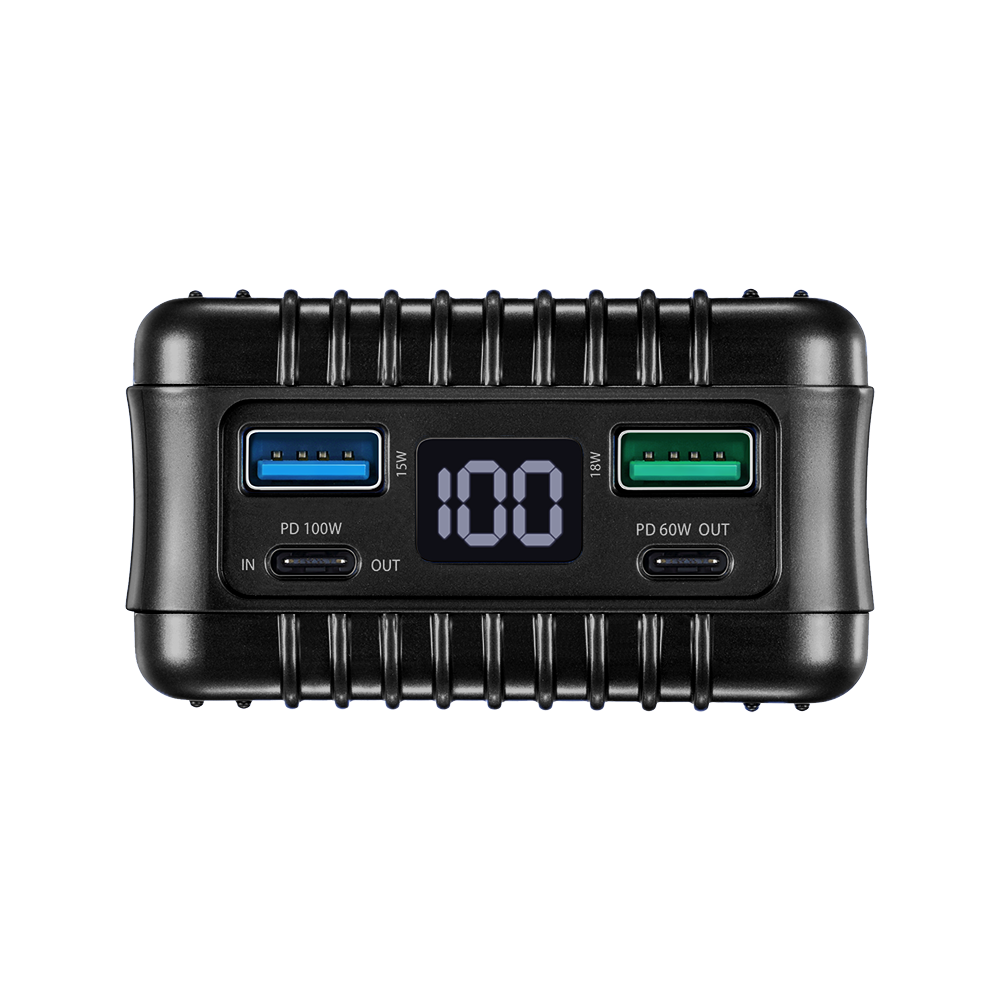

• 1x 100W PD port*, 1x 60W PD port, 1x18W USB Port, 1x 15W USB Port
• Rapid Charge in under 2 hours** with pass through
• X-Charge mode for low power devices (e.g. Wearables)
• 24-month limited warranty
*1 x PD port is also the Power Bank’s charging port.
** Recharge using the provided AC Wall Charger and 100W USB-C cable.
Beam Power Backup Kit - DISCONTINUED Specifications
PHYSICAL SPECIFICATIONS
Dimensions (L x W x H) | mm | inches |
SuperTank | 119 x 73 x 40 | 4.7 x 2.8 x 1.6 |
AC Charger | 58 x 58 x 28 | 2.28 x 2.28 x 1.1 |
DC Charger | 66 x 26 x 26 | 2.6 x 1.02 x 1.02 |
Beam Intelligent Power Cable | 1200 | 39.93 |
RST068 Box Kit | 180L x 165W x 120H | 7.08L x 6.49W x 4.72H |
Weight | kg | lbs |
SuperTank | 0.5 | 1.1 |
RST068 Box Kit | 1.2 | 2.64 |
POWER SPECIFICATION
SuperTank Battery | Input/Output: USB-C 1: 5-20V, up to 5A, 100W* (PD) Output: USB-C 2: 5-20V, up to 3A, 60W (PD) Output: USB 1: 5V/3A, 9V/2A, 12V/1.5A, 18W (ZEN+ 2.0 Quick Charge) Output: USB 2: 5V/3A, 15W (ZEN+ Quick Charge) |
AC Charger (60W) | Input: 100Vac to 240Vac 50/60Hz 1.3A US plug (comes with Intl. Adapters EU/GB/AU) Output: USB-C PD (5Vdc @3A, 9Vdc @3A, 15Vdc @3A, 20Vdc @3A) Typical charging time of SuperTank – under 2 hours |
DC Charger (36W) | Input 1: 12Vdc or 24Vdc (4A max) Output 1: USB-A 18W (4.5Vdc @3A, 5Vdc @4.5A, 9Vdc @3A, 12Vdc @2.5A) Output 2: USB-C PD 18W (5Vdc @3A, 9Vdc @3A, [email protected], 15Vdc @2A, 20Vdc @1.5A) Typical charging time of SuperTank – under 6 hours |
Beam Intelligent Power Cable | Input: USB-C PD 2.0 Output: Molex **15Vdc 3.25A |
*Reduces to 60W when Power Bank capacity is below 50% in Output mode. **Output drops to 12Vdc when 15Vdc input is not available |
ENVIRONMENTAL SPECIFICATIONS
Temperature | Degrees °C | Degrees °F |
SuperTank | ||
Storage | -20 to +65 | -4 to +149 |
Operating (Charging) | 0 to +40 | +32 to +104 |
Operating (Discharging) | 0 to +55 | +32 to +131 |
AC Charger | ||
Storage | -20 to +80 | -4 to +176 |
Operating | 0 to +40 | +32 to +104 |
DC Charger | ||
Storage | -40 to +70 | -40 to +158 |
Operating | -10 to +55 | +14 to +131 |
Beam Intelligent Power Cable | ||
Storage | -20 to +80 | -4 to +176 |
INTERFACE
SuperTank | |
Visual Interface | Digital LED |
Physical Interface | Power On/Off/X-Mode Button |
DC Charger | |
Visual Interface | Blue LED |
KIT CONTENTS
RST066 SuperTank (includes 100W USB-C Cable) |
AC Charger (US Plug with international adaptors for EU/GB/AU) |
DC Charger |
Beam Intelligent Power Cable (1.2 m / 3.93 ft) |
IsatPhone Charging Cable |
Quick Start Guide |
Brochures
Beam Power Backup Kit Brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
