ZOLEO Universal Mount Kit (ZLUMK)

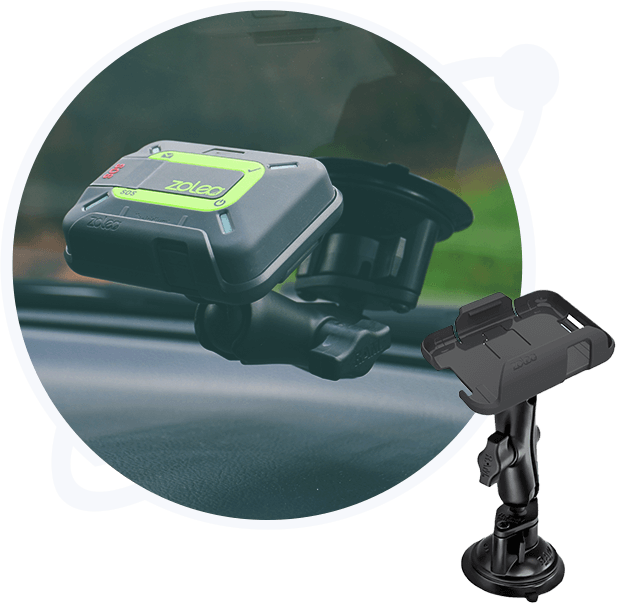

Ideal for securing the ZOLEO device on the windshield of a vehicle or vessel, or any window, and keeping it charged. This kit includes the complete Cradle Kit plus a USB car charger, RAM® Twist-Lock™ Suction Cup Mount for a strong hold on glass and non-porous plastic surfaces. The double socket arm makes it easy to adjust to the desired look-angle.
The Universal Mount Kit includes:
DC car charger
USB cable
Cradle
Camera mount
Strap infill
Belt clip
RAM® Twist-Lock™ Suction Cup mount
Installation guide
- Docking
- Charging
- USB
ZOLEO Universal Mount Kit Features
ZOLEO Universal Mount Kit Specifications

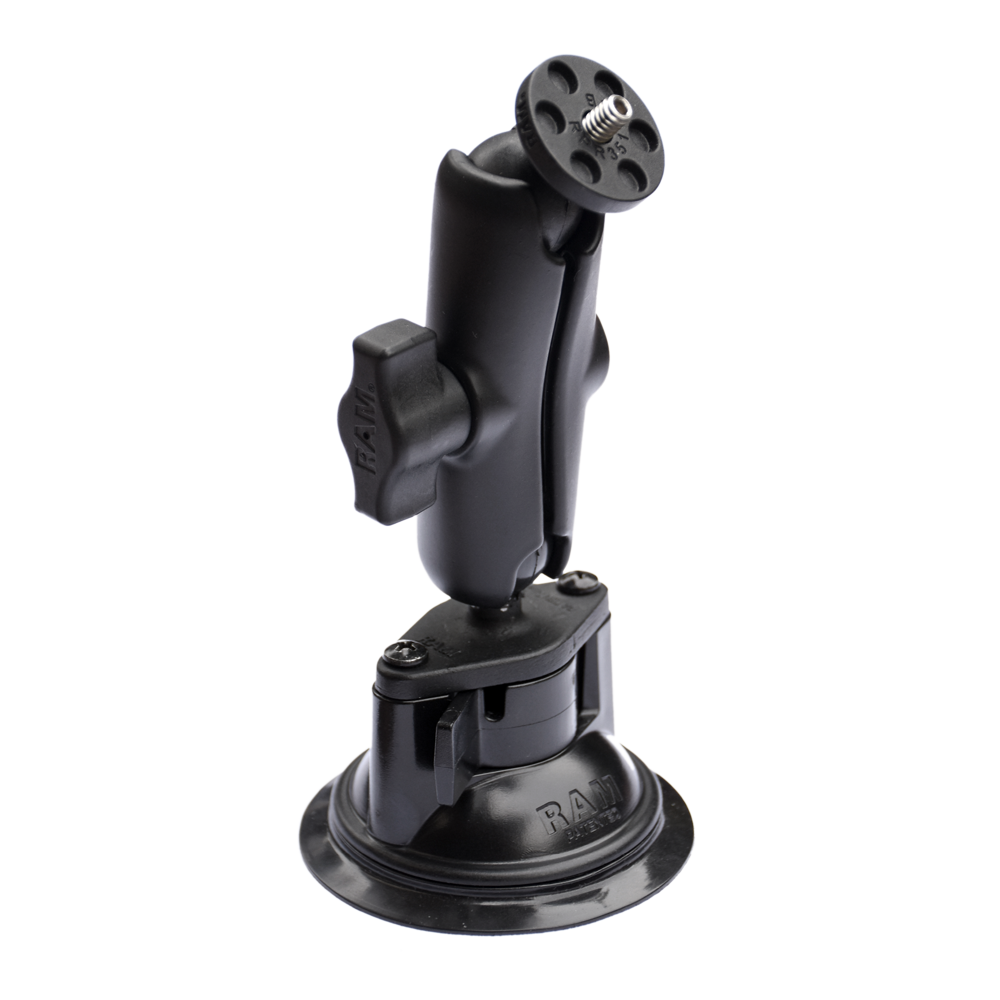

RAM® Mount Components
| RAM Twist-Lock Suction Cup Base with Ball | |
| Suction Cup Dimension in diameter | 8.38 cm (3.3 in) |
| Weight | 118 g (4.16 oz) |
| Ball | B Size 2.54 cm (1 in) rubber ball |
| RAM Double Socket Arm | |
| Dimensions | 9.47 cm (3.73 in) |
| Weight | 140.6 g (4.96 oz) |
| RAM Ball Adapter with ¼ | |
| Dimension | 63.5 mm (2.5 in) in diameter |
| Weight | 72.57 g (2.56 oz) |
| Stud | ¼”-20 threaded steel stud |
| Ball | B Size 2.54 cm (1 in) rubber ball |
| DC Car Charger | |
| Single USB port for use with the included USB to Micro-USB cable | |
| Input Voltage | 12-24 V |
| Output Voltage | 5 V |
| Max Current (A) | 2.5 A |

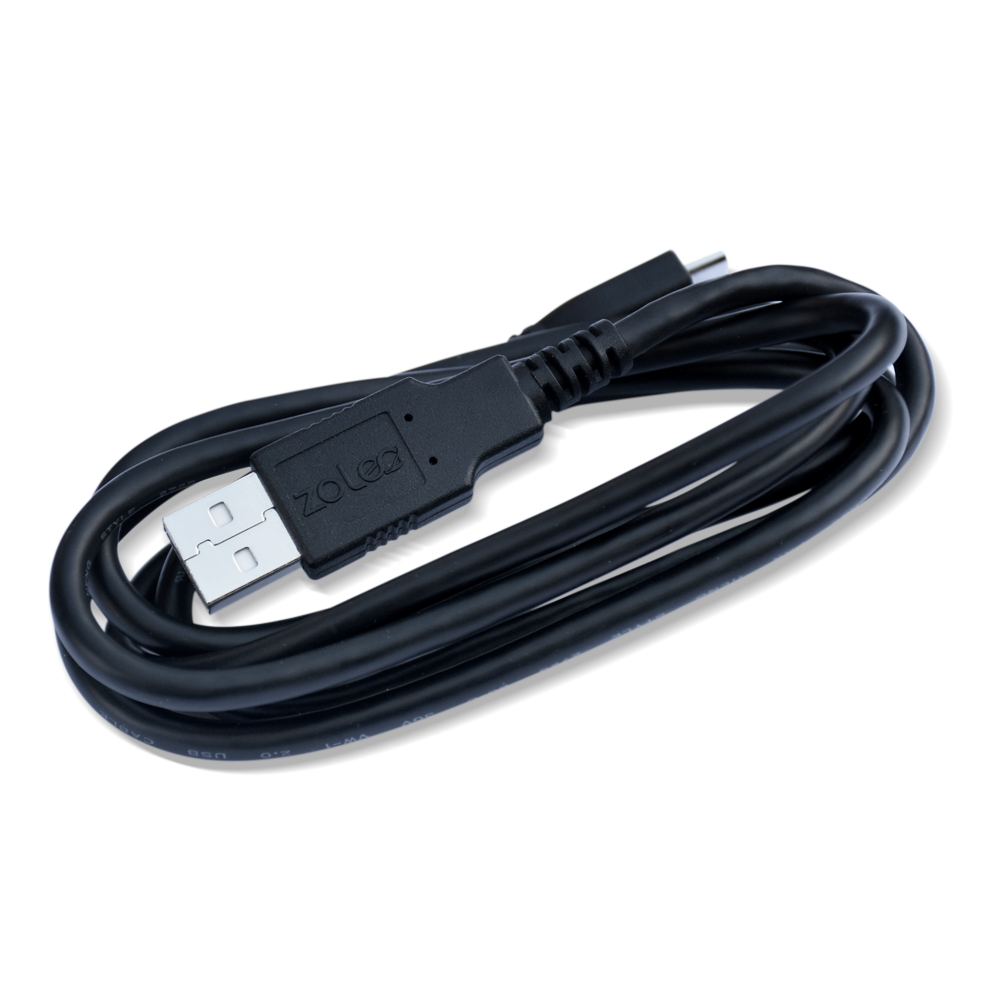

| USB Cable | |
| 1.2 m (3.9 ft) | (USB to Micro-USB) |
