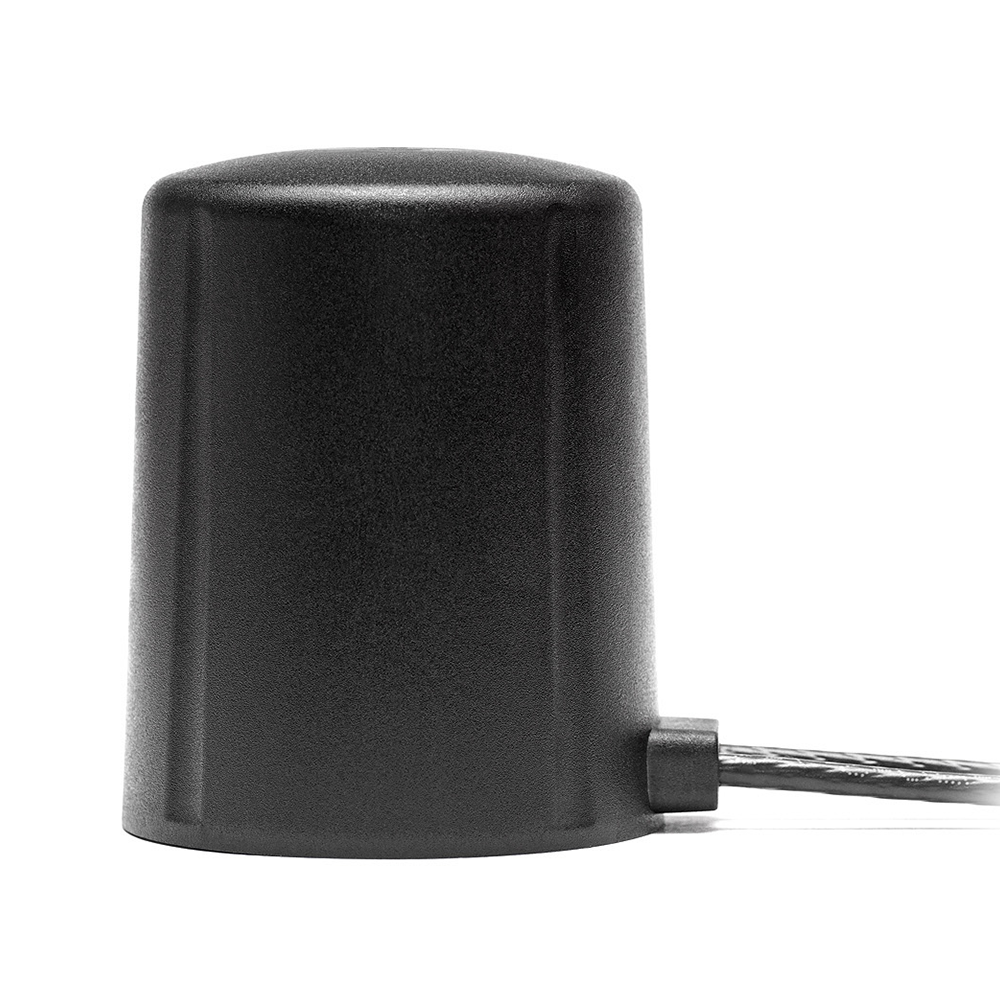

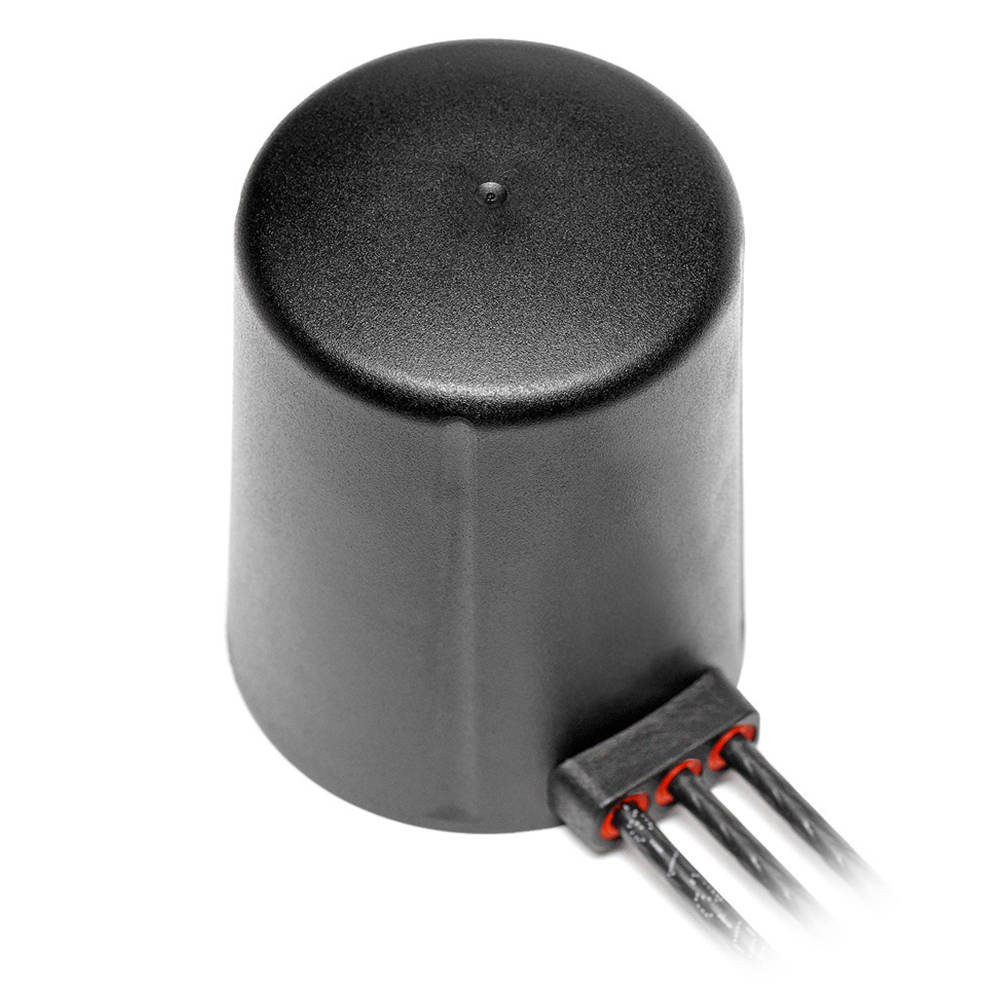

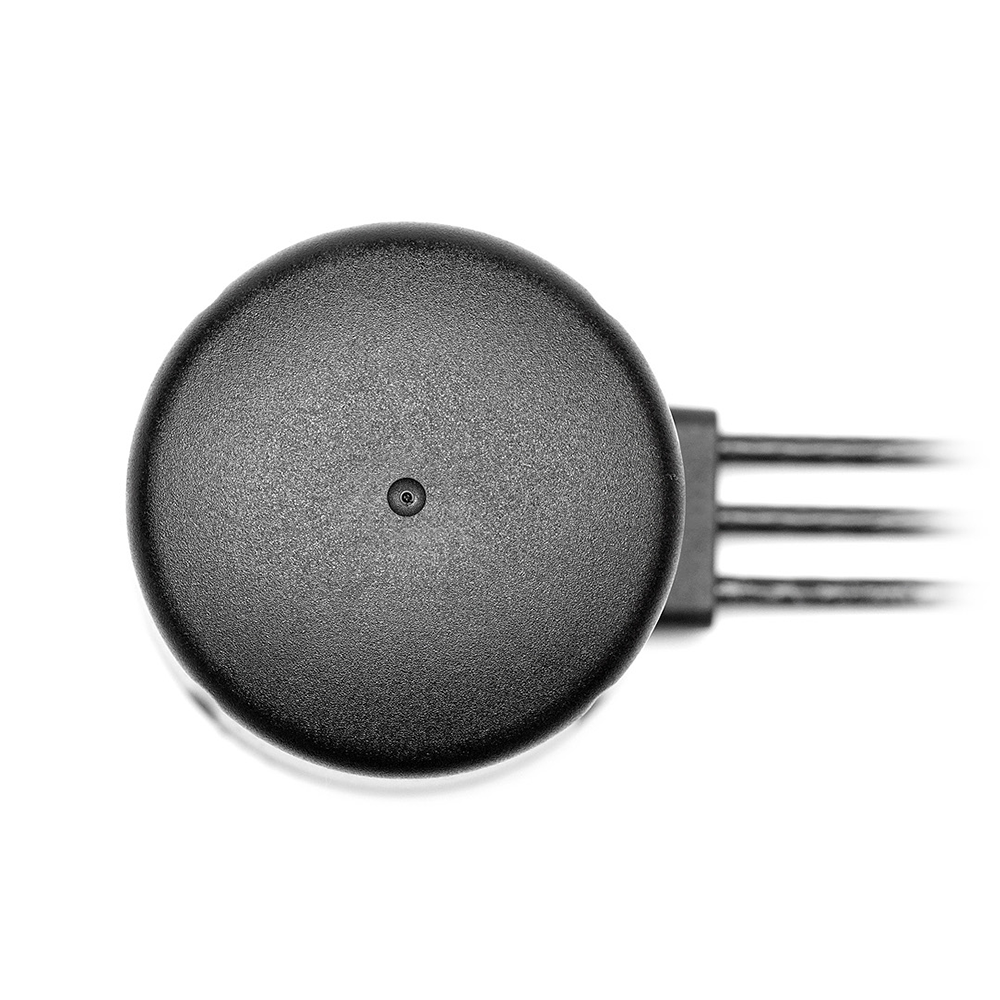

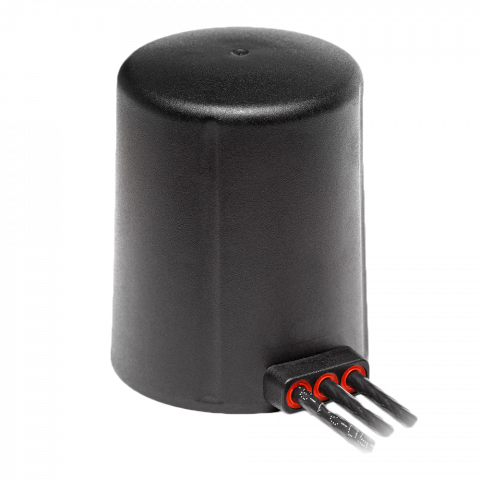

Beam Magnetic Mount Antenna (LTE715)
The LTE715 Magnetic Mount Antenna is ideal for vehicles that travel frequently in and out of fringe and rural locations. It is a highly durable and robust antenna and is weatherproof, designed for harsh environments.
- GPS
Beam Magnetic Mount Antenna Features
KEY FEATURES & BENEFITS
• Industrial design for vehicle environments
• Antenna efficient element design combining LTE and GPS
• Vibration and shock resistant
• LTE Frequency 698-960 / 1710-2170 / 2300-2700 MHz
• LTE Gain -0.1/3.1/2.7 dBi
• GPS Frequency - 1575.42 MHz
• GPS Gain 28 dBi @ 2.7 V
• Antenna efficient element design combining LTE and GPS
• Vibration and shock resistant
• LTE Frequency 698-960 / 1710-2170 / 2300-2700 MHz
• LTE Gain -0.1/3.1/2.7 dBi
• GPS Frequency - 1575.42 MHz
• GPS Gain 28 dBi @ 2.7 V
Beam Magnetic Mount Antenna Specifications
PHYSICAL
| Color | Black | |
| Mounting Pole | Ø 54 x 68.2 | |
| Cable Length (m) | 5 | |
| Dimensions | mm (L x W x H) | inches (L x W x H) |
| Unit | 47 x 32 x 23 | 1.85 x 1.25 x 0.90 |
| Packing Dimensions | 165 x 150 x 85 | 6.49 x 5.90 x 3.34 |
| Weight | kgs | lbs |
| Unit | 0.3 | 0.66 |
| Packing Weight | 0.4 | 0.88 |
ENVIRONMENTAL
| Temperature | Degrees °C | Degrees °F |
| Operating Temperature | -40°C + 85°C | -40°F to +185°F |
SPECIFICATIONS
| LTE | GPS | |
| Frequency (MHz) | 698-960/1710-2170 2300-2700 | - 1575.42 |
| Gain (dBi) | -0.1/3.1/2.7 | 28 @ 2.7 V |
| Polarization | Linear | RHCP |
| V.S.W.R (dB) | ~2.7:1/~1.5:1/~1.5:1 | <=1.4:1 dB |
| Impedance (ohm) | 50 | 50 |
| Input Power (W) | 25 | NA |
| Radiation Pattern | Omni-Directional | Hemispherical |
Brochures
Brochure LTE715 Antenna
For more information please download our LTE715 Antenna Brochure.
Download brochure
Visit our support page to download manuals, qsg, firmware upgrades for this product
