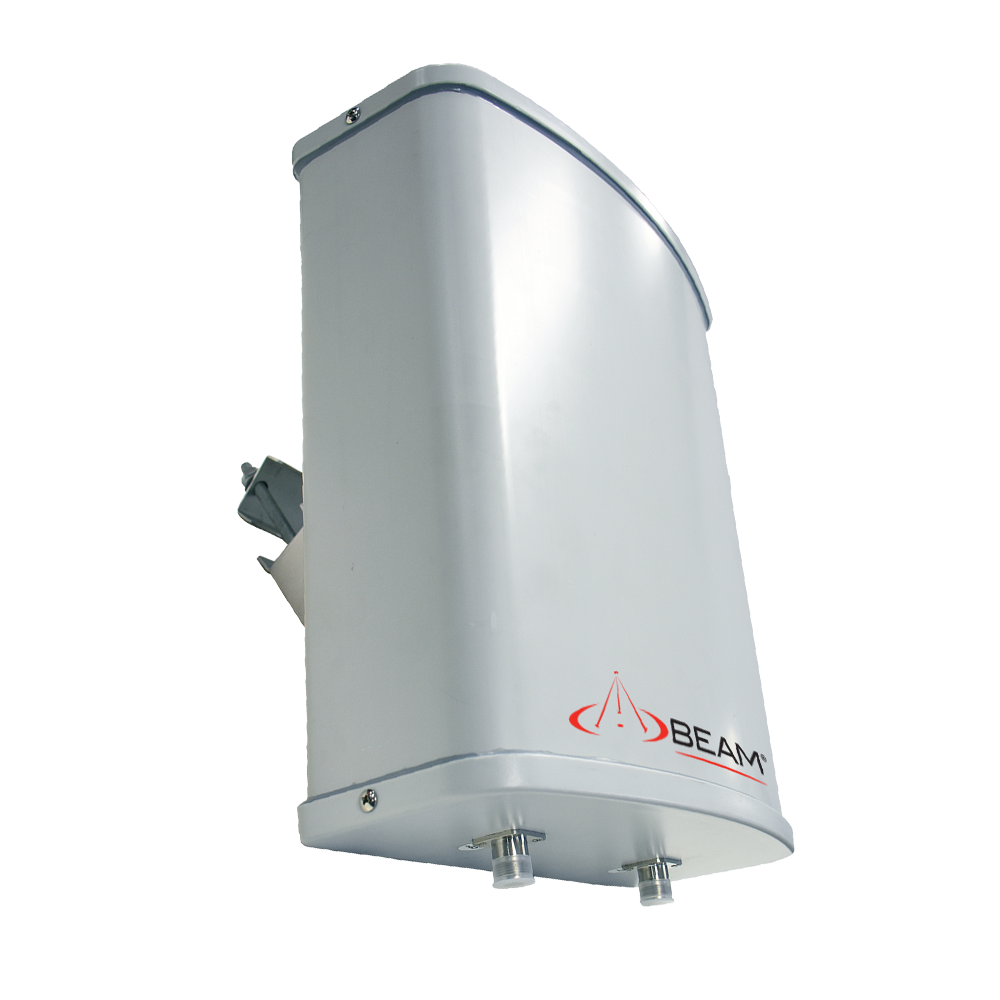

Beam LTE Panel Antenna (LTE720)
The rugged and weatherproof LTE720 Panel Antenna, is designed to provide high-speed 4G multiple input, multiple output (MIMO) data connection.
The LTE720 Panel Antenna comes with a bracket for easy installation and rotation. It is the ideal solution for fixed installation to residential, commercial and industrial mobile broadband applications on any* mobile network.
* Please refer to the Frequency range outlined on the Specification Table.
Beam LTE Panel Antenna Features
Features & Benefits
• 8 dBi gain across 698-960 MHz frequencies
• dBi gain across 1710-2700 MHz frequencies
• Dual-polarised antenna (PIM<-150dBc)
• High speed 4G LTE MIMO
• High front-to-back ratio (22dB)
• Weatherproof, rigid and durable UPVC radome
• Easy to install and rotate
• dBi gain across 1710-2700 MHz frequencies
• Dual-polarised antenna (PIM<-150dBc)
• High speed 4G LTE MIMO
• High front-to-back ratio (22dB)
• Weatherproof, rigid and durable UPVC radome
• Easy to install and rotate
Beam LTE Panel Antenna Specifications
PHYSICAL
| Color | Gray | |
| Material | UPVC | |
| Mounting Pole | Ø 35-65 | |
| Dimensions | mm (L x W x H) | inches (L x W x H) |
| Unit | 355 x 285 x 130 | 13.97 x 11.22 x 5.11 |
| Packing Dimensions | 535 x 345 x 220 | 21.06 x 13.58 x 8.66 |
| Weight | kgs | lbs |
| Unit | 3.5 | 7.7 |
| Packing Weight | 4.5 | 8.8 |
ENVIRONMENTAL
| Dimensions | Degrees °C | Degrees °F |
| Operating Temperature | -20°C + 50°C | -4°F + 122°F |
SPECIFICATIONS
| Frequency (MHz) | 698-960MHz /1710-2700MHz |
| Gain (dBi) | 8/9 |
| Polarization | ±45° (XPOL) |
| Antenna Type | LTE/ Cellular |
| V.S.W.R (dB) | ≤1.5:1 |
| Impedance (ohm) | 50 |
| Max Input Power (W) | 100 |
| Radiation Pattern | Directional |
Brochures
Brochure LTE720 Antenna
For more information please download our LTE720 Antenna Brochure.
Download brochure
Accessories
 |
|

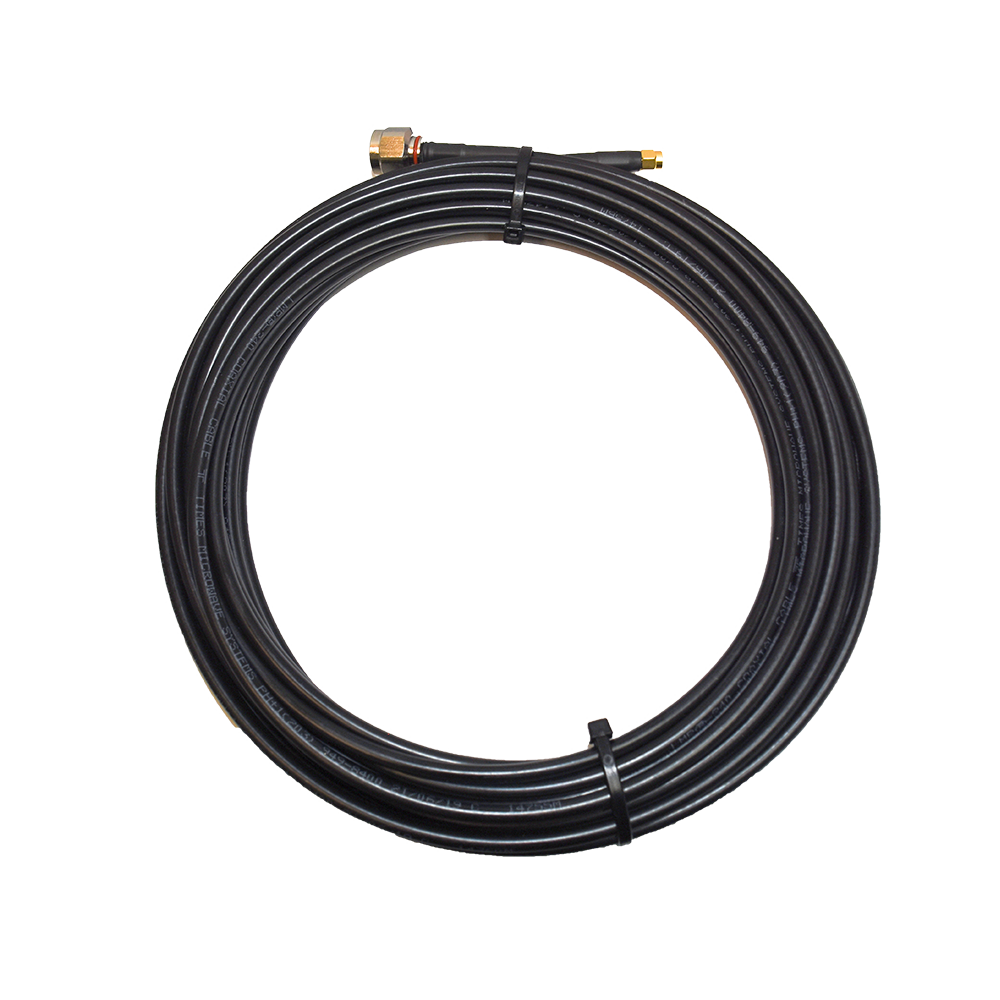

LTE93210m Cable |
LTE93320m Cable |
